29-00006

Omschrijving:

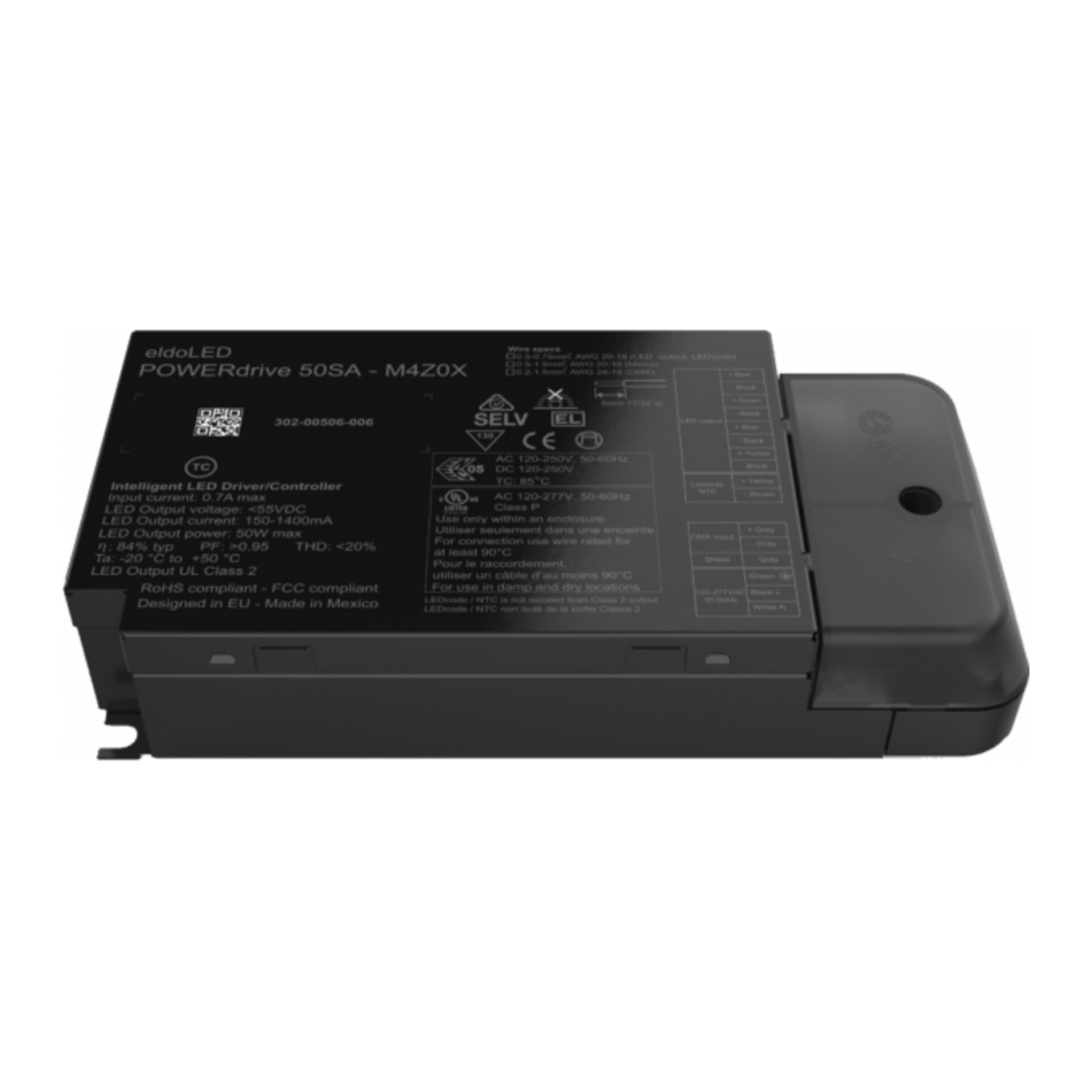

POWERdrive by eldoLED.

The POWERdrive 50W linear family of multi-channel drivers expands with your luminaires and applications. Making the world of color reimagined. POWERdrive has multiple constant current outputs that are independently controlled via DALI or DMX/RDM. Create your color or dynamic show without an external controller in standalone mode. POWERdrive consistently delivers the right color and smoothest fades.

Features & benefits

• Natural dimming: Dim to dark, smooth brightness changes, excellent flicker performance,adaptable dimming curves, configurable minimum dimming level.
• Programmable: 4 x fully programmable, Class-2, constant current LED outputs which operate across a wide operating window.
• Performance: Universal input voltage range, low inrush current and total harmonic distortion (THDL), high power factor and efficiency.
• Camera compatibility: Hybrid HydraDrive technology is proven to work in TV studios and security camera environments.
• DMX/RDM: DMX/RDM compatible full-color (RGBW) LED driver.
• Isolated DMX interface: Improved immunity against surge events and enhanced robustness against accidental mis-wiring.

Input characteristics

• Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL).
• Absolute input voltage range AC: 108 - 305V.
• Nominal input voltage range DC: 120 - 250V.
• Maximum input current AC: 0.5A @ 120V, 0.26A @ 230V, 0.22A @ 277V.
• Input frequency range: 50 - 60Hz.
• Efficiency at full load: 86%.
• Power factor at full load: >0.95.
• THDL at full load: <20%.
• Maximum inrush current AC: <100mA²s @ 120V, <100mA²s @ 230V, <100mA²s @ 277V.
• Surge protection: 2kV differential mode (DM), 2kV common mode (CM).
• Maximum standby power: <0.5W.
• Size (LxHxW): 153x30.5x76 mm / 6x1.2x3.
• Weight (including products): 350 g.

Output characteristics

• Maximum LED output power: 50W.
• Number of LED outputs: 4 (UL Class 2).
• Programmable LED output current range: 150 - 1400mA per LED output, the cumulative current across all LED outputs shall not exceed
• 3400mA at any, point in time during normal operation.
• LED output type: programmable in 1mA steps via DMX terminal and FluxTool.
• LED output current tolerance: +/- 5% at programmed LED output current.
• LED output voltage range: 2 - 55V.
• Startup time: < 500ms, see Design Guide for details.

Control characteristics

• Control channels: 1 - 4 (default), Multiple LED outputs can be mapped onto a single DMX group. For more details, see the Design Guide.
• Control protocol: DMX/RDM.
• Dimming range: 100% - 0.1%.
• Dimming curve options: Logarithmic (default), Linear, Soft-Linear, Square.
• Dimming method: Hybrid HydraDrive.

Programming tools

• Programming interface: TOOLbox pro (TLU20504).
• Programming cable set: TOOLbox pro to LED driver, programming cable, 5pcs (TLC03051).
• Programming software: FluxTool.

Environmental conditions

• Operating ambient temperature (Ta) range: -20 ºC to +50 ºC.
• Maximum operating case temperature (Tc max): 85 ºC.
• Lifetime: 50.000 hours at a maximum case temperature (Tc) of 85 ºC.
• Acoustic noise - steady state: <24dBA (Class A).
