29-00007

Omschrijving:

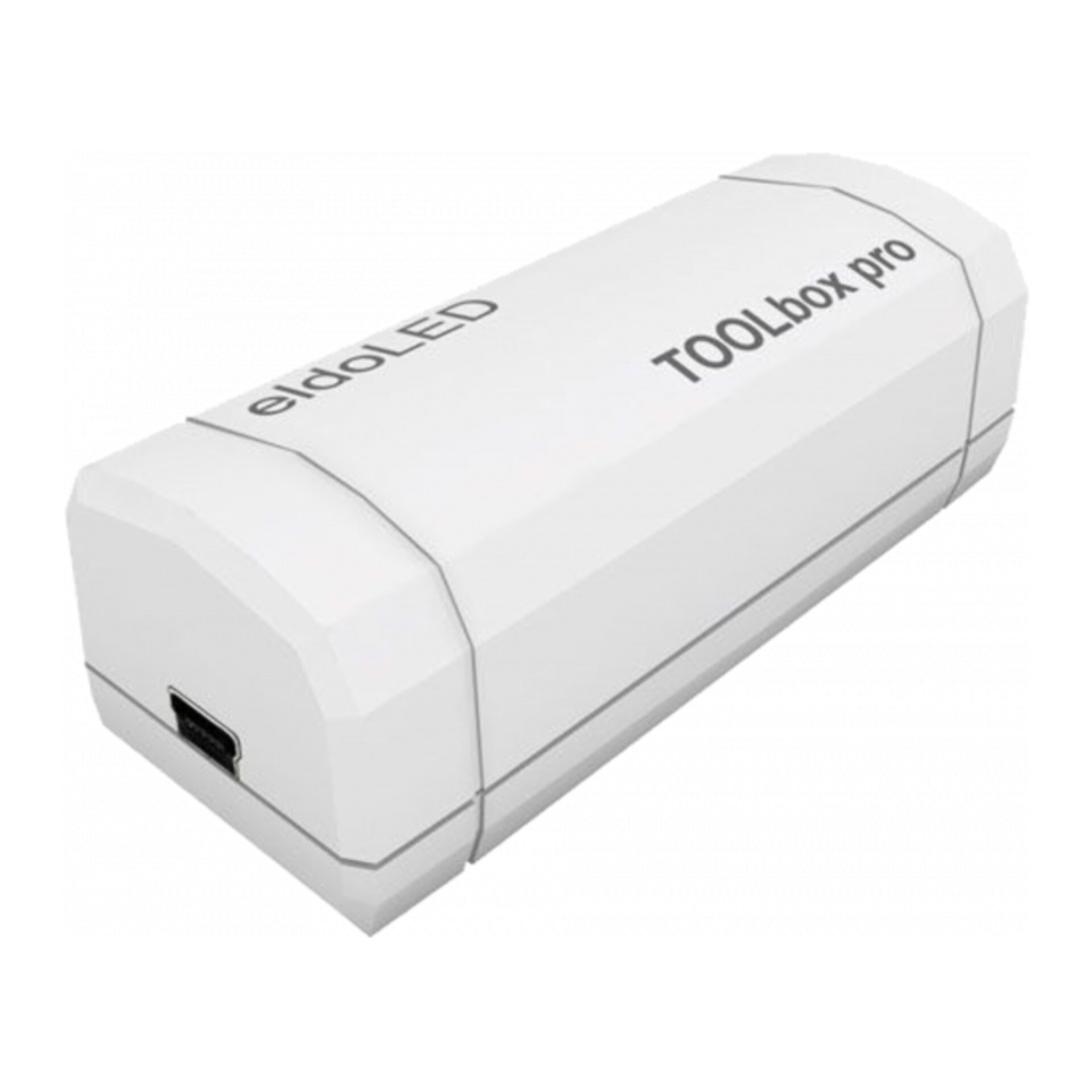

TOOLbox by eldoLED.

The TOOLbox pro is a powerful configuration device that provides the physical link between your PC and your eldoLED driver. Used in combination with FluxTool or ShowMaster DMX, TOOLbox pro offers the ability to configure drivers via LEDcode and DMX. The TOOLbox adapter provides power to the driver during configuration without the use of line voltage. The TOOLbox adapter protects operators from the hazards of mains voltage and enables maximum efficiency through the utilization of hands-free configuration jigs.

• Data in: USB A (PC) to mini USB (TOOLbox).
• Data out: RJ45, DMX: pin 1 (DMX+), 2 (DMX-) and 7 (DMX shield); DALI: pin 4 (DALI -) and 5 (DALI +); LEDcode: pin 6 (LEDcode+) and pin 8 (LEDcode-).
• Operating ambient temperature (Ta) range: -20 ºC to +50 ºC.
• What is included: TOOLbox pro, One 3ft (1m) USB A to mini USB cable, One 2ft (0.6m) RJ45 to LEDcode, DALI, DMX cable.
• Size(LxHxD): 76.2x31.8x25.4 mm / 3x1.25x1 in.
• Weight: 30 g.
