29-00014

Omschrijving:

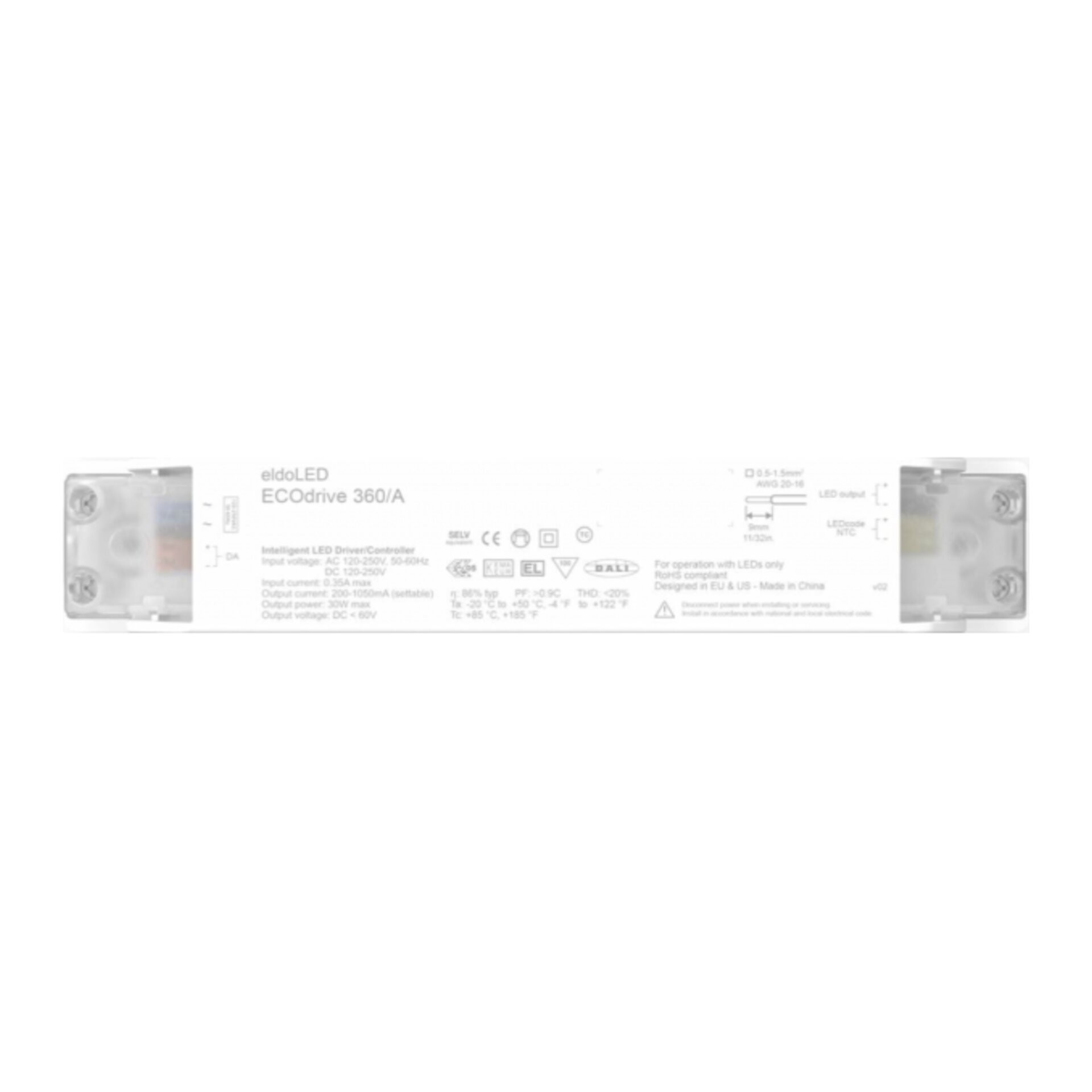

ECOdrive by eldoLED.

The ECOdrive 30W compact family by eldoLED has programmable digital LED drivers that deliver the smoothest flicker-safe dimming (1%). It's easily designable with dimming capabilities via DALI or LEDcode controls. ECOdrive also has a single configurable constant current LED output. You can program ECOdrive outputs to include time, motion and brightness-based intelligence. ECOdrive supports wireless communications and control through Bluetooth radio accessories for Casambi and Atrius IoT systems.

Features & benefits

• Natural dimming: Dim to 1%, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level.
• LEDcode: LEDcode2 connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices.
• Programmable: Fine-tune your driver for any application.
• Performance: Hybrid HydraDrive technology is proven to work in TV studios and security camera environments.
• Pulse dimming: Different switching and dimming functions are initiated by pressing and holding the standard mains voltage switch for varying lengths of time.

Programming tools

• Programming interface: TOOLbox pro.
• Programming cable set: TOOLbox pro to LED driver, programming cable, 5pcs.
• Programming Hand-held, Touch-and-Go: PJ0035HH1.
• Programming jig: PJ0300A1.
• Programming software: FluxTool.

Input characteristics

• Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL).
• Absolute input voltage range AC: 108 - 305V.
• Nominal input voltage range DC: 120 - 250V.
• Maximum input current AC: 0.35A @ 120V, 0.15A @ 277V.
• Input frequency range: 50 - 60 Hz.
• Efficiency at full load: 84%.
• Power factor at full load: > 0.9.
• THDL at full load: < 15%.
• Maximum inrush current AC: <100mA²s @ 120V, <100mA²s @ 277V.
• Surge protection: 2kV differential mode (DM), 2kV common mode (CM).
• Maximum standby power: < 0.5W.
• Size (LxHxW): 210x33,5x40 mm / 8,27x1,32x1,57 in.
• Weight (including products): 204 g.

Output characteristics

• Maximum LED output power: 30W.
• Number of LED outputs: 1 (UL Class 2).
• Programmable LED output current range: 150 - 1400mA.
• LED output type: Programmable in 1mA increments within specified current range.
• LED output current tolerance: +/- 5% at programmed LED output current.
• LED output voltage range: 2 - 55V.

Control characteristics

• Control channels: 1.
• Control protocol: LEDcode2, DALI-2 Device type 6 & Pulse dimming.
• Dimming range: 100% - 1%.
• Dimming curve options: Logarithmic (default), Linear.
• Dimming method: Hybrid HydraDrive.
• Time delay to standby: <25s.

Environmental conditions

• Operating ambient temperature (Ta) range: -20 ºC to +50 ºC, for output current ≤1050mA, -20 ºC to +40 ºC for output current >1050mA.
• Maximum operating case temperature (Tc max): 85 ºC.
• Lifetime: 50,000 hours at a maximum case temperature (Tc) of 85 ºC.
