Algemeen
Artikelnummer
21-00641
Merk
ProLights
Artikelnummer fabrikant
SMARTPARNEOPACK
Garantie
2 jaar
Lichtbron
Lichtbron7x10W RGB + Warm White LED
CCTCCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
Luminous flux3'179 lm @Full
Lux2'357lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI92,3 @3.200K; 90,9 @5.600K, 92,3 @3.200K; 90,9 @5.600K
R989,8 @3.200K; 97,8 @5.600K, 89,8 @3.200K; 97,8 @5.600K
TLCIUp to 97 @5.600K, Up to 97 @5.600K
TM30 Rf> 90, > 90
TM30 Rg< 107, < 107
Optiek

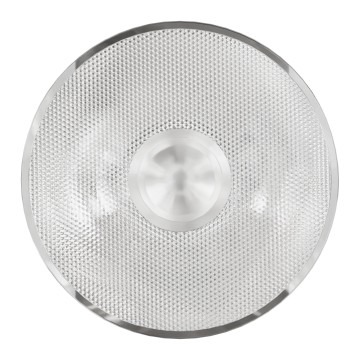

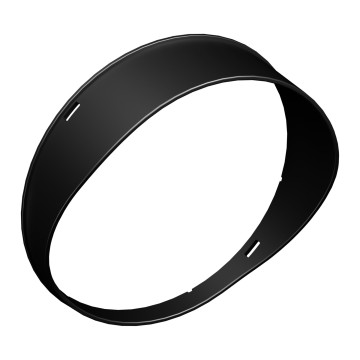

Extra optieken(optional) 20° and 40° - see available accessories, (optional) 20° and 40° - see available accessories
Kleuren
KleurmengingRGB + Warm White, RGB + Warm White
Wit macro's2.700 K -10.000K, 2.700 K -10.000K
Kleurenwielvirtual colour wheel with macros, virtual colour wheel with macros
Effecten
Macrosseveral pre-built macros with adjustable speed, several pre-built macros with adjustable speed
Control Resolution16-bit dimmer and color control, 16-bit dimmer and color control
Aansturing
DMX kanalen4/6/10/3 ch in legacy mode | 1/5/11/17ch
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface, Graphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (not included), via DMX with UPBOXPRO/UPBOX1 (not included)
RDMfor remote addressing and parameter configuration, for remote addressing and parameter configuration
Electronics
Dimmerlinear 0 - 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
BedrijfstemperatuurTa 0 to +45 °C (+32 to +113 °F)
Selecteerbare PWM frequentie1000 to 25000 Hz (selectable steps), 1000 to 25000 Hz (selectable steps)
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Batterij16,8V lithium, 16,8V lithium
Fysieke eigenschappen
Koelingfan-free with natural convection
Bevestiginghanging bracket for floor positioning with "Quick-Lock" system
Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON TRUE IP65 IN/OUT, Seetronic powerCON TRUE IP65 IN/OUT
IP waardeIP65 for temporary outdoor use, IP65 for temporary outdoor use
Overige eigenschappen
Data aansluitingCRMX transreceiver
CRMX transreceiver
