Algemeen
Artikelnummer
21-00436
Merk
ProLights
Artikelnummer fabrikant
SMARTBATWASHPACK
Garantie
2 jaar
Lichtbron
Lichtbron15x20W RGB + Warm White LED
CCT CCT control through dedicated DMX channel
Luminous flux4753 lm @full
Lux3061lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRITBD
R9TBD
TLCITBD
TM30 RfTBD
TM30 RgTBD
Kleuren
Kleurmenging RGBWW
Wit macro's2'800K - 10'000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros built-in white presets
Control Resolution 16-bit dimmer, colours
Body
Kleur behuizing RAL 9004
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen CRMX+W-DMX, DMX512, RDM
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur 0° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik180W
Power factor>0,93
Batterij16,8V lithium
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging any position with quick-lock omega brackets
Signaal aansluitingIP65 Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting magnetic DC connector for battery recharge and Neutrik powerCON TRUE1 IN/OUT connectors

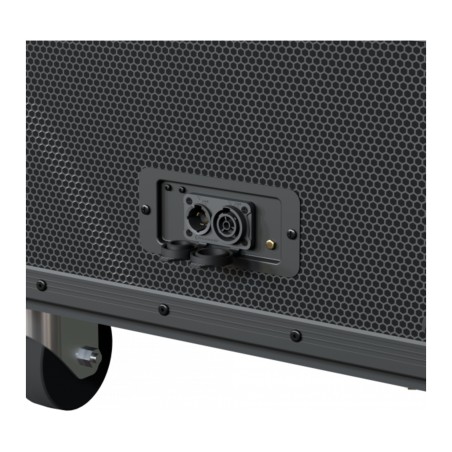

Oplaad connectie Directly from the mains power or magnetic fast-charge in case
IP waarde65 for temporary outdoor application, not for fixed installations
