Lichtbron
Lichtbron15x20W RGB + Warm White LED
CCTCCT control through dedicated DMX channel
Luminous flux6'300 lm @full
Lux4'451lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI> 95 @3200K ; > 93 @5600K
R9> 98 @3200K ; > 93 @5600K
TLCI> 84 @5600K
TM30 Rf94.2 @3200K ; > 92 @5600K
TM30 Rg104.4 @3200K ; > 105 @5600K
Kleuren
KleurmengingRGBWW
Wit macro's2'800K - 10'000K
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosbuilt-in white presets
Control Resolution16-bit dimmer, colours
Behuizing
Kleur behuizingRAL 9004
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenCRMX+W-DMX, DMX512, RDM
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur0° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik180W
Power factor>0,94
Batterij16,8V lithium
Fysieke eigenschappen

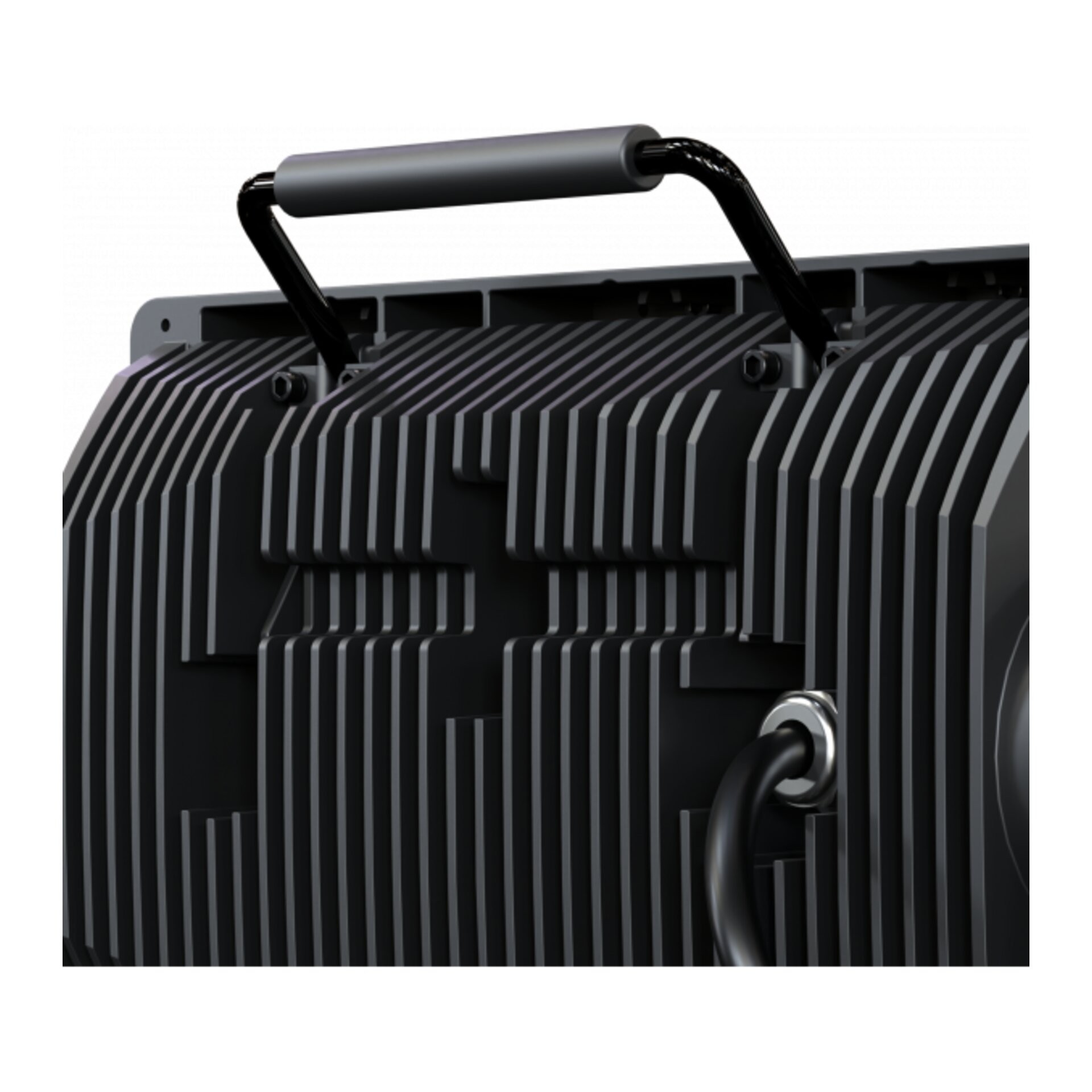

Koelingpassive cooling and fan-free
Bevestigingany position with quick-lock omega brackets

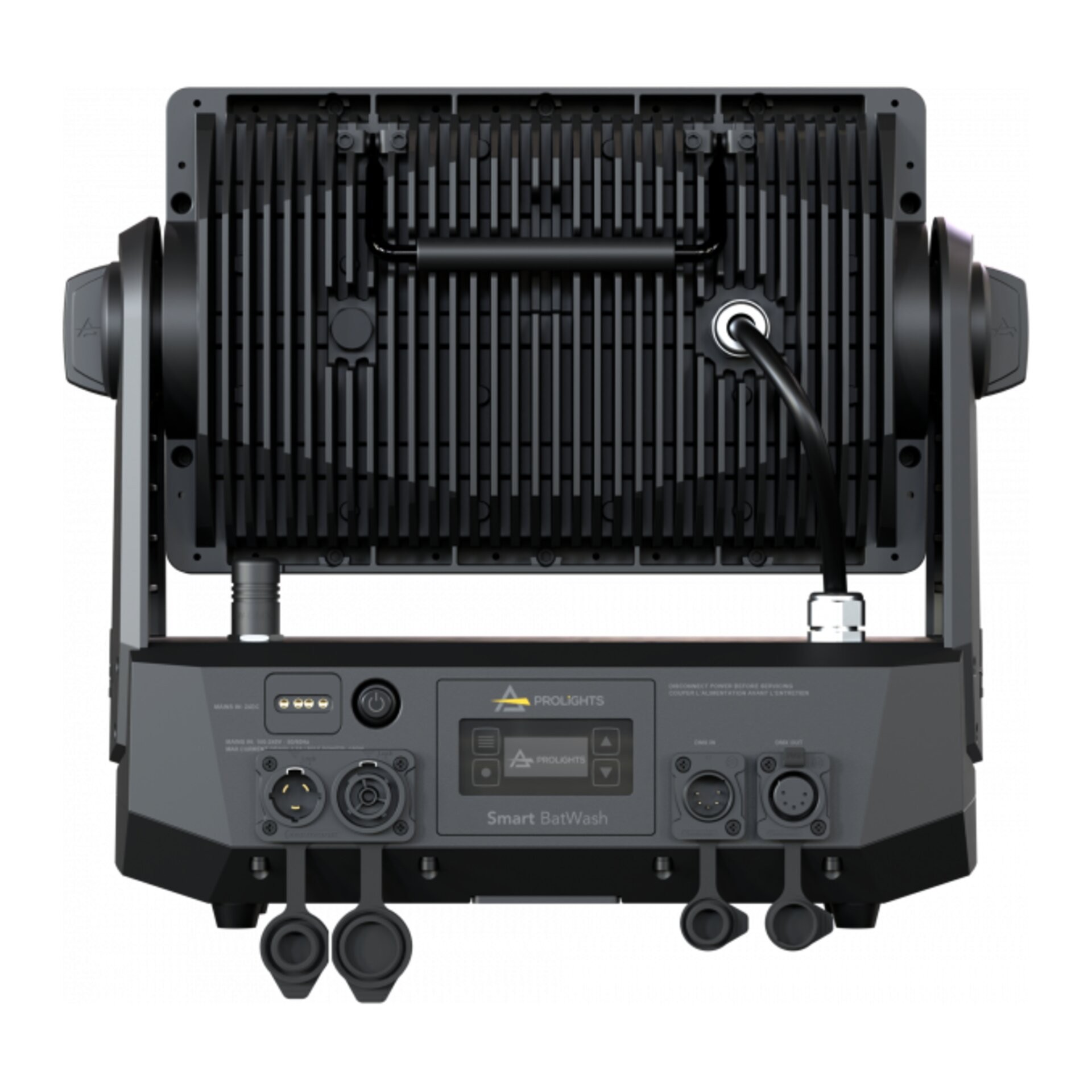

Signaal aansluitingIP65 Amphenol XLR 5p IN/OUT connectors

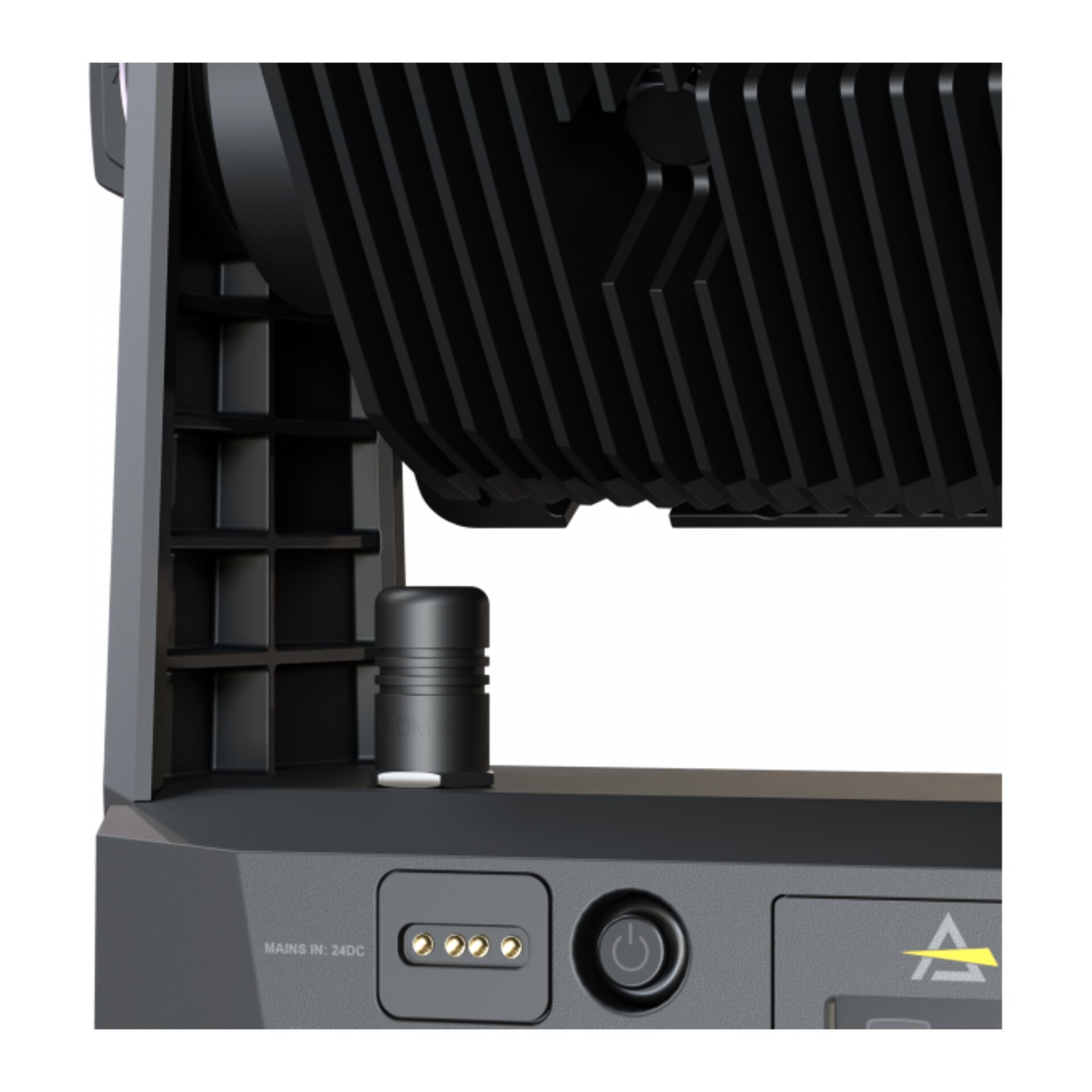

Stroomaansluitingmagnetic DC connector for battery recharge and Neutrik powerCON TRUE1 IN/OUT connectors
Oplaad connectieDirectly from the mains power or magnetic fast-charge in case
IP waarde65 for temporary outdoor application, not for fixed installations
Logistieke eigenschappen
Hoogte verpakking
42 cm
Breedte verpakking
42 cm
Diepte verpakking
21.5 cm
Gewicht verpakking
11.7 kg
