Lamp eigenschappen
KleursysteemCC/CW - Tunable White
AansturingDMX, RDM
Vermogen30W

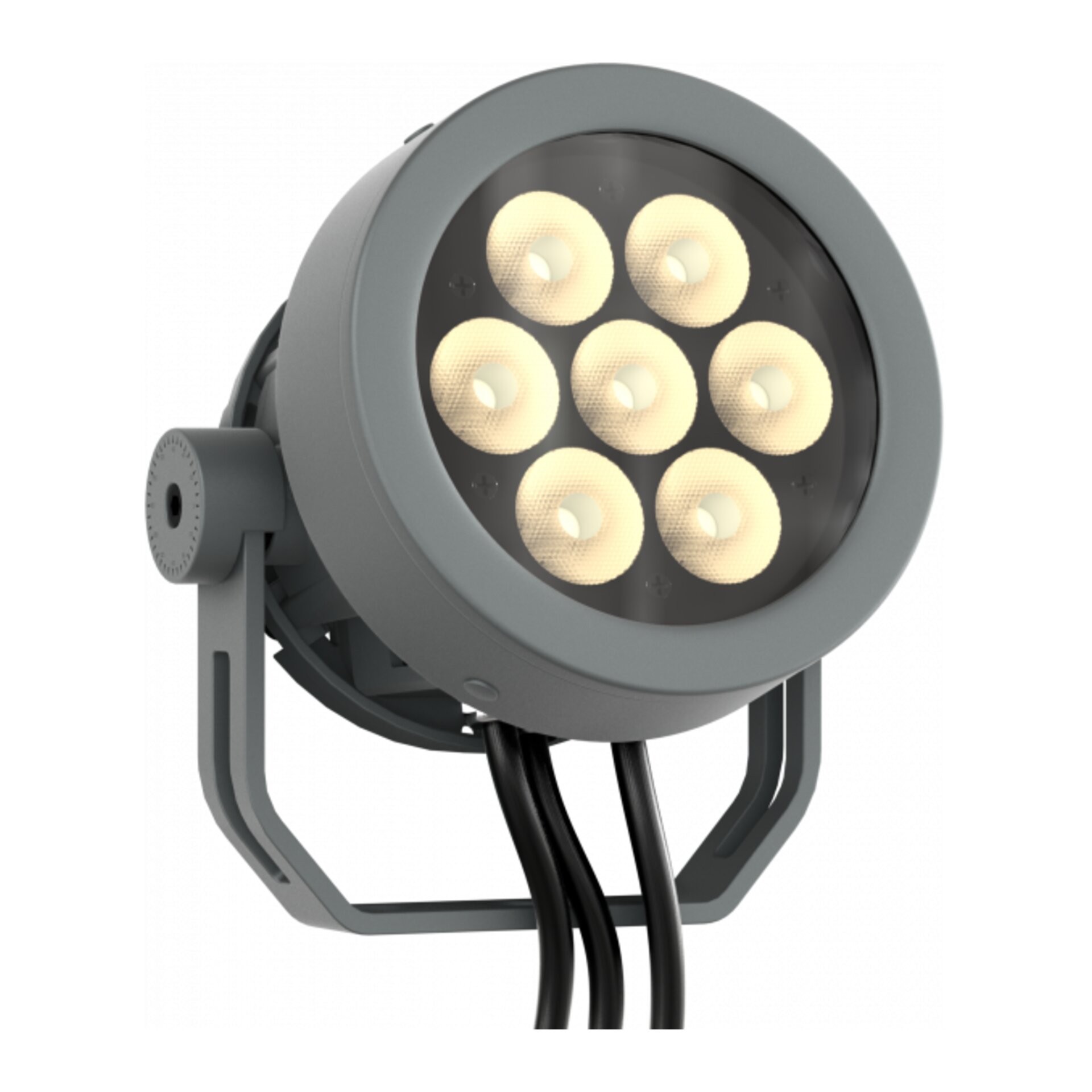

SerieArcSpot
Lichtbron
Lichtbron7 x 4W Variable White LED
CCT linear CCT control
Luminous flux1'697 @full
Lux1'344lx @5 m full
Levensverwachting lichtbron > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI96 @WW; 92 @CW; 93 @full
R996 @WW; 95 @CW; 79 @full
TLCI98 @WW; 98 @CW; 97 @full
TM30 Rf>96 @WW; >92 @CW; >94 @full
TM30 Rg Source life expectancy: > 90.000 hrs
Optiek
Extra optieken see available accessories
Kleuren
Kleurmenging tunable white
Kleurenwiel built-in white presets
Effecten
Macros several pre-built macros with adjustable speed
Behuizing
Kleur behuizingRAL 7012
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen2 / 3 / 4 / 9channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik30W
Power factor> 0,9
Fysieke eigenschappen
Bevestiging bracket for hanging and positioning
Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN connector
IP waardeIP66
Montage mogelijkhedenOpbouw
Logistieke eigenschappen
Hoogte verpakking
20.5 cm
Breedte verpakking
21 cm
Diepte verpakking
20 cm
Gewicht verpakking
2 kg
