Algemeen
Artikelnummer
21-00521
Merk

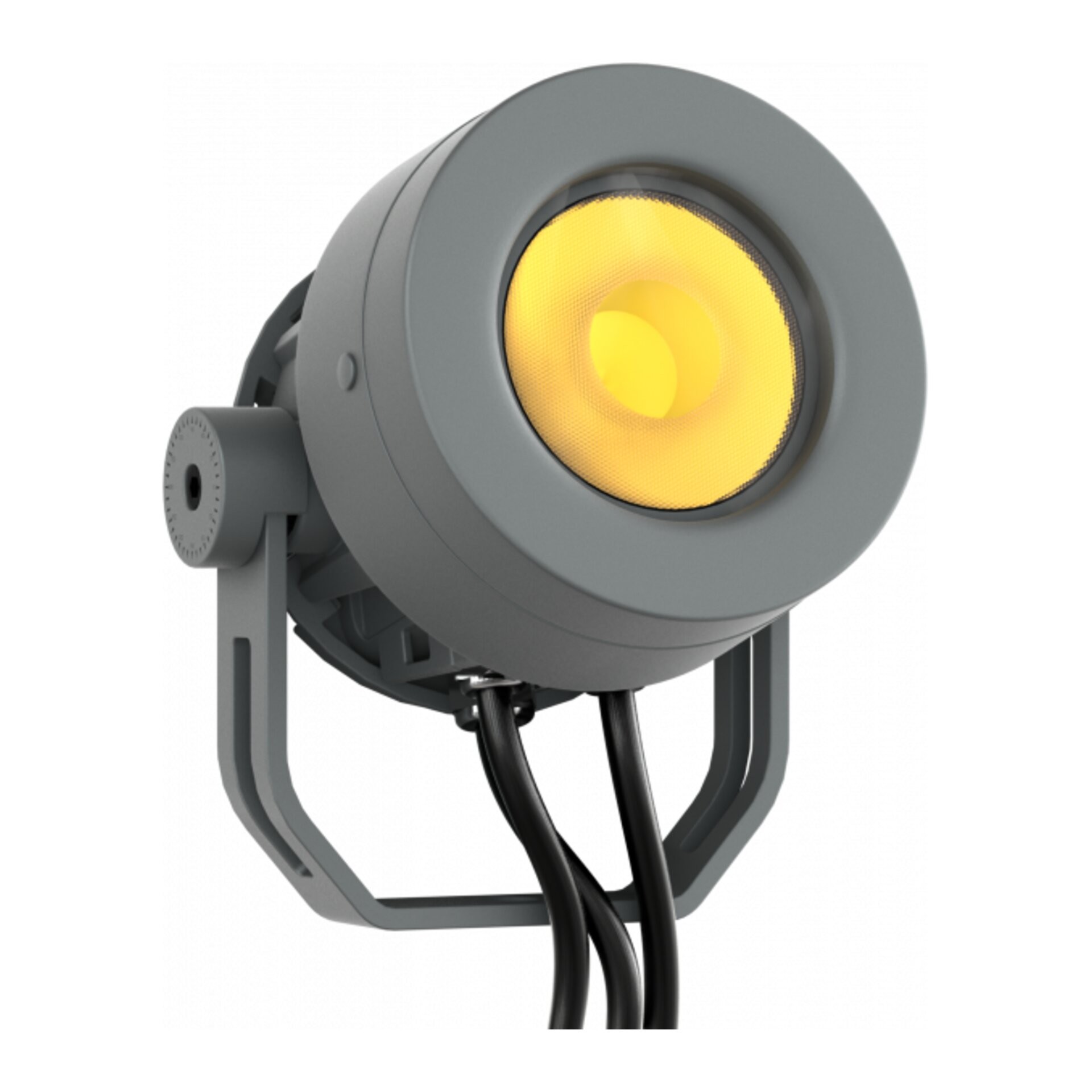

ProLights
Artikelnummer fabrikant
ARCSPOTDOTFCGY
Garantie
2 jaar
Lichtbron
Lichtbron1 x 20W RGB + Warm White LED
Luminous flux592 @full
Lux699lx @5 m full
Levensverwachting lichtbron > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
Optiek
Extra optieken see available accessories
Kleuren
Kleurmenging RGB + Warm White
Kleurenwiel gel filters included
Effecten
Macros built-in white presets
Body
Kleur behuizingRAL 7012
Behuizing sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
Aansturing
Protocolen DMX512, RDM
DMX kanalen5 / 6 / 9 / 12channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik24W
Power factor> 0,9
Fysieke eigenschappen
Bevestiging bracket for hanging and positioning
Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN connector
IP waarde66 for outdoor installations
