Algemeen
Artikelnummer
21-00440
Merk
ProLights
Artikelnummer fabrikant
ECLSOFTTUBE100
Garantie
2 jaar
Lichtbron
Lichtbron48W RGB + Warm White
CCT CCT control, + / - green correction, tungsten emulation
Luminous flux2'386lm @full
Lux161lx @2 m
Levensverwachting lichtbron > 50.000 h
CRI93
R992
TLCI91
TM30 Rf91
TM30 Rg105
Optiek
Lens type frosted acrylic tube
Kleuren
Kleurmenging RGB + Warm White
Wit macro's2.800 K - 10.000K with 28 K resolution
Kleurenwiel virtual colour wheel with macros
Effecten
FX generator16 sections with adjustable foreground/background colour, index, speed, direction
Macros several pre-built pixel macros with adjustable speed
Control Resolution 16-bit dimmer, colours
Body
Kleur behuizingblack on the back and white wash on the front
Behuizing sturdy policarbonate and die casting aluminium
Aansturing
Protocolen Art-Net, Kling-Net, sACN, CRMX+W-DMX
DMX kanalenmain personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
Master/Slave for synchronised operation of more units linked in a chain

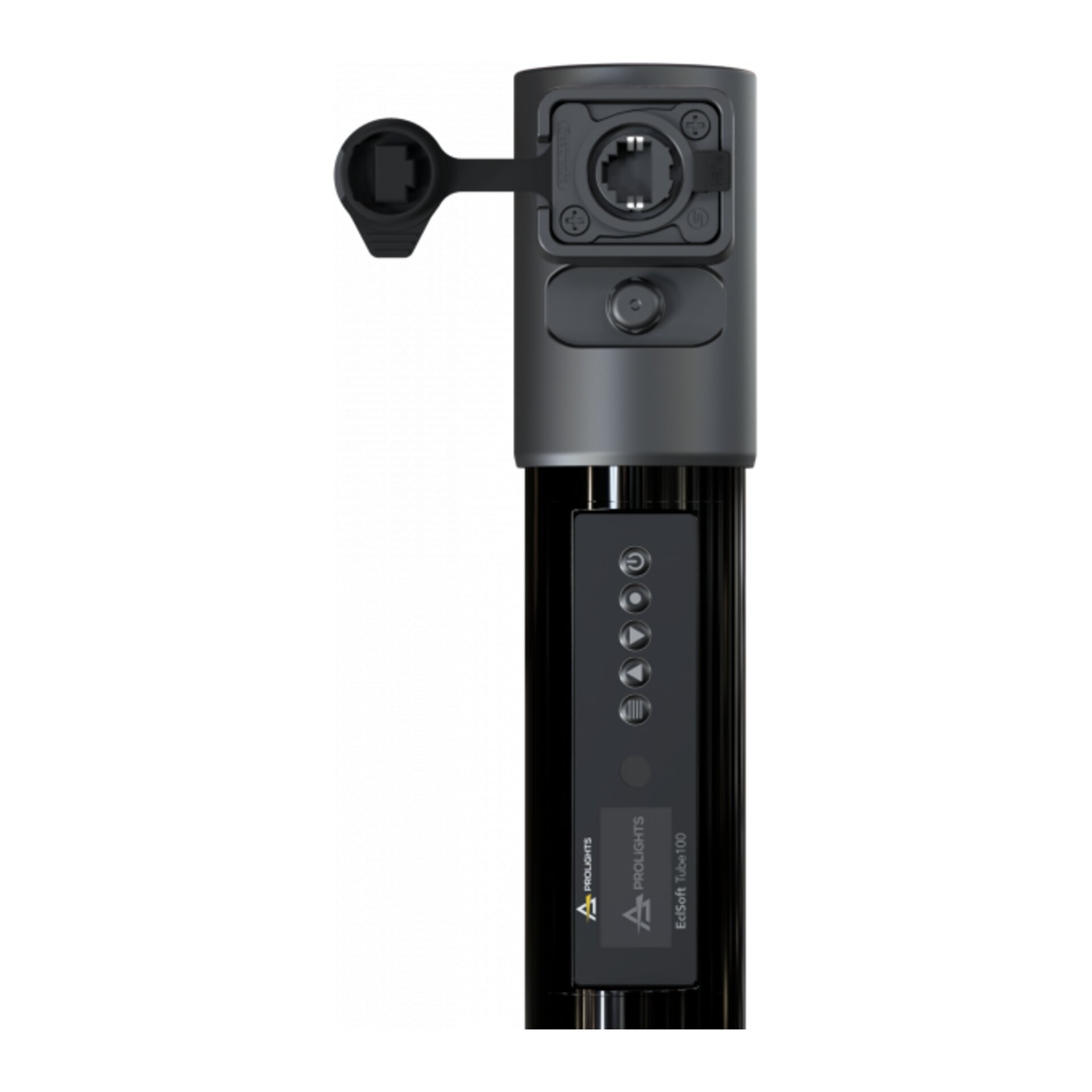

Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur 0° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 3.000 / 6.000 /12.000 / 24.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik55 W
Power factor>0,96
DC spanning15V
Batterij16,8V lithium
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging M5 threaded insert for eye bolt, floor stand and clamp for wall installation

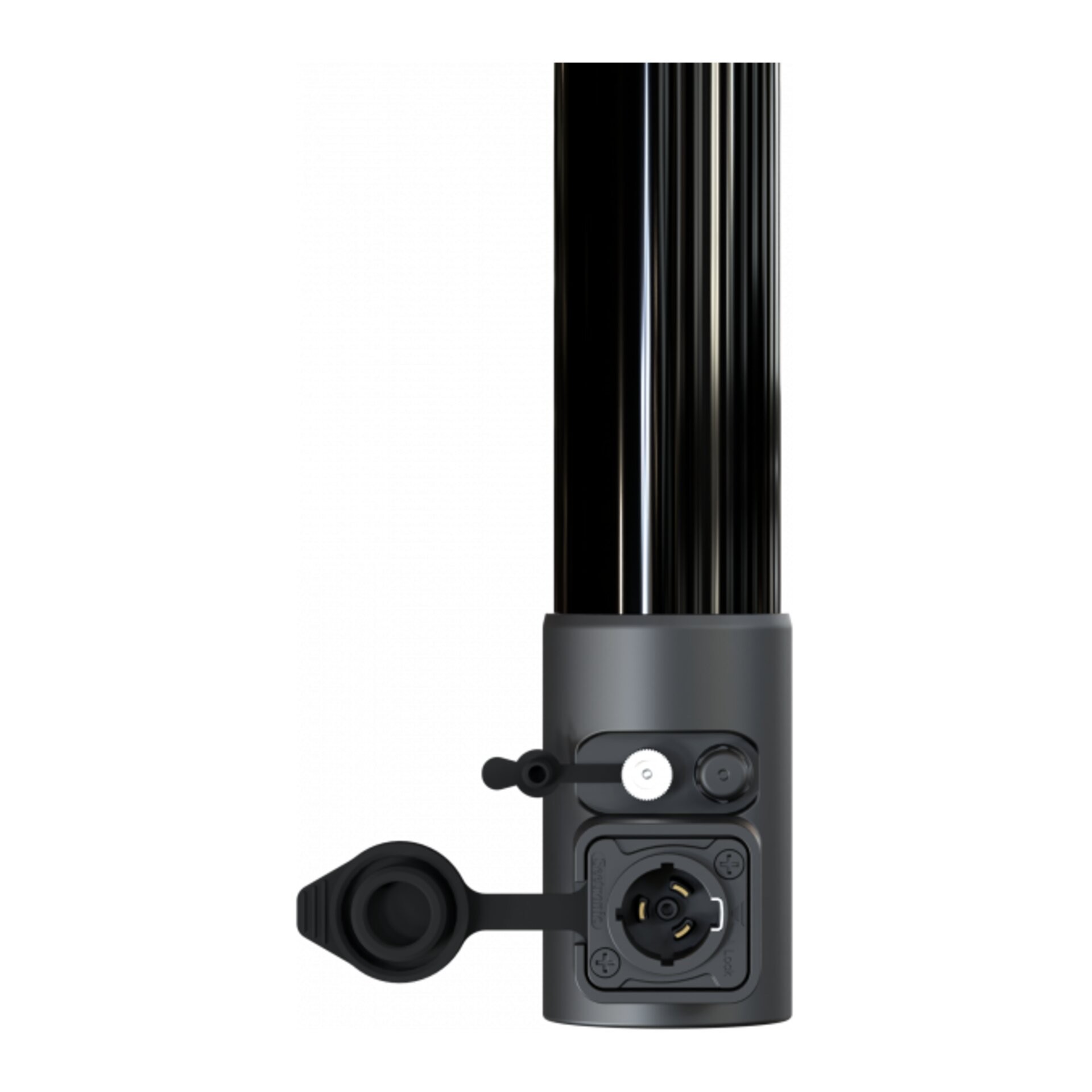

Stroomaansluiting DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
Oplaad connectie DC with jack and AC with standard powercon connector
IP waardeIP65 for temporary outdoor application, not for fixed installations
