Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen48W
Lichtbron
Lichtbron48W RGB + Warm White
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux2'386lm @full
Lux161lx @2 m
Levensverwachting lichtbron> 50.000 h
CRI93
R992
TLCI91
TM30 Rf91
TM30 Rg105
Optiek
Lens typefrosted acrylic tube
Min. Zoombereik180
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K - 10.000K with 28 K resolution
Kleurenwielvirtual colour wheel with macros
Effecten
FX generator16 sections with adjustable foreground/background colour, index, speed, direction
Macrosseveral pre-built pixel macros with adjustable speed
Control Resolution16-bit dimmer, colours
Behuizing
Kleur behuizingZwart, black on the back and white wash on the front
Materiaalsturdy policarbonate and die casting aluminium
Aansturing
ProtocollenArt-Net, Kling-Net, sACN, CRMX+W-DMX
DMX kanalenmain personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur0° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie3.000 / 6.000 /12.000 / 24.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik55 W
Power factor>0,96
DC spanning15V
Batterij16,8V lithium, Ja
Fysieke eigenschappen
Koelingpassive cooling and fan-free
BevestigingM5 threaded insert for eye bolt, floor stand and clamp for wall installation
StroomaansluitingDC connector for battery recharge and Seetronic powerCON TRUE IP65 IN, PowerCON TRUE1
Oplaad connectieDC with jack and AC with standard powercon connector
IP waardeIP65, IP65 for temporary outdoor application, not for fixed installations

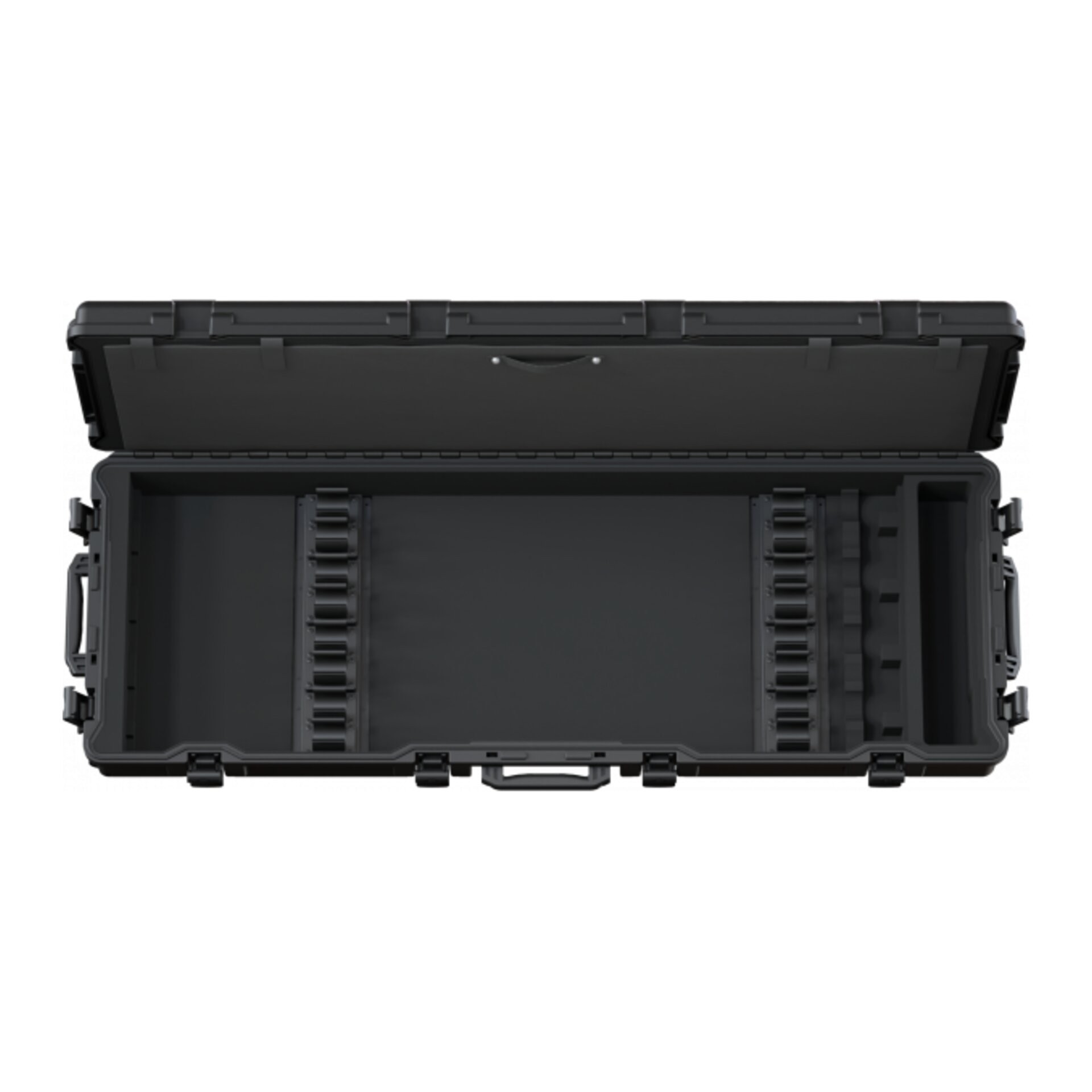

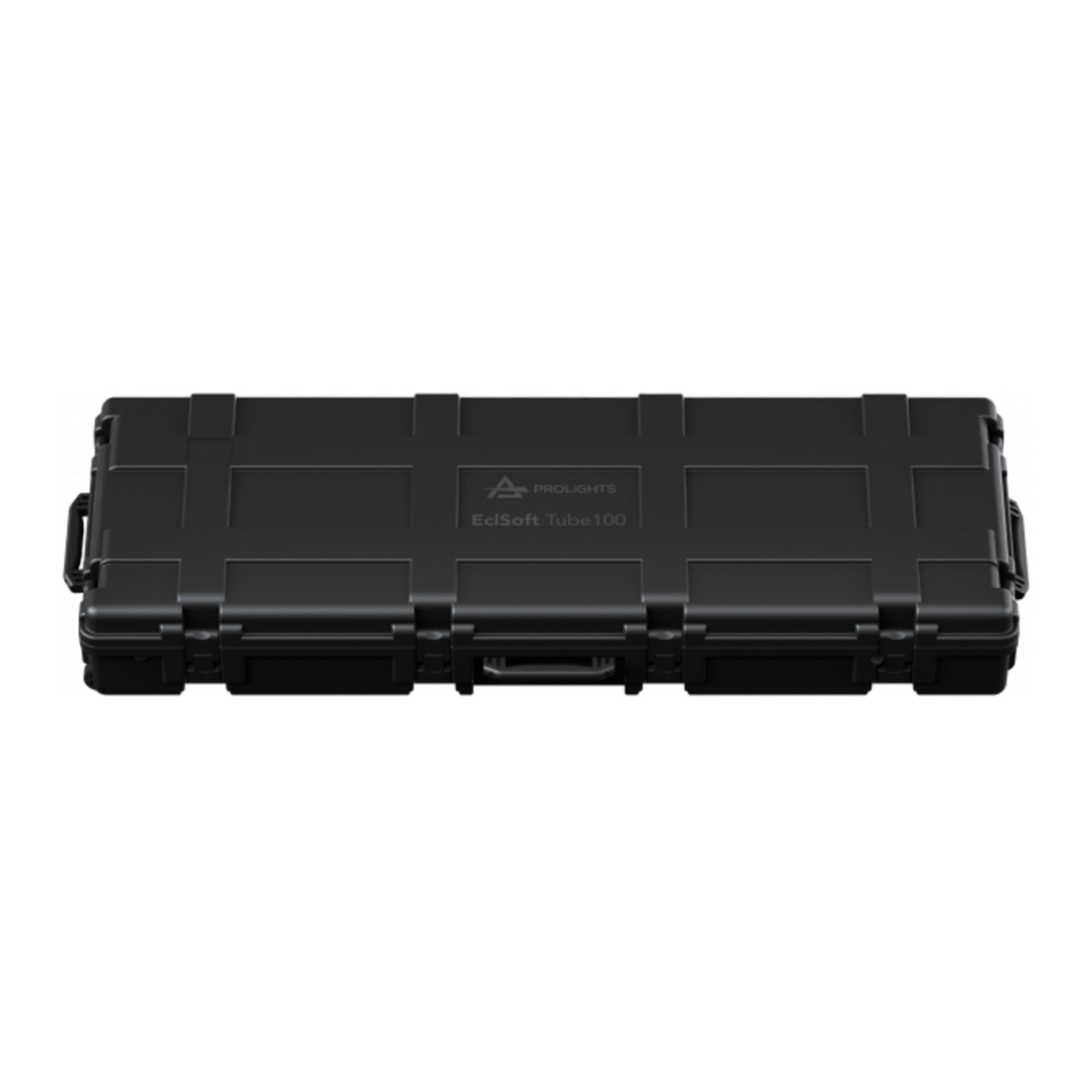

Logistieke eigenschappen
Hoogte verpakking
25.5 cm
Breedte verpakking
1442.5 cm
Diepte verpakking
53 cm
Gewicht verpakking
47 kg
