Algemeen
Artikelnummer
21-00401
Merk
ProLights
Artikelnummer fabrikant
ECLPANELTWCXL
Garantie
2 jaar
Aansturing
Stand Aloneselectable mode through 4 RGB backlight push-encoders
Lichtbron
Lichtbron1.500W RGB + Warm White LED
CCT CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
Luminous flux130'725lm @3.200 K with LD filter
Lux2'442lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRI93,4 @3.200 K; 95.4 @5.600 K
R995.6 @3.200 K; 95,9 @5.600 K
TLCI93 @5.600 K
TM30 Rf91,9 @3.200 K; 90,3 @5.600 K
TM30 Rg103,5 @3.200 K; 102,5 @5.600 K
Optiek

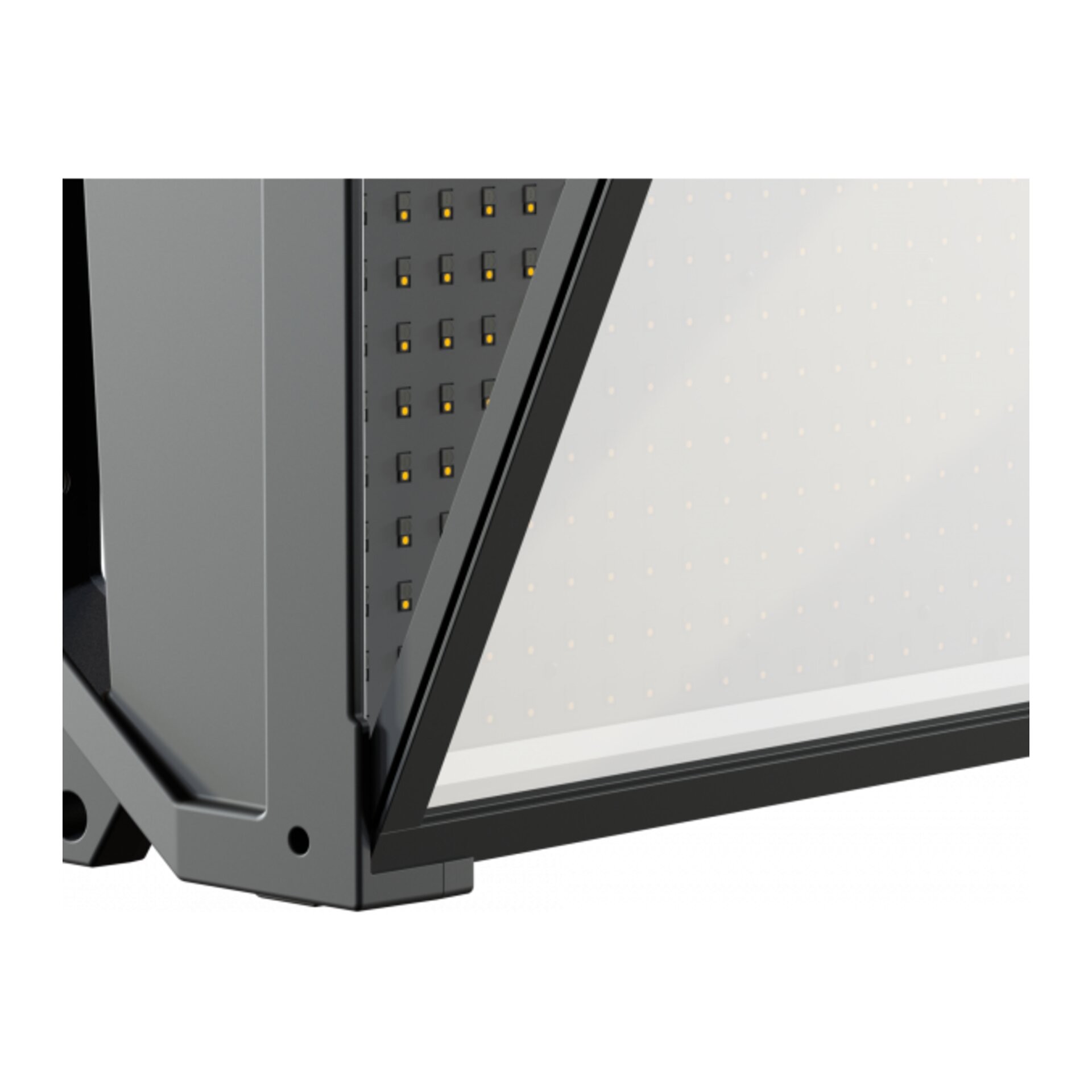

Lens typemedium density diffusion panel (interchangeable)
Extra optieken see available accessories
Kleuren
Kleurmenging RGB + Warm White
Wit macro's1.800 K - 20.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros Gels library on-board
Control Resolution 16-bit dimmer, colours
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
Display 3.5" with new UI
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik1.600W
Output (at 230V)1 units on a single power line
Power factor>0,98
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting32A Neutrik powerCON TRUE1 IN/OUT connectors
IP waarde20
