Algemeen
Artikelnummer
21-00378
Merk
ProLights
Artikelnummer fabrikant
ECLPANELTWCM2X1
Garantie
2 jaar
Aansturing
Stand Aloneselectable mode through 3 rotatory knobs
Lichtbron
Lichtbron115W RGB + Warm White LED
CCT CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
Luminous flux7'642lm @3.200 K with MD filter
Lux124lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRI93 @3.200 K; 94 @5.600 K
R990 @3.200 K; 92 @5.600 K
TLCI91 @5.600 K
TM30 Rf91 @3.200 K; 90 @5.600 K
TM30 Rg105 @3.200 K; 104 @5.600 K
Optiek
Lens typemedium density diffusion panel (interchangeable)
Extra optieken see available accessories
Kleuren
Kleurmenging RGB + Warm White
Wit macro's2.800 K - 10.000K with 28 K resolution
Kleurenwiel virtual colour wheel with macros
Effecten
Macros Gels library on-board
Control Resolution 16-bit dimmer, colours
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, Art-Net, sACN, W-DMX
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik130W
Power factor>0,93
DC spanning48Vdc and 24-36V
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning

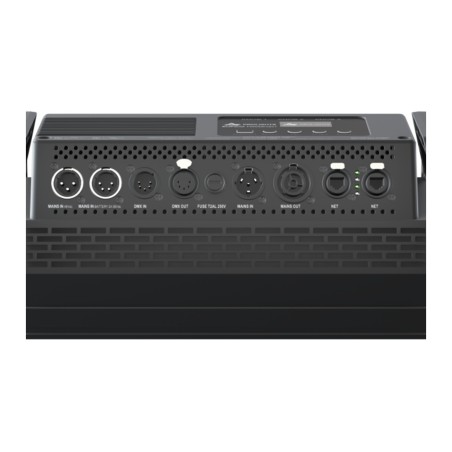

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN/OUT connectors
DC Connector XLR 4p
IP waarde20
