Algemeen
Artikelnummer
21-00184
Merk
ProLights
Artikelnummer fabrikant
ECLPANELTWCJR
Garantie
2 jaar
Aansturing
Stand Aloneselectable mode through 3 rotatory knobs
Lichtbron
Lichtbron370W RGB + Warm White LEDs (driven @ 220W)
CCT CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
Luminous flux17'109lm @4.000 K with LD filter
Lux@4000K, 265lx @5 m
Levensverwachting lichtbron > 50.000 h
CRI90 @3.200 K; 94 @5.600 K
R984,1 @3.200 K; 88,8 @5.600 K
TLCI92 @5.600 K
TM30 Rf90 @3.200 K; 89,4 @5.600 K
TM30 Rg105 @3.200 K; 104 @5.600 K
Optiek
Lens typemedium density diffusion panel (interchangeable)

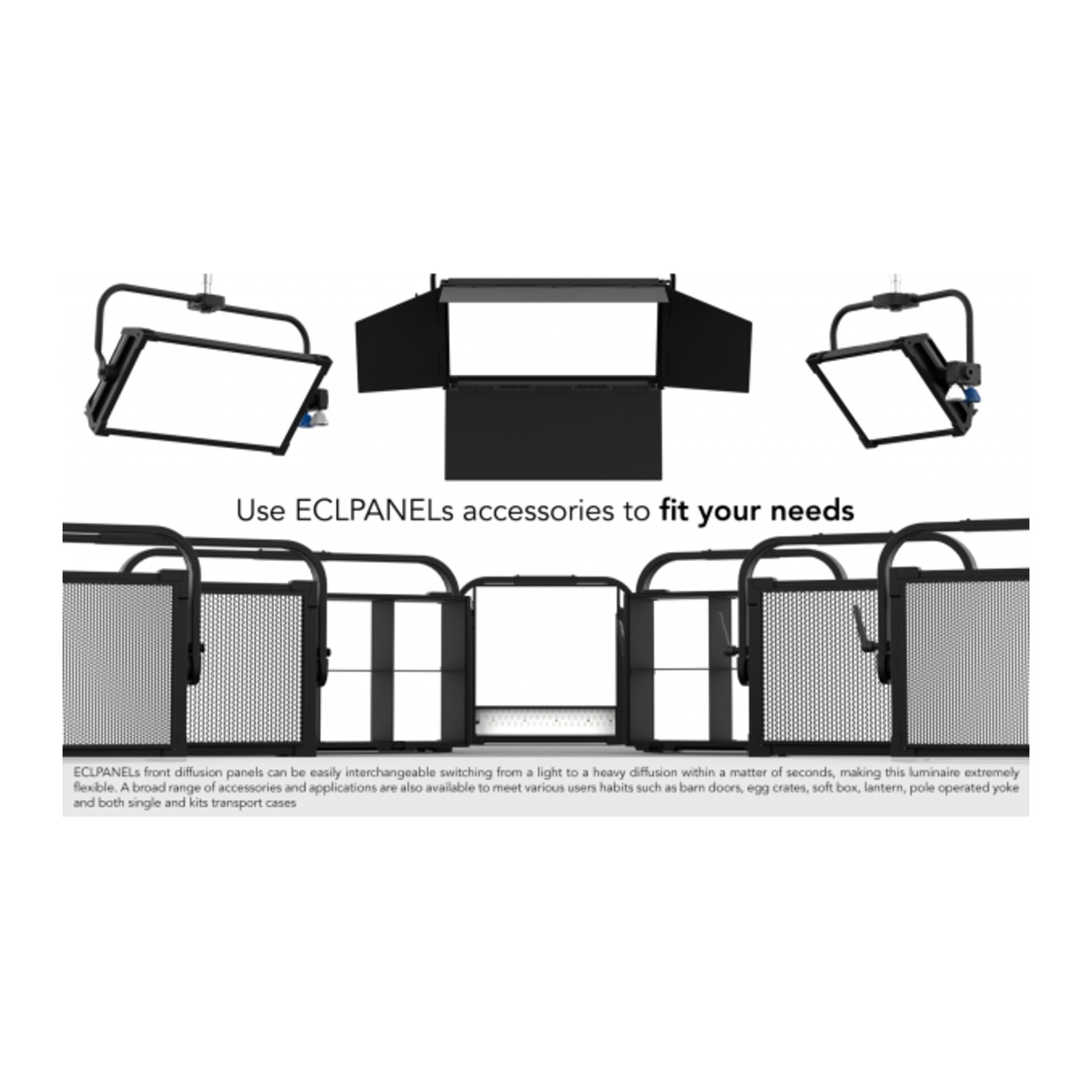

Extra optieken see available accessories
Kleuren
Kleurmenging RGB + Warm White
Wit macro's2.800 K - 10.000K with 28 K resolution
Kleurenwiel virtual colour wheel with macros
Effecten
Macros Gels library on-board
Control Resolution 16-bit dimmer, colours
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, W-DMX, rotatory knob

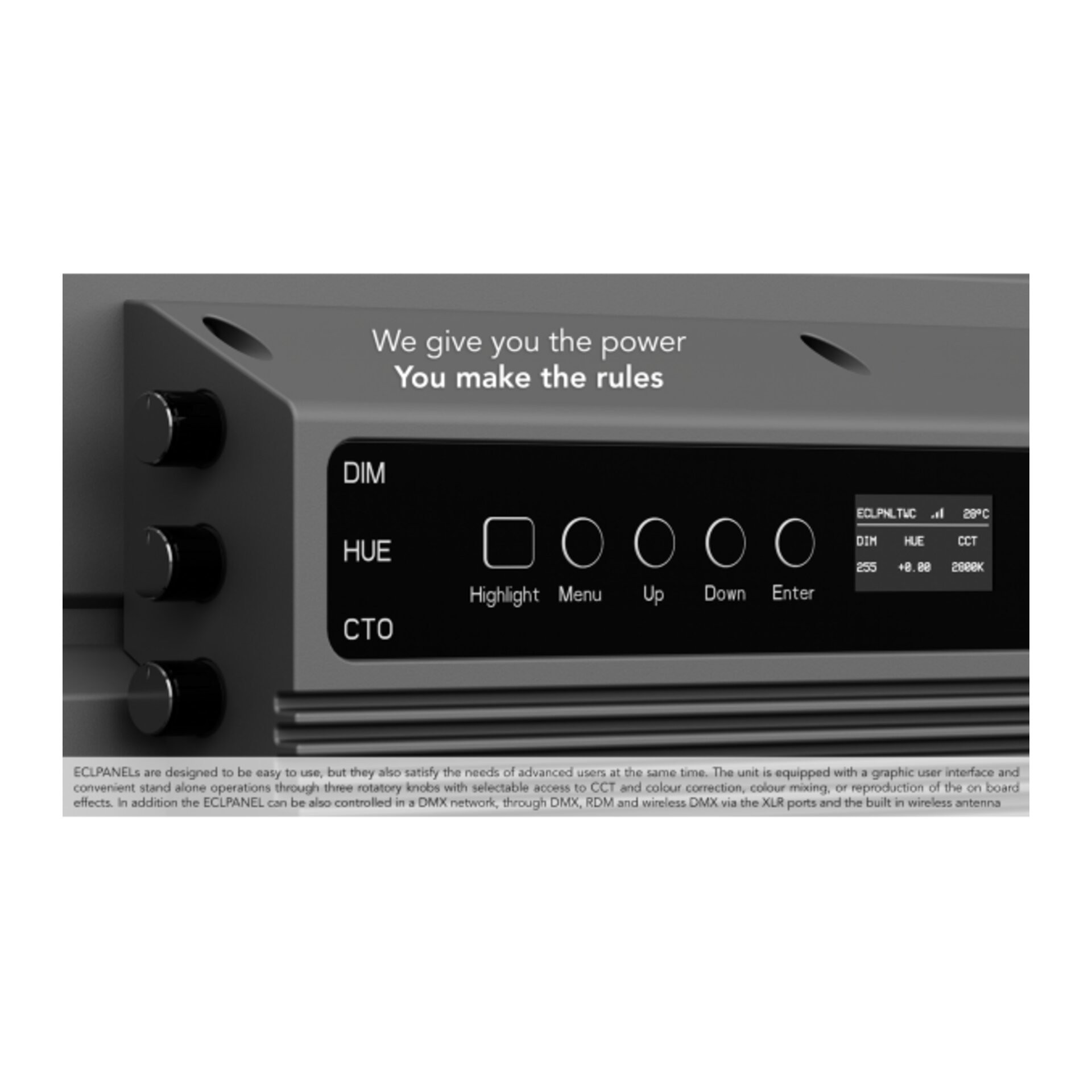

Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX included, wireless solution receiver
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik230W
Power factor>0,97
DC spanning 24-36V
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN/OUT connectors
IP waarde20, 20
DC Connector XLR 4p
