Algemeen
Artikelnummer
21-00270
Artikelnummer fabrikant
ECLCTPLUSBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGBRBMA - Full Color
Vermogen260W
Aansturing
Stand Aloneselection of static colours, white presets, manual colours and built-in effects with adjustable speed
Lichtbron

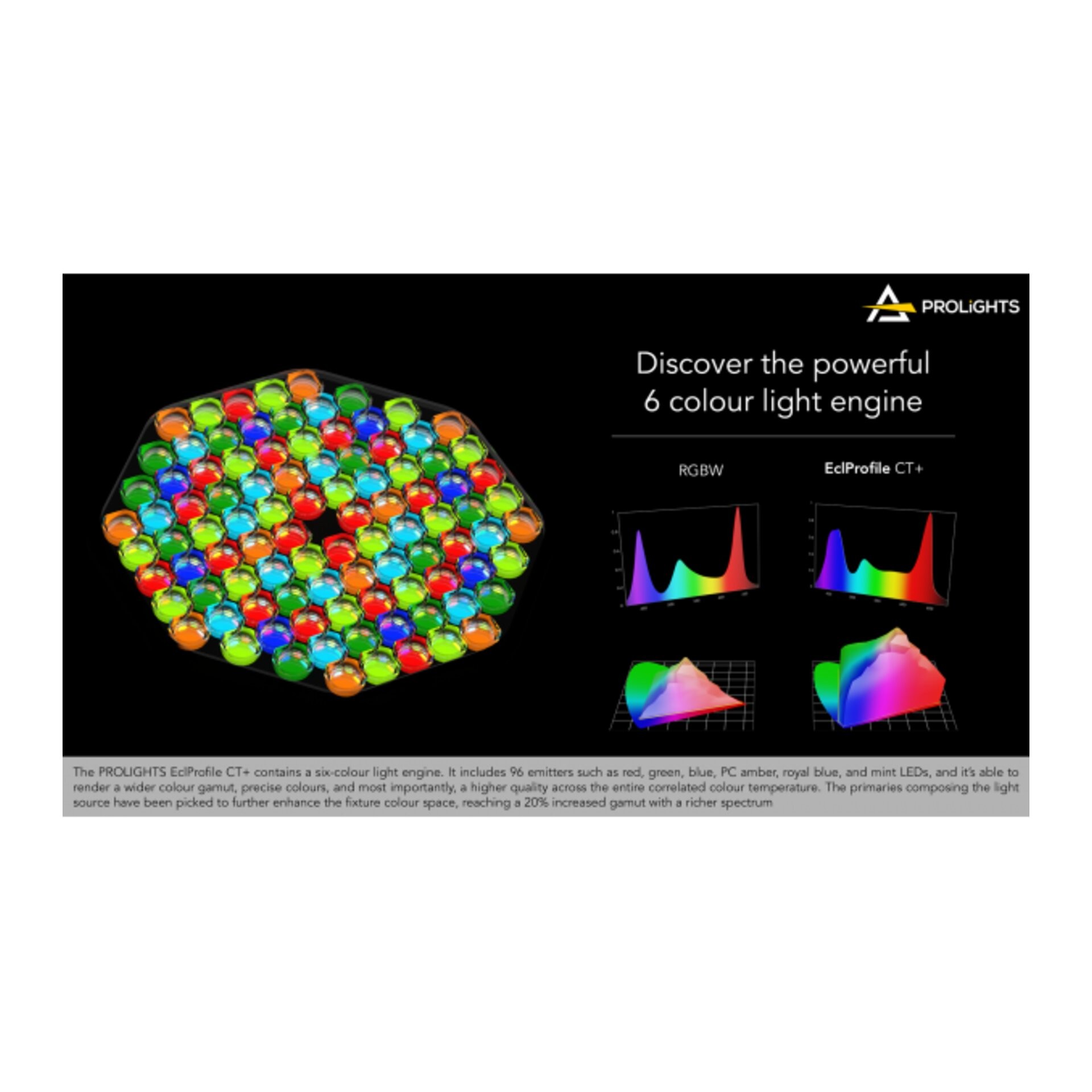

LichtbronLuxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
CCT5.000K @full
Luminous flux(5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430lm @full
Lux(5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI93,7 @3.200 K; 97,6 @5.600 K
R998,6 @3.200 K; 98,2 @5.600 K
TLCI95 @5.600 K
TM30 Rf92 @5.600 K
TM30 Rg100,1 @5.600 K
Optiek
Lens typehigh-quality glass lens optics
Focusmanual

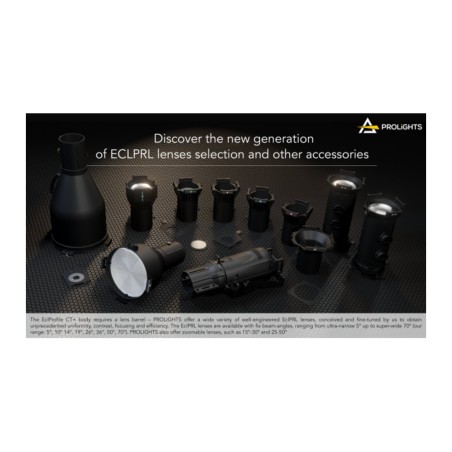

Extra optiekenoptional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
Min. Zoombereik20
Max. Zoombereik45
BedieningHandmatig
Kleuren
KleurmengingRGB, Royal Blue, Mint, PC Amber
Wit macro's2.700 K ~ 10.000K
Kleurenwielcolour gels matching and RGB / HSI / CMY selectable colour mode
Effecten
Gobo maatB, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
Behuizing
Kleur behuizingZwart
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalenUNO / DUO / Basic / Standard / Extendedchannel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included (through dedicated software)
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik264W
Output (at 230V)7 units on a single power line
Power factor> 0,95
Fysieke eigenschappen
Koelinglow noise fan
Bevestigingbracket for hanging and positioning
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
33 cm
Breedte verpakking
63 cm
Diepte verpakking
28.5 cm
Gewicht verpakking
9.2 kg
