Lamp eigenschappen
KleursysteemMono-color
Vermogen177W
Lichtbron
Lichtbron177 W white LED / 108W UV LED
CCT(TU) 3.200K - (DY) 5.600K
Luminous flux(DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
Lux(DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx @5 m full
Levensverwachting lichtbron > 70.000 h
CRI> 97 for TU; > 96 for DY
R9> 97 for TU; > 96 for DY
TLCI> 98 for TU; > 95 for DY
TM30 Rf> 93 for TU; > 90 for DY
Optiek
Lens diameter163mm
Lens type fresnel lens
Extra optieken24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions) - gel frame holder included (for TU and DY versions) - egg crate optional - barndoors optional
Min. Zoombereik24
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Behuizing
Kleur behuizingZwart
Materiaal aluminium die-casting
Aansturing
Protocollen DMX512, RDM
DMX kanalen1 / 2 / 3 / 6channel
Master/Slave for synchronised operation of more units linked in a chain
Display OLED display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik(TU, DY) 207 W - (UV) 127W
Output (at 230V)(TU, DY) 12 - (UV) 16 units on a single power line
Power factor> 0.95
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets

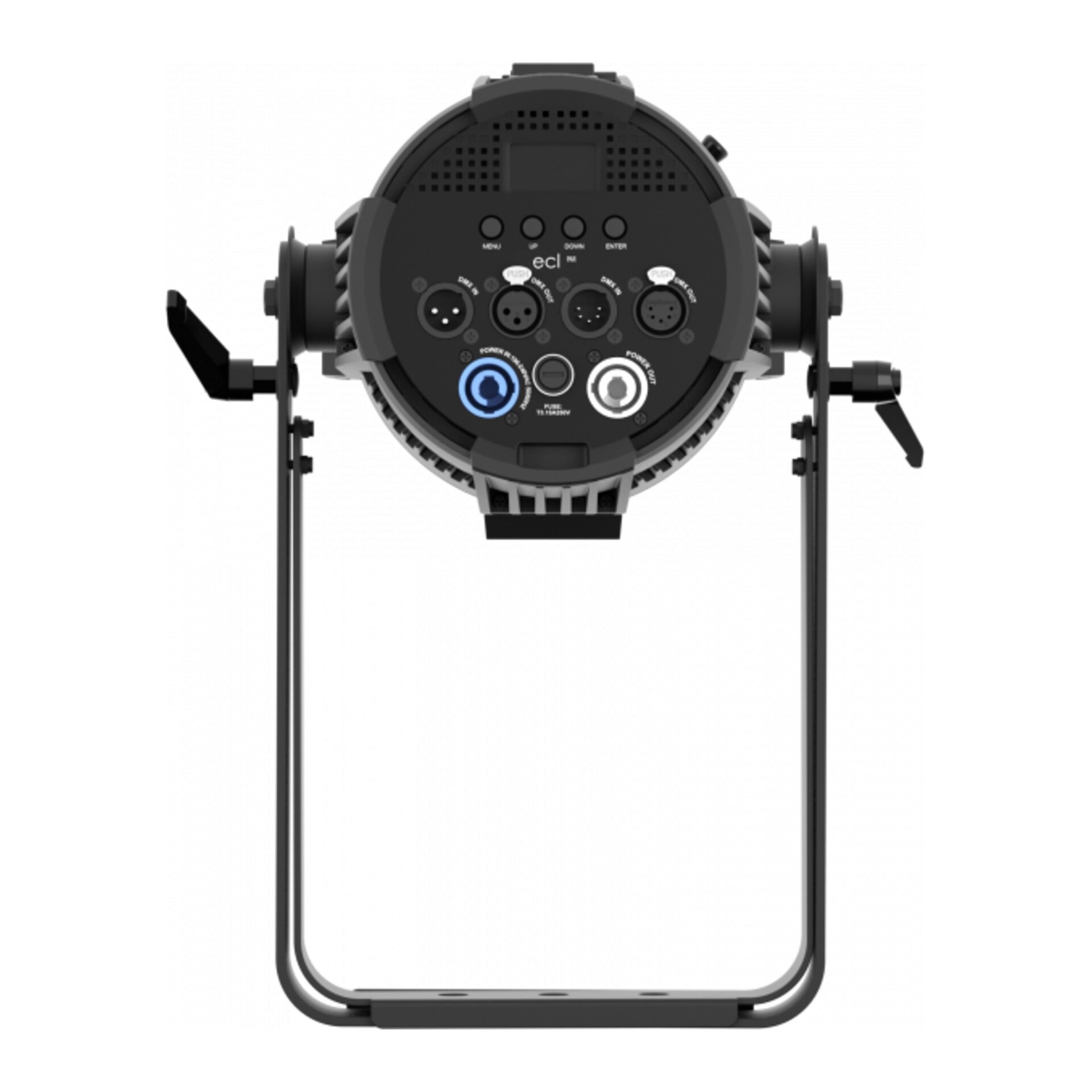

Signaal aansluiting Amphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingPowerCon
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
38 cm
Breedte verpakking
54.5 cm
Diepte verpakking
27 cm
Gewicht verpakking
7.8 kg
