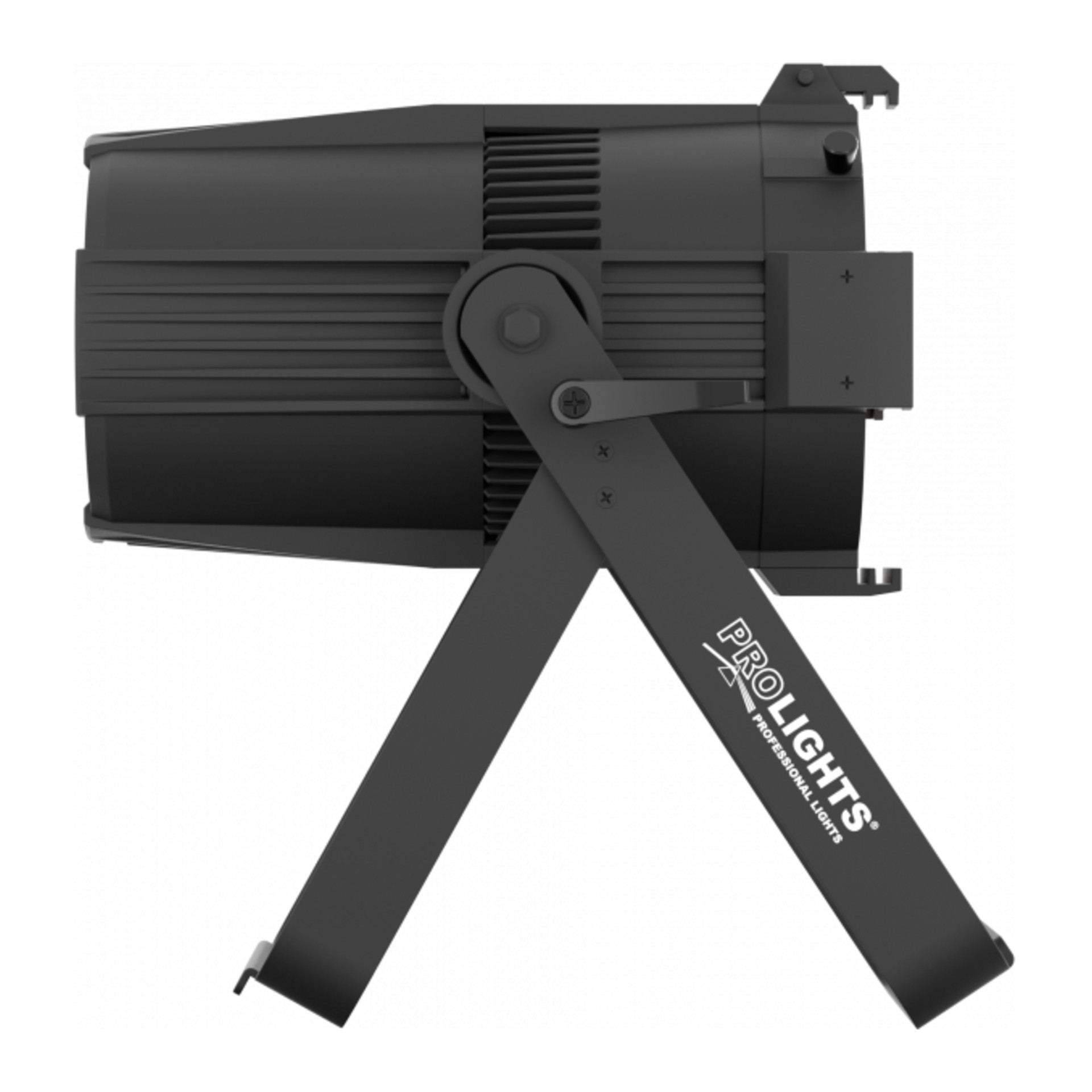

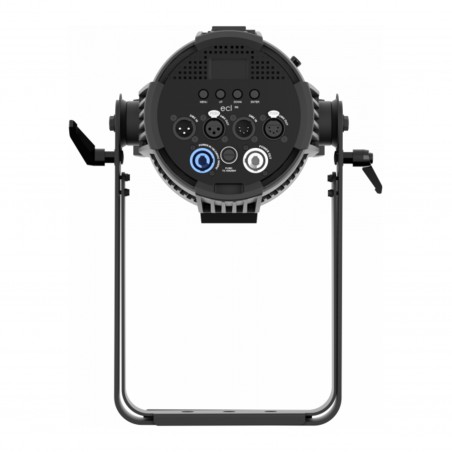

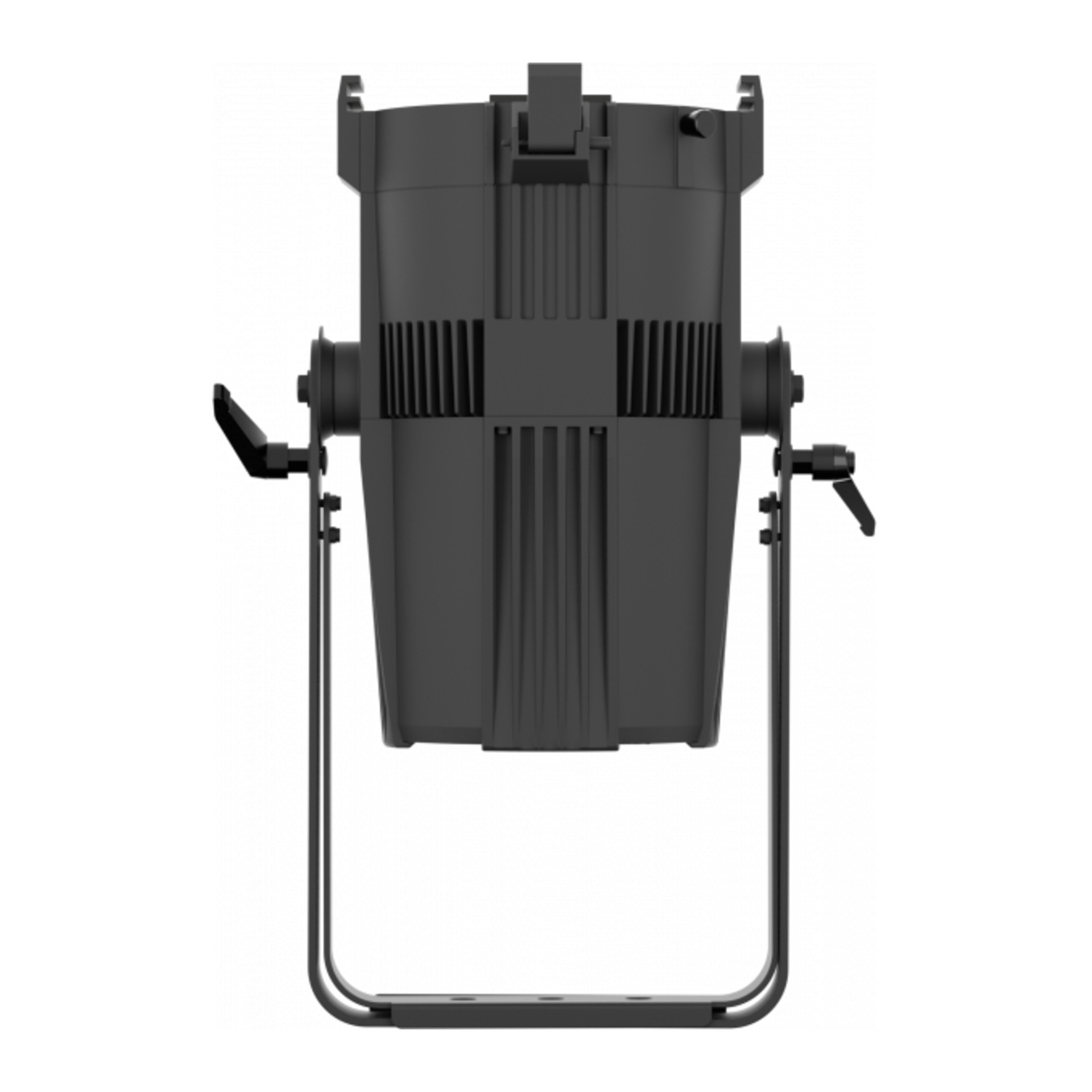

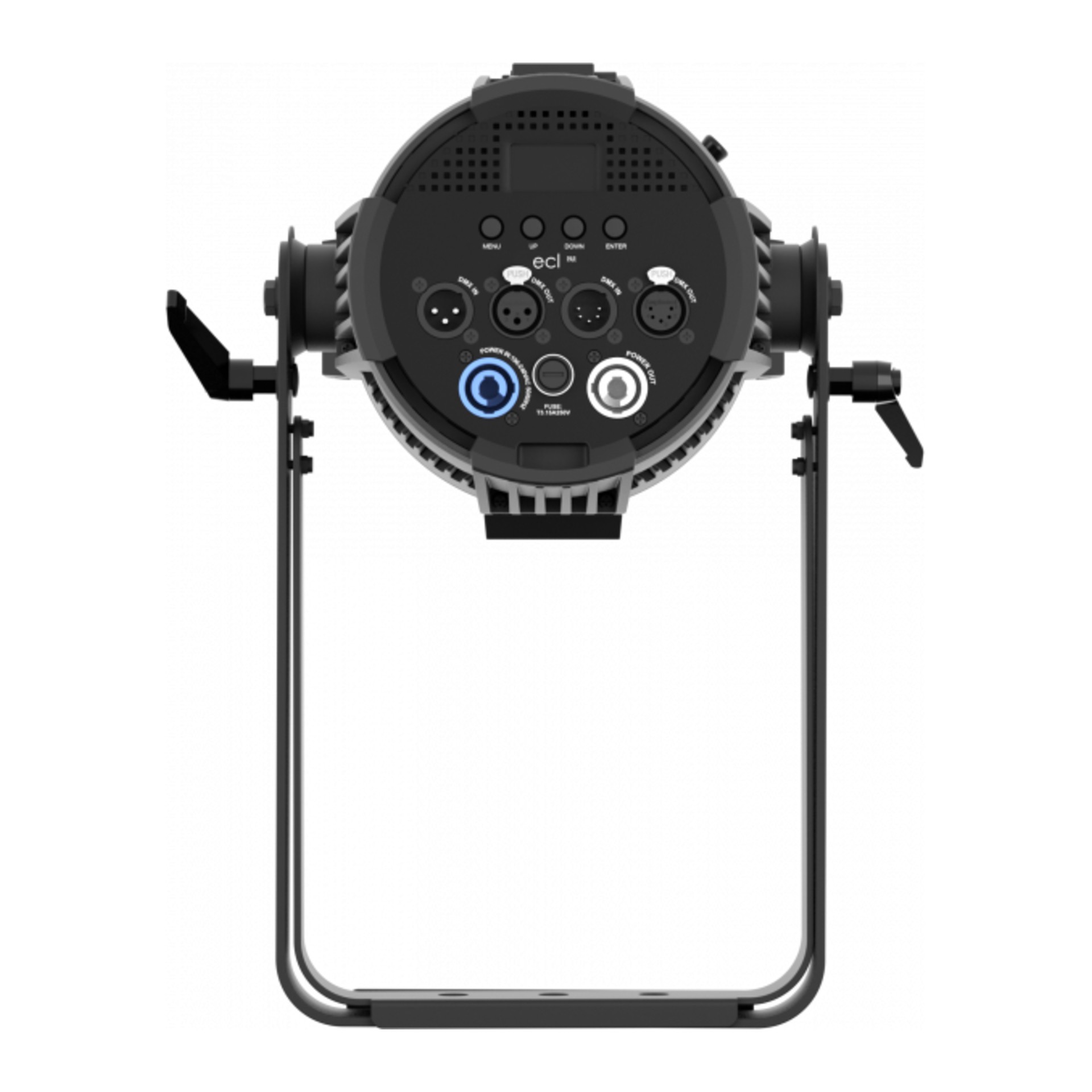

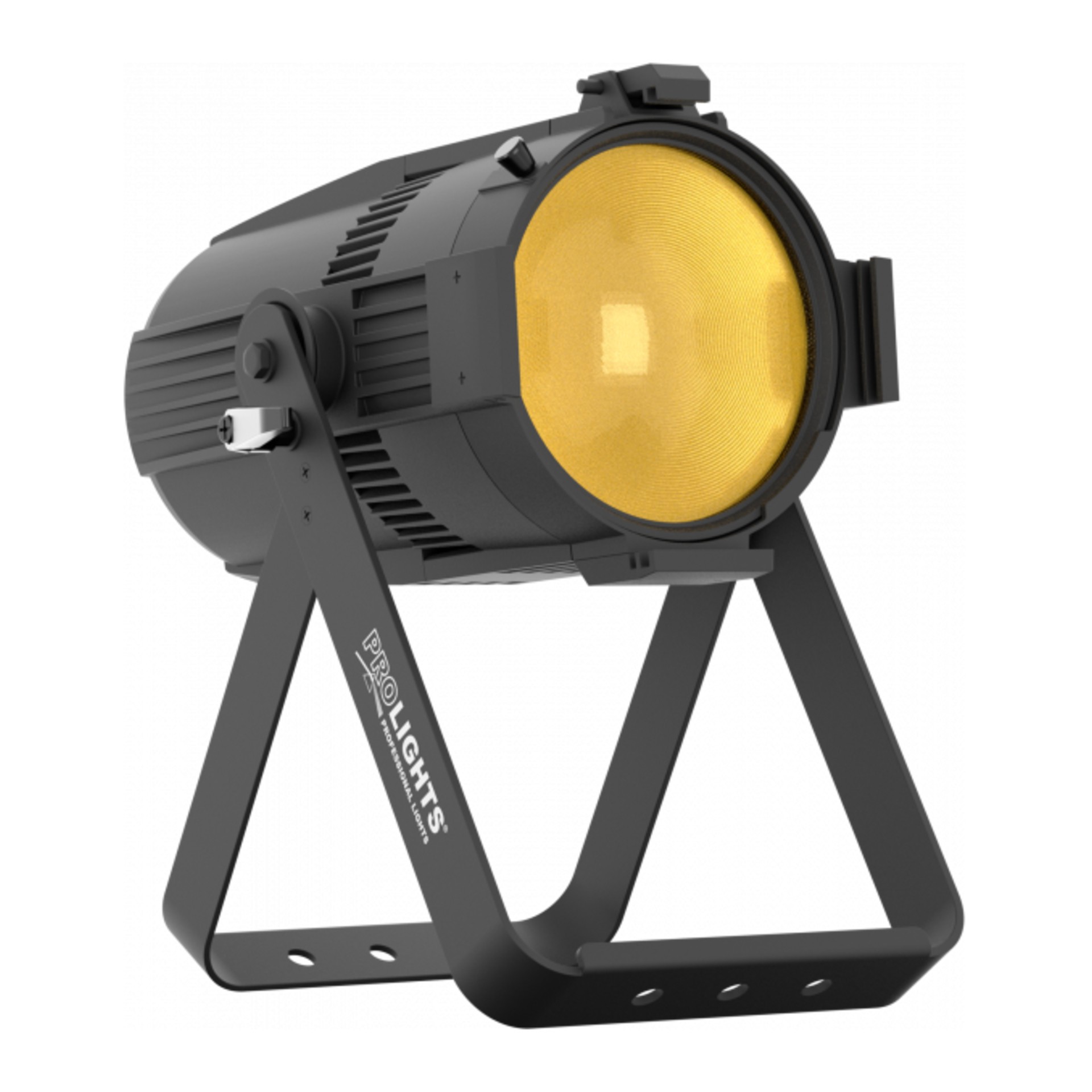

Prolights EclPar FC EX-DEMO

21-00177-OUTLET

  • LED Par Projector
  • 150W RGBW/FC LED
  • Openingshoek 24°, extra lensopties

Omschrijving:

De Prolights EclPar FC is een multifunctioneel LED armatuur met één enkele bron, die een stille werking, hoge lichtkwaliteit en optische flexibiliteit levert. Ontworpen om de standaard voor theatrale, tv's en bedrijfstoepassingen opnieuw te definiëren.

EclPar FC is voorzien van 150W RGB + Warm Wit en levert een superieure witte CTC met +/- tintcontrole, redshift(CRI> 95 en R9> 98 @ 3200K) en kleurmenging.

Het armatuur bevat een uitgebreid assortiment accessoires, waaronder barndoors, filterframes, honeycomb/egg crate en een veelvoud aan verwisselbare lenzen.

EclPar FC beschikt over een soepele 16-bit dimcurve, evenals RDM en instelbare PWM voor een superieur resultaat.

Merk

Op voorraad , nu besteld de volgende werkdag verzonden

Bruto prijs:
€ 399,00
  • accessoires (16)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (16)
  • Accessoires (8)
  • DMX kabels (2)
  • Haken/Safety's (4)
  • Stroom kabels (2)

CQ - PowerCon 20A 1,5m

52-20037

CQ - PowerCon 20A 1,5m
  • 3x1,5mm2 PowerCon Aansluitkabel, 1,5m
  • Schuko 16A male stekker
  • PowerCon 20A blauw female kabeldeel
Bruto prijs:
€ 24,80

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProTruss SPGM12

24-01399

ProTruss SPGM12
  • 28mm spigot
  • M12
Bruto prijs:
€ 10,70

ProTruss SPGM10

24-01400

ProTruss SPGM10
  • 28mm spigot
  • M10
Bruto prijs:
€ 10,50

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 50,00

ProAudio Tour 53413BK

Meerdere opties

ProAudio Tour 53413BK
  • 3 polige DMX kabel, zwarte kabel
  • Neutrik XLR 3p female
  • Neutrik XLR 3p male
Bruto prijs:
€ 35,50

GDE PowerCon verlengkabel

Meerdere opties

GDE PowerCon verlengkabel
  • 3x2,5mm2 TH07 PowerCon verlengkabel
  • PowerCon male kabeldeel 20A
  • PowerCon female kabeldeel 20A
Bruto prijs:
€ 40,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

Prolights ECLPARTPG

21-20187

Prolights ECLPARTPG - Full AVL Distribution
  • Filterframe voor ECL PAR serie
  • Kleur: zwart
Bruto prijs:
€ 10,80

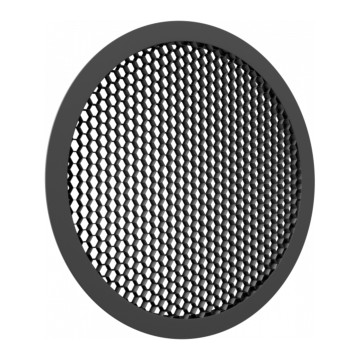

Prolights ECLPAREC

21-20186

Prolights ECLPAREC - Full AVL Distribution
  • Egg crate voor ECL PAR serie
Bruto prijs:
€ 16,40

Prolights ECLPARLENS65

21-20185

Prolights ECLPARLENS65 - Full AVL Distribution
  • 73° lens voor ECL PAR serie
Bruto prijs:
€ 22,50

Prolights ECLPARLENS40

21-20184

Prolights ECLPARLENS40 - Full AVL Distribution
  • 40° lens voor ECL PAR serie
Bruto prijs:
€ 20,50

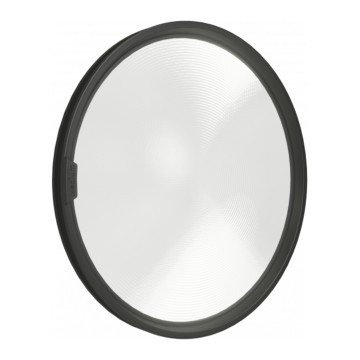

Prolights ECLPARLENS24

21-20183

Prolights ECLPARLENS24 - Full AVL Distribution
  • 24° lens voor ECL PAR serie
Bruto prijs:
€ 18,40

Prolights ECLPARBD

21-20182

Prolights ECLPARBD - Full AVL Distribution
  • Barndoor voor de ECL PAR
  • Kleur: zwart
Bruto prijs:
€ 110,00

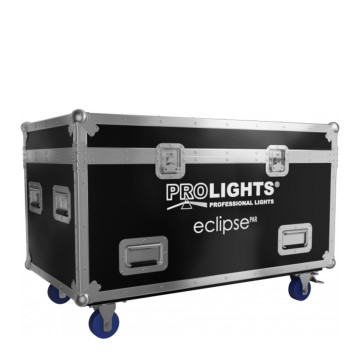

Prolights FCLECLPAR

21-20181

Prolights FCLECLPAR - Full AVL Distribution
  • Flightcase voor 6 x ECL PAR
  • Kleur: zwart
Bruto prijs:
€ 824,00

Gegevens

Algemeen

Artikelnummer 21-00177-OUTLET
Merk ProLights
Artikelnummer fabrikant ECLPARFC
Garantie 2 jaar

Lamp eigenschappen

KleursysteemRGB+WW - Full Color
Vermogen150W

Lichtbron

Lichtbron150W RGB + Warm White
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(24°) 5'983 lm - (73°) 5'774lm @full
Lux(24°) 1'040 lux - (73°) 166lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI95@ 3200K; 92 @ 5600K
R998 @ 3200K; 96 @ 5600K
TLCI85 @ 5600K
TM30 Rf92 @ 3200K; 90 @ 5600K
TM30 Rg105 @ 3200K; 106 @ 5600K

Optiek

Lens diameter163mm
Lens typefresnel lens
Extra optieken24° lens on board - 73° lens included - 40° lens optional - egg crate optional - barndoors optional - gel frame holder included
Min. Zoombereik24

Kleuren

Manual colour modemanual adjustment of colour
KleurmengingRGB + Warm White
Wit macro's2.800 K - 6.500K
Kleurenwielvirtual colour wheel with macros

Effecten

Macrosbuilt-in white presets

Behuizing

Kleur behuizingZwart
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512, RDM
DMX kanalen(theatre) 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17 ch - (tour) 4 / 6 / 10 / 15channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik150W
Output (at 230V)14 units on a single power line
Power factor> 0.92

Fysieke eigenschappen

Koelingactive, silent operation
Bevestigingany position with quick-lock omega brackets
Signaal aansluitingAmphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingPowerCon
IP waarde20, IP20

Logistieke eigenschappen

Hoogte verpakking 31.6 cm
Breedte verpakking 45 cm
Diepte verpakking 20.8 cm
