Aansluitingen
Signaal ingangIP data Seetronic IN
Signaal uitgangIP data Seetronic OUT
Video eigenschappen
LED bronKinglight SMD2525
Paneel resolutie104x208pixels
Module resolution52x104pixels
Grayscale18 bit
Minimale refresh rate2.880Hz
Drive Mode1/13 scan, constant current
Verticale kijkhoek120°
Horizontale kijkhoek140°
LED density43.264LED/sqm
Gemiddelde LED levensduur100.000
Driver chip type MBI 5252
Contrast3.000:1
Aansturing
Control protocolNovastar
Type receiving kaartA8S
Andere controllersrotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Lichtbron
Luminous flux4.000nit
Behuizing
Materiaaldie-cast aluminium housing
Electronics
Bedrijfstemperatuur-20°C / +50°C
Working humidity10~90 RH%
Elektrische eigenschappen
Voeding in/uitIPKON Seetronic IN/OUT
Power supplyAC 110/230 V 50/60 Hz
Maximaal vermogen (paneel)400W
Gemiddeld vermogen (paneel)133W
Maximaal vermogen (m2)800W
Gemiddeld vermogen (m2)266W
Standby vermogen (m2)35W
Maximale stroom (paneel)AC 220 V / 1,6 A
Fysieke eigenschappen

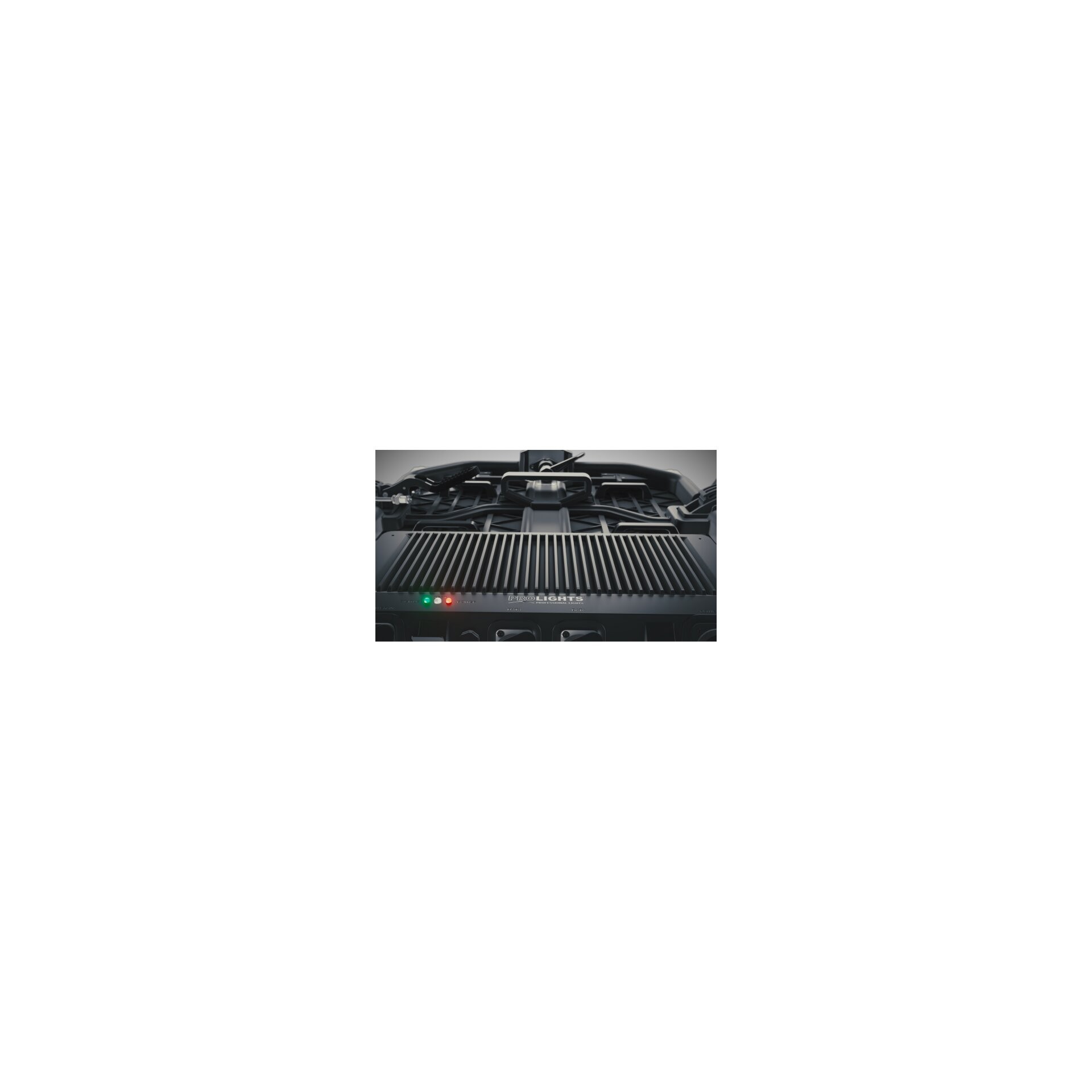

Koelingnatural cooling of the peculiar chassis and to absence of fans
IP waardeIP65 (front and rear)
Module afmeting (BxH)250x500mm

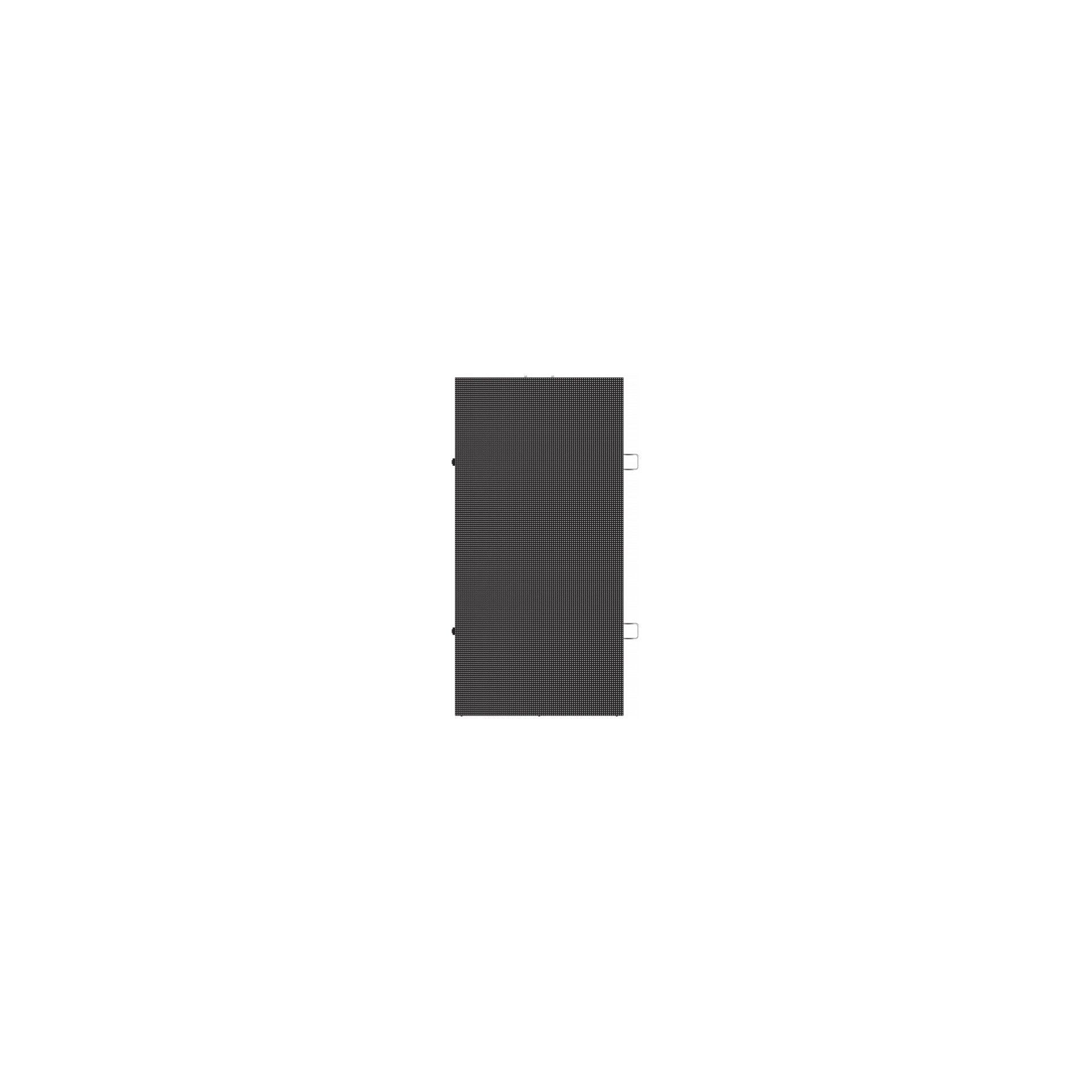

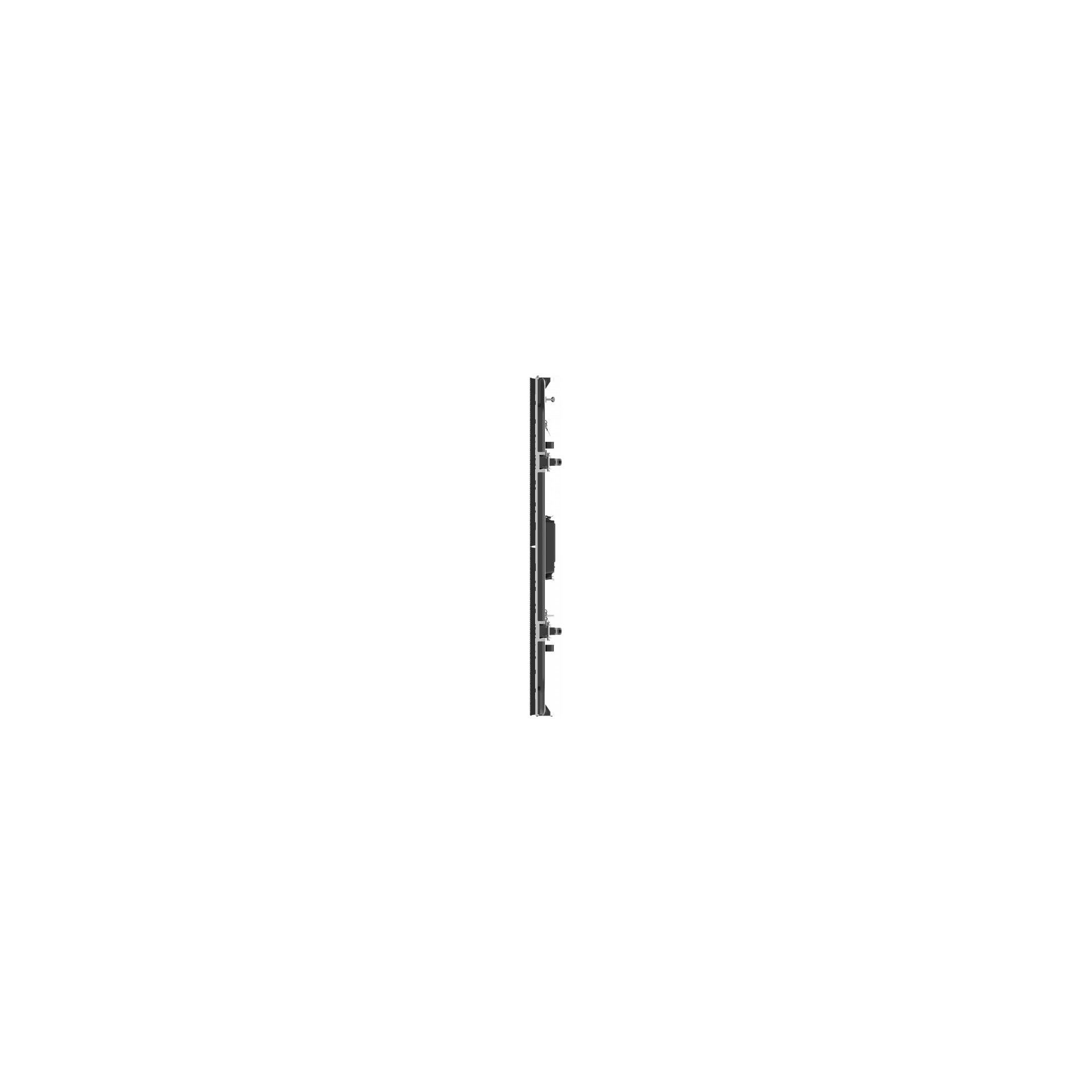

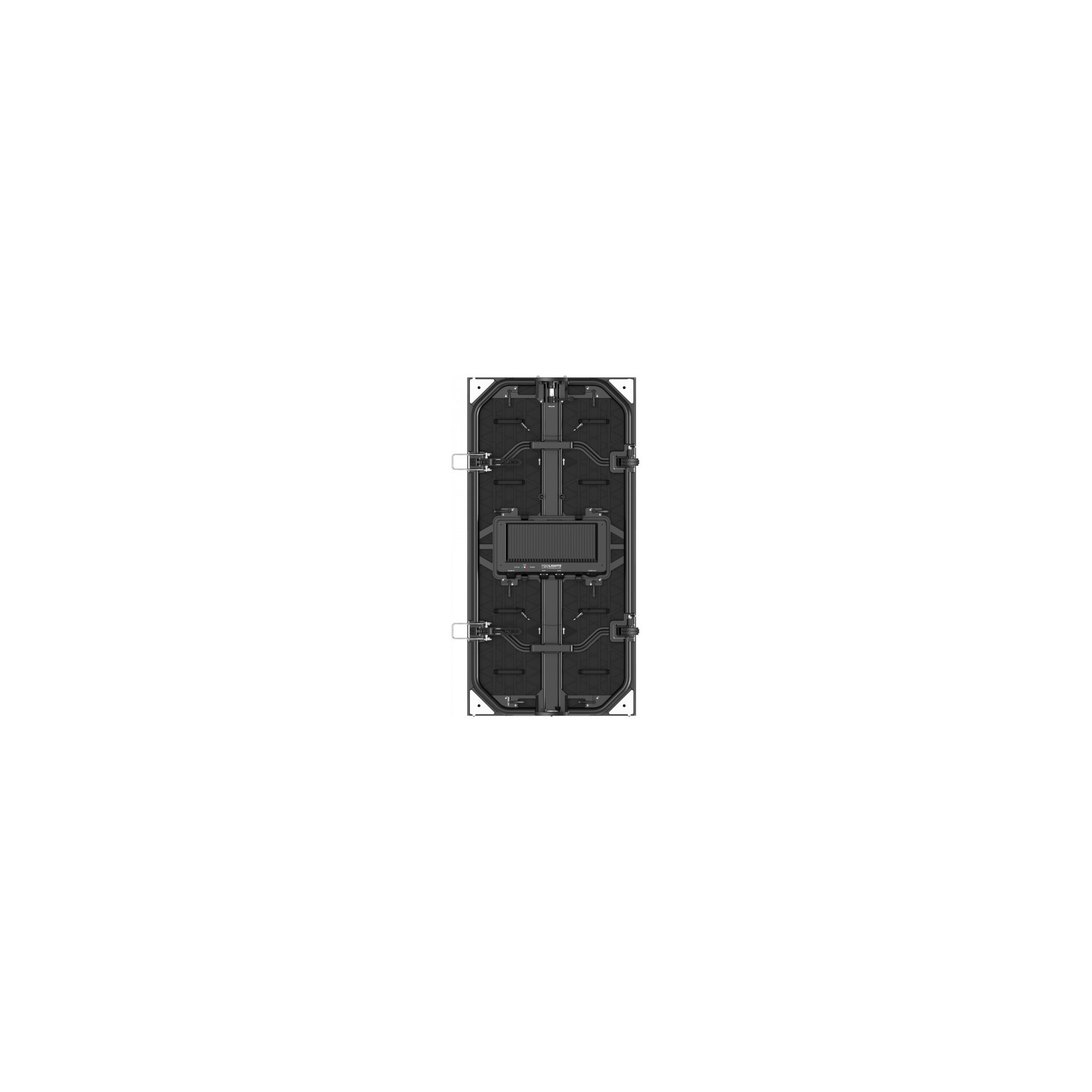

Paneel afmeting (BXHXD)500x1.000x76mm
Verticaal ophangsysteembuilt-in aliscaf clamp support
Verbindingseamless locking system
Kleurblack
Paneel gewicht12kg
Gewicht per m224kg
Max. hangende panelen10
Conforme normCE, EMC, UL
Magnetische LED-modulesnot magnetic, removible by joint
Andere eigenschappencurve configurations, rear panel swapping, velcro strips for gapless mounting

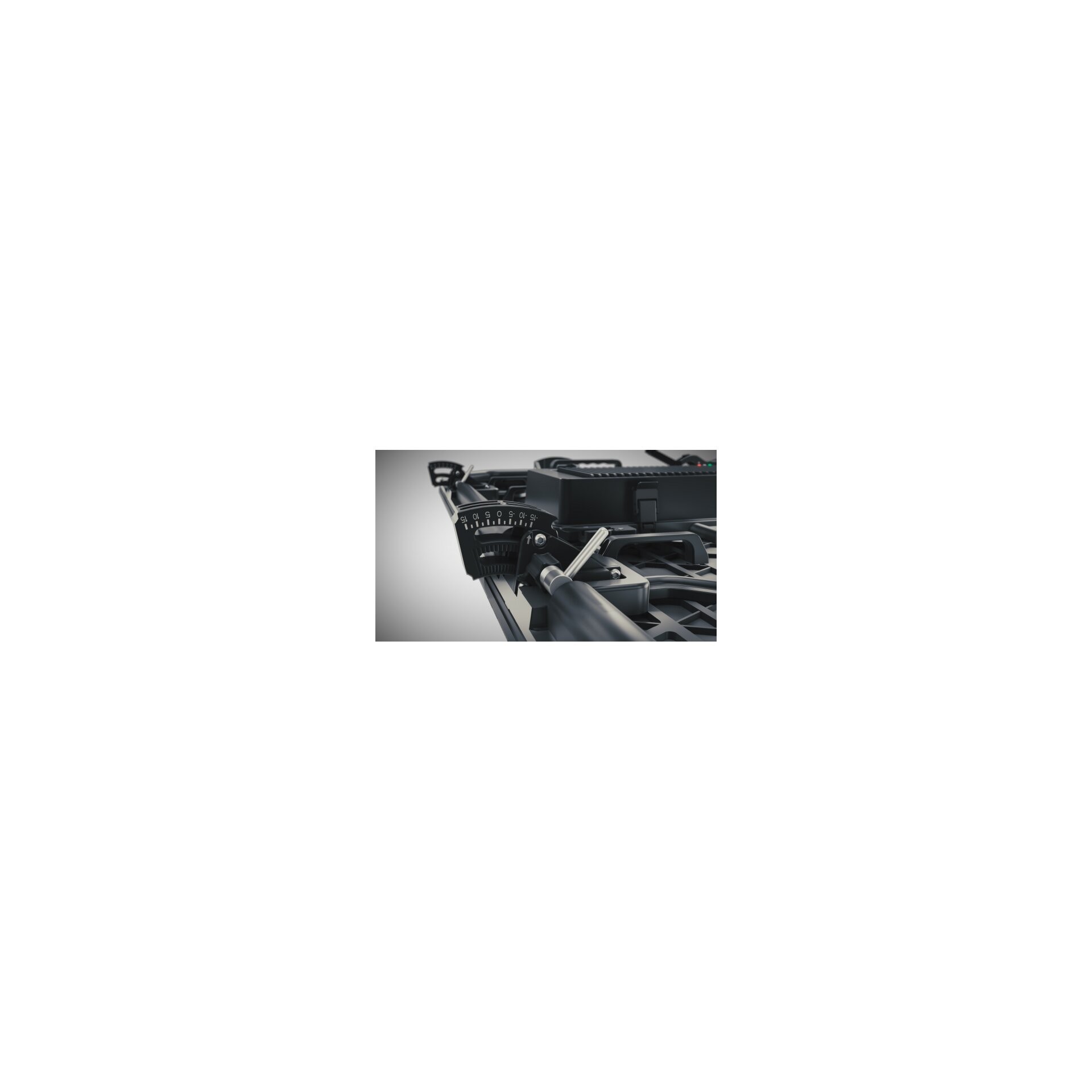

Gebogen opstellingmechanics on board, -15° to +15°, can be adjusted by the unit of 2.5°
Logistieke eigenschappen
Gewicht verpakking
12 kg
