Algemeen
Artikelnummer
21-00593
Merk
ProLights
Artikelnummer fabrikant
ECLPARIPSFCBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen60W
Lichtbron
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(15°) 2'938, (30°) 2'238, (60°) 2'373 @Full
Lux(15°) 1'350, (30°) 318, (60°) 130lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI93,3 @3'200K; 92,2 @5'600K
R990,7 @3'200; 92,9 @5'600K
TLCI87 @3'200K; 89 @5'600K
TM30 Rf93 @3'200K; 89,6 @5'600K
TM30 Rg106,5 @3'200K; 105,8 @5'600K
Optiek
Lens diameter100mm
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optieken(opt) 30°, 60°
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K ~ 10.000K
Effecten
MacrosGels library on-board
Behuizing
Kleur behuizingZwart
Aansturing
ProtocollenDMX512, RDM, CRMX (optional)
DMX kanalen1 / 2 / 5 / 9 / 10 / 12 / 18channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik65W
Power factor> 0,94
Fysieke eigenschappen
Koelingnatural convection cooling enabled by a fanless design and a chassis engineered for passiv
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

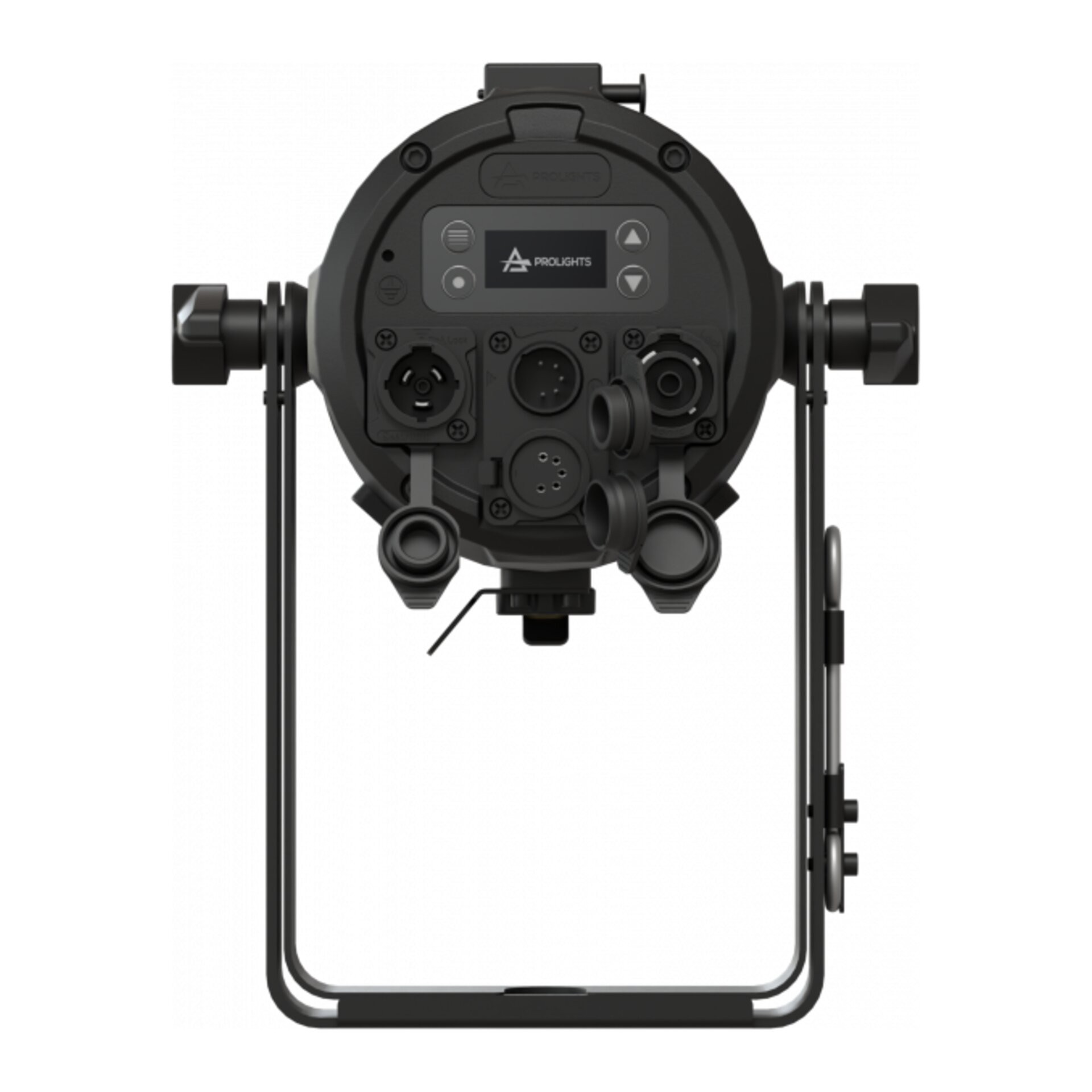

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht2,8 kg
Overige eigenschappen
Lichtbron60W RGB+WW LED array
Singlecolor LED
Logistieke eigenschappen
Hoogte verpakking
21.5 cm
Breedte verpakking
38 cm
Diepte verpakking
25.5 cm
Gewicht verpakking
4.2 kg
