Algemeen
Artikelnummer
21-00602
Merk
ProLights
Artikelnummer fabrikant
ECLPARIPLVWBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemCC/CW - Tunable White
Vermogen300W
Aansturing
Stand Alone3 RGB backlight push-encoders
Lichtbron
CCTCCT control through dedicated DMX channel
Luminous flux(15°) 20'098, (30°) 20'803, (60°) 21'867 @Full
Lux(15°) 5'032, (30°) 2'999, (60°) 1'286lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI97,1 @full; 97,6 @3.200K; 98,7 @5.600K
R998,1 @3.200K; 99 @5.600K
TLCI99 @full; 98 @3.200K; 99 @5.600K
TM30 Rf95,5 @full; 96,3 @3.200K; 95,4 @5.600K
TM30 Rg101,9 @full; 102,3 @3.200K; 100,9 @5.600K
Optiek
Lens diameter172mm
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optieken(opt) 30°, 60°
Kleuren
Kleurmengingtunable white
Wit macro's2.700 K ~ 6.500K
Effecten
Macrosbuilt-in white presets
Behuizing
Kleur behuizingZwart
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM, CRMX (optional)
DMX kanalen1 / 2 / 4 / 5 / 9 / 11channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik340W
Output (at 230V)6 units on a single power line
Power factor> 0,94
Fysieke eigenschappen
Koelingactive, with IP low noise fan
Bevestiginghanging bracket with quick lock system designed for use with OMEGA bracket or floor stand

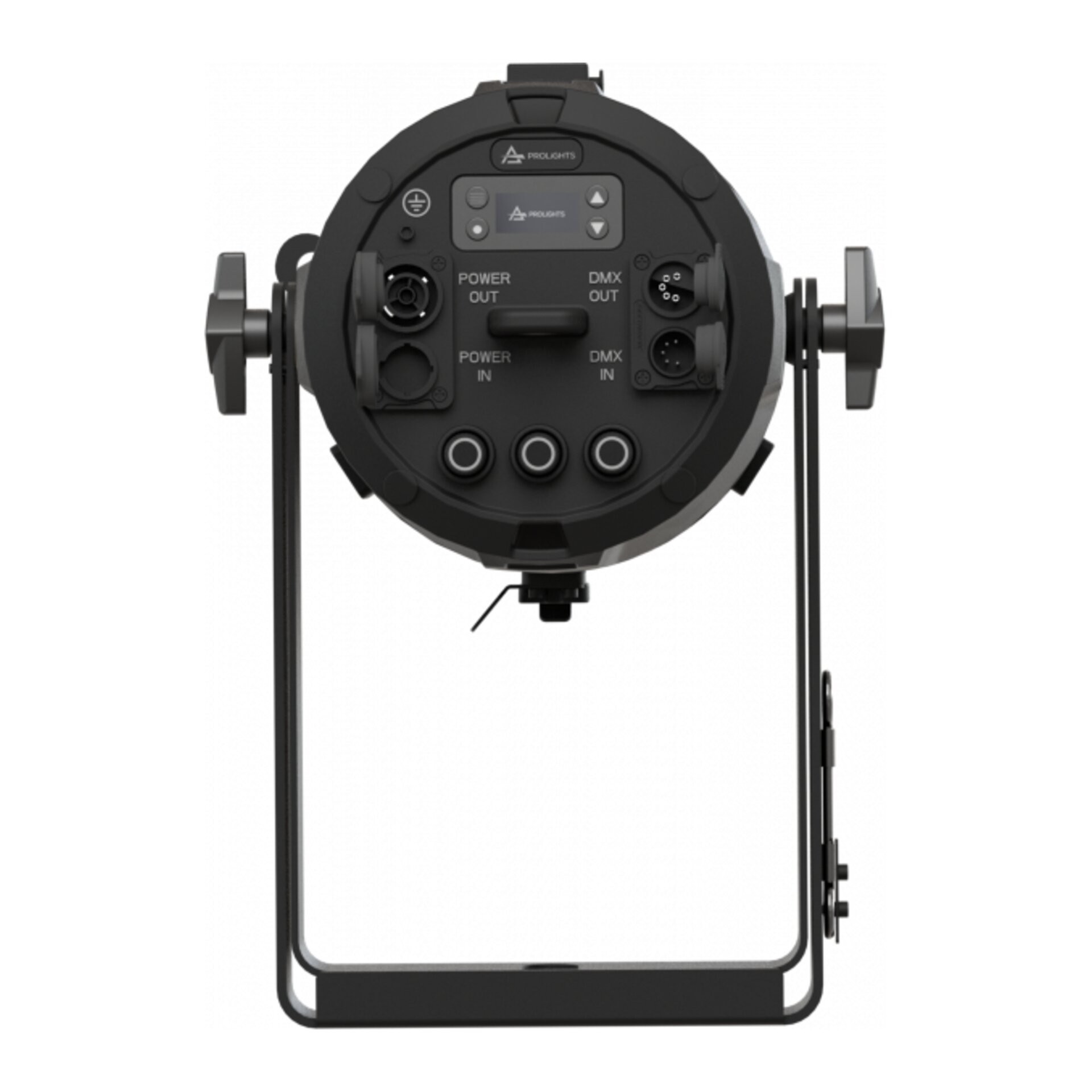

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht8,35 kg
Overige eigenschappen
Lichtbron300W Variable White LED
Singlecolor LED
