Algemeen
Artikelnummer
21-00596
Merk
ProLights
Artikelnummer fabrikant
ECLPARIPLFCBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen300W
Aansturing
Stand Alone3 RGB backlight push-encoders
Lichtbron
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(15°) 10'919 lm; (30°) 11'494 lm; (60°) 12'045 lm @Full
Lux(15°) 5'581 lm; (30°) 1'866 lm; (60°) 624 lmlx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI96,2 @3'200K; 92,2 @5'600K
R994,2 @3'200K; 97,8 @5'600K
TLCI92 @3'200K; 90 @5'600K
TM30 Rf93,5 @3'200K; 89,3 @5'600K
TM30 Rg105,8 @3'200K; 105,8 @5'600K
Optiek
Lens diameter172mm
Lens typeparabolic reflector in combination with HD fresnel lens

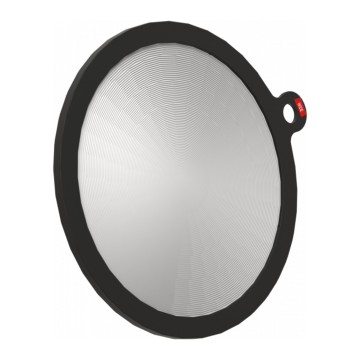

Extra optieken(opt) 30°, 60°
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K ~ 10.000K
Effecten
MacrosGels library on-board
Behuizing
Kleur behuizingZwart
Aansturing
ProtocollenDMX512, RDM, CRMX (optional)
DMX kanalen1 / 2 / 5 / 9 / 10 / 12 / 18channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik315W
Output (at 230V)6 units on a single power line
Power factor> 0,94
Fysieke eigenschappen
Koelingactive, with IP low noise fan
Bevestiginghanging bracket with quick lock system designed for use with OMEGA bracket or floor stand

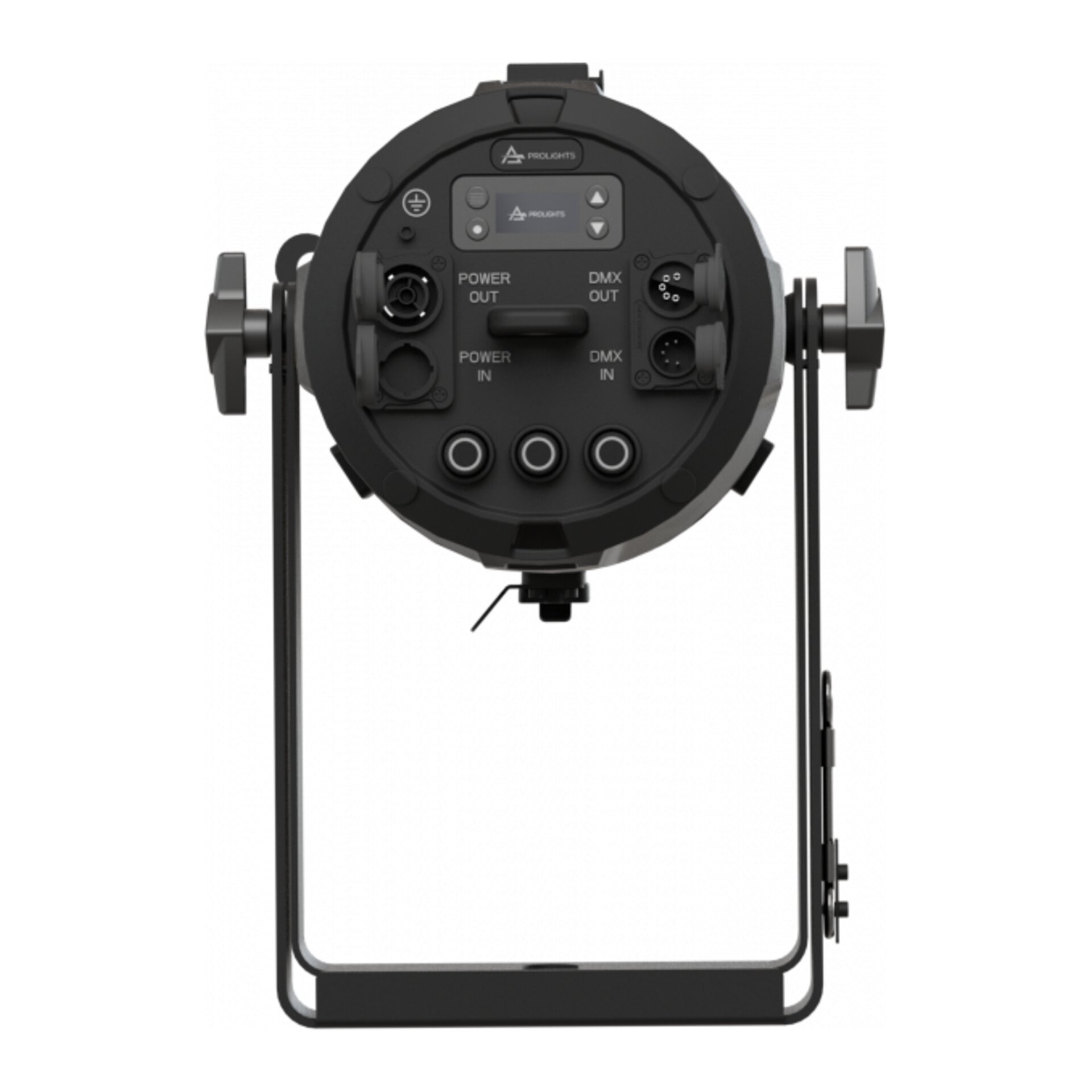

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht8 kg
Overige eigenschappen
Lichtbron300W RGB+WW LED array
Singlecolor LED
