Algemeen
Artikelnummer
21-00463
Merk
ProLights
Artikelnummer fabrikant
ASTRAPAR7ZIPBK
Garantie
2 jaar
Lamp eigenschappen
Zoom4,5° - 53° motorised linear zoom
Lichtbron
Lichtbron7x40W RGB + Warm White LED
CCTCCT control, + / - green correction, tungsten emulation
Luminous fluxpreliminary data: (4,5°) 1'513 lm - (53°) 2'604lm @full
Luxpreliminary data: (4,5°) 12'541 lx - (53°) 304lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRIpreliminary data: 94,8 @ 3'200K; 92,9 @ 5'600K
R9preliminary data: 97,6 @ 3'200K; 79,8 @ 5'600K
Optiek
Lens typehoneycomb gapless plano-convex optics
Kleuren
KleurmengingRGBW / FC
Wit macro's2.800 K ~ 10.000K
Kleurenwielgel filters included
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
Macrosseveral pre-built pixel macros with adjustable speed
Control Resolution16-bit dimmer
Behuizing
Kleur behuizingRAL 9004
Materiaalweatherproof IP65 construction
Aansturing
ProtocollenDMX512, RDM, CRMX + WDMX
DMX kanalen1 / 2 / 6 / 12 / 14 / 21 / 33channel
DisplayLCD high resolution colour display
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F)
LED Controlflicker free operation
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 50.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik205W
Output (at 230V)10 units on a single power line
Power factor> 0,93
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

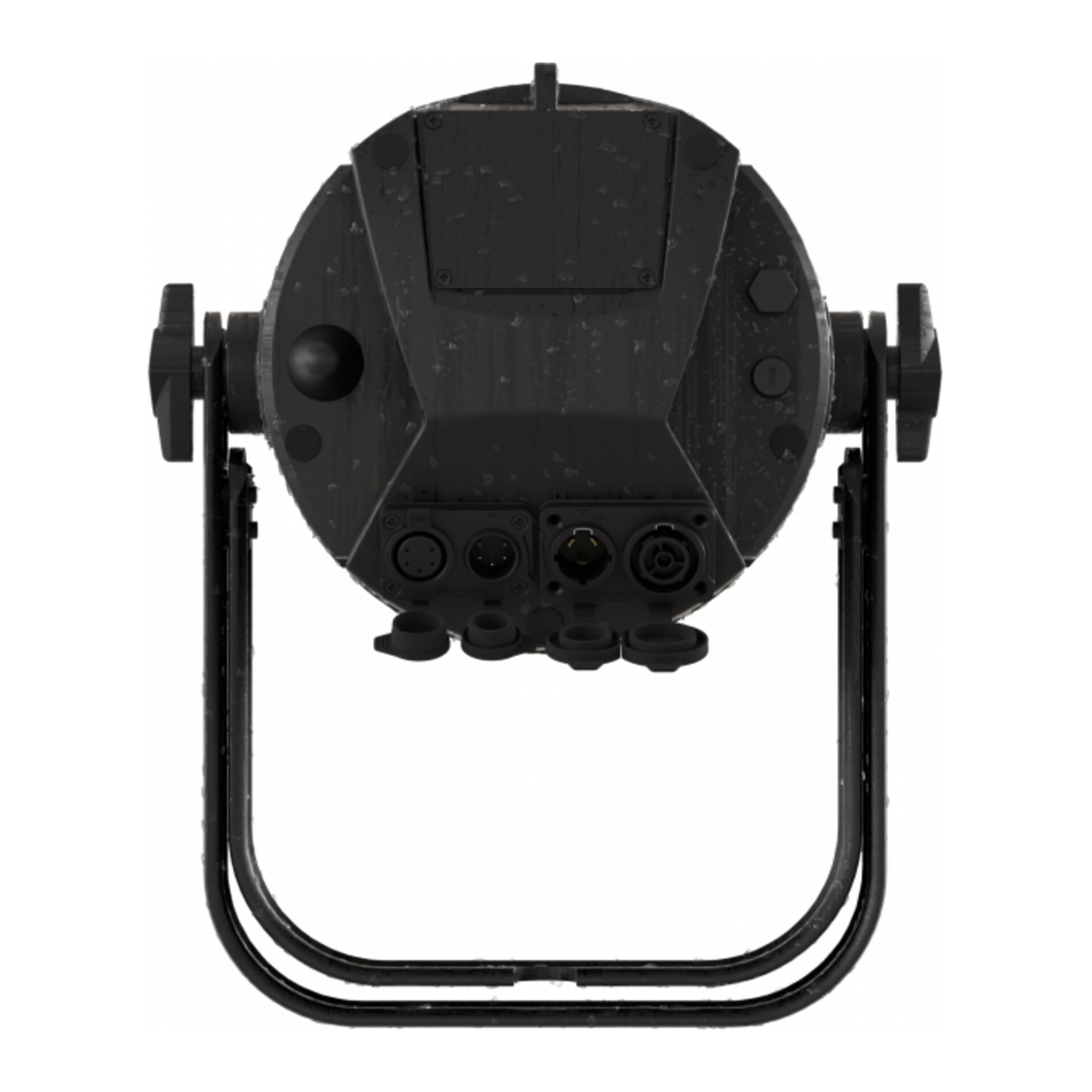

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON TRUE IP65 IN/OUT
IP waarde65 for outdoor installations
Logistieke eigenschappen
Hoogte verpakking
31 cm
Breedte verpakking
51 cm
Diepte verpakking
41 cm
Gewicht verpakking
10 kg
