Algemeen
Artikelnummer
23-00021
Merk
ProLights
Artikelnummer fabrikant
LUMIPAR7IP20D
Garantie
2 jaar
Lichtbron
Lichtbron7x9W RGBW LEDs
Luminous flux(20°) 2'945 lm - (45°) 3'835lm
Lux(45°) 654lx @3 m full
Levensverwachting lichtbron > 50.000 h
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGBW / FC
Wit macro's3.000 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros built-in white presets
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512
DMX kanalen4 / 6 / 11channel
Master/Slave for synchronised operation of more units linked in a chain
Display black OLED touch display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter0 - 30 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik65W
Output (at 230V)58 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning

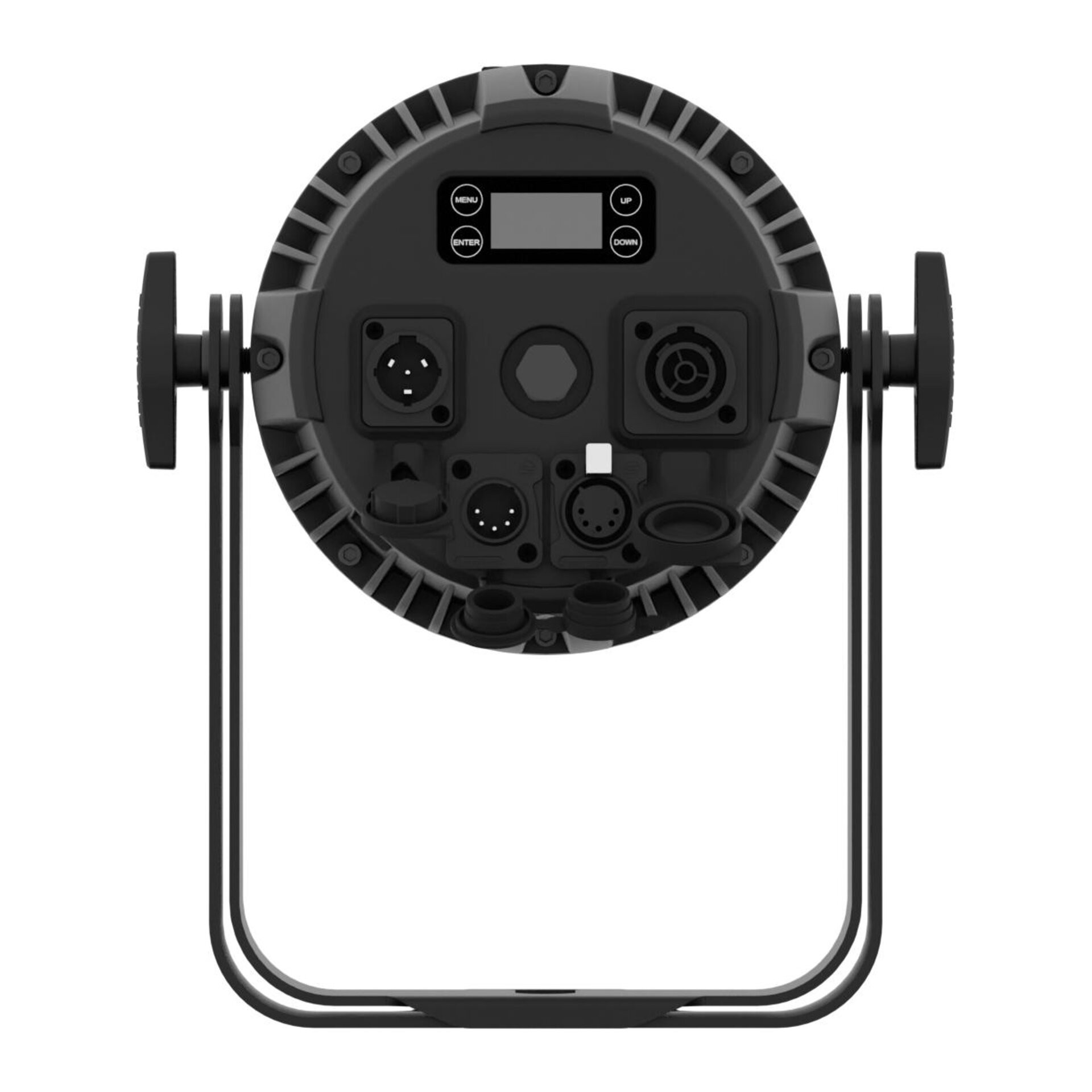

Signaal aansluiting Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen

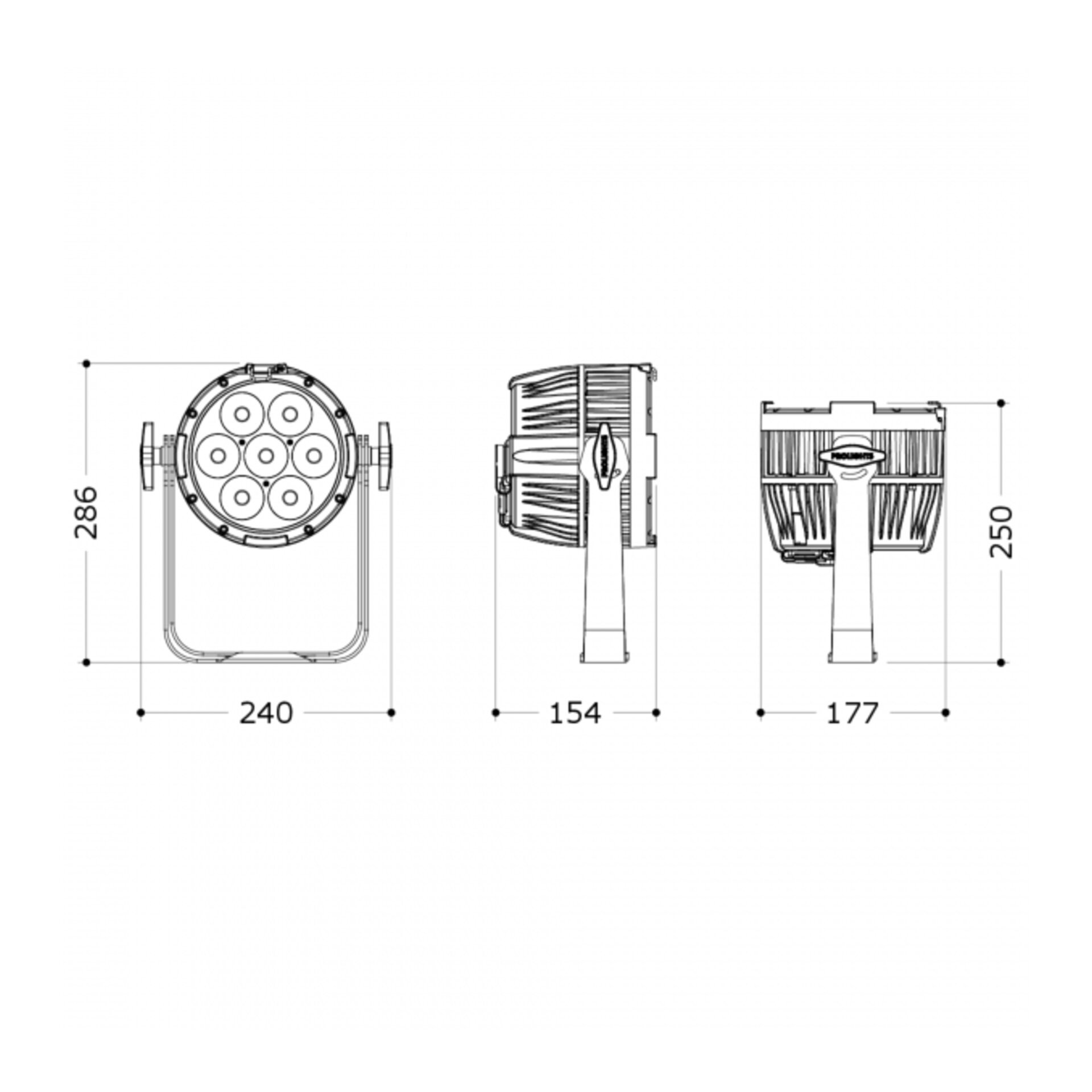

Hoogte
28.6 cm
Breedte
24 cm
Diepte
15.4 cm
Gewicht
3.64 kg
