Algemeen
Artikelnummer
21-00123
Merk
ProLights
Artikelnummer fabrikant
STUDIOCOBPDY2BK
Garantie
2 jaar
Lichtbron
Lichtbron150W daylight white LED
CCT5.100K
Luminous flux(19°) 9'822 lm; (37°) 8'595lm
Lux(19°) 2'337 lx; (37°) 600lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI> 83
Optiek
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optiekenflood (without lens)
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalen1 / 2 / 5channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLCD high resolution colour display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik165W
Output (at 230V)15 units on a single power line
Power factor> 0.96
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

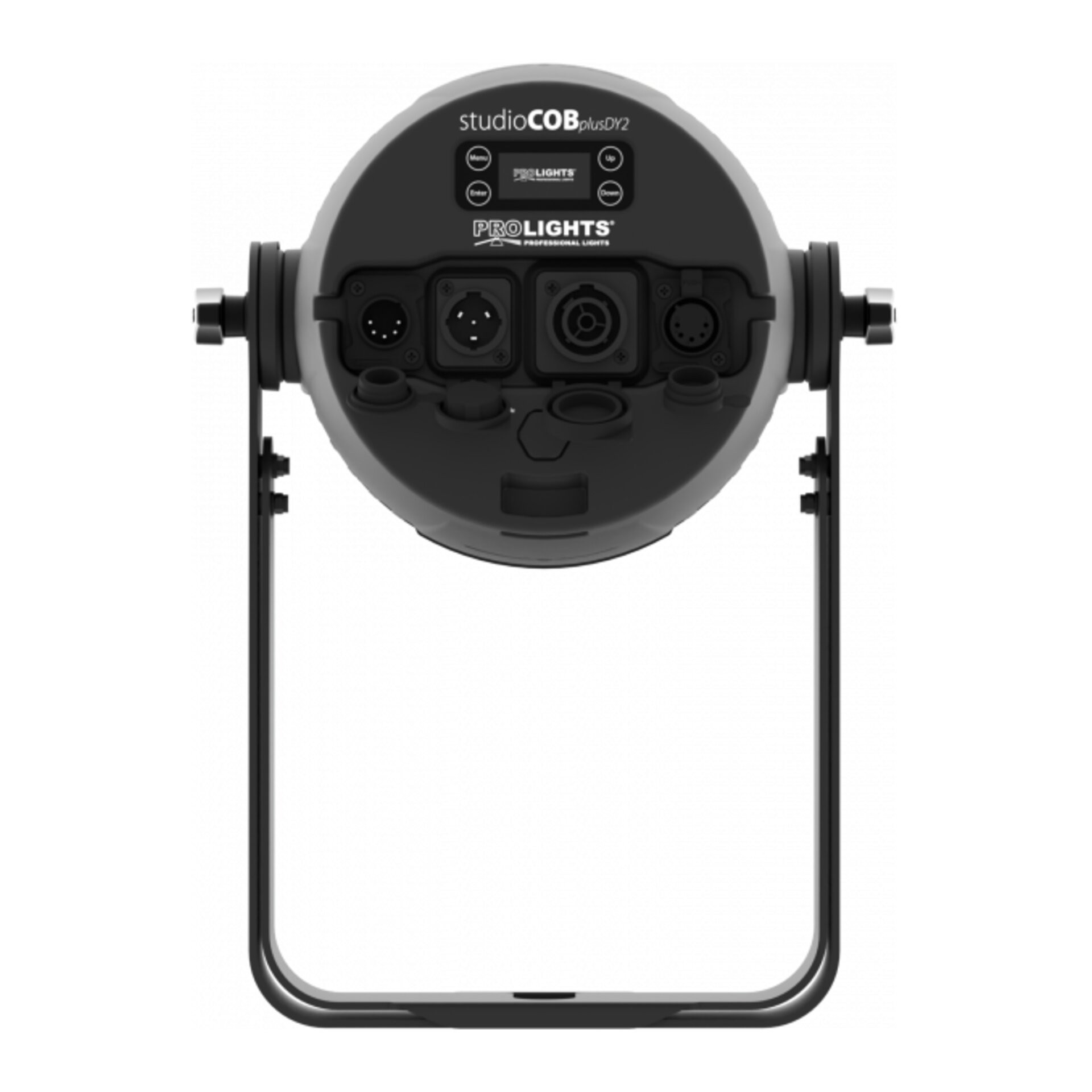

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors
IP waardeIP65 for outdoor installations
Logistieke eigenschappen
Hoogte verpakking
29.5 cm
Breedte verpakking
43.5 cm
Diepte verpakking
23.5 cm
Gewicht verpakking
7 kg
