Algemeen
Artikelnummer
21-00122
Artikelnummer fabrikant
ECLJZIPDYBK
Garantie
2 jaar
Lichtbron
Lichtbron160W Warm White LED
CCT(TU) 3.100 K - (DY) 5.500K
Luminous flux(TU - 50°) 5'274 lm - (TU - 25°) 5'770 lm; (TU - 30°) 4'200 lm - (TU - 15°) 5'012 lm - (DY - 50°) 5'390 lm - (DY - 25°) 4'911 lm; (DY - 30°) 3'844 lm - (DY - 15°) 4'450lm
Lux(TU - 50°) 734 lx - (TU - 25°) 1'857 lx; (TU - 30°) 1'336 lx - (TU - 15°) 4'644 - (DY - 50°) 630 lx - (DY - 25°) 1'630 lx; (DY - 30°) 1'080 lx - (DY - 15°) 4'032lx @5 m
Levensverwachting lichtbron > 50.000 h
CRI>90
Optiek
Lens diameter87mm
Lens type high-quality glass lens optics
Focus manual
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Effecten
Macros several pre-build macros with adjustable speed
Gobo maatM, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
Behuizing
Kleur behuizing black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512, W-DMX
DMX kanalen1 / 3channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX included, wireless solution receiver
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik136W
Power factorpF 0,98 @120 V - pF 0,97 @230 V
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning

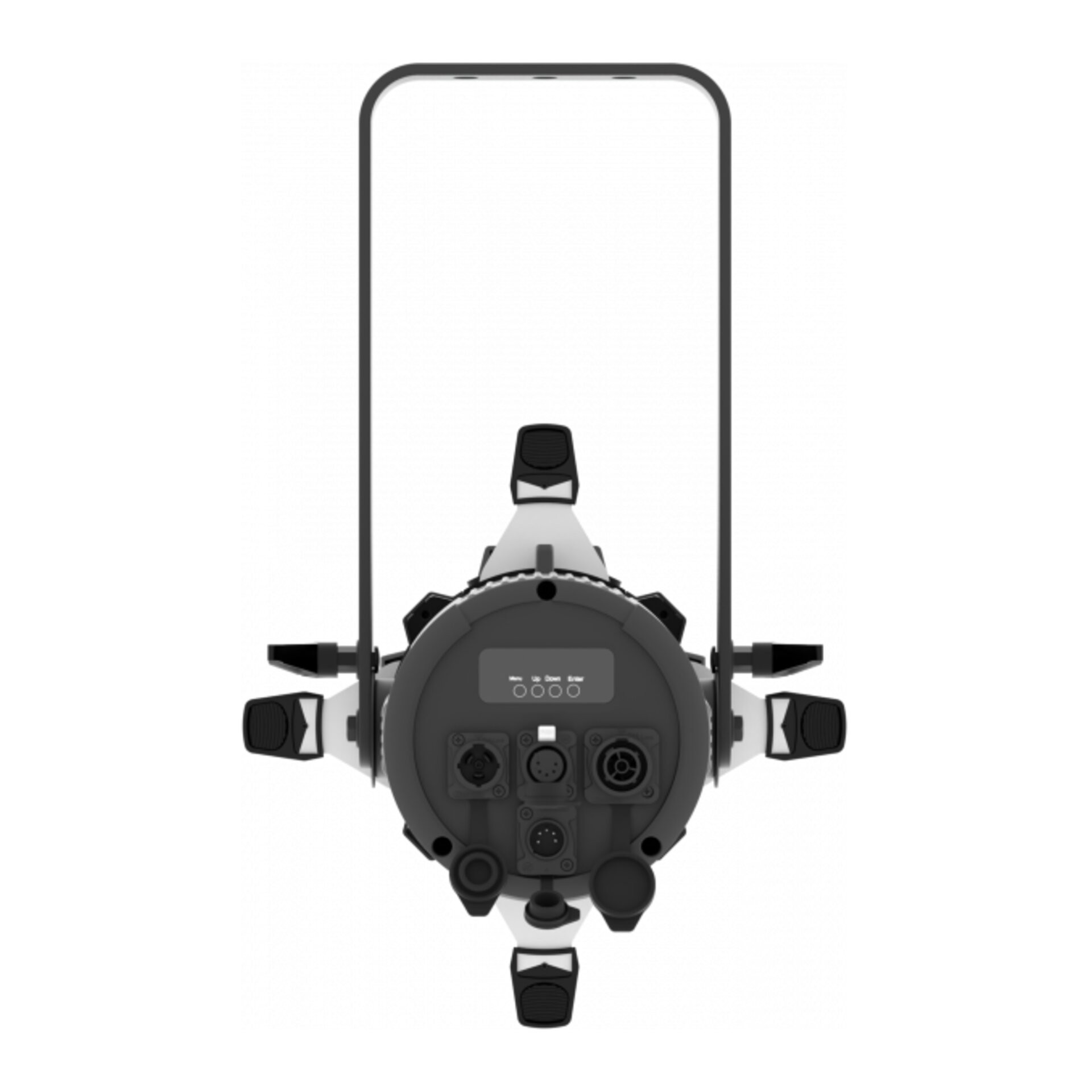

Signaal aansluiting Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte
31 cm
Breedte
53.7 cm
Diepte
48.9 cm
