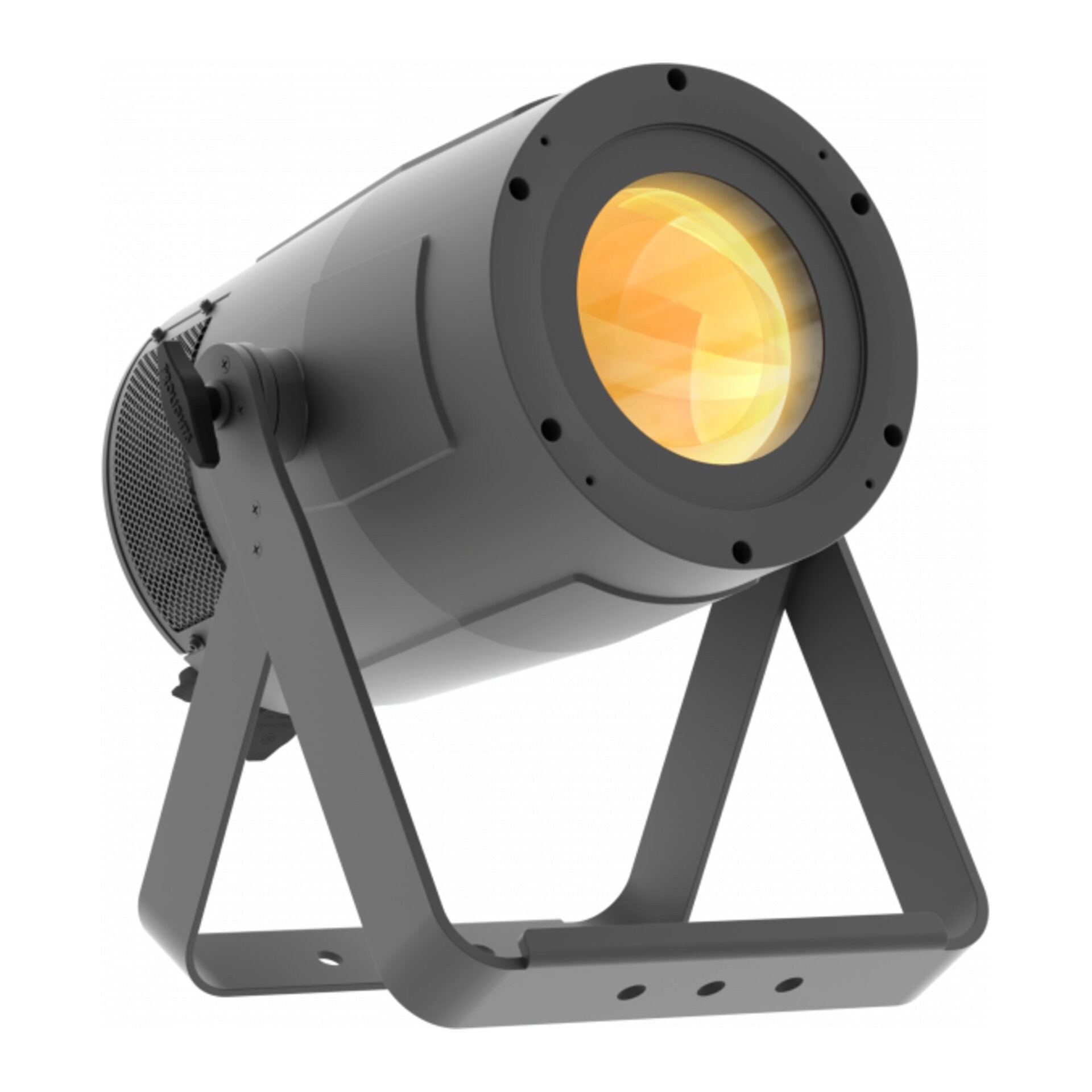

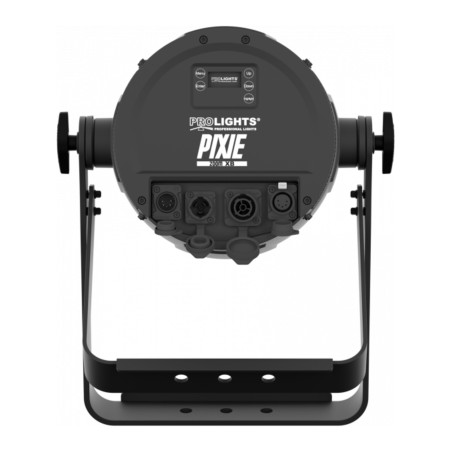

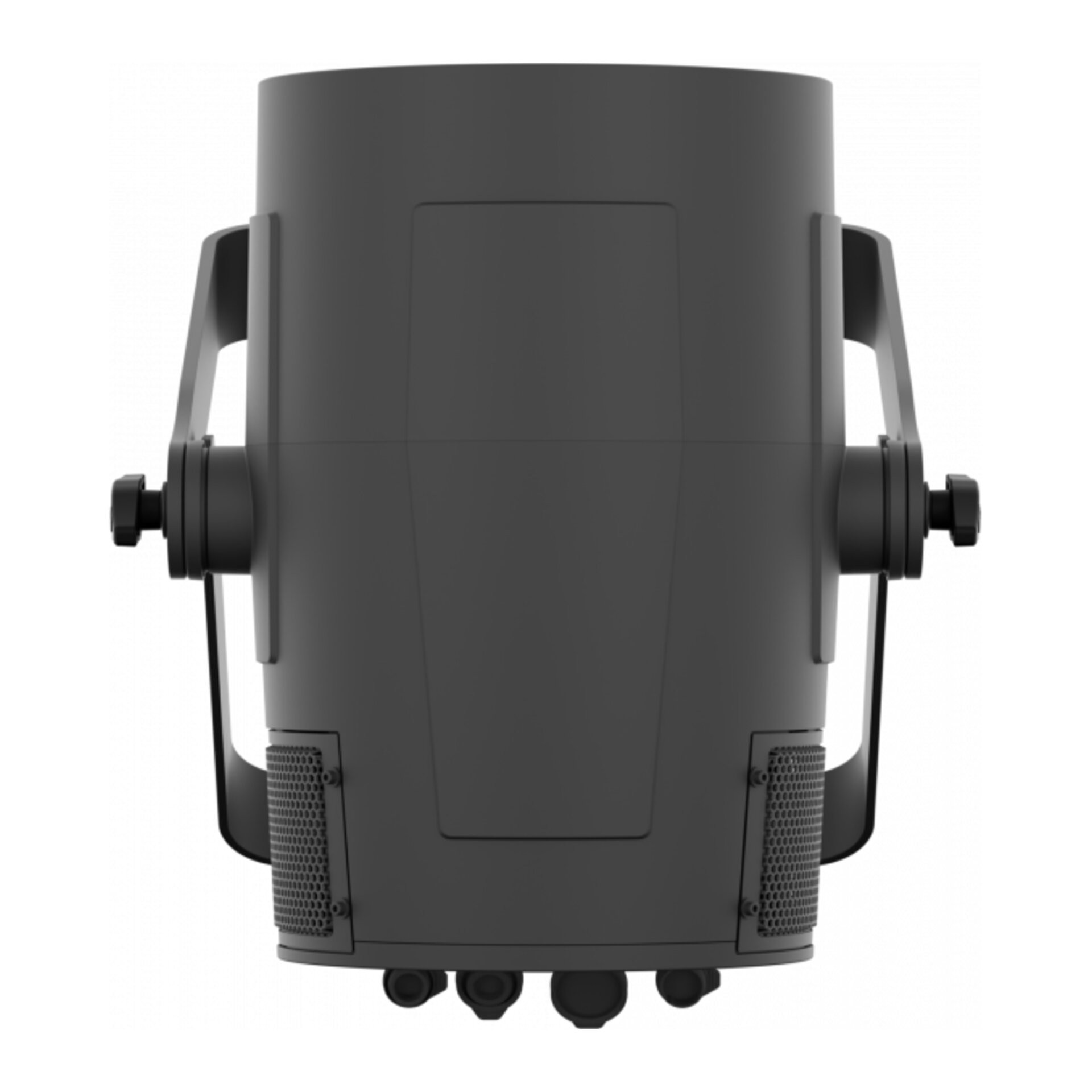

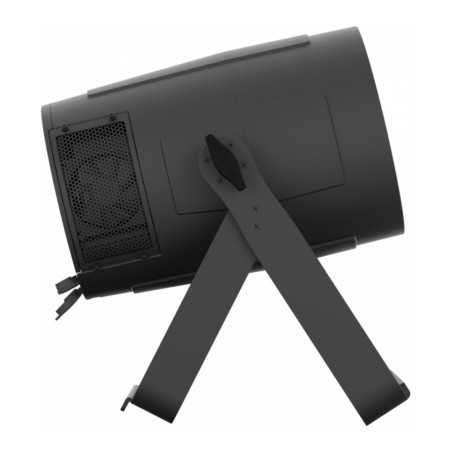

Prolights Pixie ZoomXB

21-00120

  • 280W RGBW/FC LED Par
  • 7°-42° electronic linear zoom
  • IP65

Omschrijving:

Pixie ZoomXB is a super bright single-source IP rated LED PAR featuring a 7° - 42° linear zoom and a fully homogenised output. Pixie ZoomXB is equipped with a proprietary 280W RGB + Warm White LED module which delivers a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the Pixie ZoomXB offers unprecedented flexibility and is a truly indispensable fixture for every rental company.

Merk

Levertijd 7 werkdagen

Bruto prijs:
€ 1.989,00
  • Documenten
  • accessoires (5)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (5)
  • Accessoires (3)
  • Haken/Safety's (2)

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

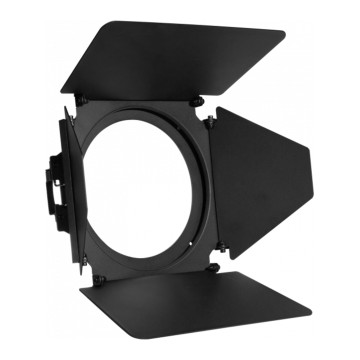

Prolights pixiezoomxbbd

21-20128

Prolights pixiezoomxbbd - Full AVL Distribution
  • Barndoor
  • Geschikt voor: PixieZoom XB
Bruto prijs:
€ 123,00

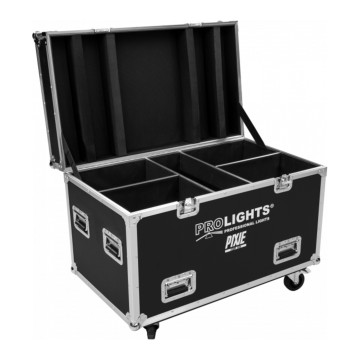

Prolights FCLPIXIEZOOMXB

21-20127

Prolights FCLPIXIEZOOMXB - Full AVL Distribution
  • Flightcase voor 4x PIXIEZOOM XB
  • Kleur: zwart
Bruto prijs:
€ 700,00

Gegevens

Algemeen

Artikelnummer 21-00120
Merk ProLights
Artikelnummer fabrikant PIXIEZOOMXB
Garantie 2 jaar

Lamp eigenschappen

Zoom7° - 42° motorised linear zoom

Lichtbron

Lichtbron280W RGB + Warm White
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(7°) 2'516 lm - (42°) 2'757lm @full
Lux(7°) 6'531 lx - (42°) 477lx @5 m full
Levensverwachting lichtbron> 70.000 h
CRI91 @3.200 K; 88,6 @5.600 K
R980 @3.200 K; 82,5 @5.600 K
TLCI80 @5.600 K
TM30 Rf89 @3.200 K; 88 @5.600 K
TM30 Rg108 @3.200 K; 108 @5.600 K

Optiek

Lens diameter125mm
Lens typehigh-quality glass lens optics

Kleuren

Manual colour modemanual adjustment of colour
KleurmengingRGB + Warm White
Wit macro's2.800 K - 8.000K
Kleurenwielvirtual colour wheel with macros

Effecten

Macrosseveral pre-build macros with adjustable speed

Behuizing

Kleur behuizingblack
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512, RDM, W-DMX
DMX kanalen5 / 7 / 11channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curvesselectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik265W
Output (at 230V)8 units on a single power line
Power factor>0,95

Fysieke eigenschappen

Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingbracket for hanging and positioning
Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation

Logistieke eigenschappen

Hoogte verpakking 32.5 cm
Breedte verpakking 57 cm
Diepte verpakking 42.5 cm
Gewicht verpakking 14.7 kg
