Algemeen
Artikelnummer
21-00113
Artikelnummer fabrikant
STUDIOCOBPLUSTUBK
Garantie
2 jaar
Lichtbron
Lichtbron150W Tungsten White LED
CCT3.000K
Luminous flux(18°) 8'419 - (38°) 7'837lm
Lux(38°) 1'483lx @3 m
Levensverwachting lichtbron > 30.000 h
CRI> 90
Optiek
Lens type parabolic reflector in combination with HD fresnel lens
Extra optiekenflood (without lens) - 38° (inc)
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Body
Kleur behuizing black, white finishing available
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM
DMX kanalen1 / 2 / 5channel
Master/Slave for synchronised operation of more units linked in a chain
Display black OLED touch display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free frequency with adjustable PWM
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik141W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning

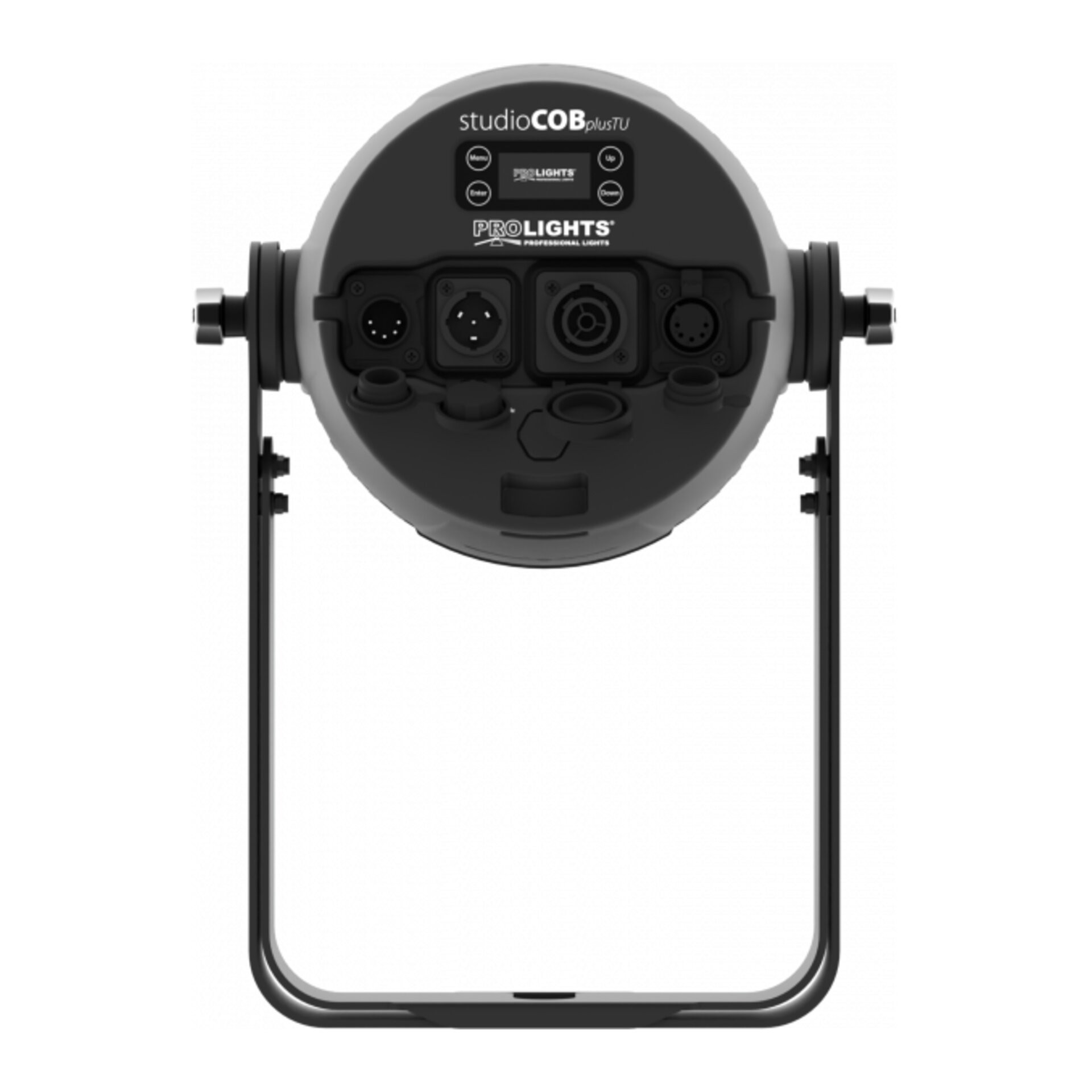

Signaal aansluiting Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte
18.7 cm
Breedte
25.9 cm
Diepte
37 cm
Gewicht
4.95 kg
