Algemeen
Artikelnummer
21-00112
Merk
ProLights
Artikelnummer fabrikant
STUDIOCOBPLUSTWBK
Garantie
2 jaar
Lichtbron
Lichtbron165W Tunable White LED
CCTCCT control through dedicated DMX channel
Luminous flux(18°) 5'741 - (38°) 5'383lm
Lux(38°) WW 473,2lx - CW 576,1lx - ALL 1'001lx @3 m
Levensverwachting lichtbron> 30.000 h
CRIWW / CW > 95
Optiek
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optiekenflood (without lens) - 38° (inc)
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Kleurmengingtunable white
Wit macro's3.000 K ~ 6.000K
Behuizing
Kleur behuizingblack, white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalen2 / 4 / 7channel
Master/Slavefor synchronised operation of more units linked in a chain
Displayblack OLED touch display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik150W
Output (at 230V)12 units on a single power line
Power factor> 0,95
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

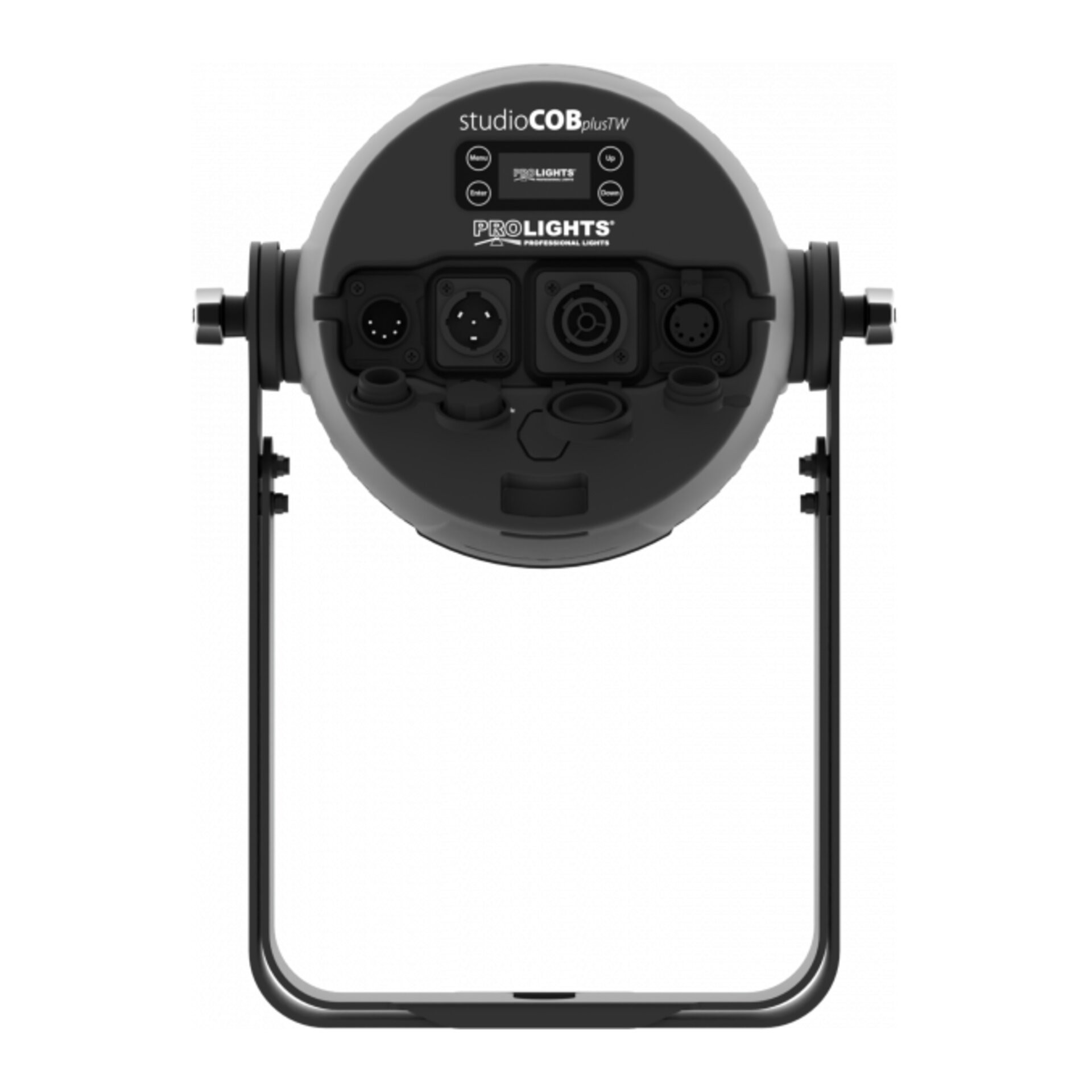

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
29.5 cm
Breedte verpakking
43.5 cm
Diepte verpakking
23.5 cm
Gewicht verpakking
7 kg
