Algemeen
Artikelnummer
21-00108
Merk
ProLights
Artikelnummer fabrikant
STUDIOCOBPLUSFCBK
Garantie
2 jaar
Lichtbron
Lichtbron150W COB RGBW / FC LED
CCT CCT control through dedicated DMX channel
Luminous flux(18°) 3'949 lm - (38°) 3'869lm
Lux(38°) 734lx
Levensverwachting lichtbron > 50.000 h
Optiek
Lens type parabolic reflector in combination with HD fresnel lens
Extra optieken38° (inc)
Kleuren
Manual colour mode manual adjustment of colour

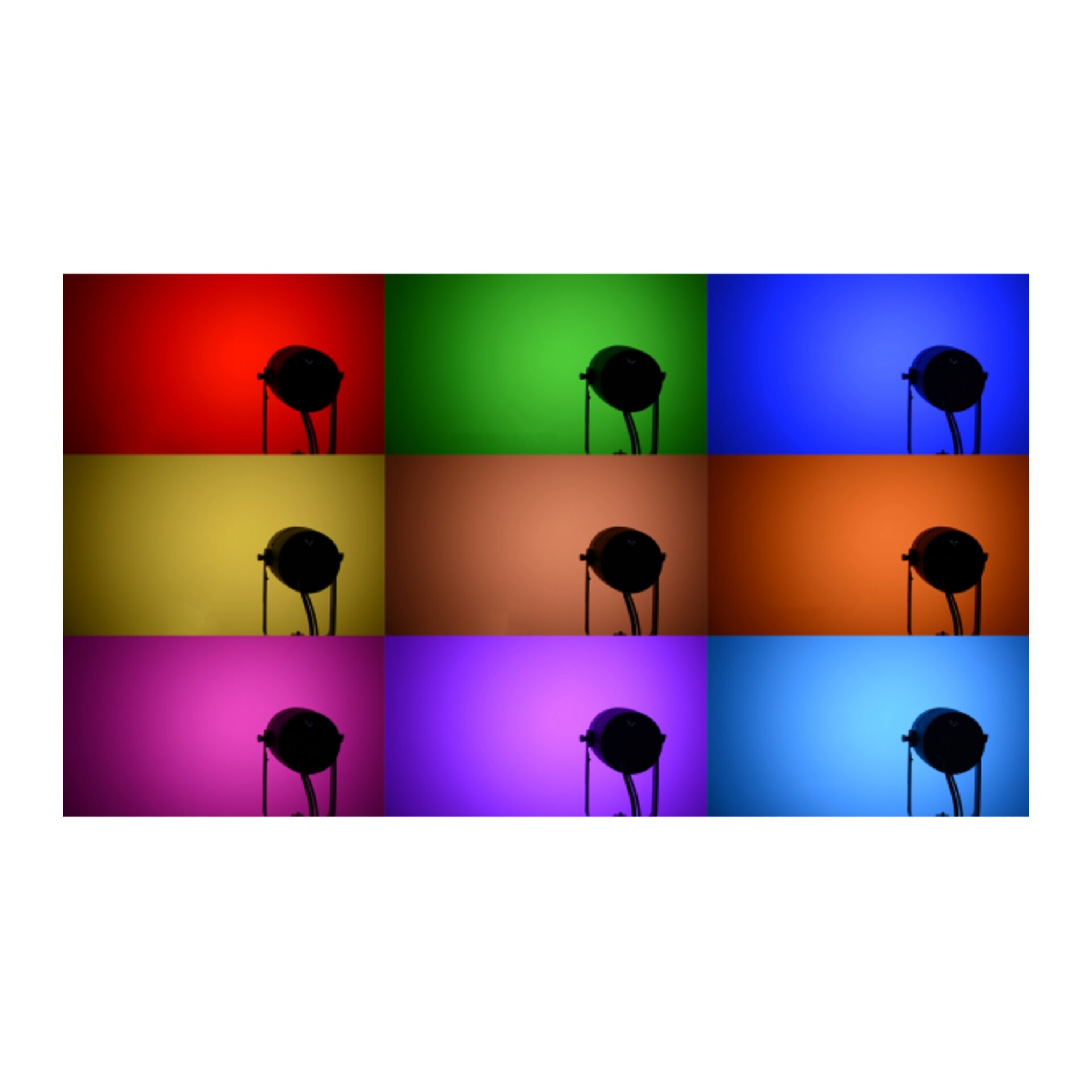

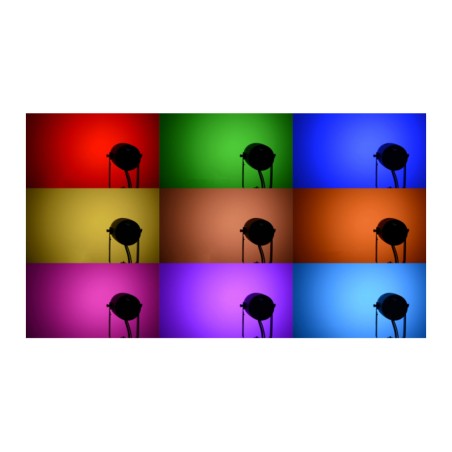

Kleurmenging RGBW / FC

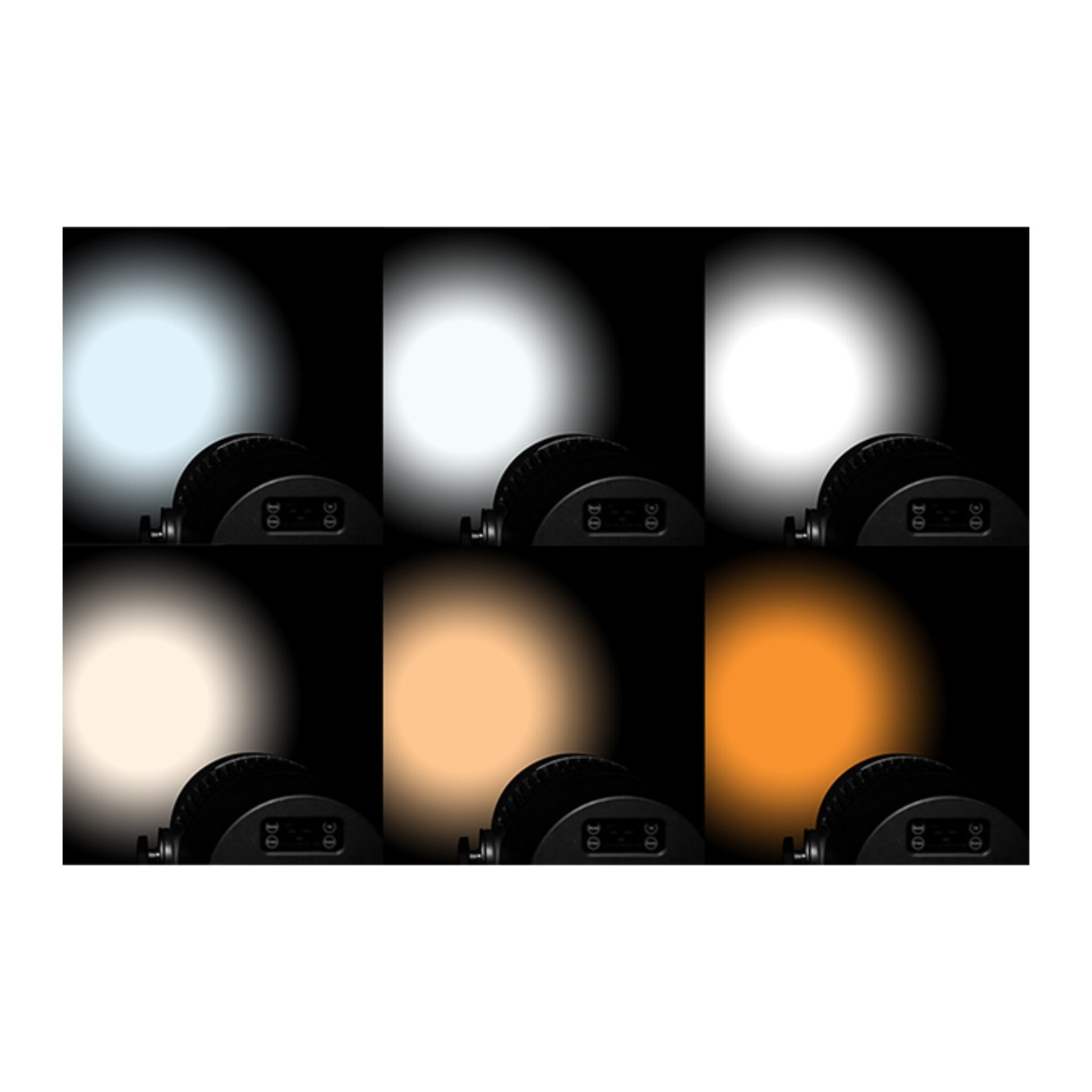

Wit macro's2.000 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Behuizing
Kleur behuizing black, white finishing available
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512, RDM
DMX kanalen4 / 6 / 10channel
Master/Slave for synchronised operation of more units linked in a chain
Display black OLED touch display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free operation
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik135W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation

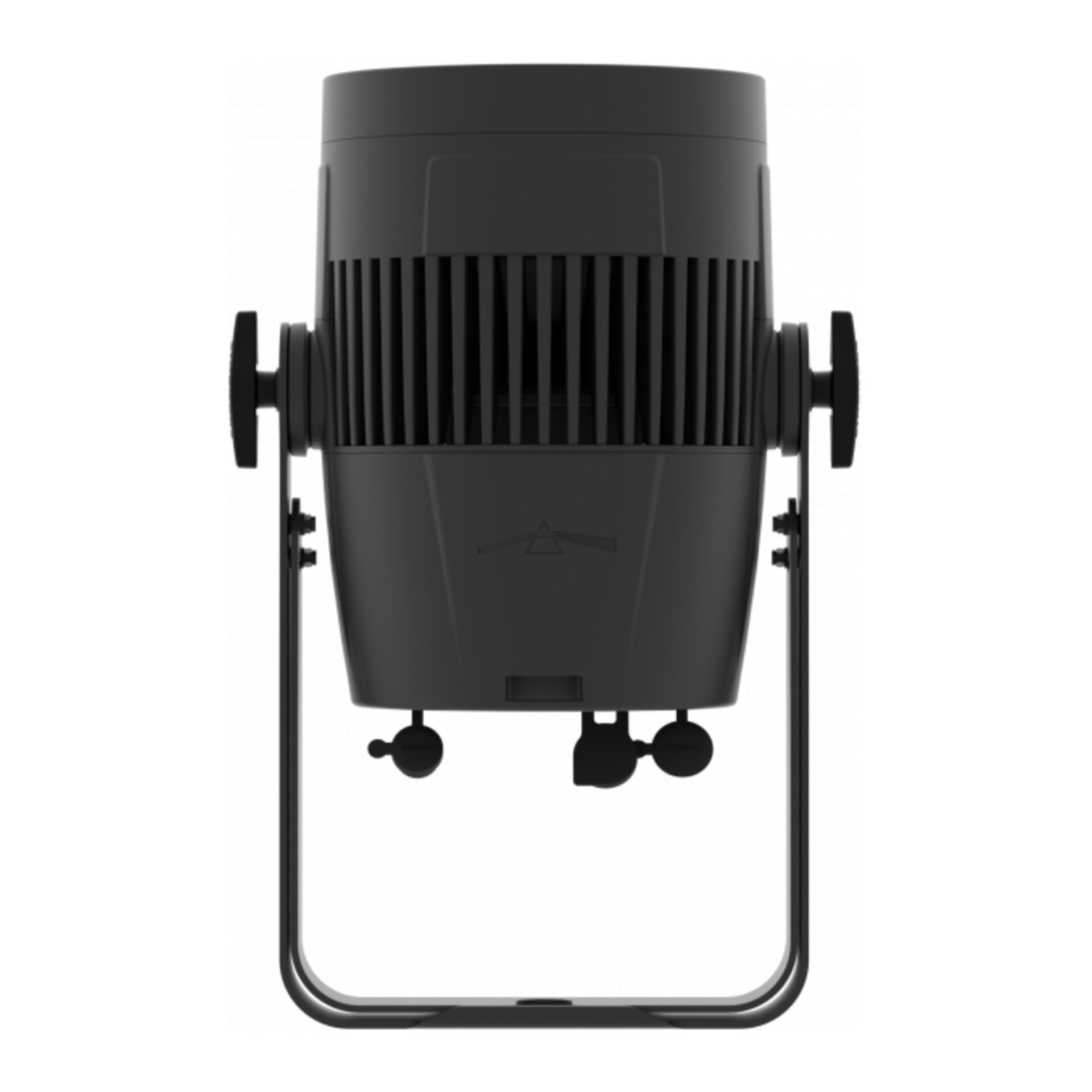

Bevestiging double hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluiting Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
29.5 cm
Breedte verpakking
43.5 cm
Diepte verpakking
23.5 cm
Gewicht verpakking
7 kg
