Lichtbron
Lichtbron4x75W RGBW LEDs
CCTCCT control through dedicated DMX channel
Luminous flux(24°) 5'393 lm - (40°) 6.260lm
Lux(40°) 891lx
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter100mm
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optieken40°(opt) - 32° without magnetic lens
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBW / FC
Wit macro's2.000 K ~ 8.000K
Kleurenwielvirtual colour wheel with macros
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalenHALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27channel
Master/Slavefor synchronised operation of more units linked in a chain
Displayblack OLED touch display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free operation
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik227W
Output (at 230V)16 units on a single power line
Fysieke eigenschappen
Koelingpassive cooling and fan-free

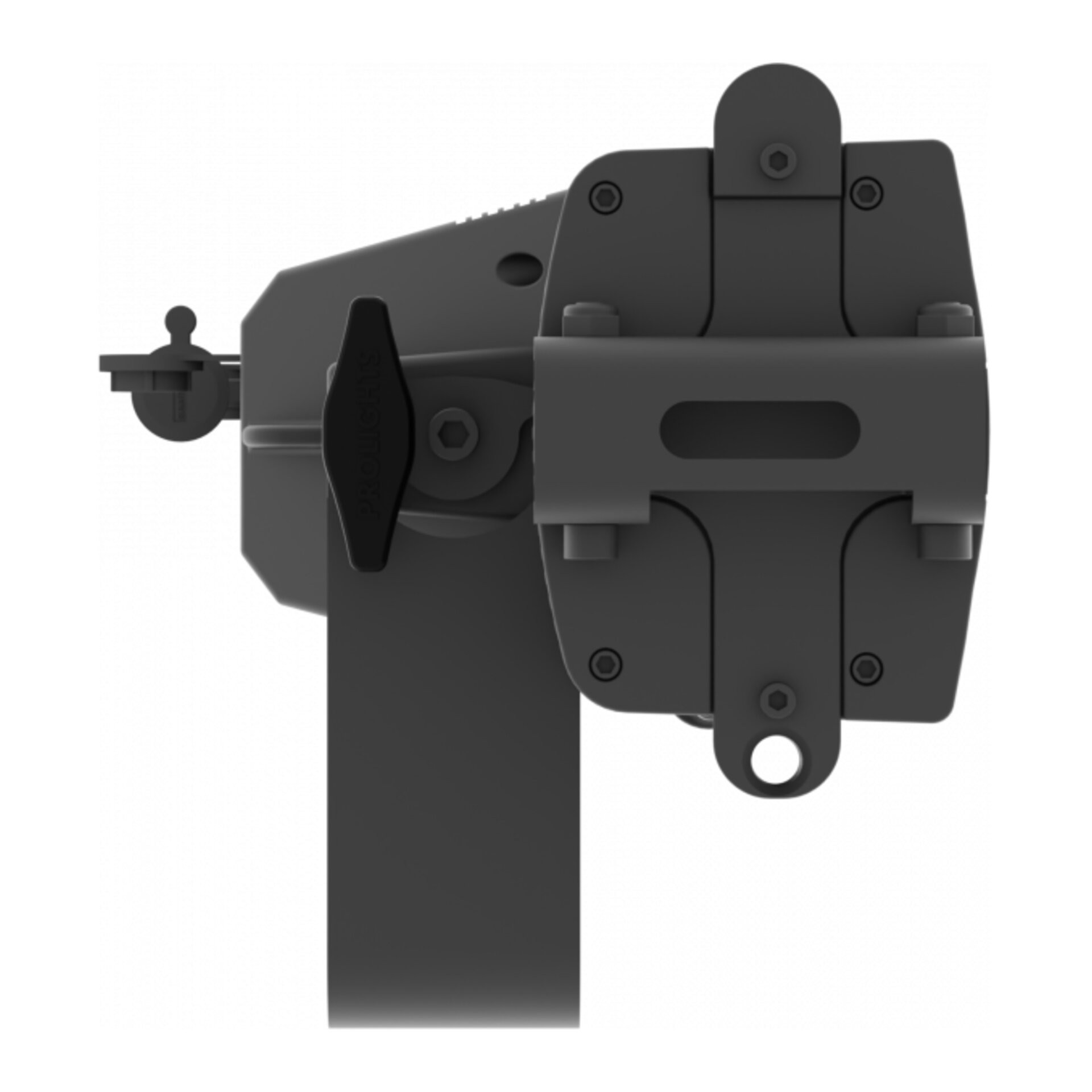

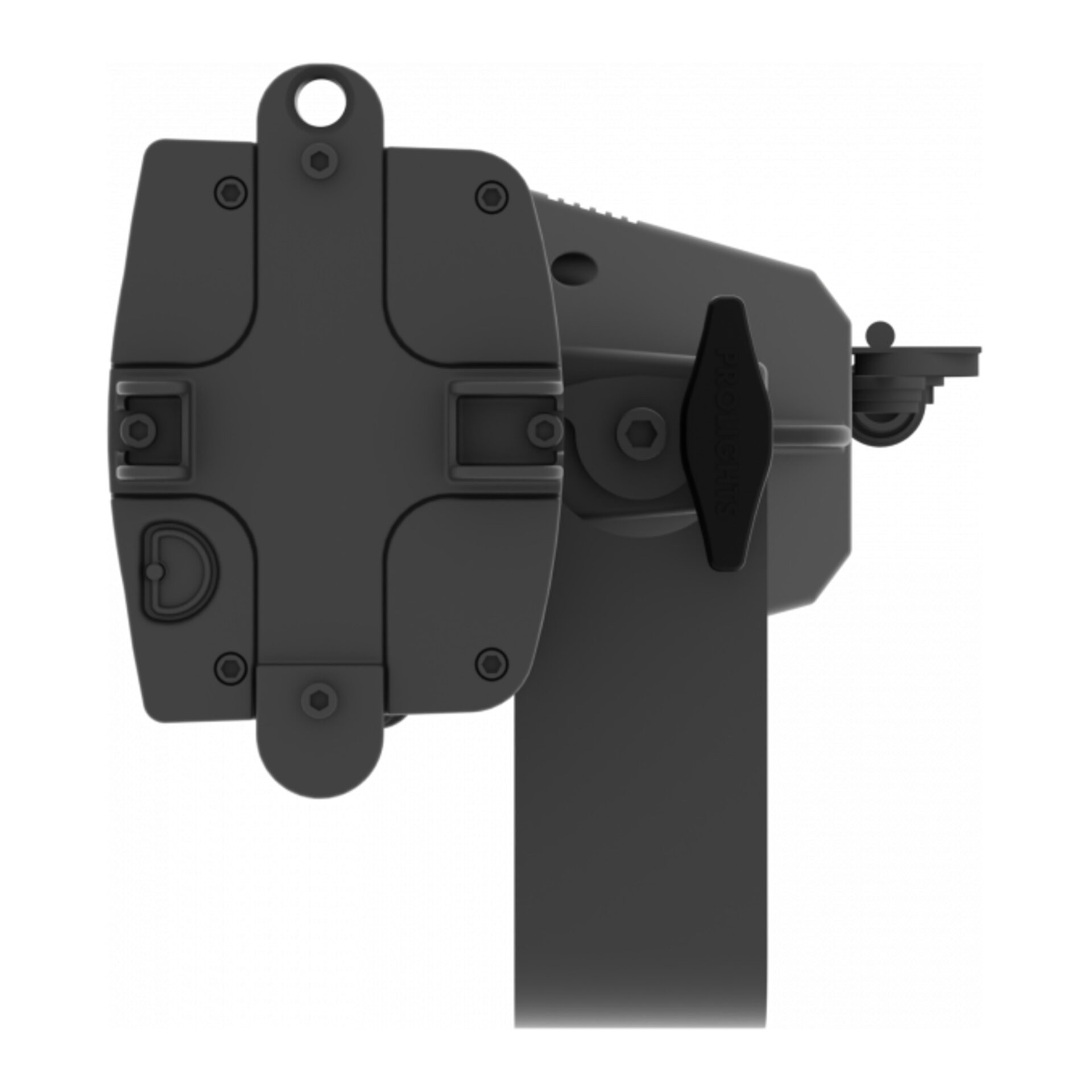

Bevestigingbracket for hanging and positioning

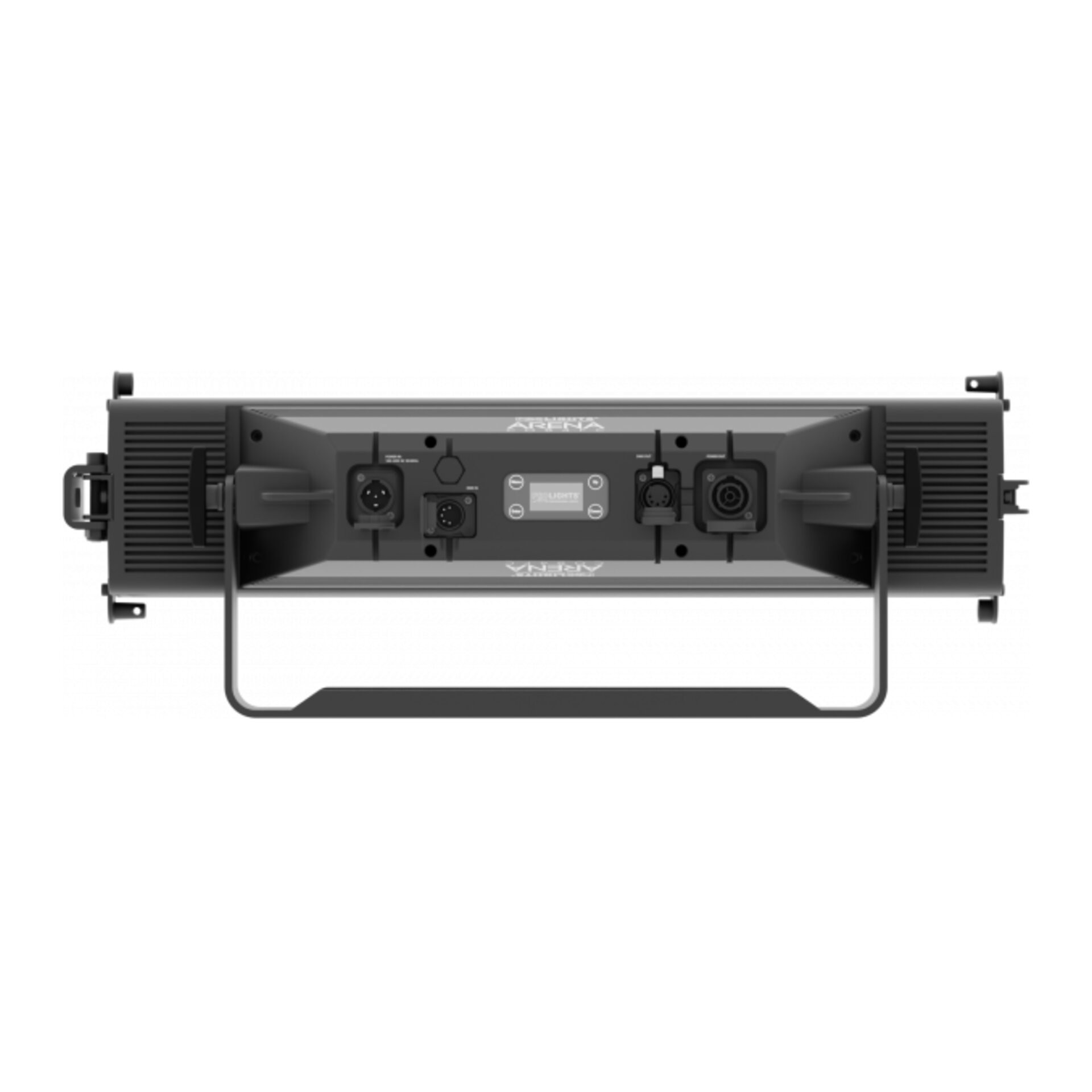

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors

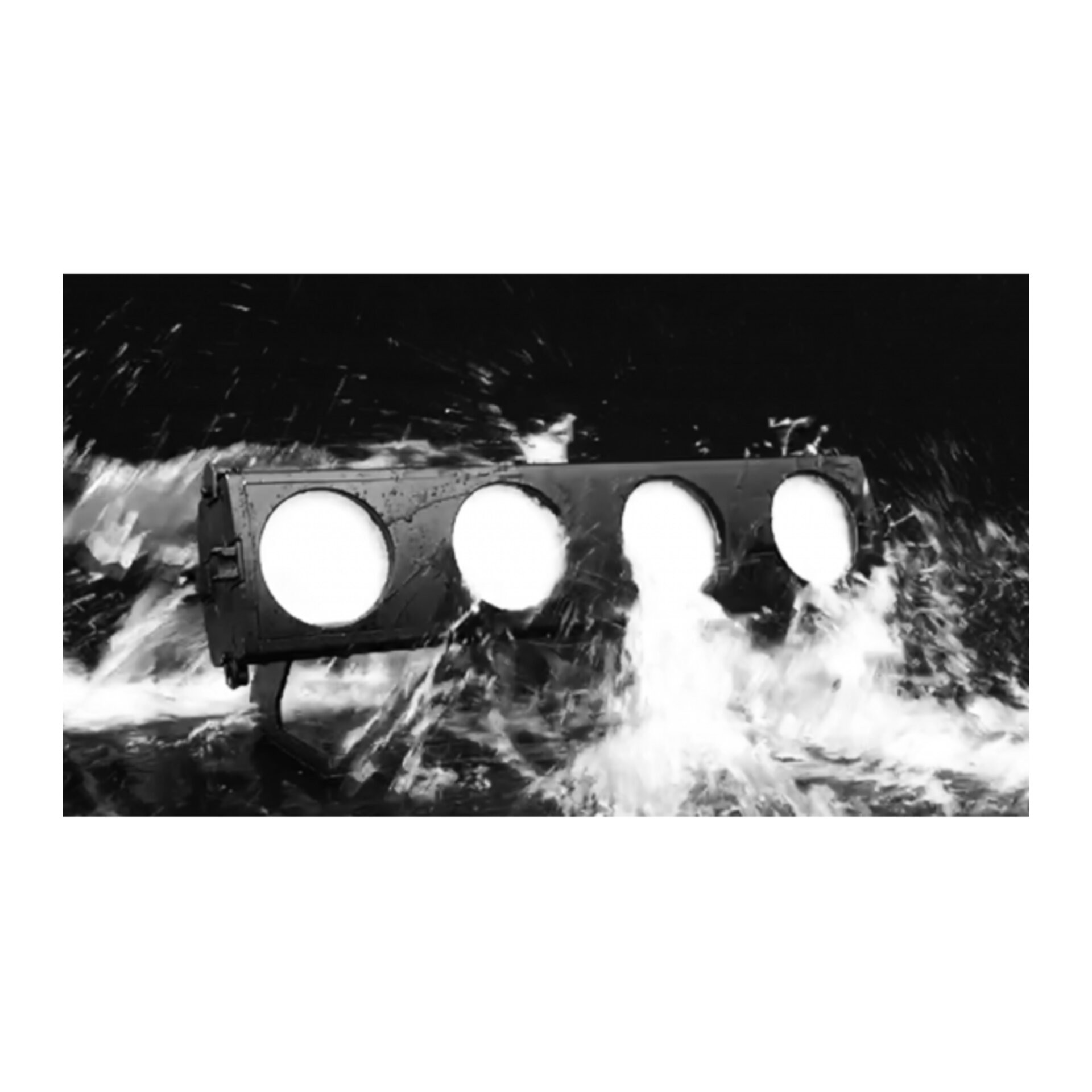

IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
25.5 cm
Breedte verpakking
73.5 cm
Diepte verpakking
30.5 cm
Gewicht verpakking
9 kg
