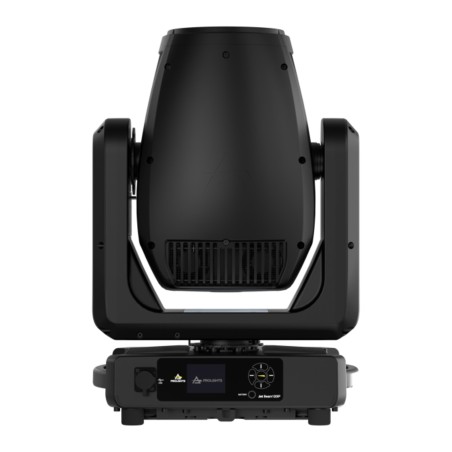

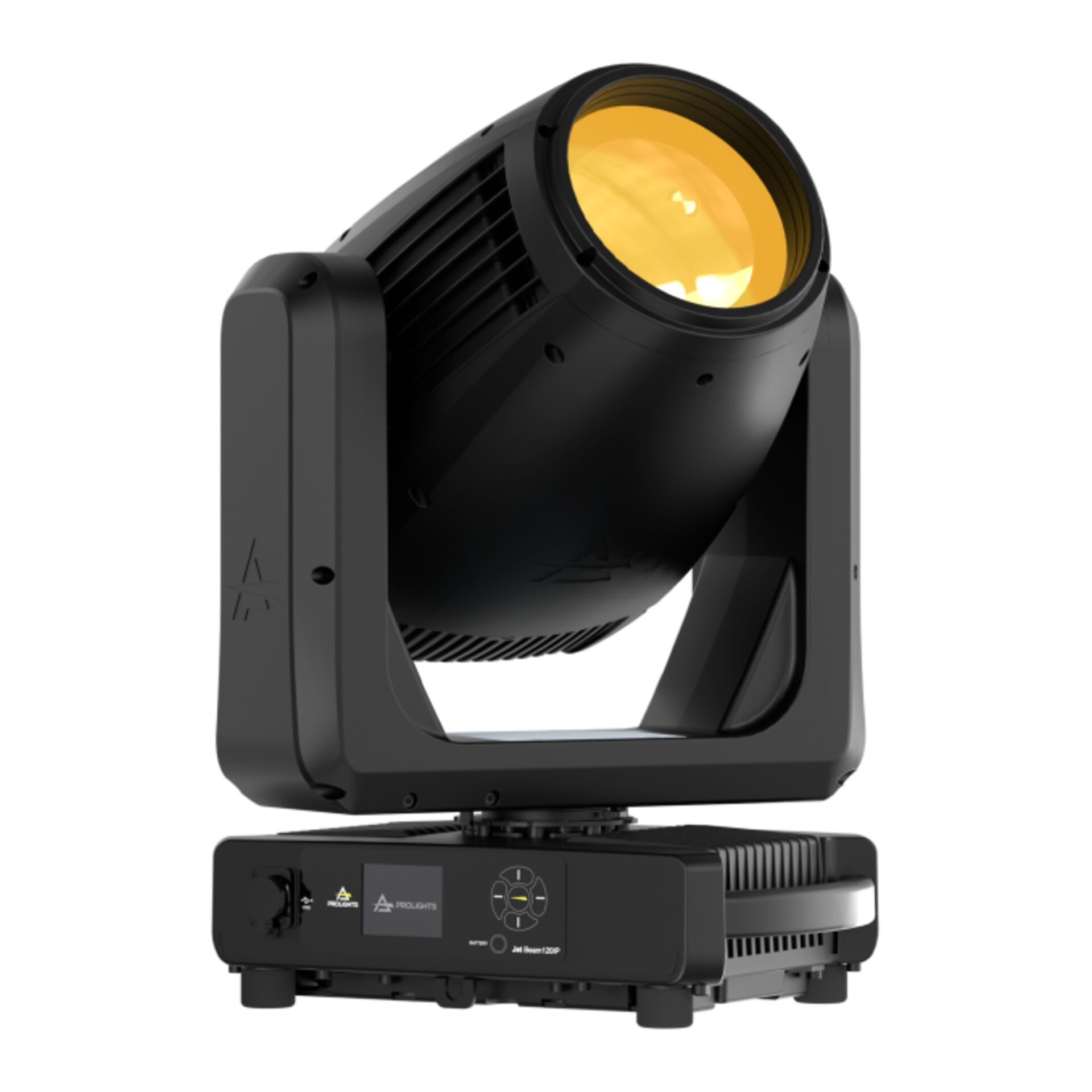

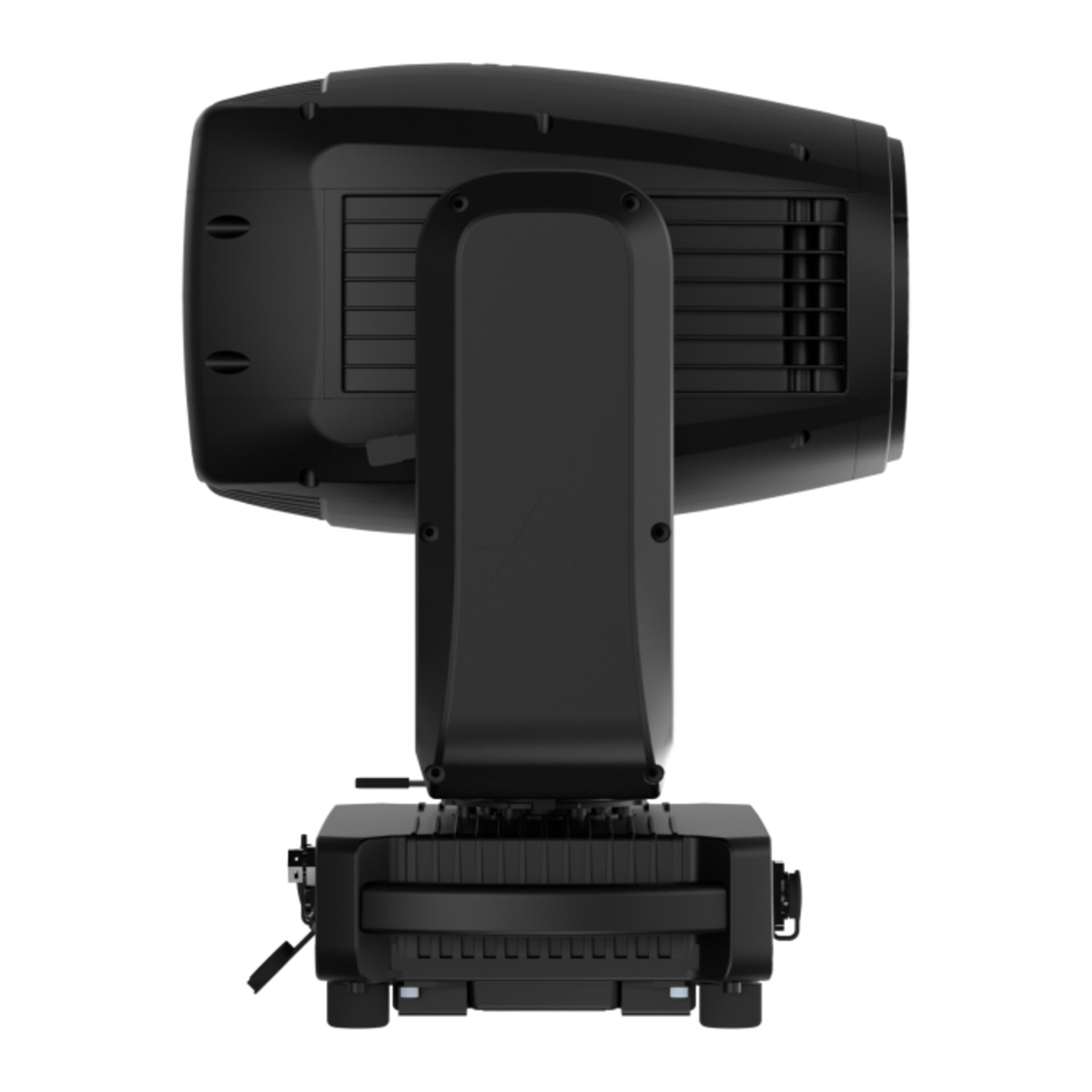

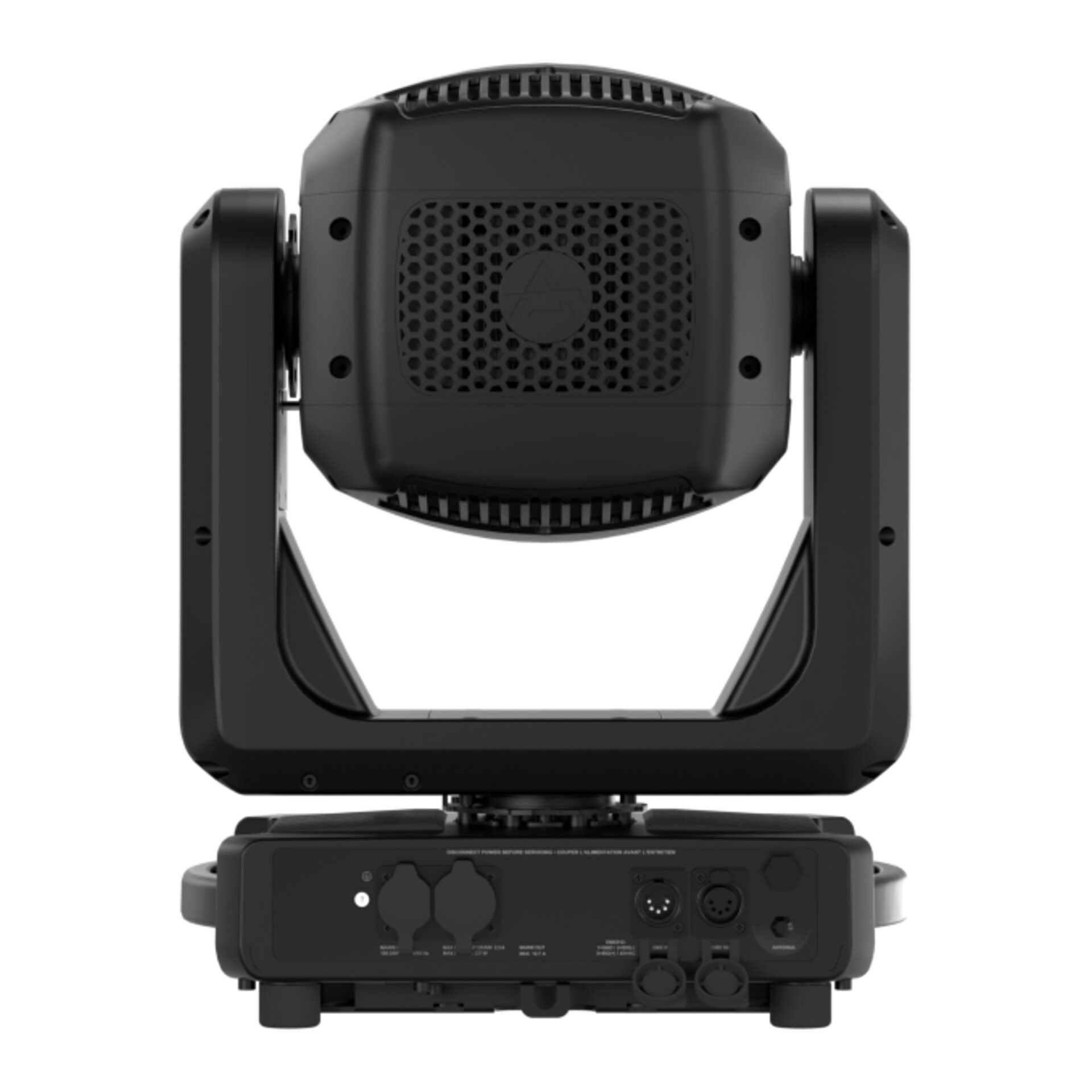

Lamp eigenschappen
KleursysteemKleurenwiel
Vermogen120W
Lichtbron
CCTseveral CTB/CTO on wheel
Lux204'167lx @15 m full
Levensverwachting lichtbron> 12.000 h
Optiek
Lens diameter143mm
Lens typeHD anti-reflection lenses with achromatic coating
Focusmotorised 16-bit
Min. Zoombereik0.6
Kleuren
Kleurenwielopen + 24 colour filters
Effecten
FX generatorprisms overlap for spectacular aerial effects
Vaste gobo's29 fixed gobos + open
Prisma(prism disk 1) 16f and 6f (prism disk 2) 8-f with bi-directional rotation, indexing, inter
Linear prisma(prism disk 1) 6f (prism disk 2) 4f and 6-f with bi-directional rotation, indexing, interc
Frostdual soft-edge and heavy
Animatiewielanimation wheel with CW and CCW rotation
Control Resolution16-bit dimmer control
EffectenFocus, Frost, Gobo, Prisma
Behuizing
Kleur behuizingZwart
Pan/Tilt resolutiebit 16-bit
Aansturing
DMX kanalen18ch
DisplayLCD high resolution colour display with autoflip
Firmware upgradevia DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
RDMfor remote addressing and parameter configuration
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
BedrijfstemperatuurTa -20 to +45 °C (-4 to +113 °F)
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 to 50000 Hz (selectable steps)
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik150W
Output (at 230V)14 units on a single power line
Power factor> 0,96
Fysieke eigenschappen
Koelingheat pipe with low-noise fan
Bevestigingany position with quick-lock omega brackets
Pan / tilt lockfor transportation and maintenance
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht19kg kg
Overige eigenschappen
Lichtbron120W Phosphor Laser source
Fosfor Laser
