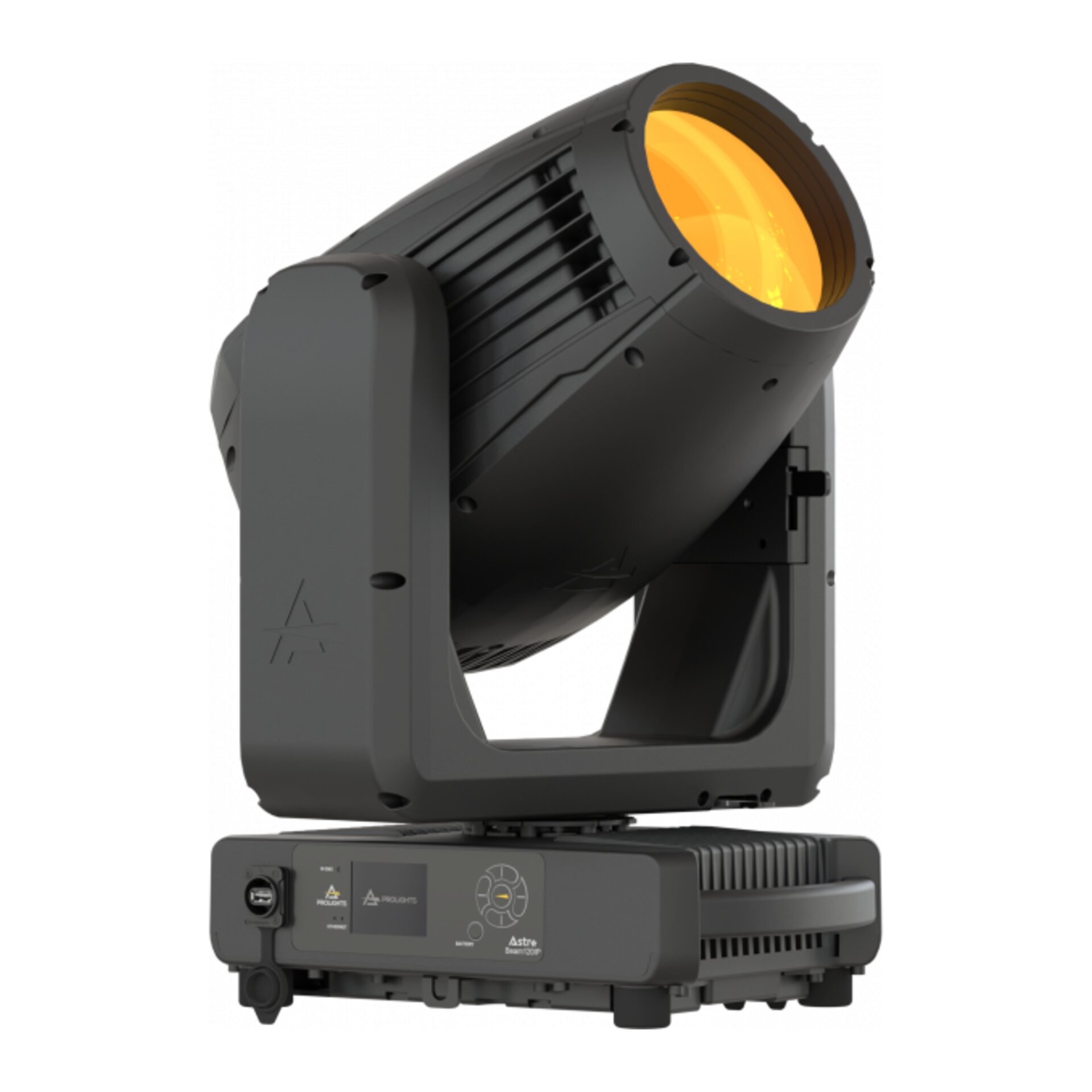

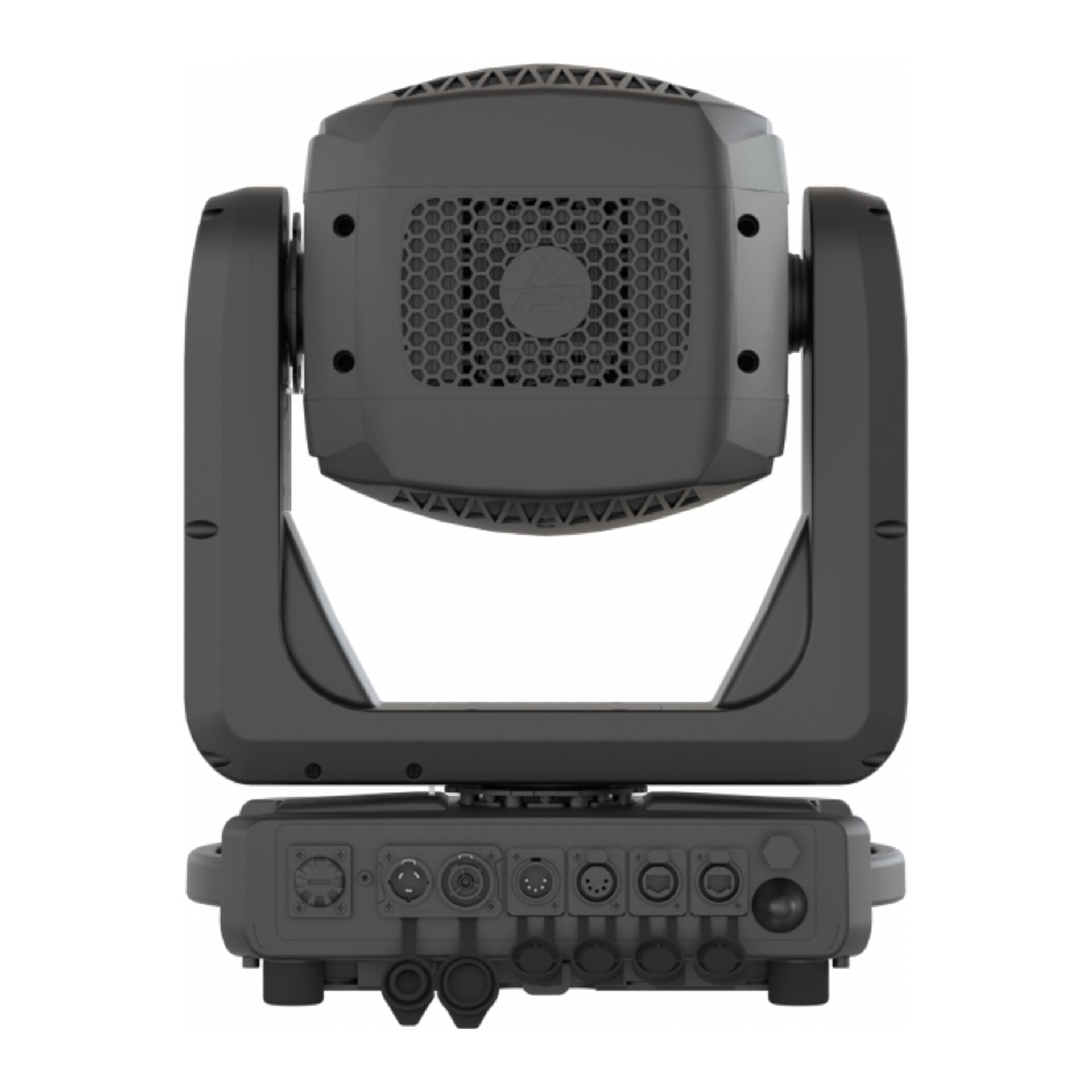

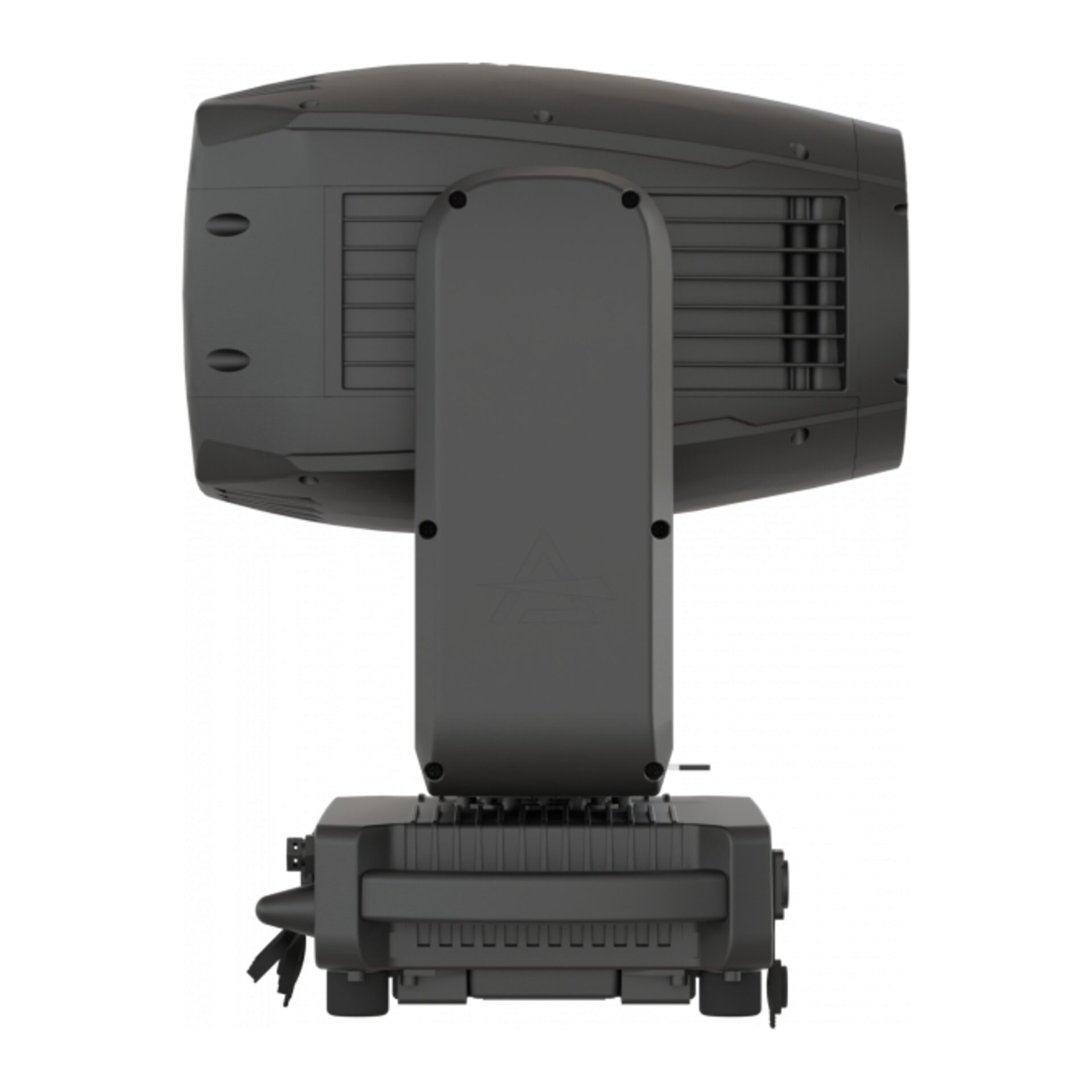

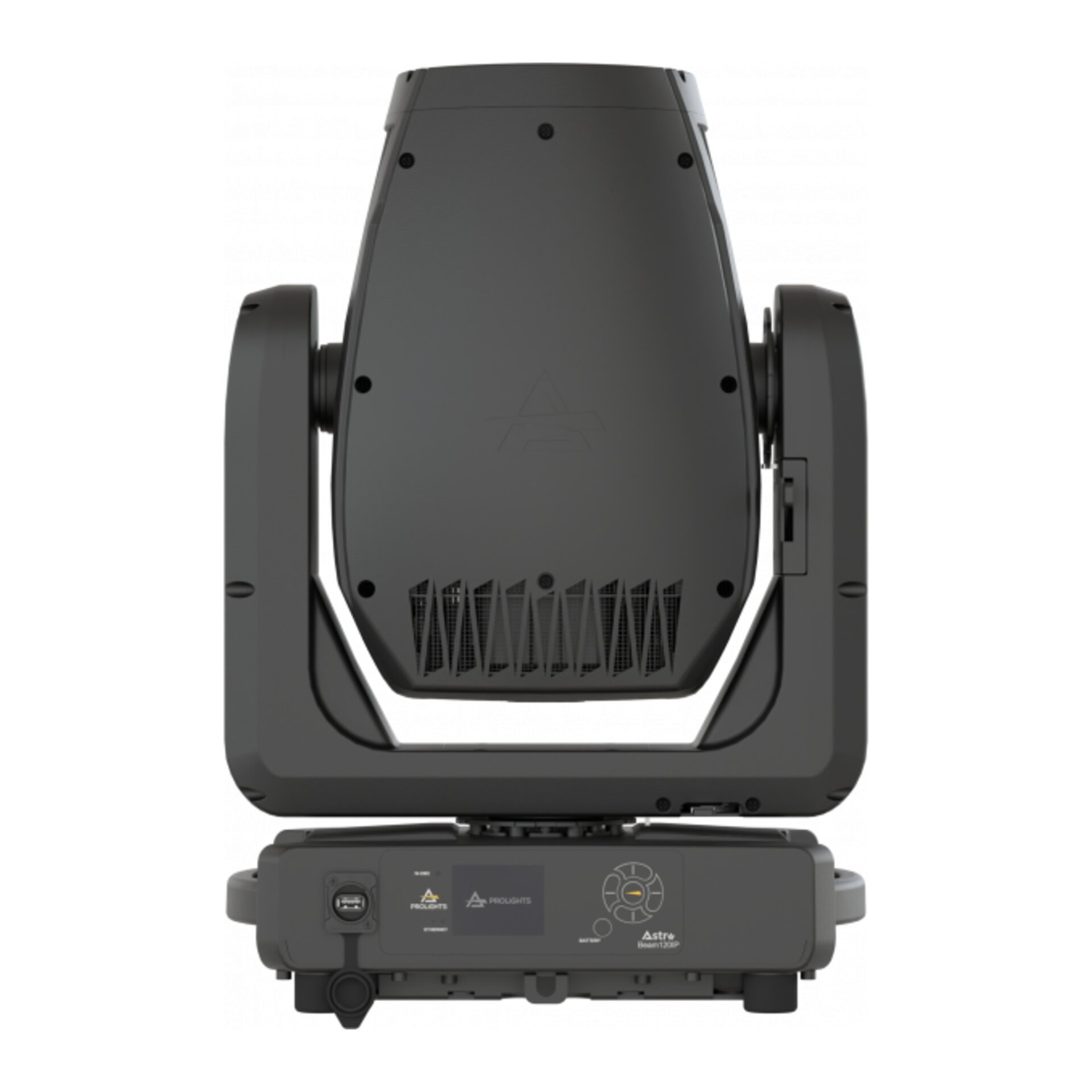

ProLights Astra Beam120IP

21-00595

  • 120W fosforlaser beam movinghead, IP65
  • CMY, prisma's, Frost & Gobo's
  • Beam van 0.6° & 360° pan & tilt

Omschrijving:
De Prolights Astra Beam120IP is een krachtige IP65-gecertificeerde beam moving head, ontworpen voor zowel binnen- als buitentoepassingen op grote podia. Met een 120W fosforlaserbron levert deze armatuur een intense witte lichtbundel met een scherpe 0,6° straal, ideaal voor langeafstandseffecten. Het geavanceerde optische systeem, inclusief een 140 mm lens, zorgt voor een indrukwekkende lichtopbrengst van 205.000 lux op 15 meter afstand.

De Astra Beam120IP biedt uitgebreide creatieve mogelijkheden dankzij functies zoals lineaire CMY-kleurenmenging, een kleurenwiel met 24 filters, 13 roterende en 29 vaste gobos, een animatiewiel, 6 prisma's en dubbele frostfilters. Met eindeloze Pan & Tilt-rotatie, draadloze DMX/RDM-besturing via LumenRadio CRMX en een robuuste IP65-behuizing van gegoten magnesiumlegering, is deze armatuur zowel veelzijdig als duurzaam. Het compacte ontwerp en het gewicht van slechts 20 kg maken het een uitstekende keuze voor verhuurbedrijven die snelle installatie en betrouwbare prestaties vereisen.

Merk

Levertijd 8 werkdagen

Bruto prijs:
€ 4.210,00
  • accessoires (8)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (8)
  • Accessoires (4)
  • Haken & Safety's (2)
  • Wireless DMX (2)

ProLights FCLASTRAB120IP

21-21314

ProLights FCLASTRAB120IP
  • Flightcase
  • Geschikt voor: 4x AstraBeam 120IP
  • Kleur: zwart
Bruto prijs:
€ 820,00

ProLights ÆtherBox

21-00585

ProLights ÆtherBox
  • IP65 CRMX, WDMX zender / ontvanger
  • 1 Universe, diverse montageopties.
  • Diverse voedingsopties
Bruto prijs:
€ 700,00

ProLights ÆtherBox LITE

21-00553

ProLights ÆtherBox LITE
  • CRMX, WDMX zender / ontvanger
  • 1 Universe
Bruto prijs:
€ 500,00

ProLights OSIPPLUS

21-21114

ProLights OSIPPLUS
  • Quick-lock omega beugel
  • Voor IP65 armaturen
  • M12
Bruto prijs:
€ 40,00

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProLights IPTESTBOX

21-20758

ProLights IPTESTBOX
  • Vacuüm- en druktester
Bruto prijs:
€ 2.750,00

ProTruss RSR0630A

24-00245

ProTruss RSR0630A
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zilver
Bruto prijs:
€ 4,40

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

Gegevens

Algemeen

Artikelnummer 21-00595
Merk ProLights
Artikelnummer fabrikant ASTRABEAM120IP
Garantie 2 jaar

Lamp eigenschappen

KleursysteemCMY
Vermogen120W

Lichtbron

CCTseveral CTB/CTO on wheel
Lux204'167lx @15 m full
Levensverwachting lichtbron> 12.000 h

Optiek

Lens diameter143mm
Lens typeHD anti-reflection lenses with achromatic coating
Focusmotorised
Min. Zoombereik0,6
Max. Zoombereik0,6

Kleuren

Kleurmenginglinear CMY
Kleurenwielopen + 24 colour filters

Effecten

FX generatorprisms overlap for spectacular aerial effects
Roterende gobo's13 rotating gobos + open, interchangeable, indexing
Vaste gobo's29 fixed gobos + open
Prisma(prism wheel 1) 16f and 6f (prism wheel 2) 8f with bi-directional rotation, indexing, inte
Linear prisma(prism wheel 1) 6f (prism wheel 2) 4f and 6f with bi-directional rotation, indexing, inter
Frostdual frost filter, soft-edge and heavy
Gobo maatouter: 8,4 mm - image: 4 mm - thickness: 0,3 mm
Animatiewielanimation wheel with CW and CCW rotation
Control Resolution16-bit dimmer
EffectenFocus, Frost, Gobo, Prisma

Behuizing

Kleur behuizingZwart
Pan/Tilt resolutiebit 8 / 16-bit

Aansturing

ProtocollenDMX512, RDM, ArtNet, sACN, CRMX
DMX kanalen32channel
DisplayLCD high resolution colour display with autoflip
Firmware upgradevia DMX with UPBOXPRO (USB-DMX interface not included) or via USB pen drive
RDMRDM for remote monitoring and settings

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 50.000 Hz

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik150W
Output (at 230V)14 units on a single power line
Power factor> 0,96

Fysieke eigenschappen

Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingany position with quick-lock omega brackets
Pan / tilt lockfor transportation and maintenance
Signaal aansluitingIP65 Seetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCon TRUE1
IP waardeIP65
Gewicht20kg kg

Overige eigenschappen

Lichtbron120W Phosphor Laser source Fosfor Laser

Logistieke eigenschappen

Hoogte verpakking 34 cm
Breedte verpakking 64.5 cm
Diepte verpakking 46 cm
Gewicht verpakking 25.2 kg
