Algemeen
Artikelnummer
21-00442
Merk
ProLights
Artikelnummer fabrikant
ASTRAWASH19PIXWH
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGBW - Full Color
Vermogen620W
Zoom4° - 54° motorised linear zoom
Lichtbron
Lichtbron19x40W RGBW Osram Ostar LEDs
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(4°) 5'505 lm - (54°) 10'143lm @full
Lux(4°) 45'146 lx - (54°) 1174lx @5 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens typehoneycomb gapless plano-convex optics
Extra optiekendiffuser on outer pixel ring
Min. Zoombereik10
Max. Zoombereik45
Kleuren
KleurmengingRGBW / FC
Wit macro's2.800 K ~ 10.000K
Kleurenwielvirtual colour wheel with macros
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
Macrosseveral pre-built pixel macros with adjustable speed
Control Resolution16-bit dimmer, colours
EffectenLed ring, Pixel Control
Behuizing
Pan angle540°
Tilt angle233°
Kleur behuizingWit, see variants
Materiaalaluminium structure with high-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX kanalenmain personality 29 / 32 / 53channel
DisplayLCD high resolution colour display with autoflip
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 50.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik620W
Output (at 230V)4 units on a single power line
Power factor> 0,95
Fysieke eigenschappen
Koelingforced air with fan
Bevestigingany position with quick-lock omega brackets
Pan / tilt lockfor transportation and maintenance

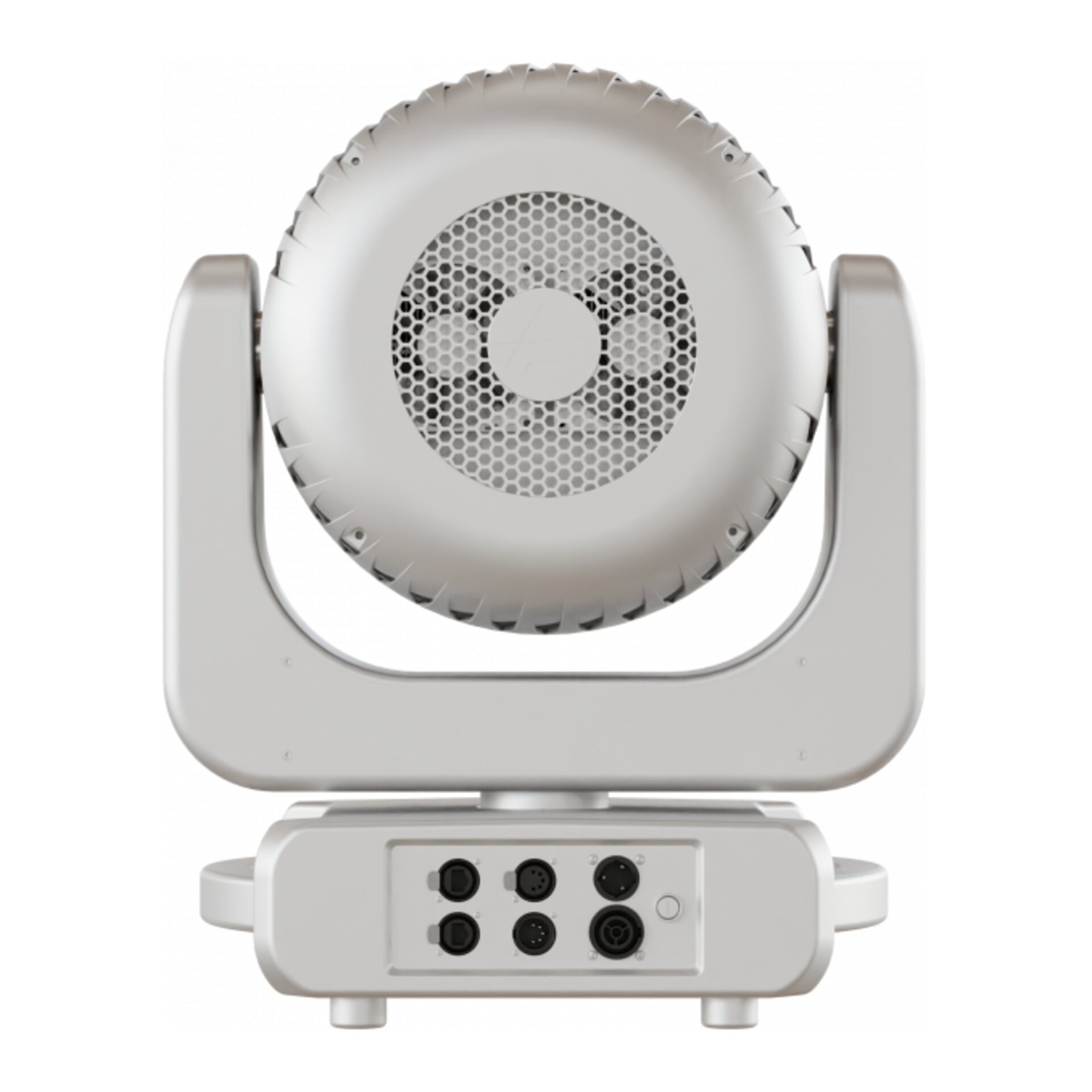

Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors, PowerCON TRUE1
IP waarde20, IP20
Gewicht17 kg
Logistieke eigenschappen
Hoogte verpakking
40 cm
Breedte verpakking
50 cm
Diepte verpakking
55 cm
Gewicht verpakking
20 kg
