Lichtbron
Lichtbron7x20W RGBW Osram Ostar LEDs
CCT CCT control, + / - green correction, tungsten emulation
Luminous flux(4°) 1'232 lm - (55°) 1'993lm @full
Lux(4°) 28'754 lx - (55°) 611lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens type honeycomb gapless plano-convex optics
Zoom4° - 55° motorised linear zoom
Kleuren
Kleurmenging RGBW / FC
Wit macro's2.800 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Control Resolution 16-bit dimmer
Body
Pan angle540°
Tilt angle233°
Kleur behuizing RAL 9004
Pan/Tilt resolutiebit 16-bit
Behuizing aluminium structure with high-resistance polycarbonate cover
Aansturing
Protocolen DMX512, RDM, W-DMX
DMX kanalen23channel
Display LCD high resolution colour display with autoflip
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 50.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik160W
Output (at 230V)up to 15 units on a single power line
Power factor> 0,94
Fysieke eigenschappen
Koeling forced air with fan
Bevestiging any position with quick-lock omega brackets

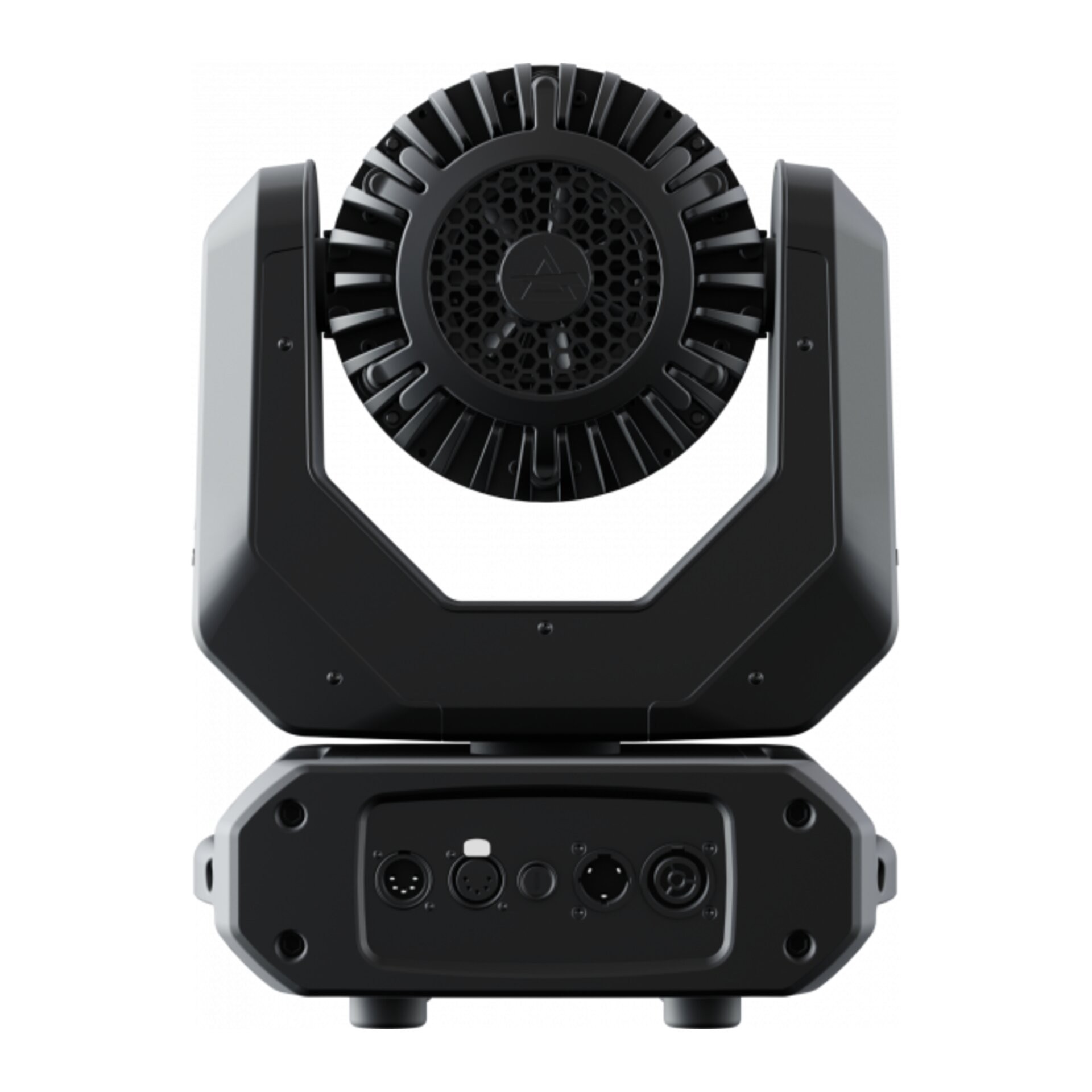

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN/OUT connectors
IP waarde20
