Algemeen
Artikelnummer
21-00367
Merk
ProLights
Artikelnummer fabrikant

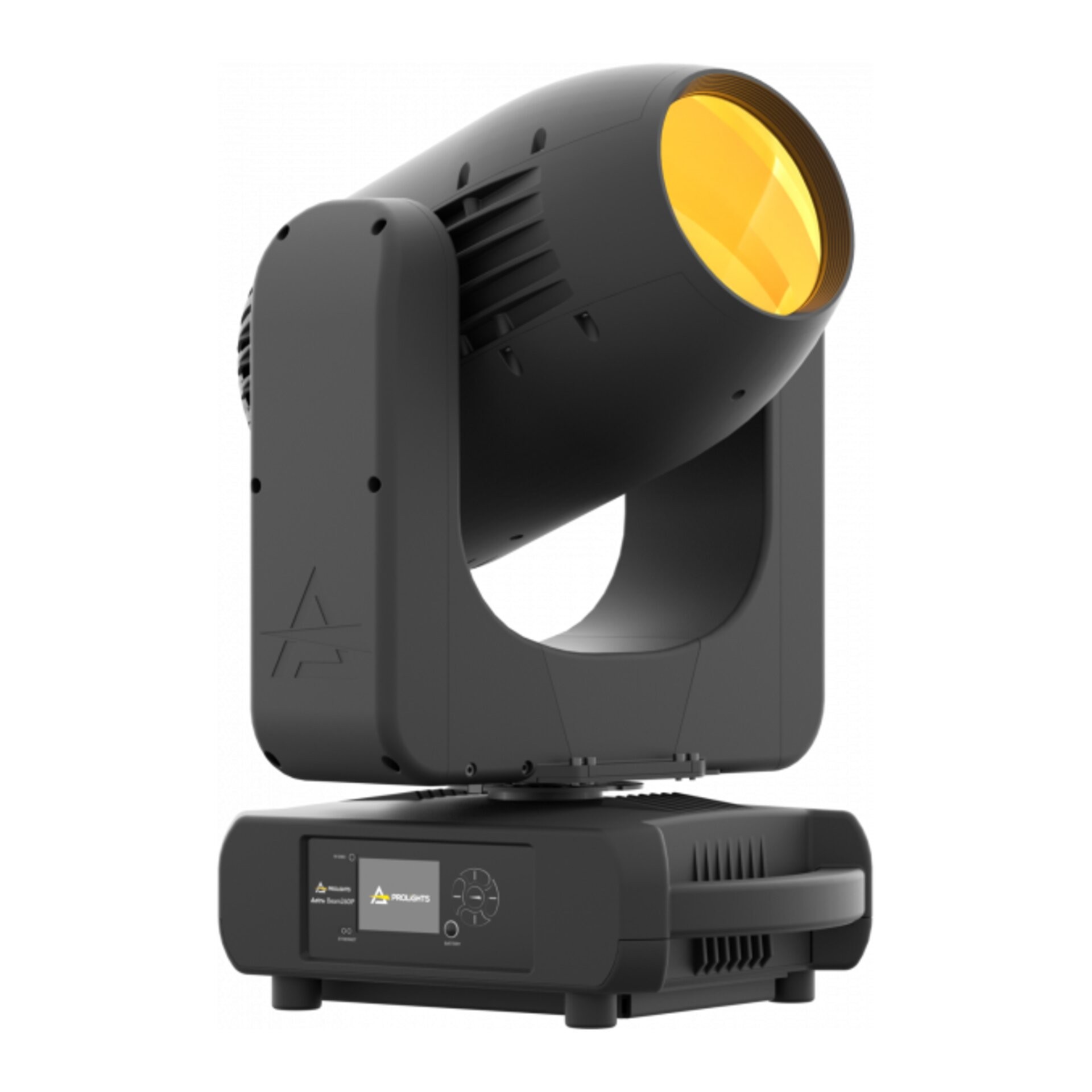

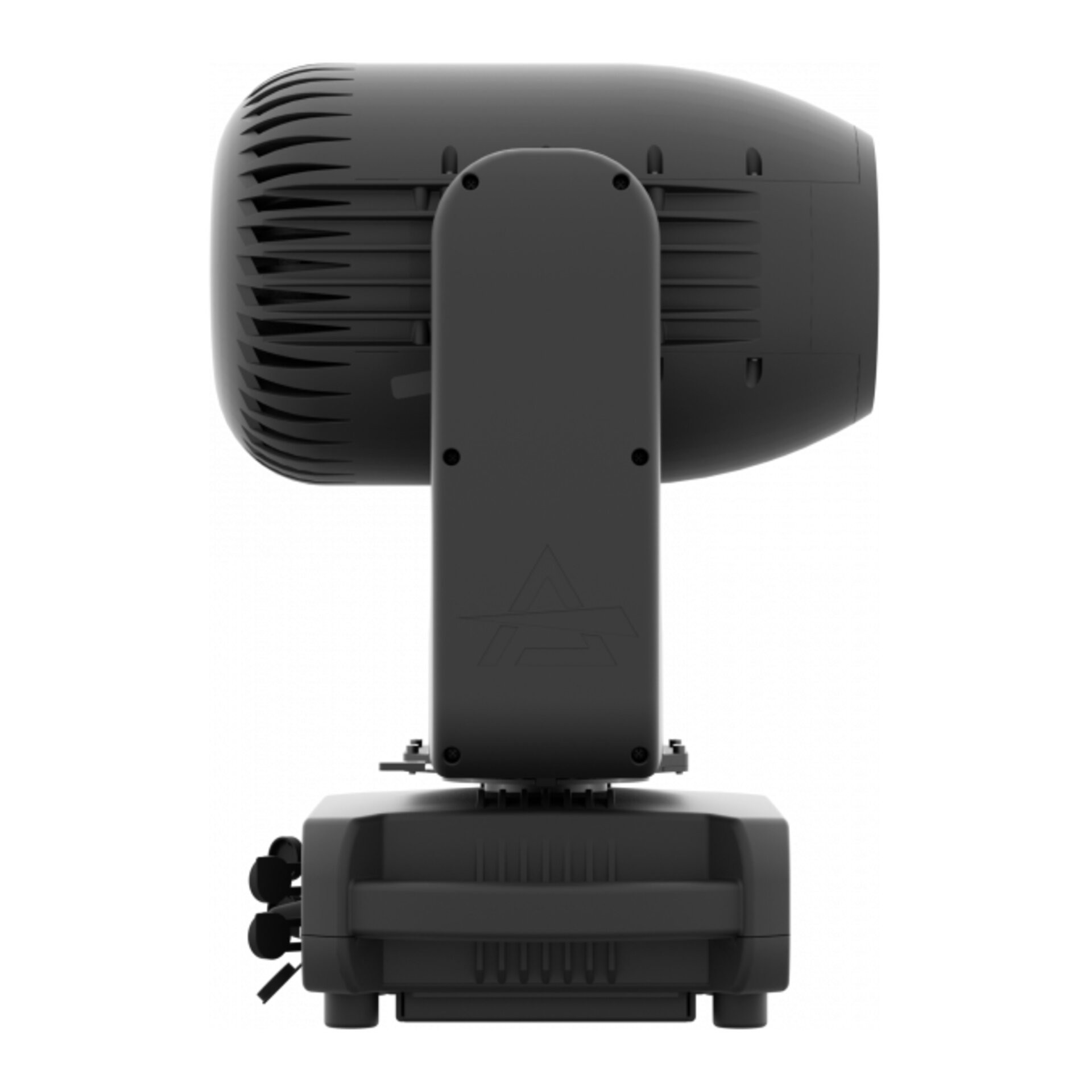

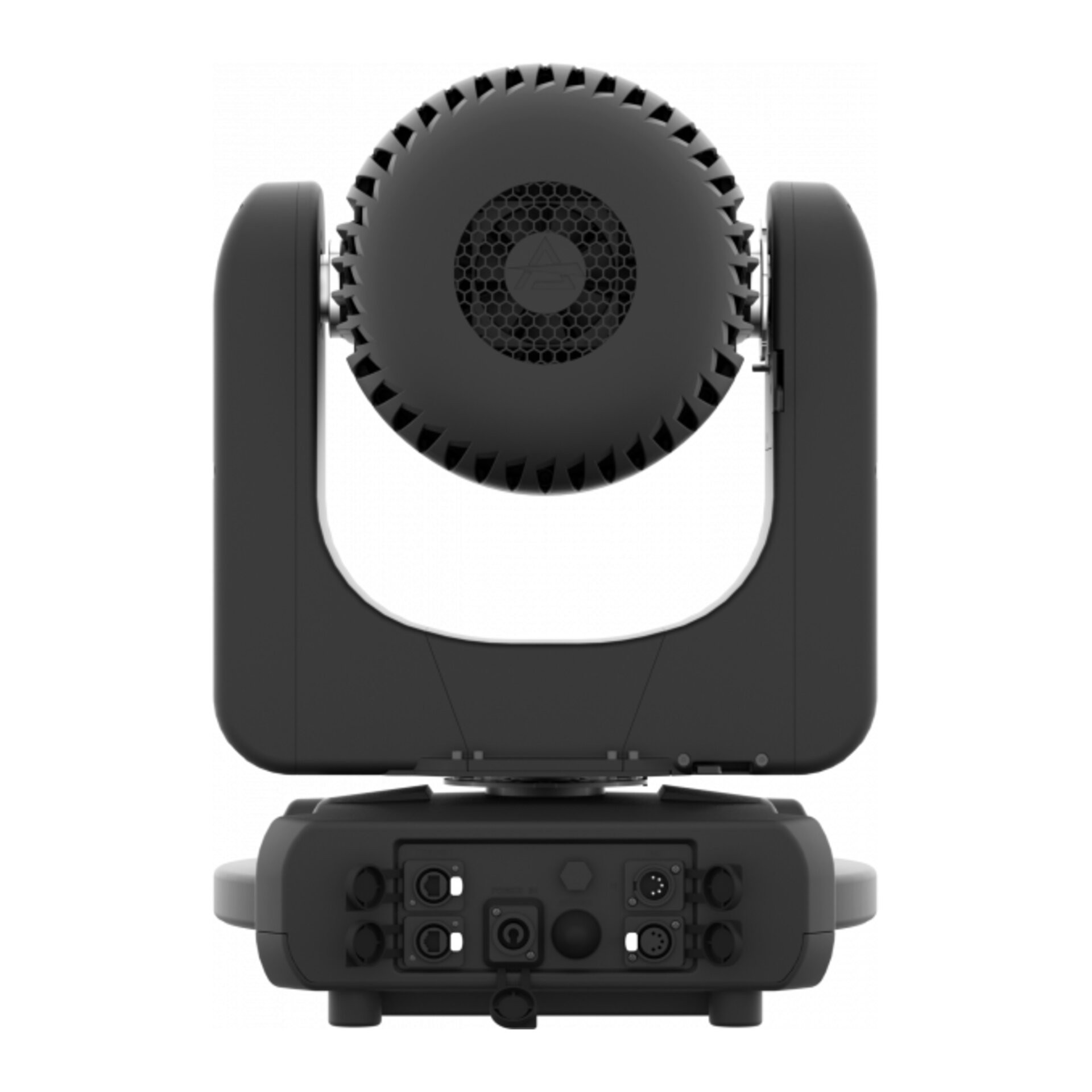

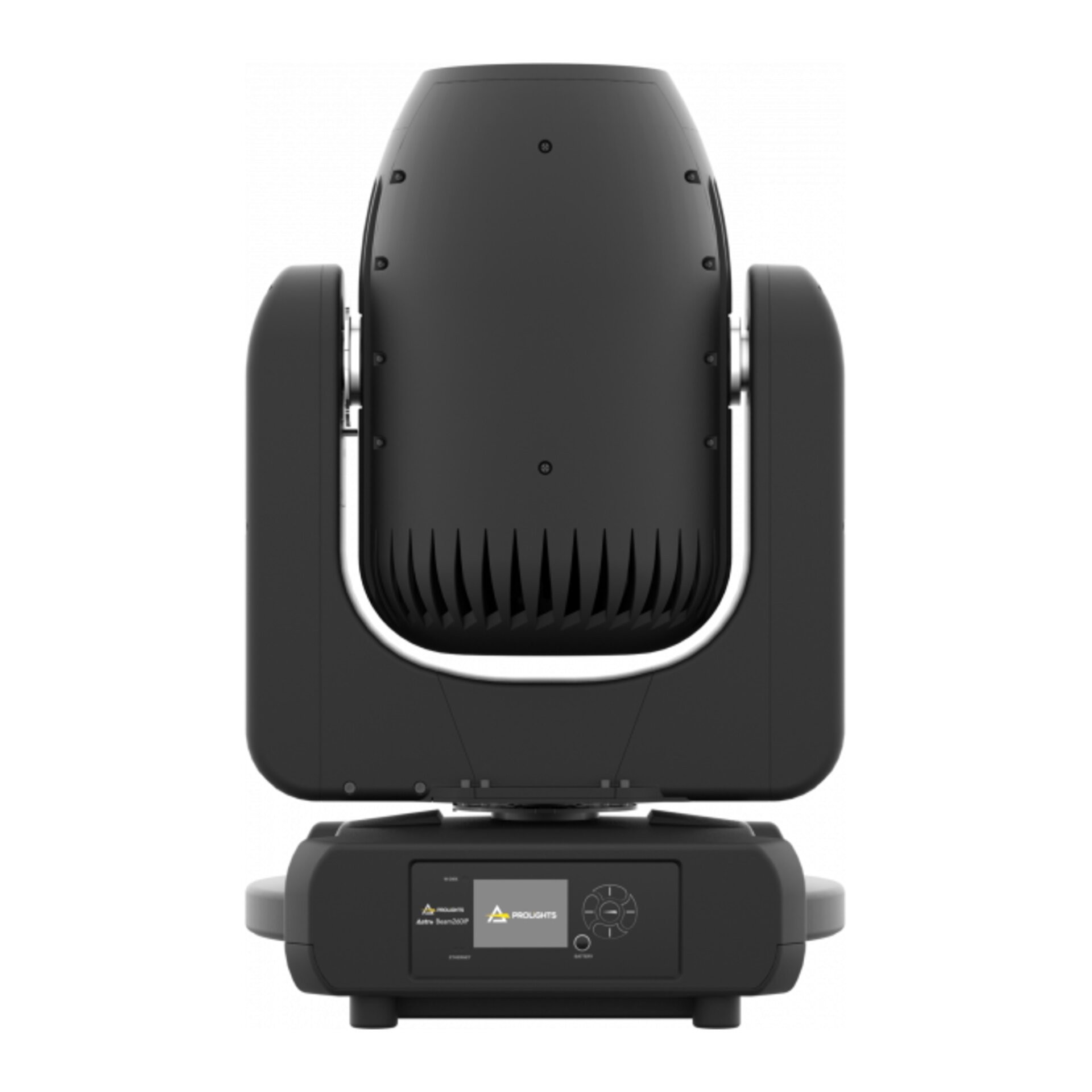

ASTRABEAM260IP
Garantie
2 jaar
Lamp eigenschappen
KleursysteemKleurenwiel
Vermogen260W
Lichtbron
Lichtbron260W PRO OSRAM SIRIUS HRI Lamp
CCTon wheel 2.500 K and 3.200 K + CTB
Lux1'984'000lx @5 m
Levensverwachting lichtbron6.000 h
Optiek
Lens diameter140mm
Lens typeHD anti-reflection lenses with achromatic coating
Focusmotorised
Min. Zoombereik2
Kleuren
Kleurenwiel10 colour filters
Effecten
FX generator2 prisms overlap for spectacular aerial effects
Vaste gobo's15 fixed gobos + open
Prisma8f with bi-directional rotation, indexing
Linear prisma6f with bi-directional rotation, indexing
Frostlinear 0 - 100% frost filter
Control Resolution16-bit dimmer
EffectenFocus, Frost, Gobo, Prisma
Behuizing
Pan angle540°
Tilt angle230°
Kleur behuizingRAL 9004, Zwart
Pan/Tilt resolutie16bit
Materiaalweatherproof IP65 construction
Aansturing
ProtocollenDMX512, RDM, Art-Net, sACN, W-DMX
DMX kanalen17channel
DisplayLCD high resolution colour display with autoflip
Firmware upgradevia menu with internal memory or via USB - DMX interface (UPBOX2) not included
W-DMXincluded, Wireless Solution transceiver
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% mechanical dimmer
Strobe / shutter1 - 28 flash(s), mechanical
Bedrijfstemperatuur-20° ~ +40°
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik405W
Power factor0,96
Fysieke eigenschappen
Koelingforced air with fan
Bevestigingany position with quick-lock omega brackets
Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1, Seetronic powerCON TRUE IP65 IN
IP waarde65 for temporary outdoor application, not for fixed installation, IP65
Gewicht29 kg
Logistieke eigenschappen
Hoogte verpakking
48 cm
Breedte verpakking
71 cm
Diepte verpakking
37 cm
Gewicht verpakking
33 kg
