Algemeen
Artikelnummer
21-00366
Merk
ProLights
Artikelnummer fabrikant
ASTRAWASH19PIX
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGBW - Full Color
Vermogen620W
Zoom4° - 54° motorised linear zoom
Lichtbron
Lichtbron19x40W RGBW Osram Ostar LEDs
CCT CCT control, + / - green correction, tungsten emulation
Luminous flux(4°) 5'505 lm - (54°) 10'143lm @full
Lux(4°) 45'146 lx - (54°) 1174lx @5 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens type honeycomb gapless plano-convex optics
Min. Zoombereik10
Max. Zoombereik45
Kleuren
Kleurmenging RGBW / FC
Wit macro's2.800 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
FX generator adjustable foreground/background colour, index, speed, direction
Macros several pre-built pixel macros with adjustable speed
Control Resolution 16-bit dimmer
EffectenLed ring, Pixel Control
Behuizing
Pan angle540°
Tilt angle233°
Kleur behuizingZwart
Materiaal aluminium structure with high-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX kanalenmain personality 29 / 32 / 53channel
Display LCD high resolution colour display with autoflip
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX included, Wireless Solution transceiver
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Display accu self-charging battery backup
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik620W
Output (at 230V)4 units on a single power line
Power factor> 0,95
Fysieke eigenschappen
Koeling forced air with fan
Bevestiging any position with quick-lock omega brackets
Pan / tilt lock for transportation and maintenance

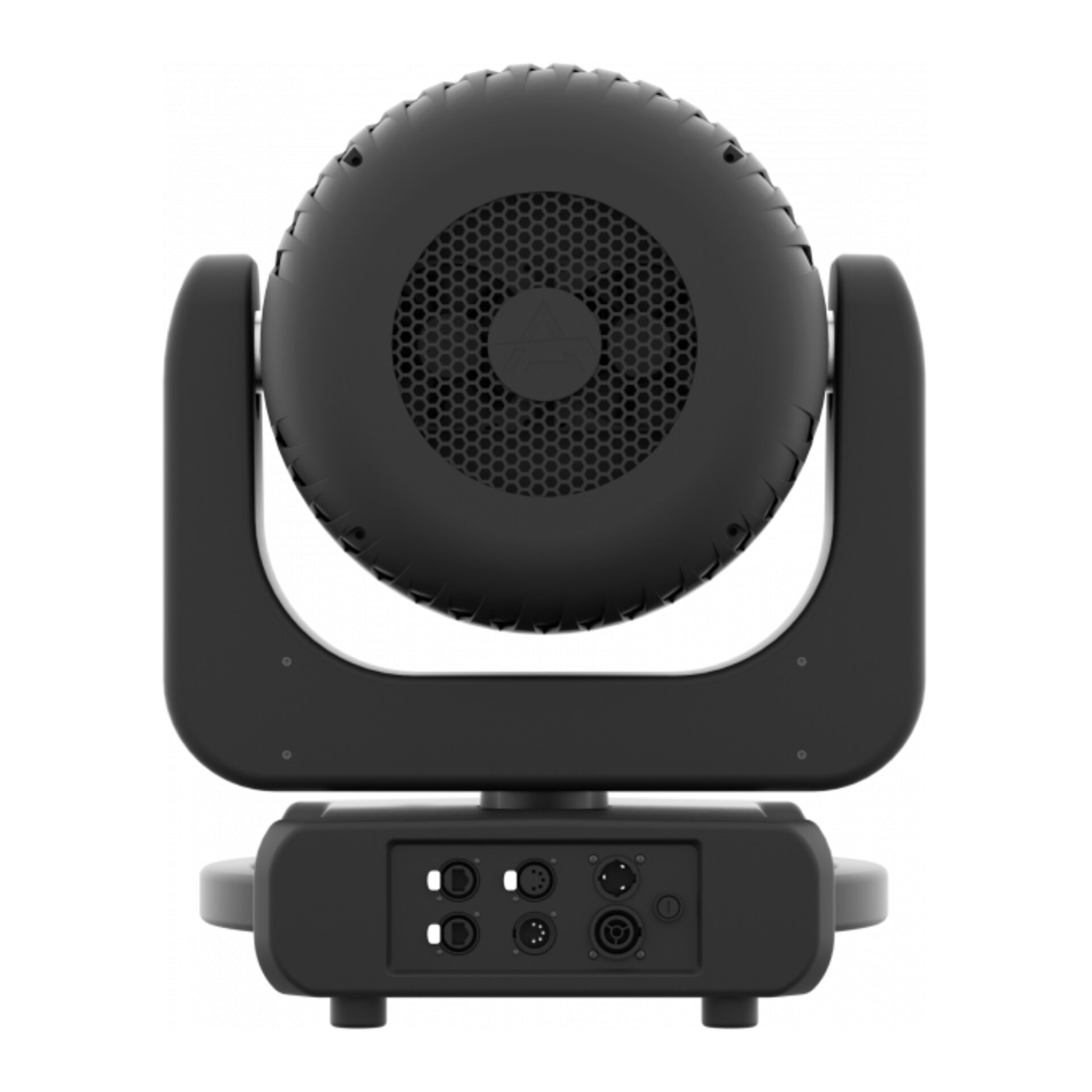

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1
IP waarde20, IP20
Gewicht17 kg
Logistieke eigenschappen
Hoogte verpakking
40 cm
Breedte verpakking
50 cm
Diepte verpakking
55 cm
Gewicht verpakking
20 kg
