Lamp eigenschappen
KleursysteemCMY, Kleurenwiel
Vermogen180W
Zoom8 - 40° motorised linear zoom
Lichtbron
Lichtbron180W high-power white LED
CCTon wheel 2.500 K and 3.200 K + CTB
Luminous flux7'518lm
Lux(8°) 2'268 lx - (40°) 292lx @10 m
Levensverwachting lichtbron50.000 h
CRI68
Optiek
Lens typehigh-quality glass lens optics
Focusmotorised
Min. Zoombereik8
Max. Zoombereik40
Kleuren
KleurmengingCMY colour system on 3 gradually fading colour wheels
Kleurenwiel6 dichroic filters on 3 independent colour wheels
Effecten
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Vaste gobo's8 fixed gobos + open
Prisma3f with bi-directional rotation, indexing
Frostlinear 0 - 100% frost filter
Gobo maatouter: 24,2 mm - image: 20 mm - thickness: 1,1 mm
Iris5 - 100% motorised iris
EffectenFocus, Frost, Gobo, Iris, Prisma
Behuizing
Pan angle540°
Tilt angle270°
Kleur behuizingZwart, black
Pan/Tilt resolutiebit 8 / 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM
DMX kanalen23 / 25 / 27channel
Master/Slavefor synchronised operation of more units linked in a chain
Displayblack TFT high resolution display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik250W
Output (at 230V)14 units on a single power line
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingany position with quick-lock omega brackets
Pan / tilt lockfor transportation and maintenance

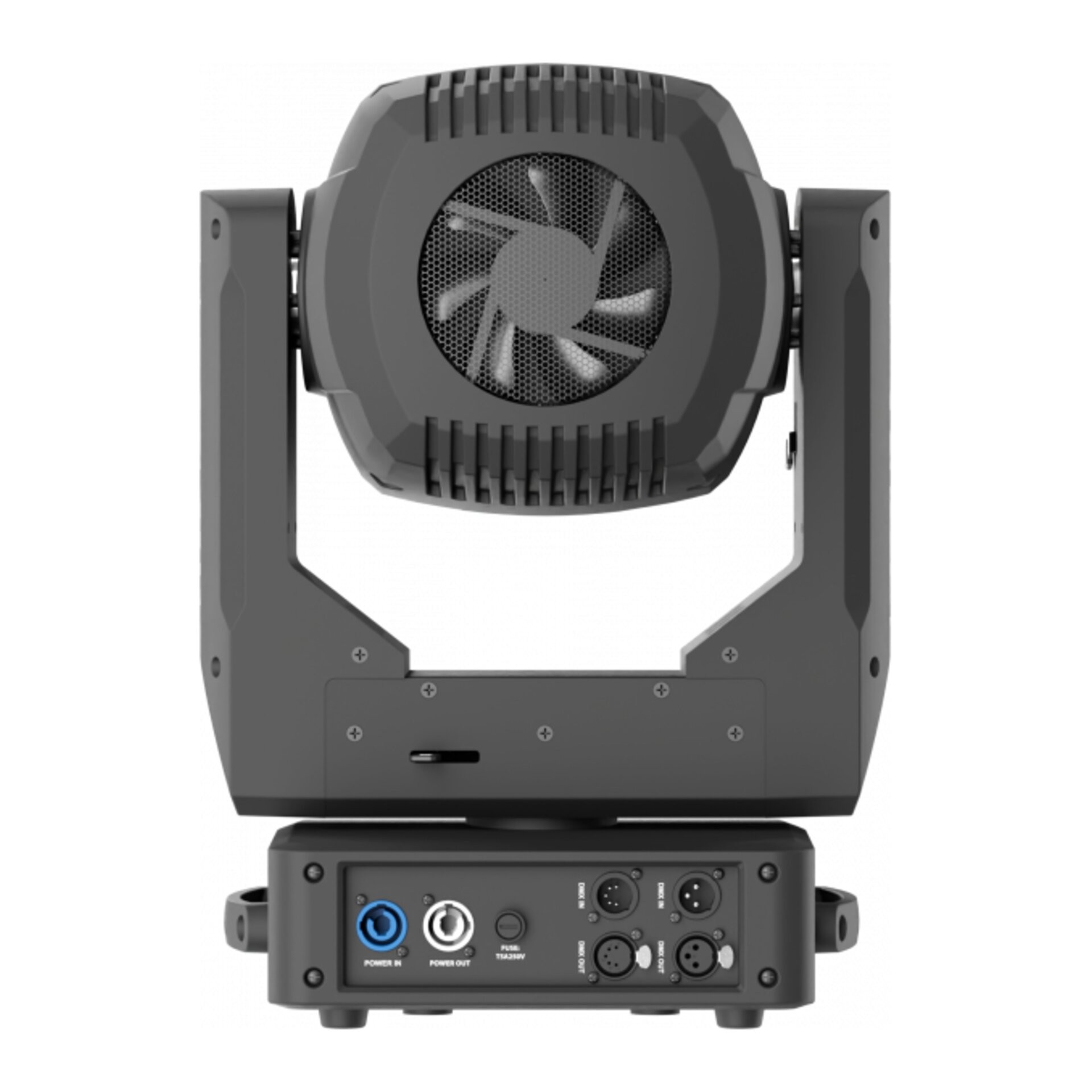

Signaal aansluitingAmphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors, PowerCon
IP waarde20, IP20
Gewicht19 kg
Logistieke eigenschappen
Hoogte verpakking
66.5 cm
Breedte verpakking
43.5 cm
Diepte verpakking
33.5 cm
Gewicht verpakking
22 kg
