Lichtbron
Lichtbron100W high-power white LED
CCT6.300K
Luminous flux1'756lm
Lux18'000lx @10 m
Levensverwachting lichtbron > 30.000 h
CRI72
Optiek
Lens diameter120mm
Lens type high-quality glass lens optics
Kleuren
Kleurenwiel14 colour filters
Effecten
Vaste gobo's18 fixed gobos + open
Prisma8f with bi-directional rotation, indexing
Behuizing
Pan angle540°
Tilt angle270°
Kleur behuizing black, white finishing available
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM
DMX kanalen9 / 11 channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter0 ~ 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik163W
Output (at 230V)26 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets

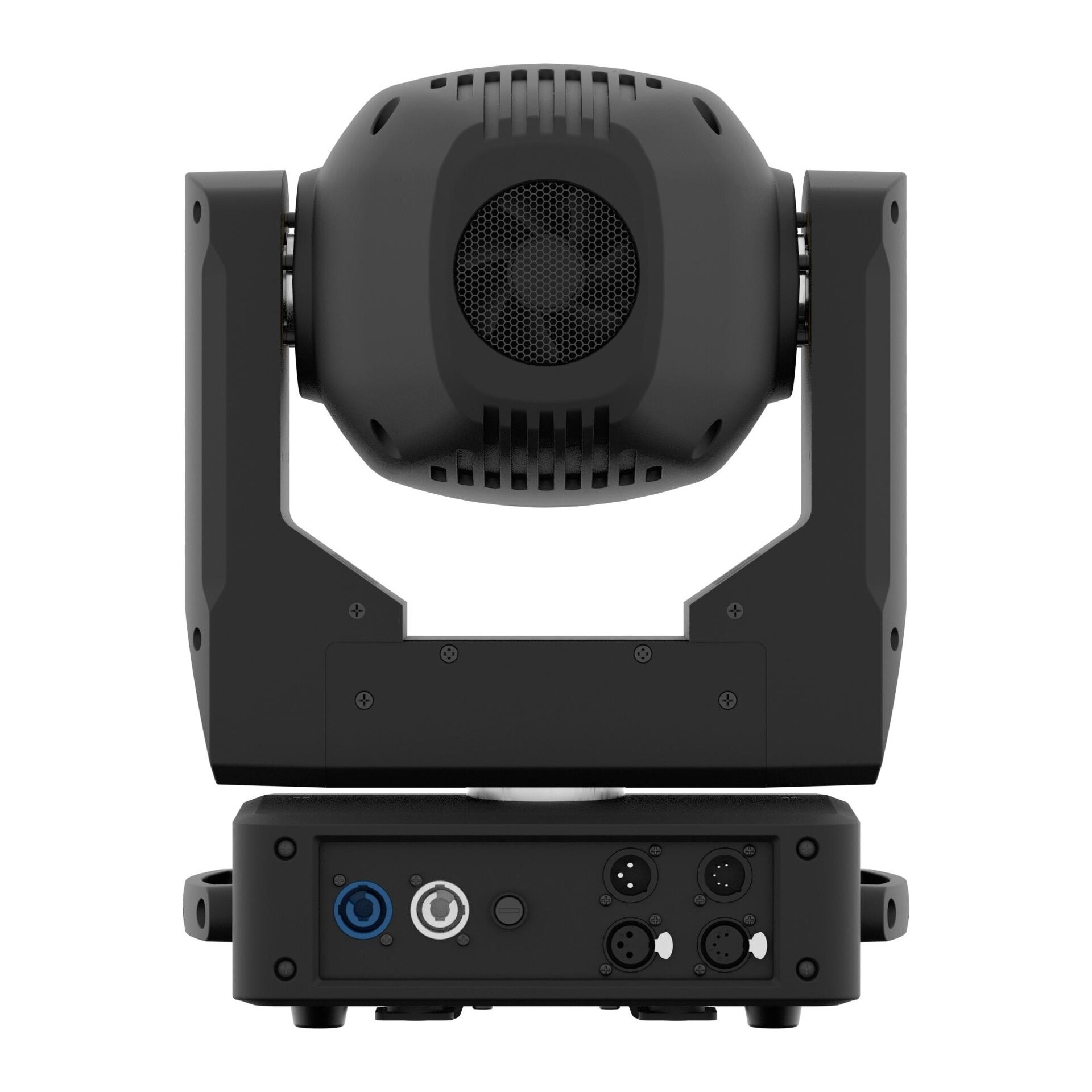

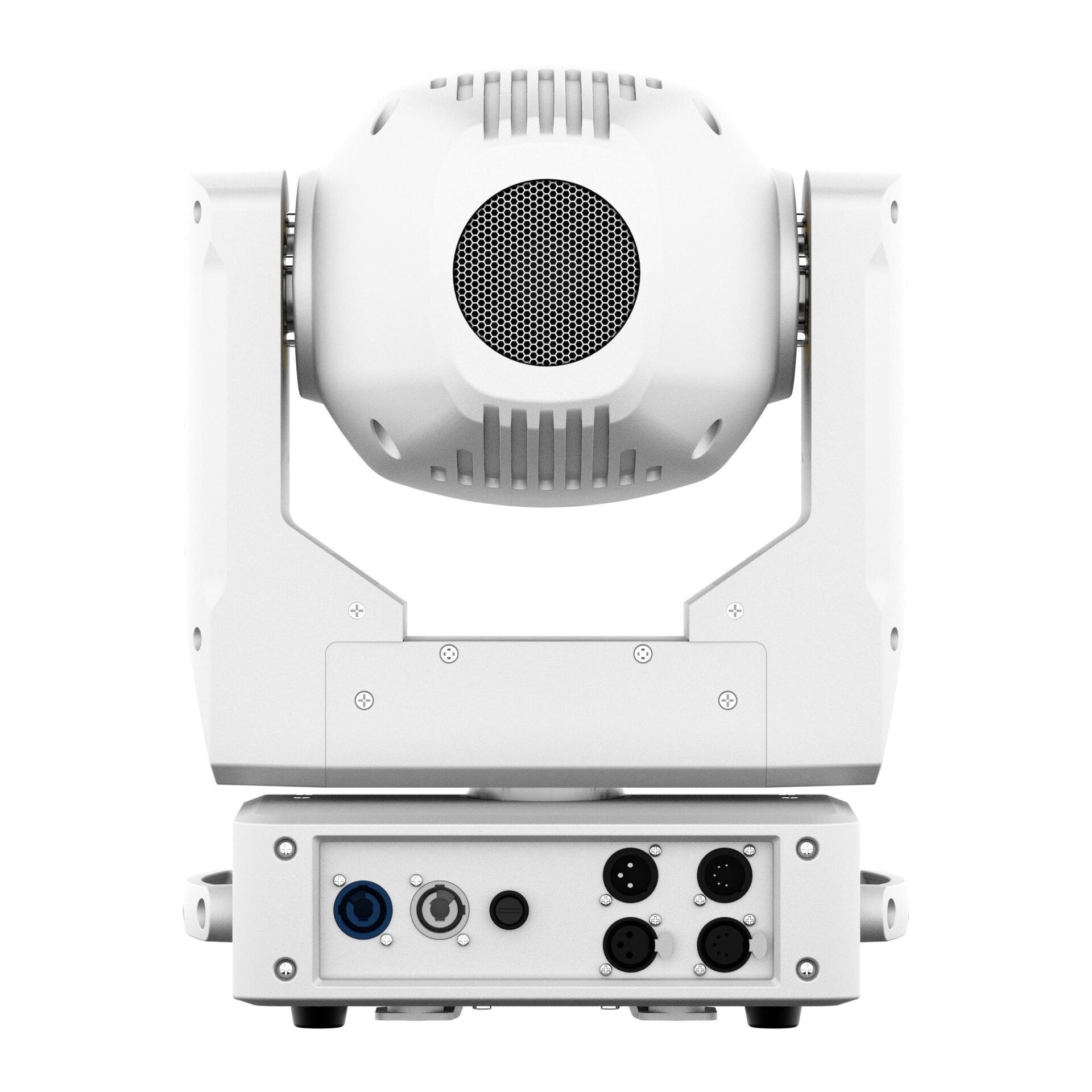

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen

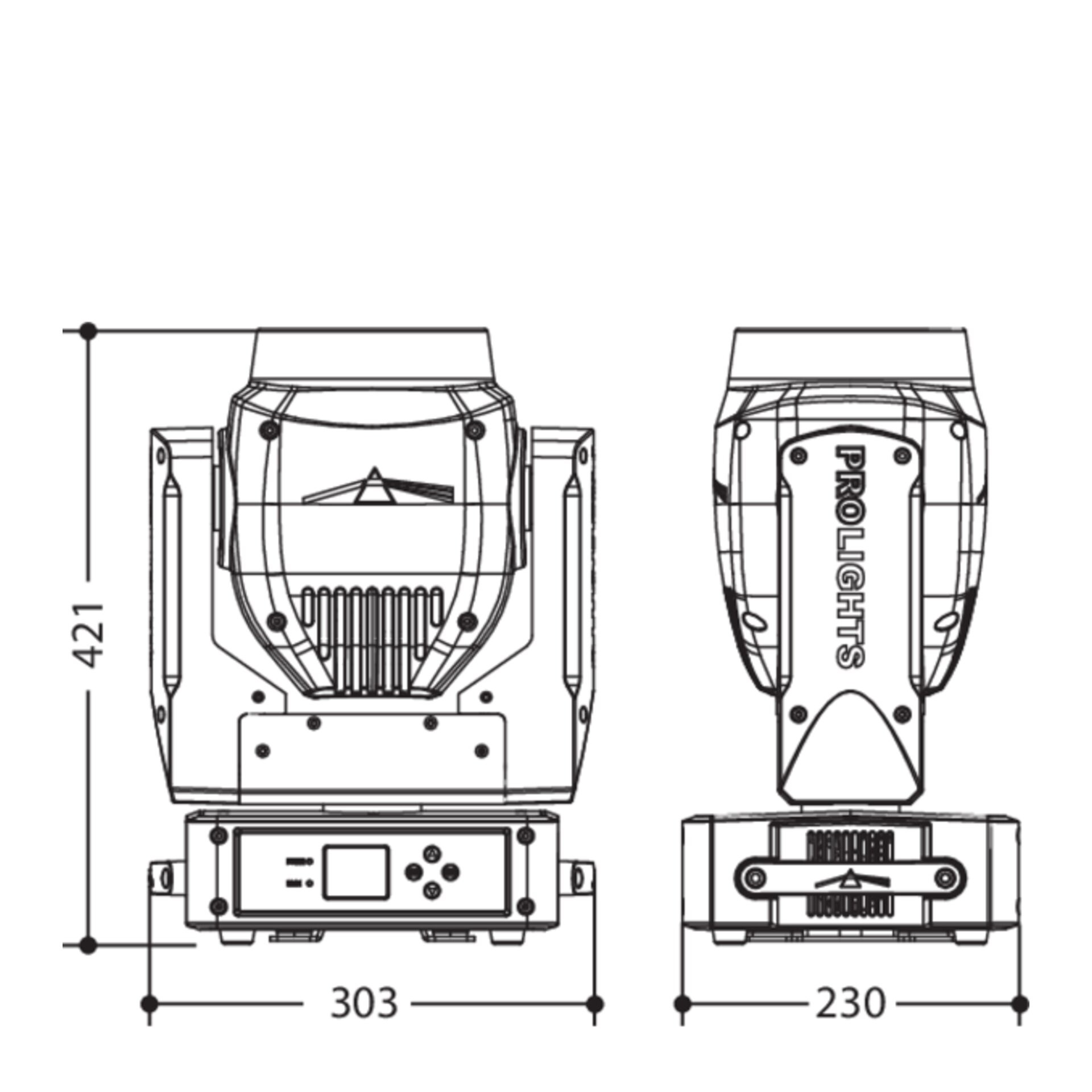

Hoogte verpakking
42.1 cm
Breedte verpakking
30.3 cm
Diepte verpakking
23 cm
Gewicht verpakking
13 kg
