Lamp eigenschappen
KleursysteemKleurenwiel
Vermogen14W
Lichtbron
Lichtbron14W high-power white LED
CCT6.200K
Luminous flux577lm
Lux4'600lx @10 m
Levensverwachting lichtbron> 30.000 h
CRI73
Optiek
Lens diameter85mm
Lens typehigh-quality glass lens optics
Min. Zoombereik2
Kleuren
Kleurenwiel14 colour filters
Effecten
Prisma8f with bi-directional rotation, indexing
EffectenPrisma
Behuizing
Pan angle540°
Tilt angle270°
Kleur behuizingWit, black, white finishing available
Pan/Tilt resolutiebit 8 / 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM
DMX kanalen8 / 10 channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter0 ~ 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik31,9W
Output (at 230V)52 units on a single power line
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingany position with quick-lock omega brackets

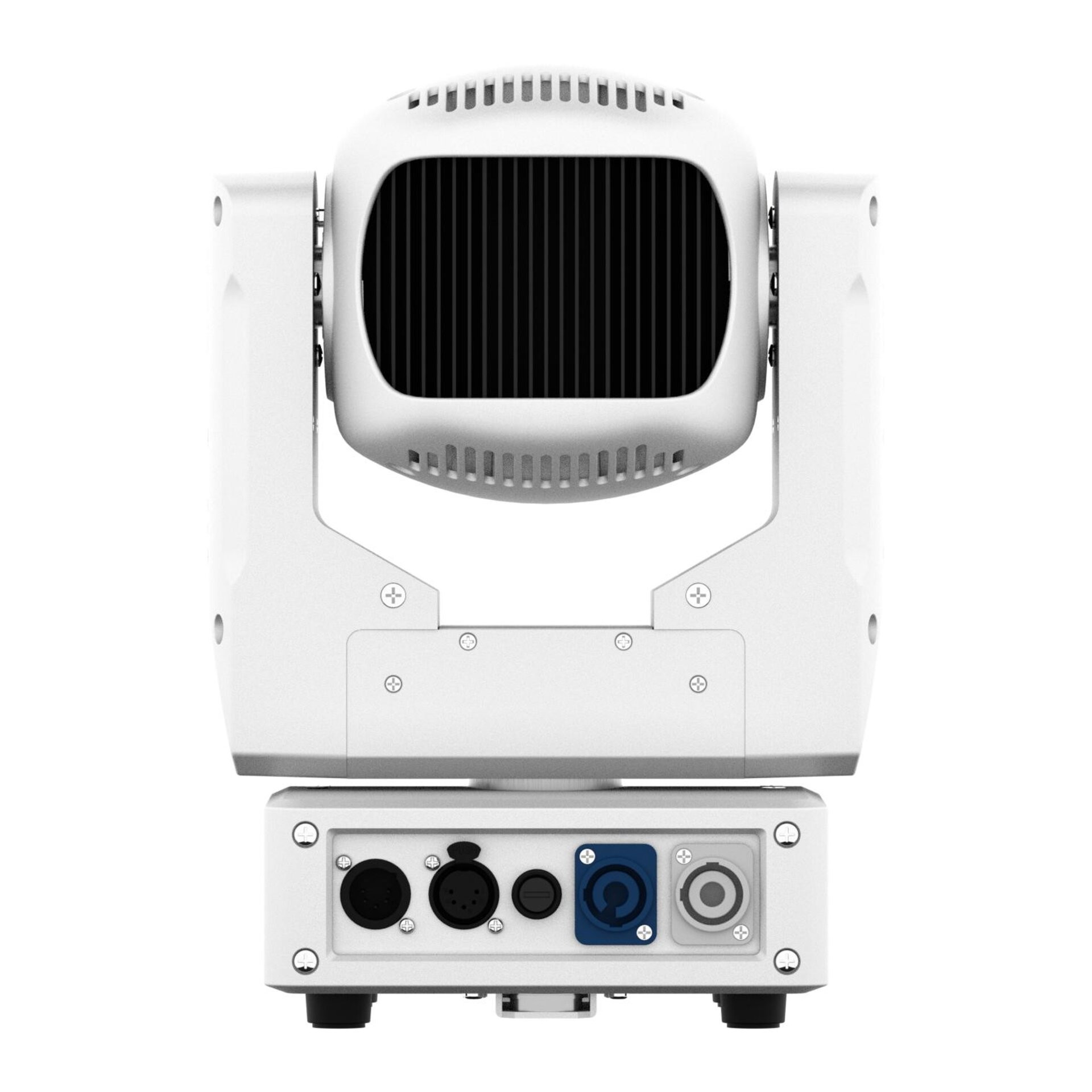

Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors, PowerCon
IP waarde20, IP20
Gewicht5 kg
Logistieke eigenschappen
Hoogte verpakking
22.5 cm
Breedte verpakking
29 cm
Diepte verpakking
42 cm
Gewicht verpakking
7 kg
