Lichtbron
Lichtbron132W S Osram Sirius HRI
CCT9.200K
Luminous flux5'150lm

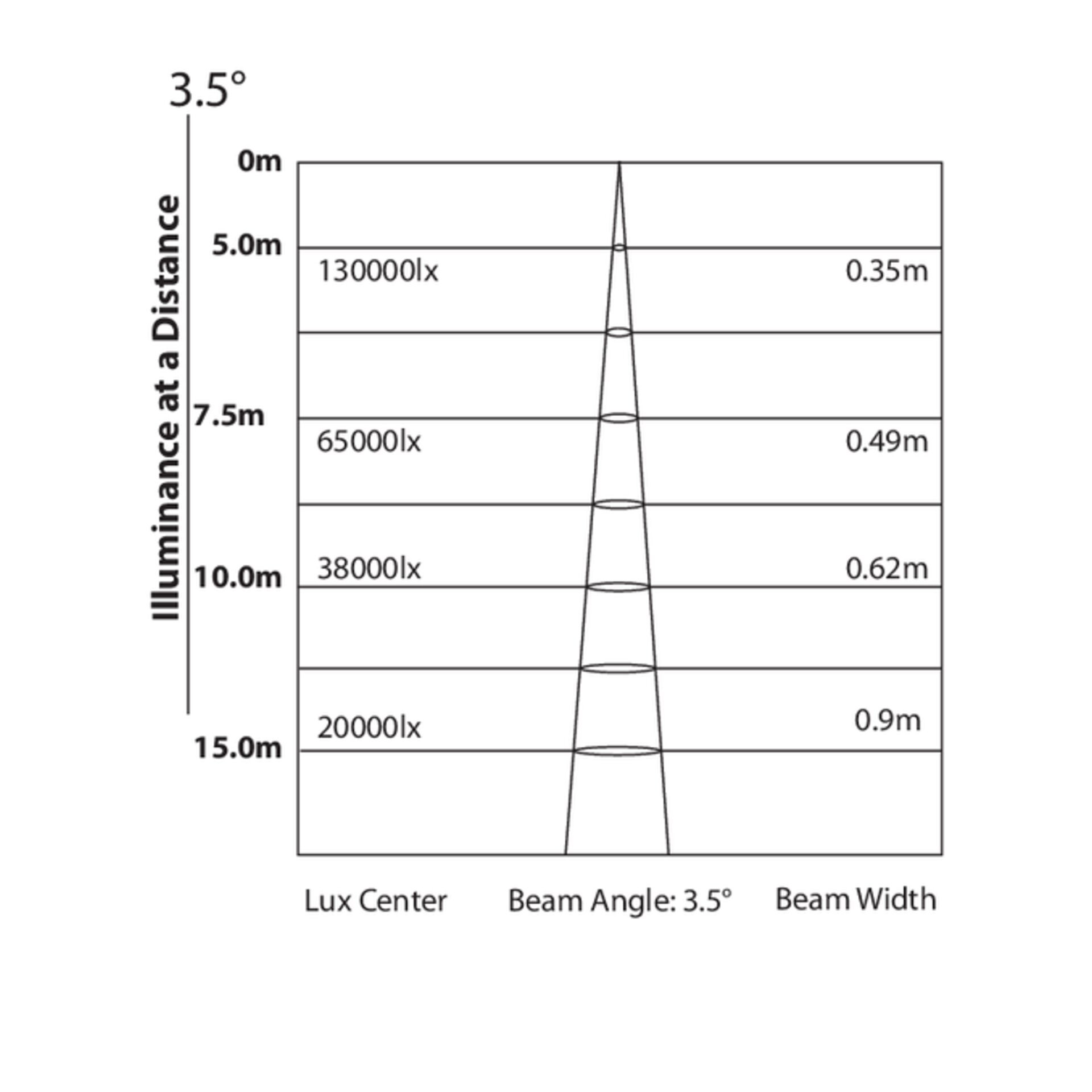

Lux98'792lx @5 m full
Levensverwachting lichtbron 6.000 h
CRI60
Optiek
Lens diameter80mm
Lens type high-quality glass lens optics
Kleuren
Kleurenwiel9 colour filters
Effecten
Prisma8f with bi-directional rotation
Body
Pan angle540 / 630°
Tilt angle265°
Kleur behuizing black
Pan/Tilt resolutiebit 8 / 16bit
Behuizing aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocolen DMX512, RDM
DMX kanalen7 / 9channel
Master/Slave for synchronised operation of more units linked in a chain

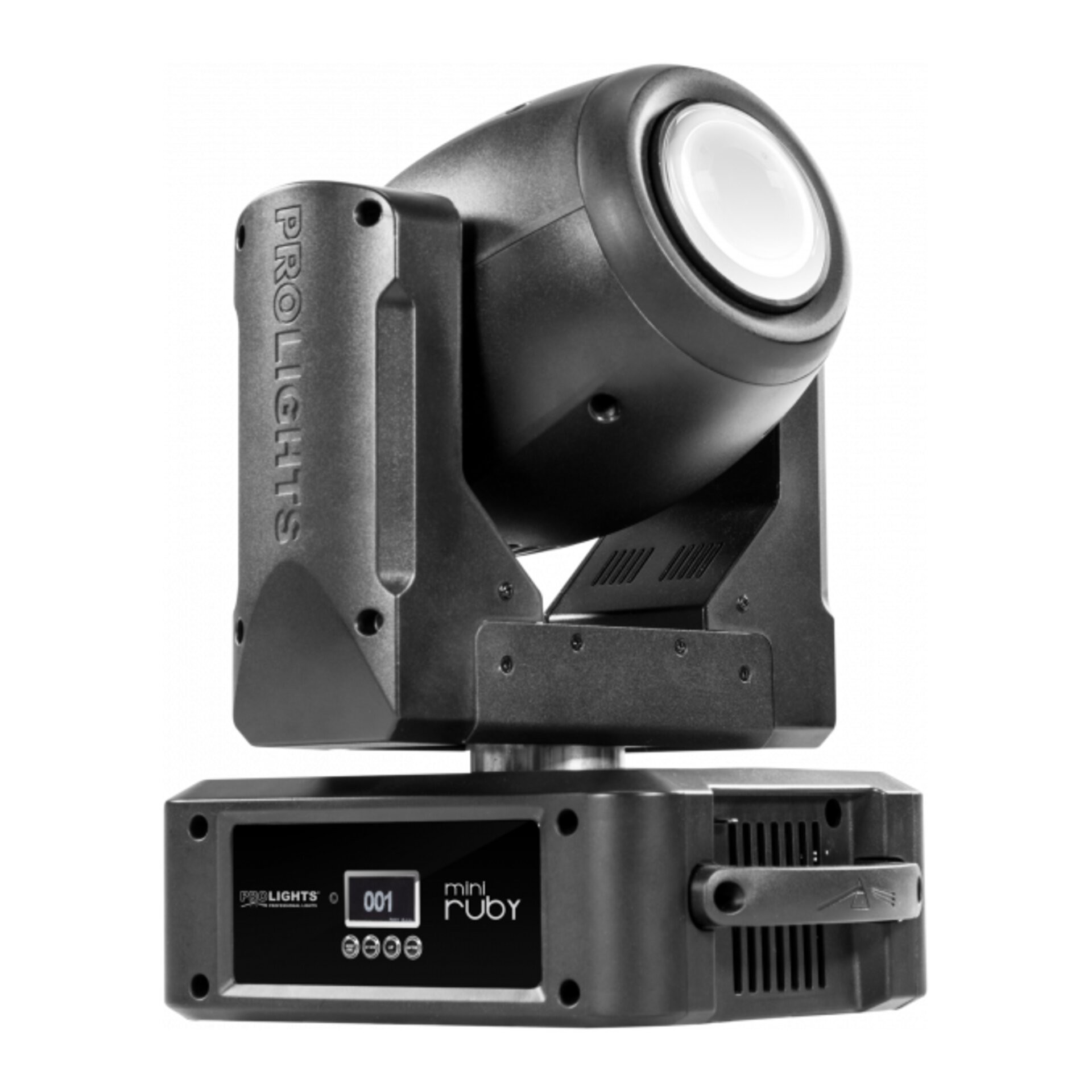

Display LCD display
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
Electronics
Strobe / shutter1 - 28 flash(s), mechanical
Bedrijfstemperatuur -10° ~ +45°
Slaapstand power safe mode when lost DMX
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik176W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koeling combination of heat pipe cooling system and low noise fan
Bevestiging any position with quick-lock omega brackets

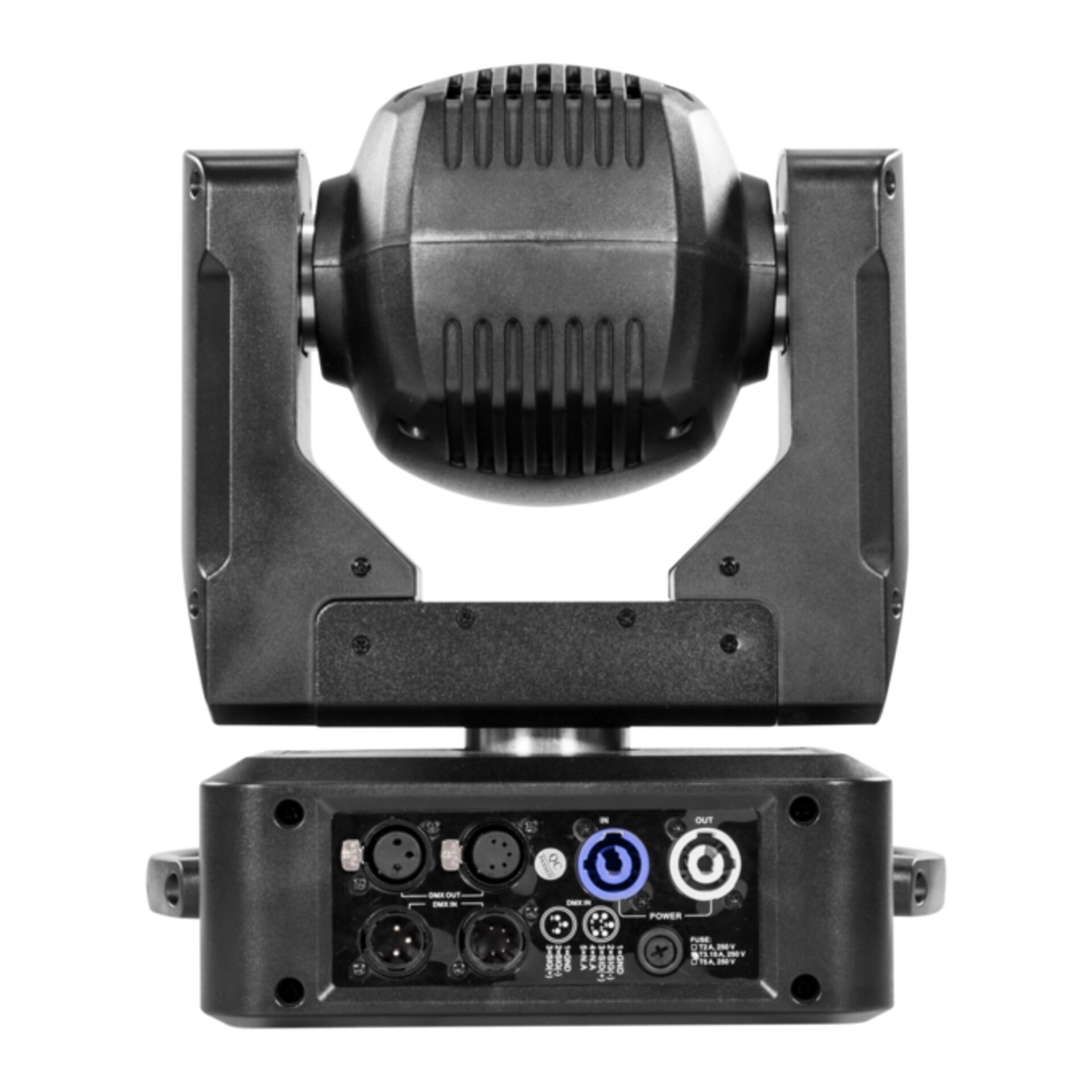

Signaal aansluiting Amphenol XLR 3p + 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde30
Logistieke eigenschappen

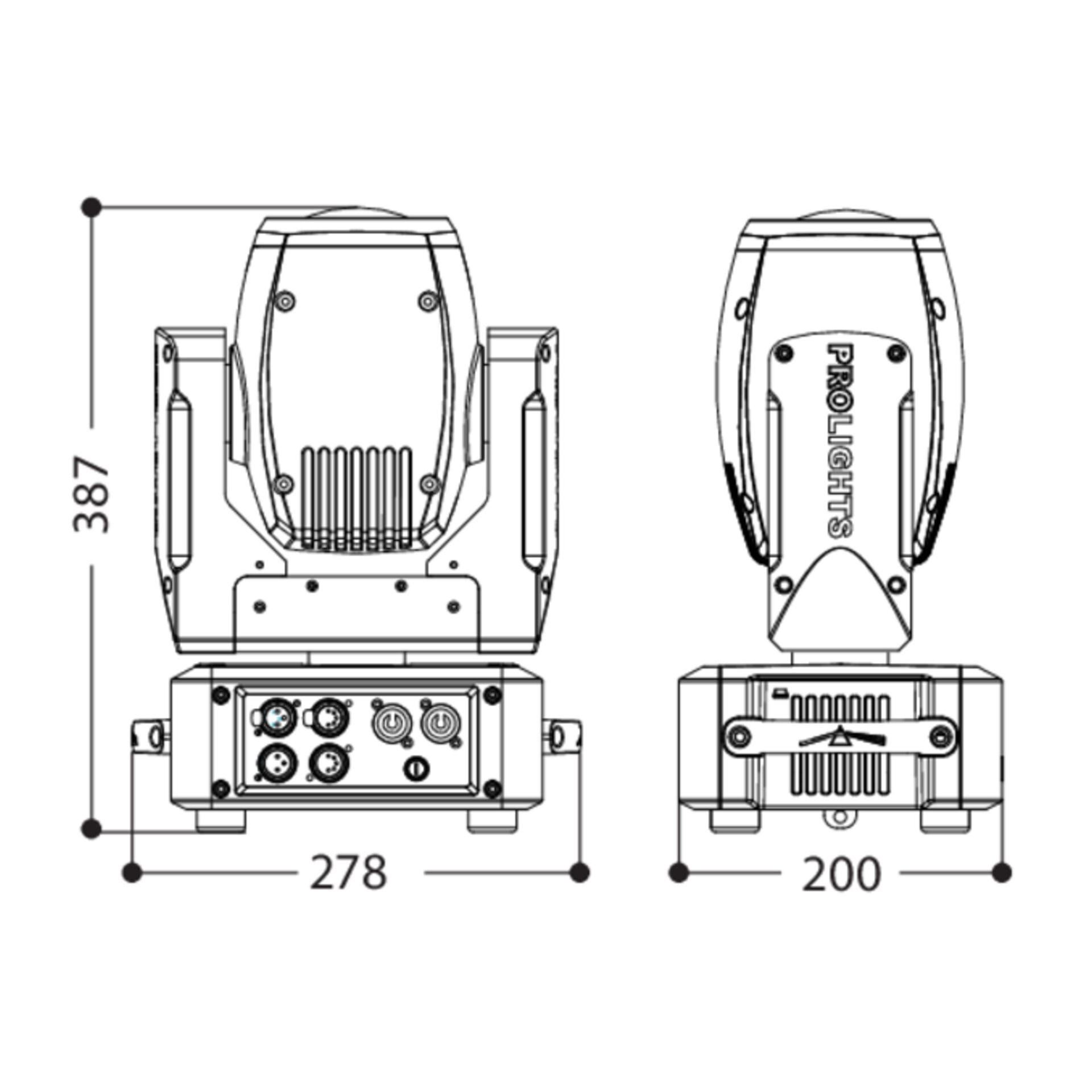

Hoogte
38.7 cm
Breedte
27.8 cm
Diepte
20 cm
Gewicht
7.6 kg
