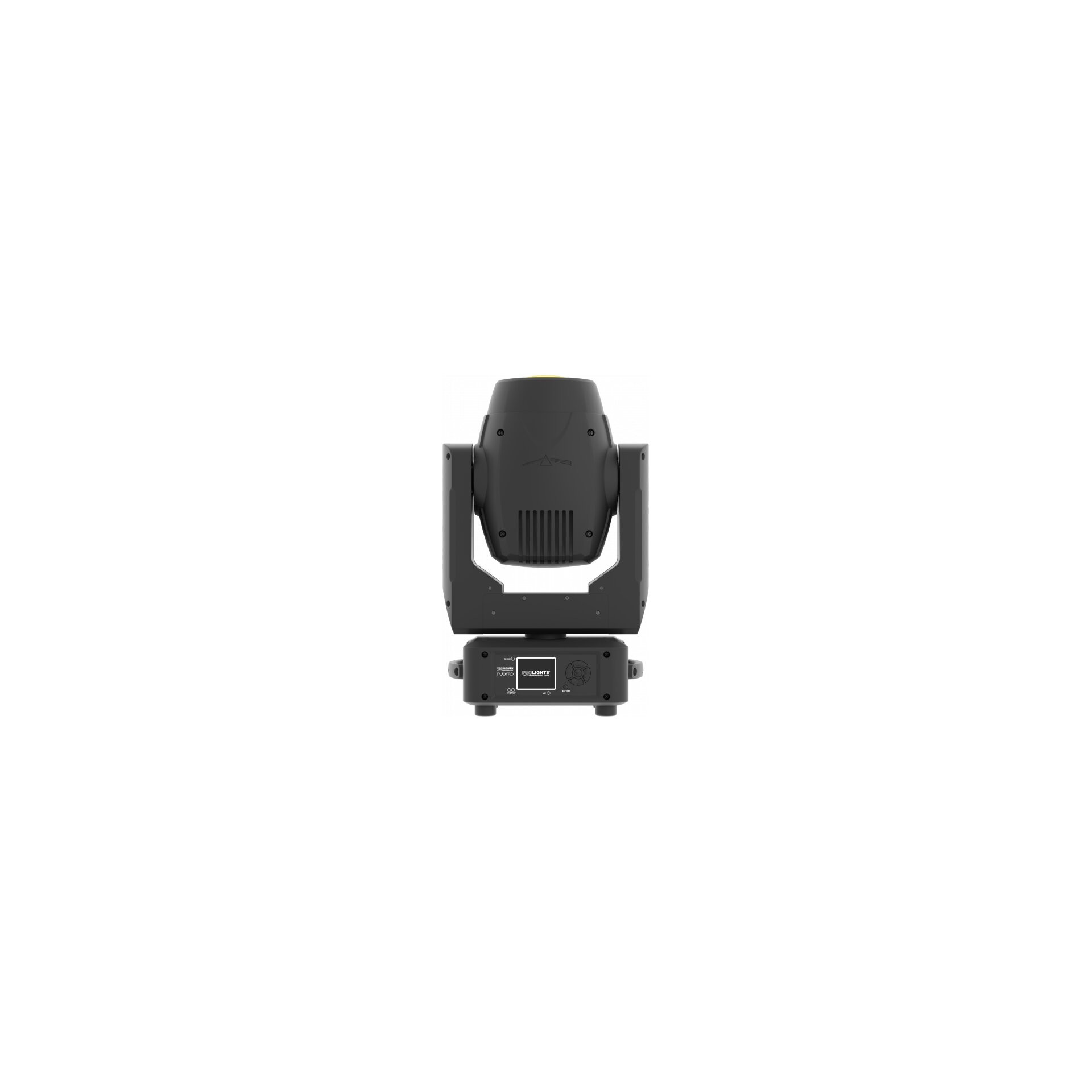

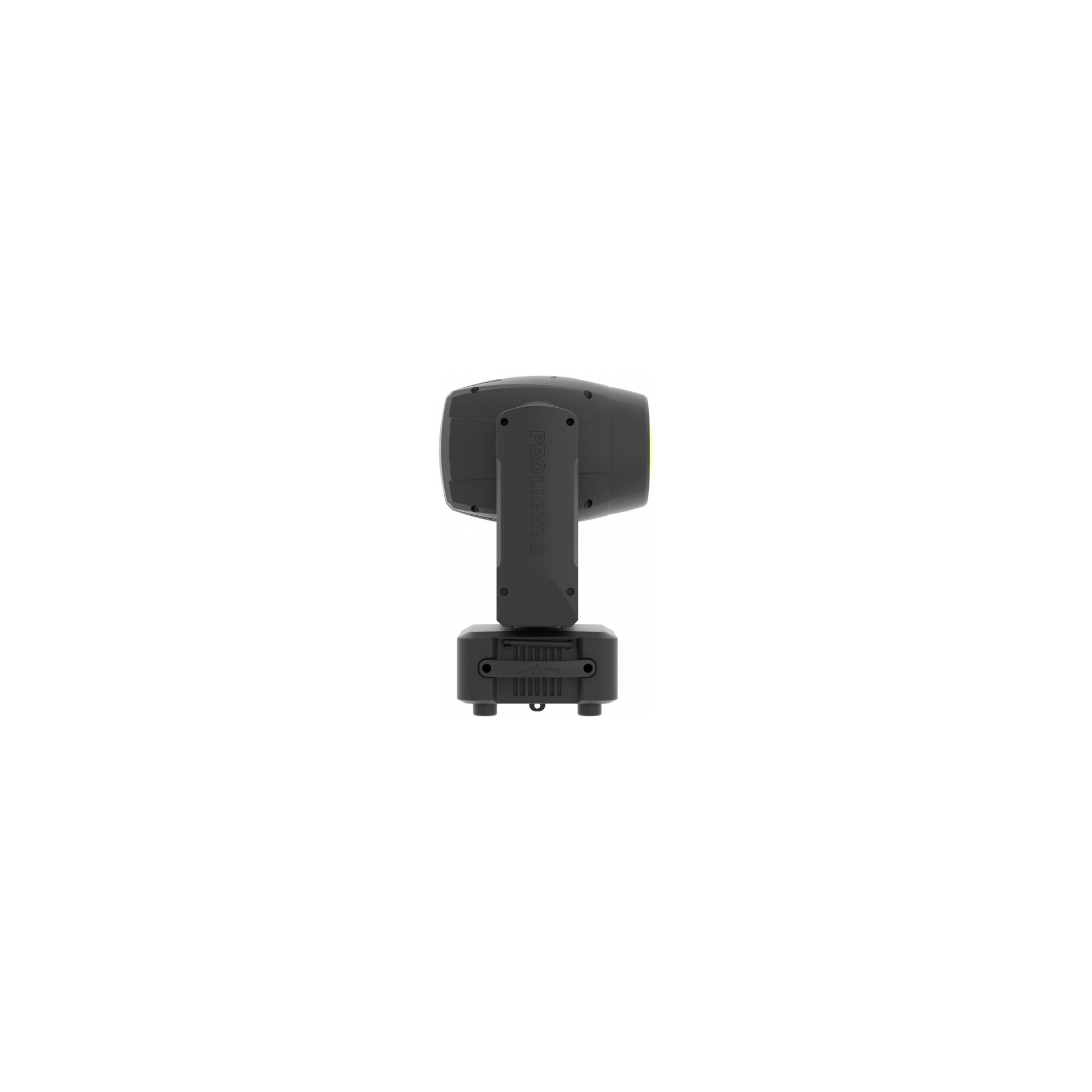

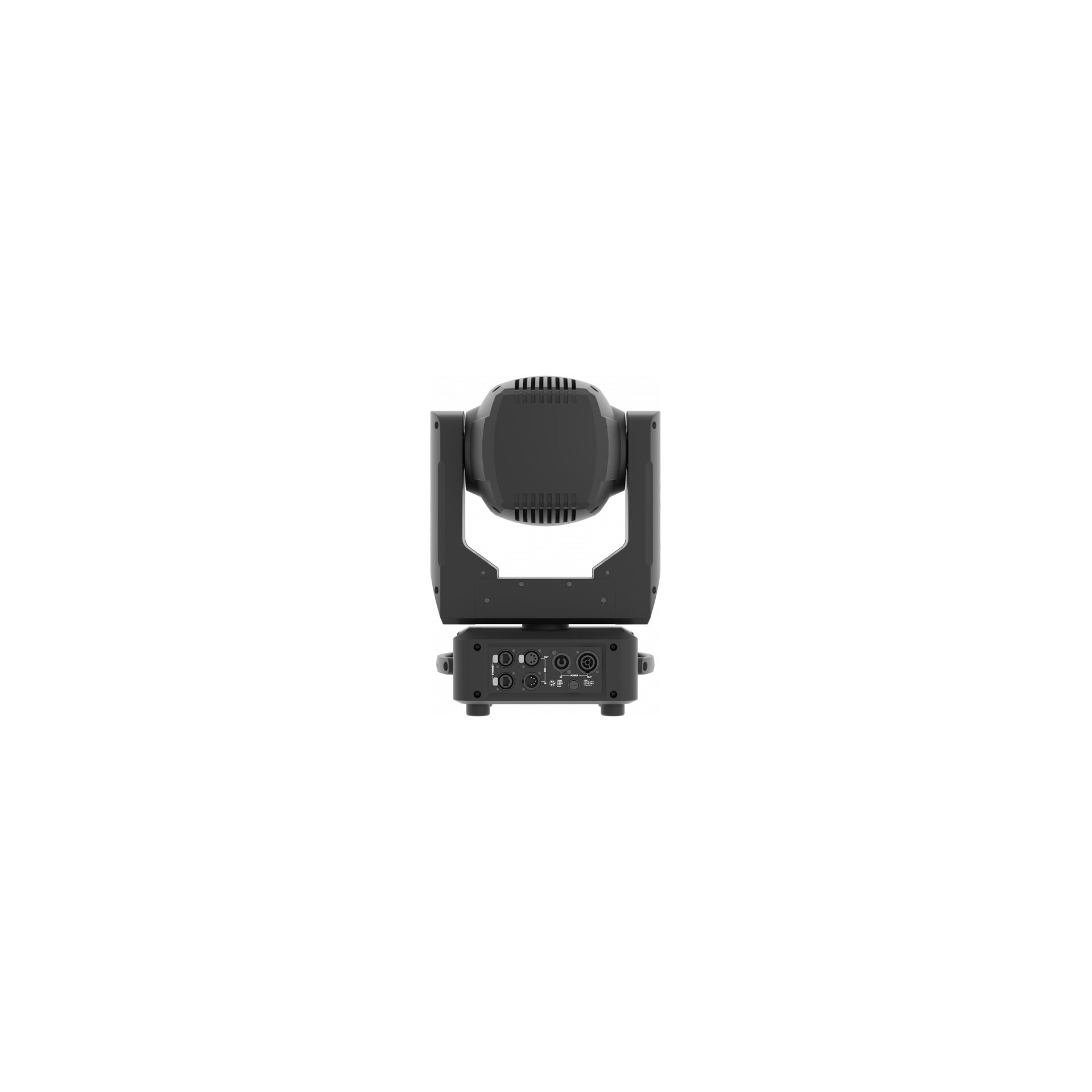

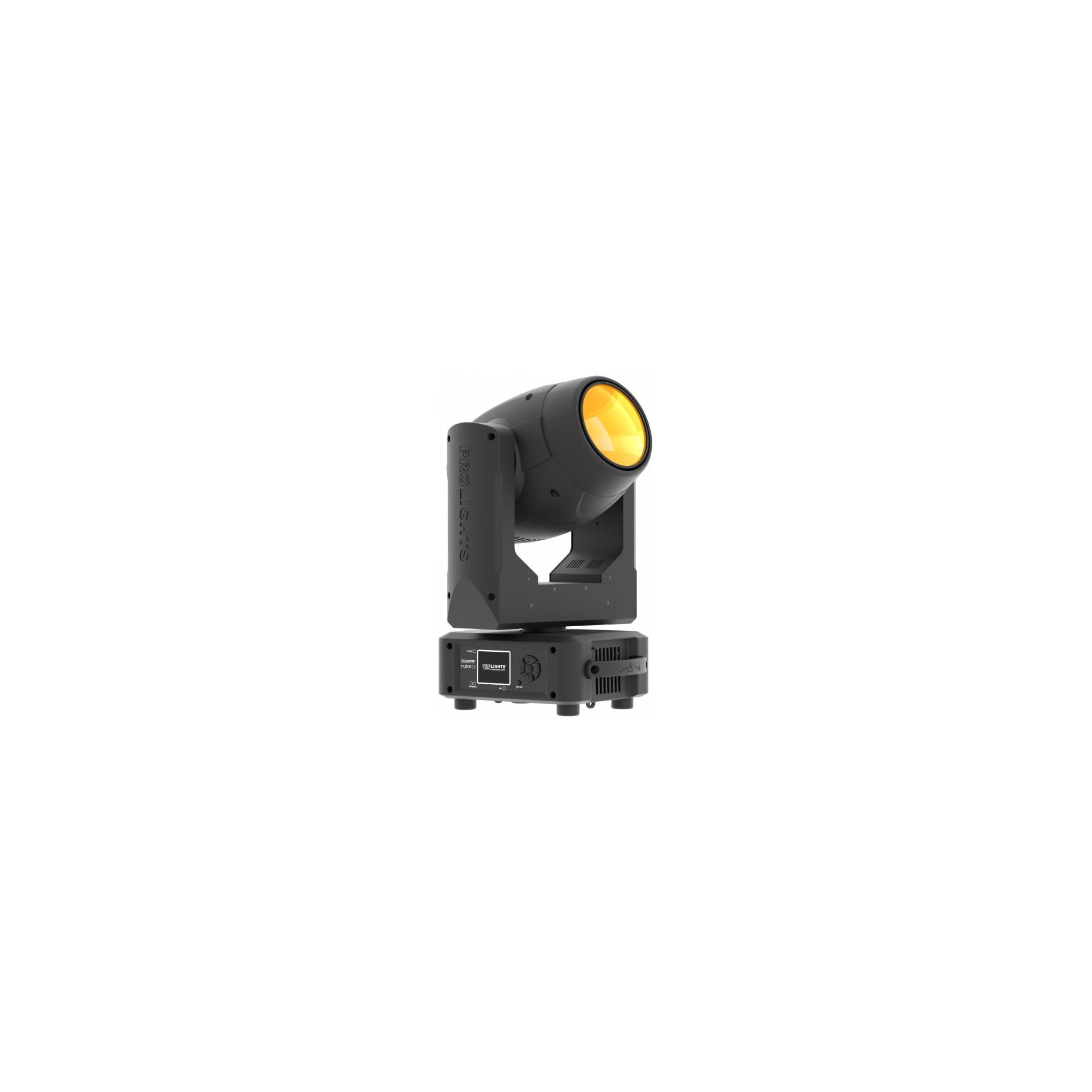

Prolights Ruby FCX

21-00029

  • 50W RGB/FC LED beam
  • P/T infinite rotation

Omschrijving:

The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

Merk

Bruto prijs:
€ 1.480,00

Informeer naar de levertijd

  • accessoires (8)
  • productspecificaties
  • gerelateerde producten

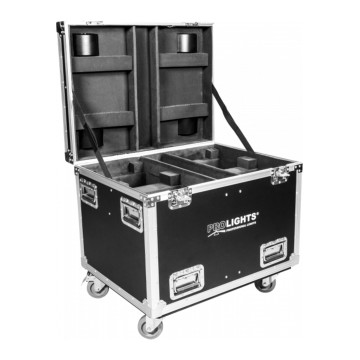

Prolights FCLSHINE332

21-20005

Prolights FCLSHINE332
  • Flightcase voor 4x Ruby of 4x Onyx
  • of 4x Crystal
  • Kleur: zwart
Bruto prijs:
€ 722,00

ProTruss C 6016 B

24-00173

ProTruss C 6016 B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,50

ProTruss RSR 0630 B

24-00246

ProTruss RSR 0630 B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 5,50

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 45,50

ProLights OS24D13

21-20987

ProLights OS24D13
  • Quick-lock omega beugel
  • M12
Bruto prijs:
€ 20,00

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 169,00

Gegevens

Algemeen

Artikelnummer 21-00029
Merk ProLights
Artikelnummer fabrikant RUBYFCX
Garantie 2 jaar

Lichtbron

Lichtbron50W RGB LED
CCT CCT control through dedicated DMX channel
Lux51'094lx @5 m full
Levensverwachting lichtbron > 50.000 h

Optiek

Lens diameter116mm
Lens type high-quality glass lens optics
Focus motorised

Kleuren

Kleurmenging RGB / FC
Wit macro's2.000 K - 8.000K
Kleurenwiel virtual colour wheel with macros

Effecten

Macros several pre-build pixel macros with adjustable speed
Vaste gobo's17 fixed gobos + open
Prisma8f with bi-directional rotation, indexing
Linear prisma6f with bi-directional rotation, indexing
Frost frost unit to soften the beam edge

Body

Pan angle540° / 630° with 360° continuous rotation
Tilt angle265° with 360° continuous rotation
Kleur behuizing black
Pan/Tilt resolutiebit 16bit
Behuizing sturdy die-cast aluminium body

Aansturing

Protocolen DMX512, RDM, Art-Net, W-DMX
DMX kanalen18 / 20 / 22 / 23channel
Master/Slave for synchronised operation of more units linked in a chain
Display LCD high resolution colour display with autoflip
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX included, wireless solution receiver
RDM RDM ready for remote monitoring and settings

Electronics

Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur 0° ~ +45°
LED Control flicker free operation
Slaapstand power safe mode when lost DMX
Display accu self-charging battery backup

Elektrische eigenschappen

Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik122W

Fysieke eigenschappen

Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON IN/OUT connectors
IP waarde20

Logistieke eigenschappen

Hoogte 47.1 cm
Breedte 29.4 cm
Diepte 20 cm
