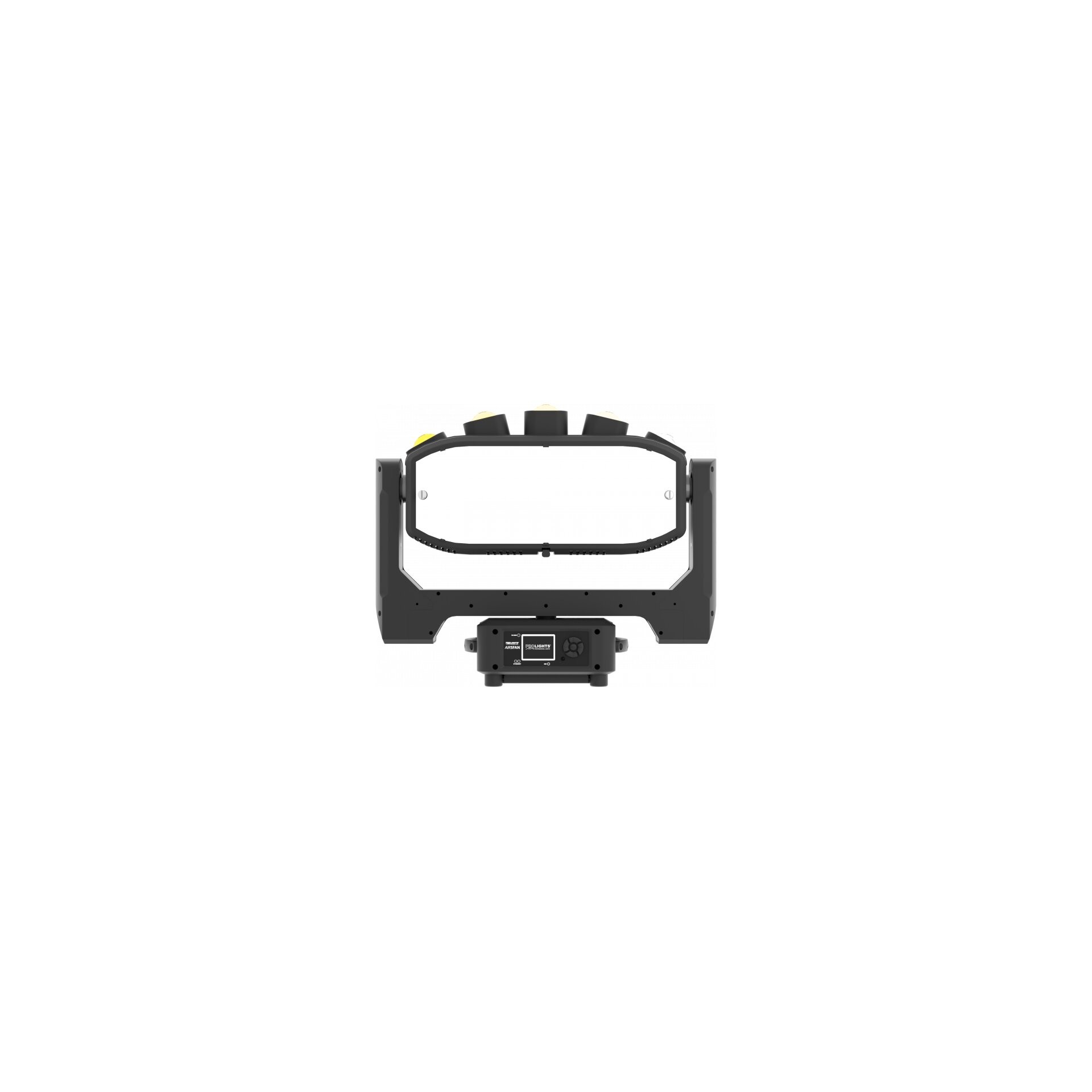

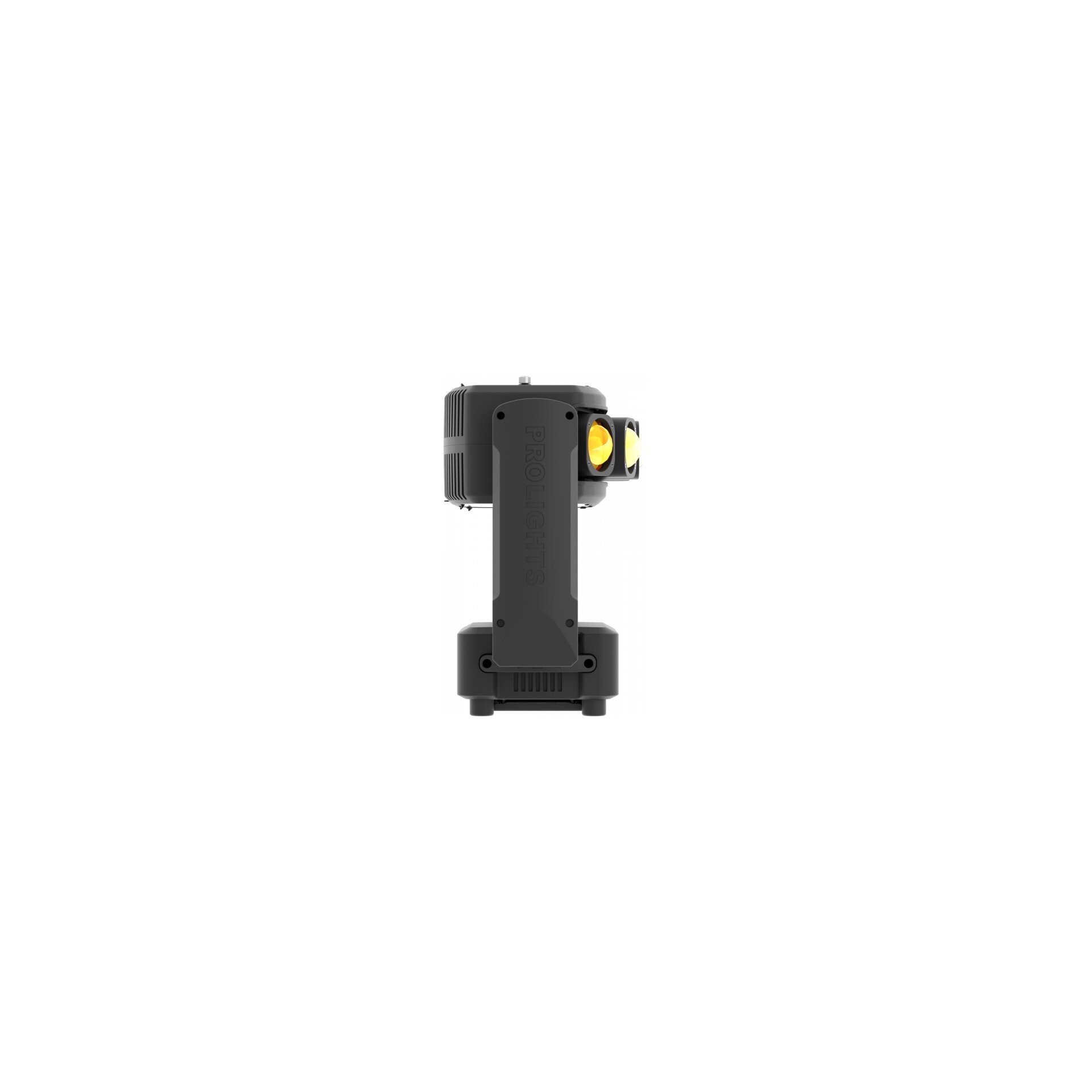

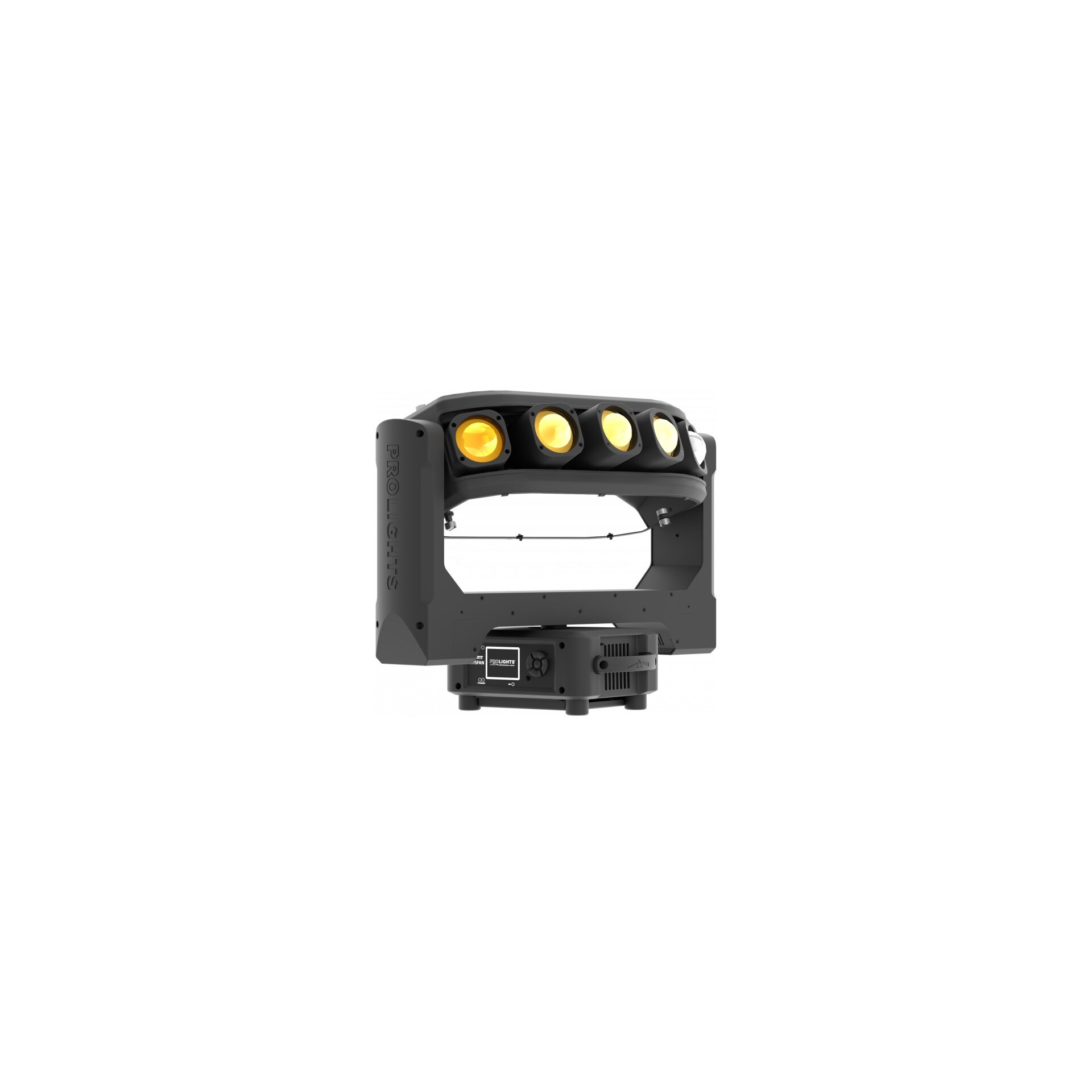

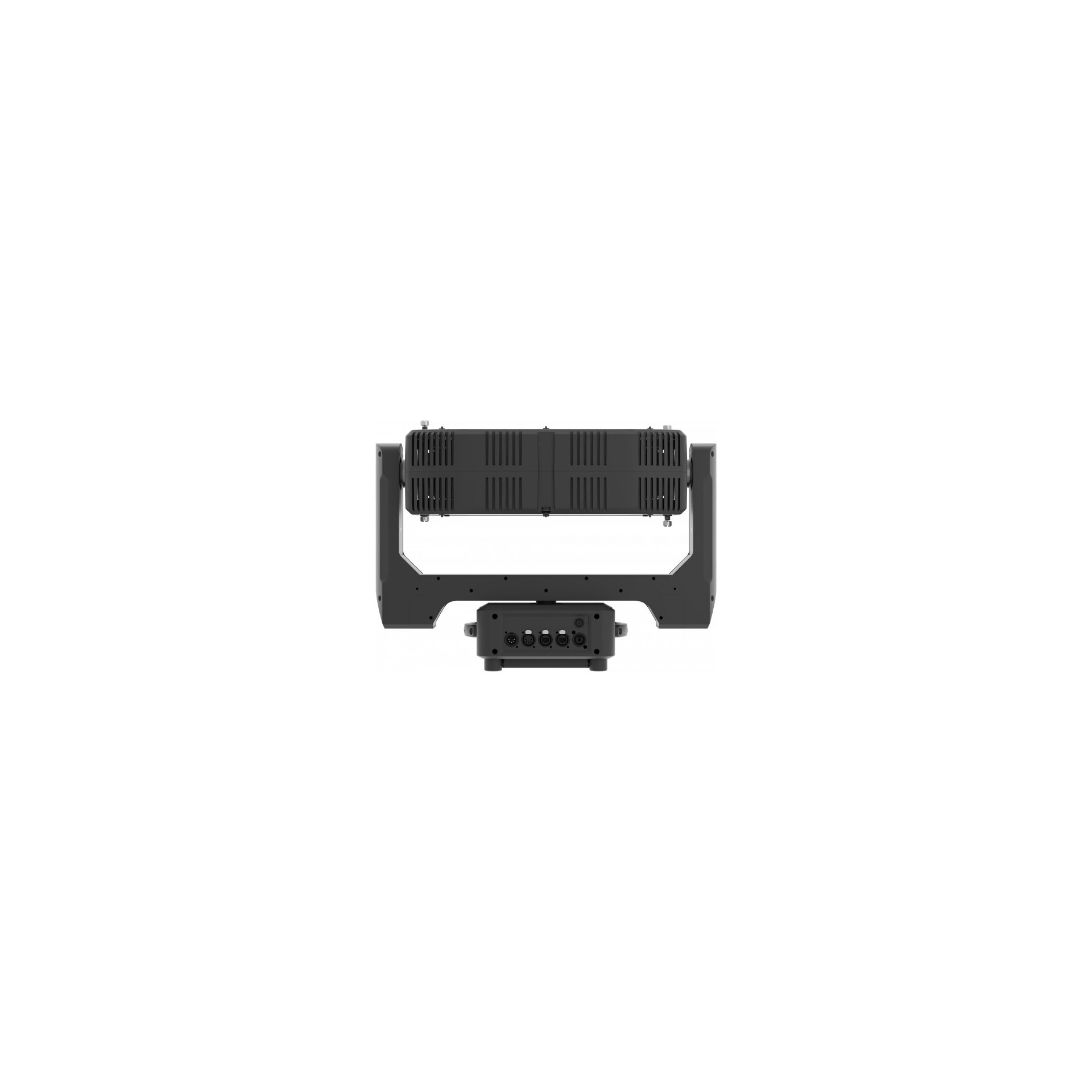

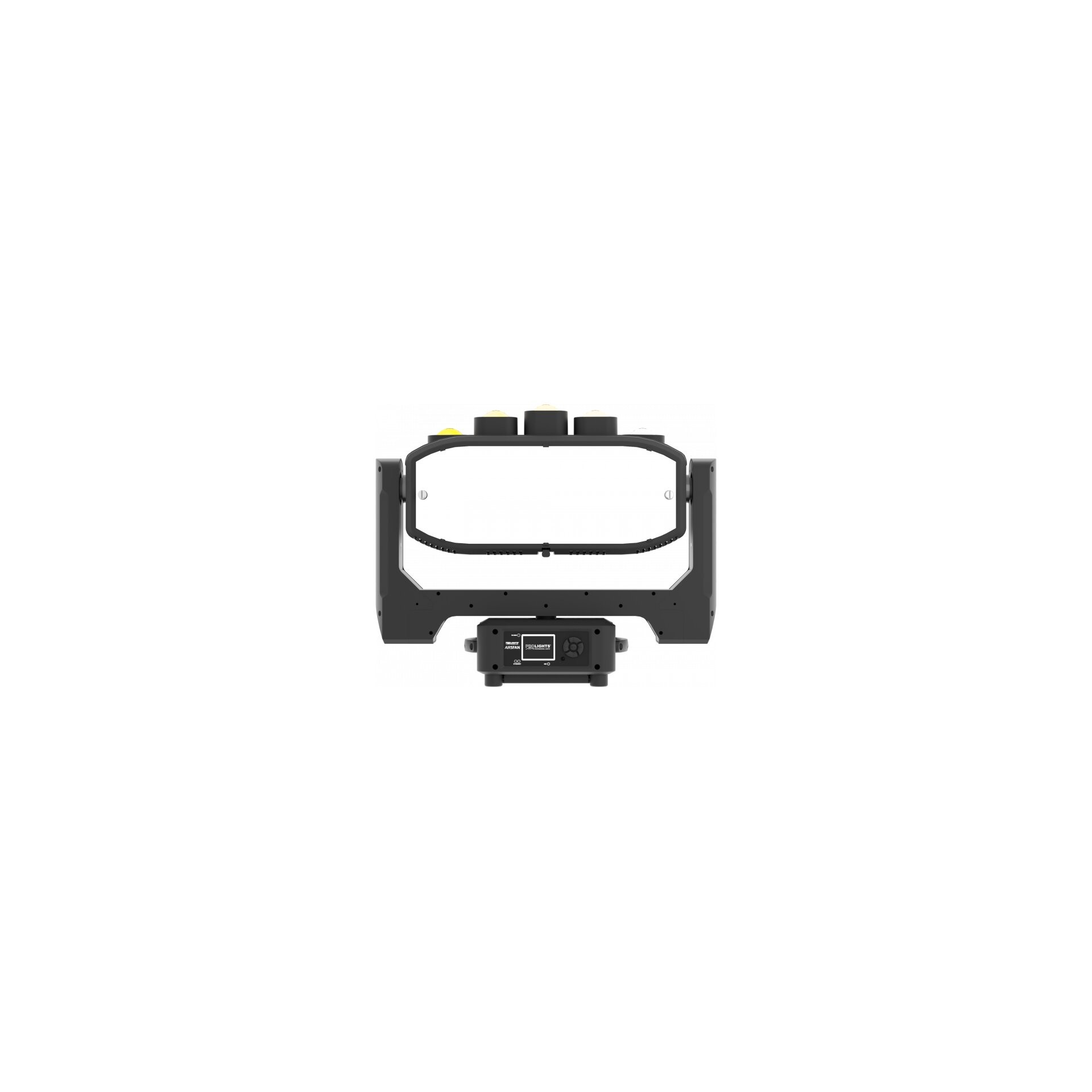

Prolights Air 5Fan

21-00027

  • Beam moving batten
  • 5x40W RGBW/FC LED
  • pivot control

Omschrijving:

Air 5Fan is a pixel-FX moving head, able to control the spread of its pixels through the motorised lens system, passing from a sharp linear beam effect to a multi-ray effect. Powered by 5x40 W RGBW / FC LEDs, with a 2° beam each, delivering stunning brightness for large setups and featuring infinite rotation over pan and tilt. Last but not least, Air 5Fan allows for the mounting of a mirror on its housing allowing for an added effect as moving projecting surface bouncing beams from other light sources.

Merk

Bruto prijs:
€ 1.560,00

Informeer naar de levertijd

  • accessoires (10)
  • productspecificaties
  • gerelateerde producten

Prolights FCLAIR5FAN

21-20040

Prolights FCLAIR5FAN
  • Flightcase voor 4x AIR 5FAN
  • Kleur: zwart
Bruto prijs:
€ 795,00

ProTruss C 6016 B

24-00173

ProTruss C 6016 B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,50

ProTruss RSR 0630 B

24-00246

ProTruss RSR 0630 B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 5,50

GDE True1 verlengkabel

Meerdere opties

GDE True1 verlengkabel
  • 3x2,5mm2 TH07 True1 verlengkabel
  • PowerCon True1 male kabeldeel
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 44,00

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 45,50

ProLights OS24D13

21-20987

ProLights OS24D13
  • Quick-lock omega beugel
  • M12
Bruto prijs:
€ 20,00

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 169,00

CQ - PowerCon True1 1,5m

52-20034

CQ - PowerCon True1 1,5m
  • 3x1,5mm2 True1 aansluitkabel, 1,5m
  • Schuko 16A male stekker
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 27,70

Gegevens

Algemeen

Artikelnummer 21-00027
Merk ProLights
Artikelnummer fabrikant AIR5FAN
Garantie 2 jaar

Lichtbron

Lichtbron5x40W RGBW Osram Ostar LEDs
CCT CCT control through dedicated DMX channel
Lux27'211lx @3 m
Levensverwachting lichtbron > 50.000 h

Optiek

Lens diameter68mm
Lens type high-quality glass lens optics

Kleuren

Kleurmenging RGBW / FC
Wit macro's2.700 K - 10.000K
Kleurenwiel virtual colour wheel with macros

Effecten

FX generator adjustable foreground/background colour, index, speed, direction

Behuizing

Pan angle540° / 630° with 360° continuous rotation
Tilt angle360° with 360° continuous rotation
Kleur behuizing black
Pan/Tilt resolutie16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover

Aansturing

Protocollen DMX512, RDM, Art-Net
DMX kanalen17 / 27 / 43channel
Master/Slave for synchronised operation of more units linked in a chain
Display LCD high resolution colour display with autoflip
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX optional, wireless solution receiver
RDM RDM ready for remote monitoring and settings

Electronics

Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Slaapstand power safe mode when lost DMX
Display accu self-charging battery backup

Elektrische eigenschappen

Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik208W

Fysieke eigenschappen

Koelingaluminium heat sink cooling system and low noise fan
Bevestiging any position with quick-lock omega brackets
Pan / tilt lockpivot lock for trasportation and maintenance
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN connector
IP waarde20

Logistieke eigenschappen

Hoogte 47.4 cm
Breedte 55.8 cm
Diepte 24.2 cm
Gewicht 16 kg
