Algemeen
Artikelnummer
21-00017
Artikelnummer fabrikant
PIXIEWASHBK
Garantie
2 jaar
Lichtbron
Lichtbron60W RGBW Osram Ostar LED
CCT CCT control through dedicated DMX channel
Luminous flux(7°) 1'432 lm - (40°) 1'311lm @full
Lux(7°) 3'808 lx - (40°) 296lx @5 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter100mm
Lens type high-quality glass lens optics
Zoom7° - 40° motorised linear zoom
Kleuren
Kleurmenging RGBW / FC
Wit macro's2.700 K ~ 8.000K
Kleurenwiel virtual colour wheel with macros
Body
Pan angle540°
Tilt angle270°
Kleur behuizing black, white finishing available
Pan/Tilt resolutiebit 8 / 16bit
Behuizing aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocolen DMX512
DMX kanalen13 / 16channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Display accu self-charging battery backup
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik100W
Output (at 230V)22 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets

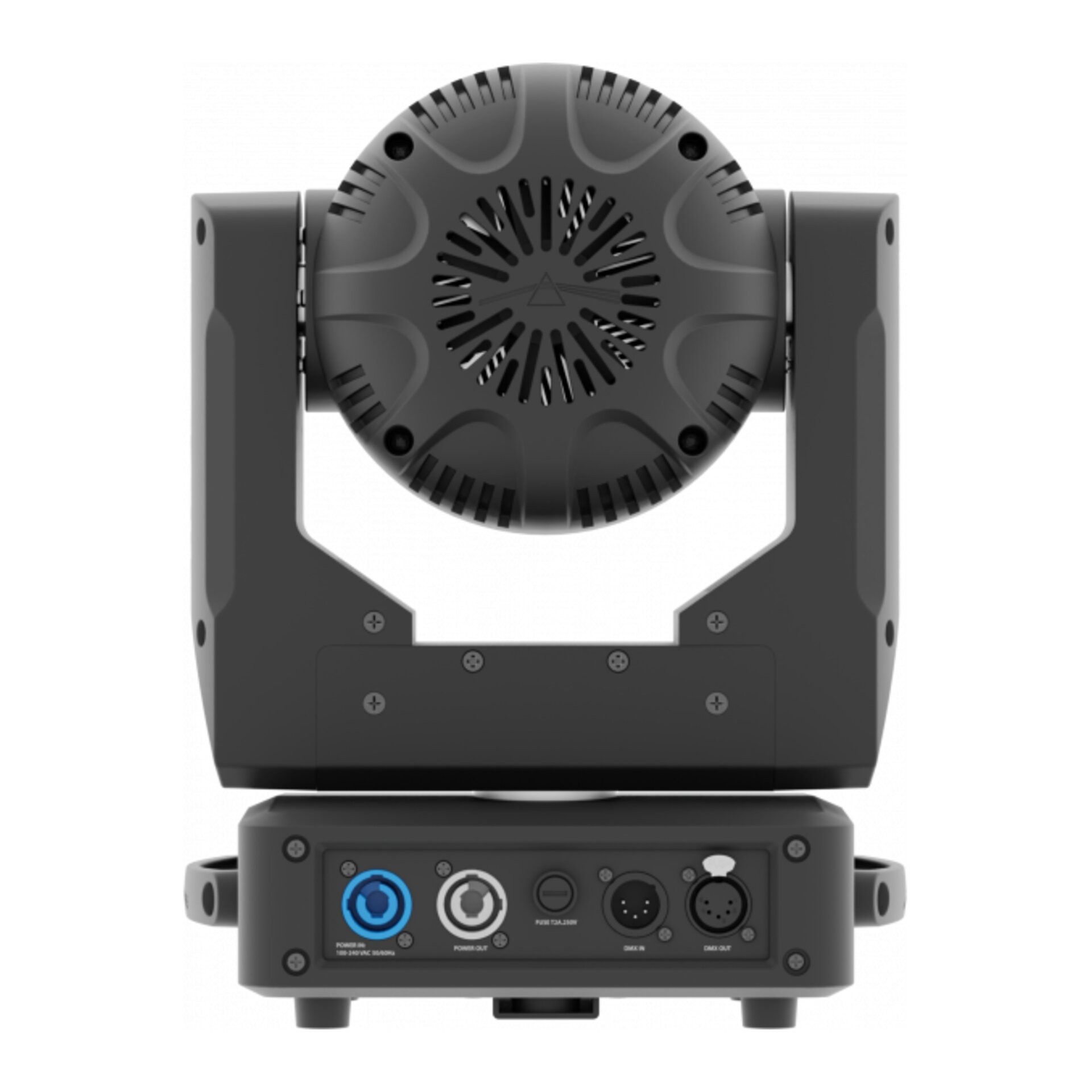

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte
32 cm
Breedte
25.2 cm
Diepte
20.4 cm
Gewicht
7 kg
