Lamp eigenschappen
KleursysteemKleurenwiel
Vermogen280W

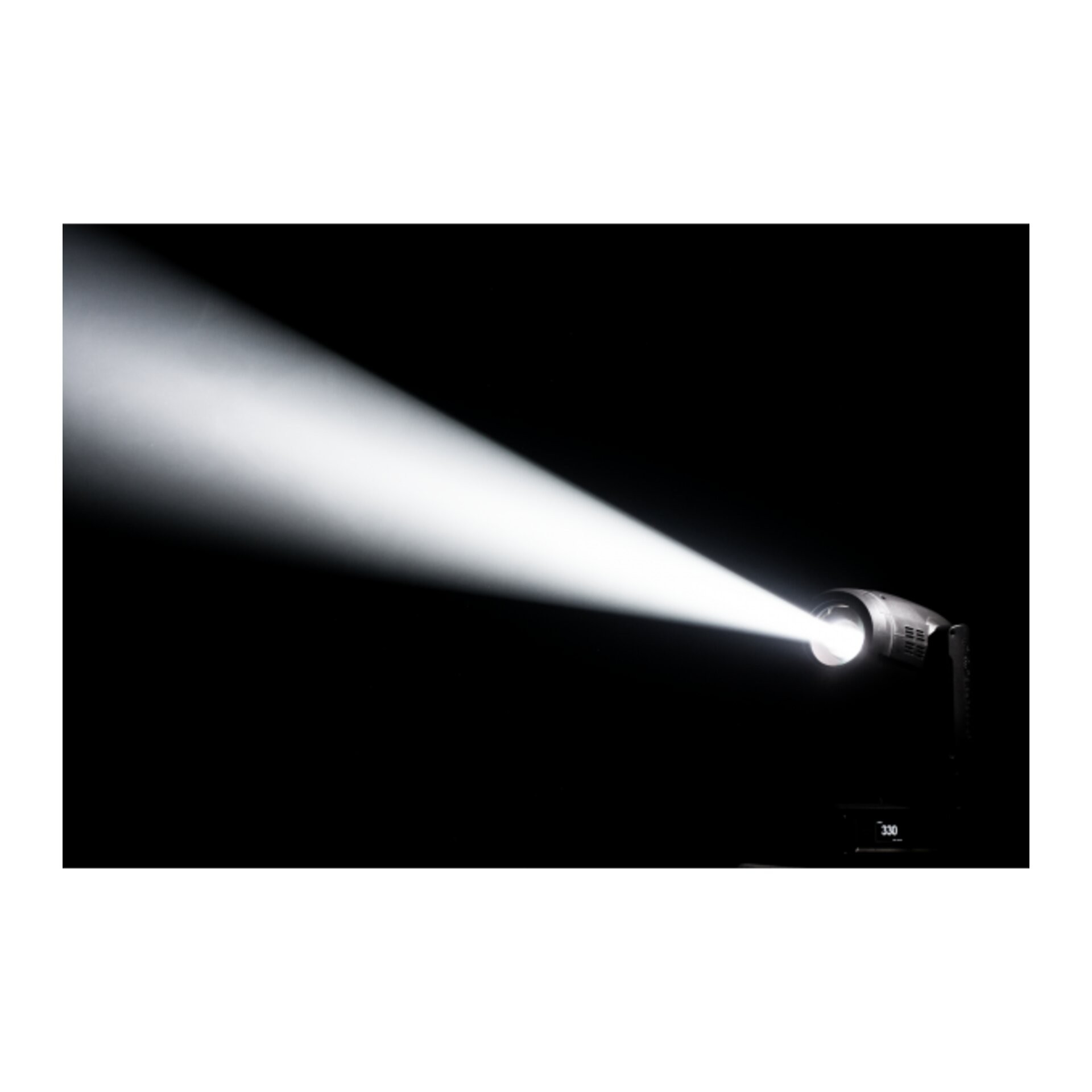

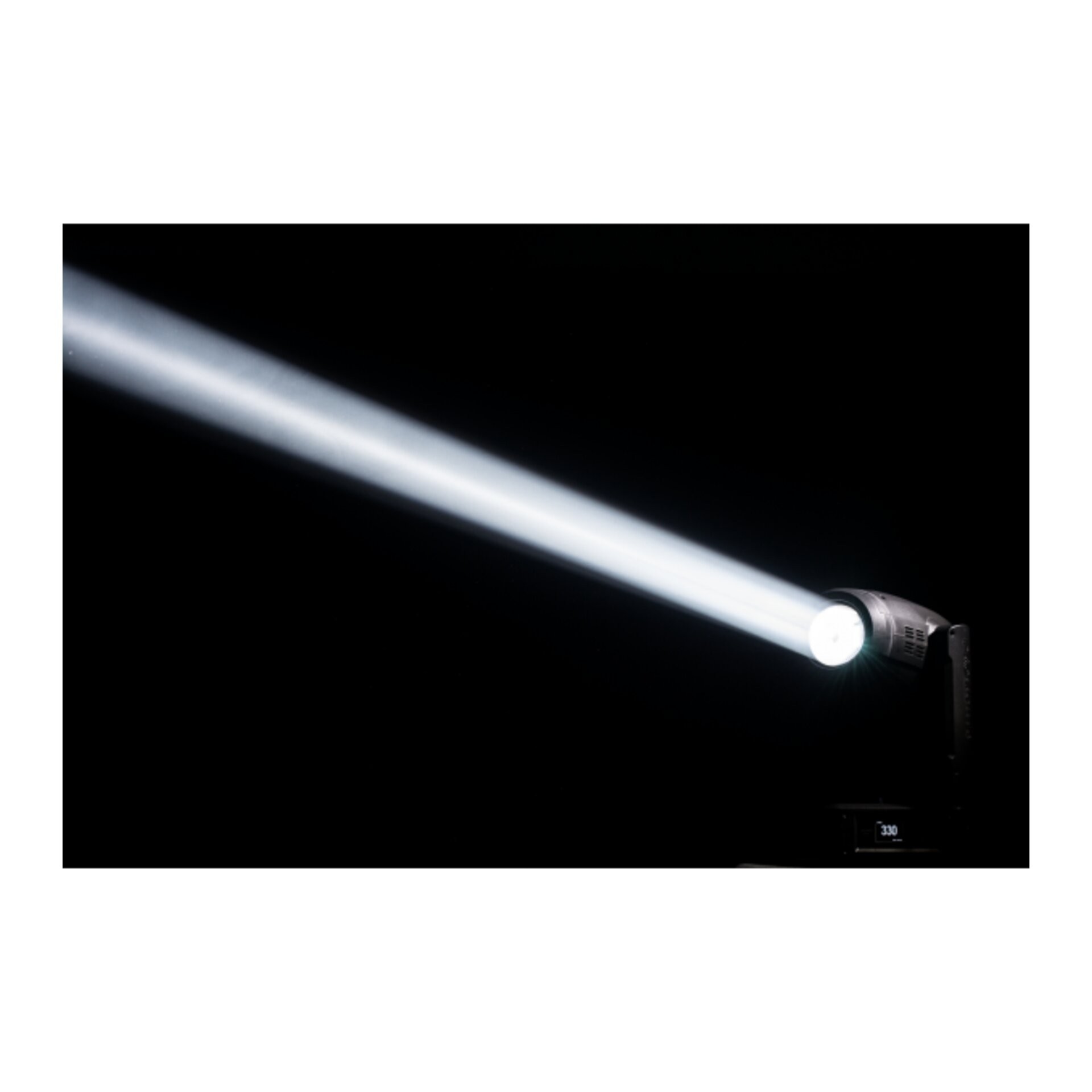

Zoombeam: 2° - 10° / spot: 5,5° - 23° motorised linear zoom
Lichtbron
Lichtbron280W S Osram Sirius HRI

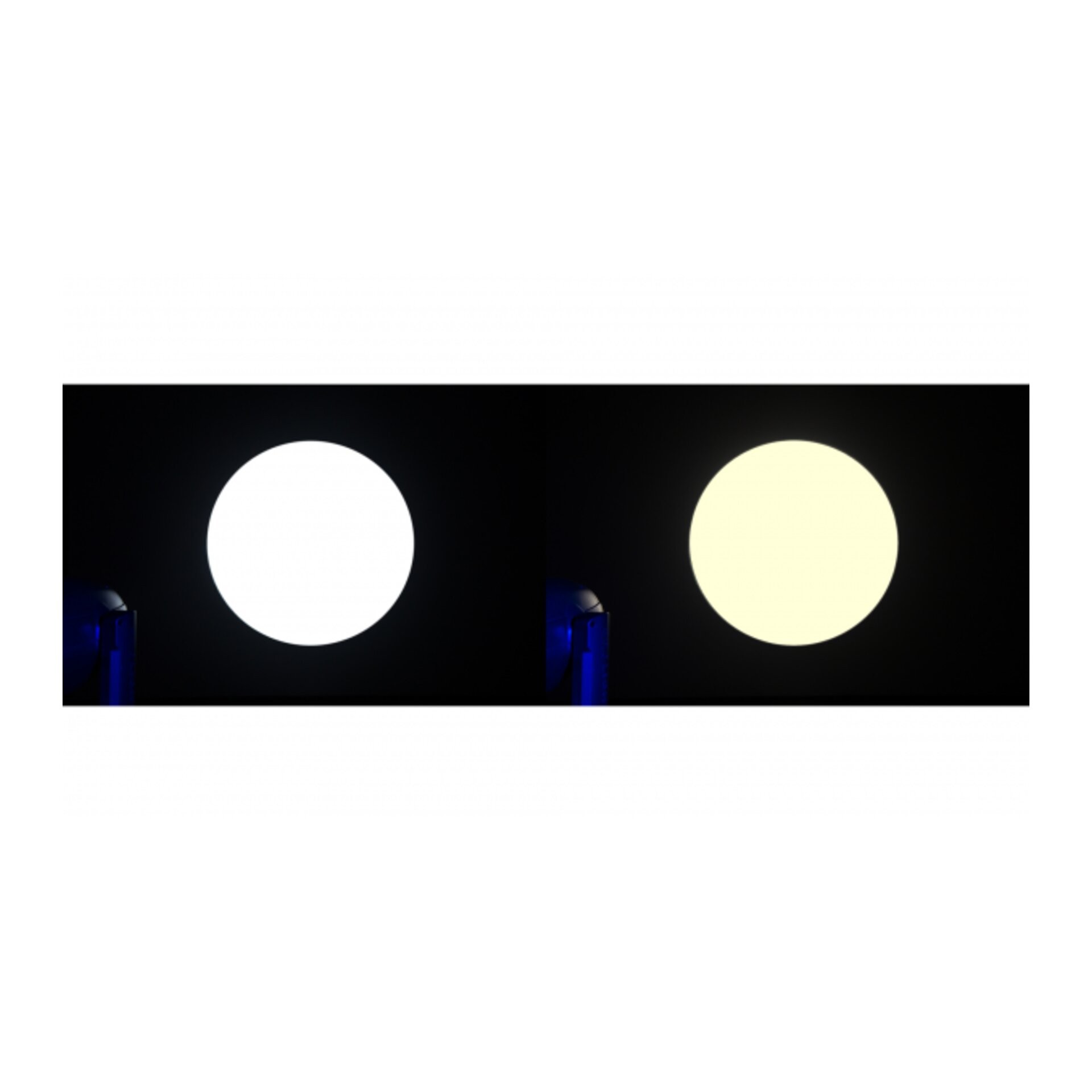

CCTon wheel 2.500 K and 3.200 K + CTB
Luminous flux9'826lm
Lux(5.5°) 2'562lx @5 m
Levensverwachting lichtbron2.000 h
Optiek
Lens diameter117mm
Lens typehigh-quality glass lens optics
Focusmotorised with auto-focus
Extra optiekenheat filter to switch from beam to spot modes
Min. Zoombereik2
Max. Zoombereik23
Kleuren

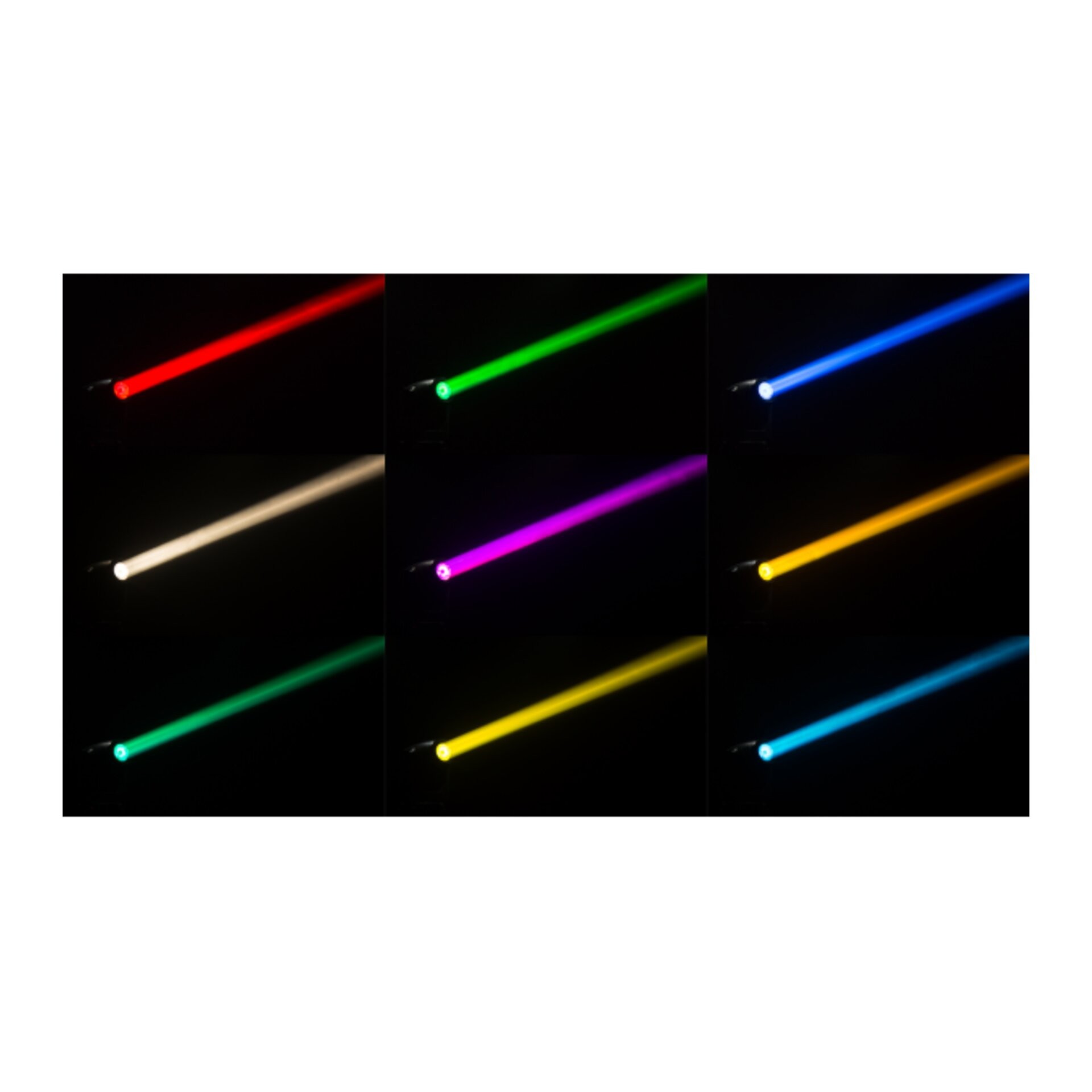

Kleurenwiel13 colour filters
Effecten
Macroslinear, half colours, colour bounce

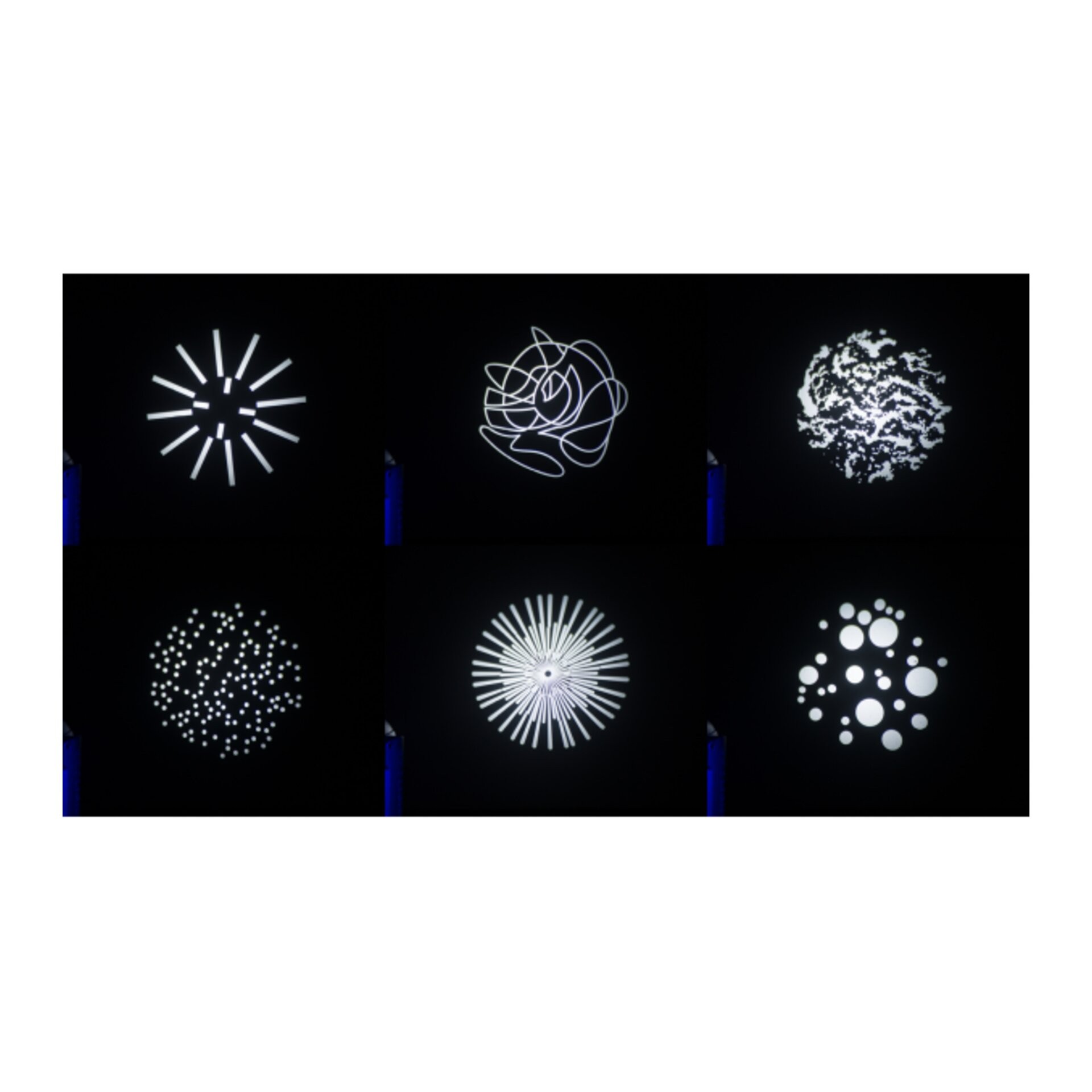

Roterende gobo's9 rotating gobos + open, interchangeable
Vaste gobo's14 fixed gobos + open

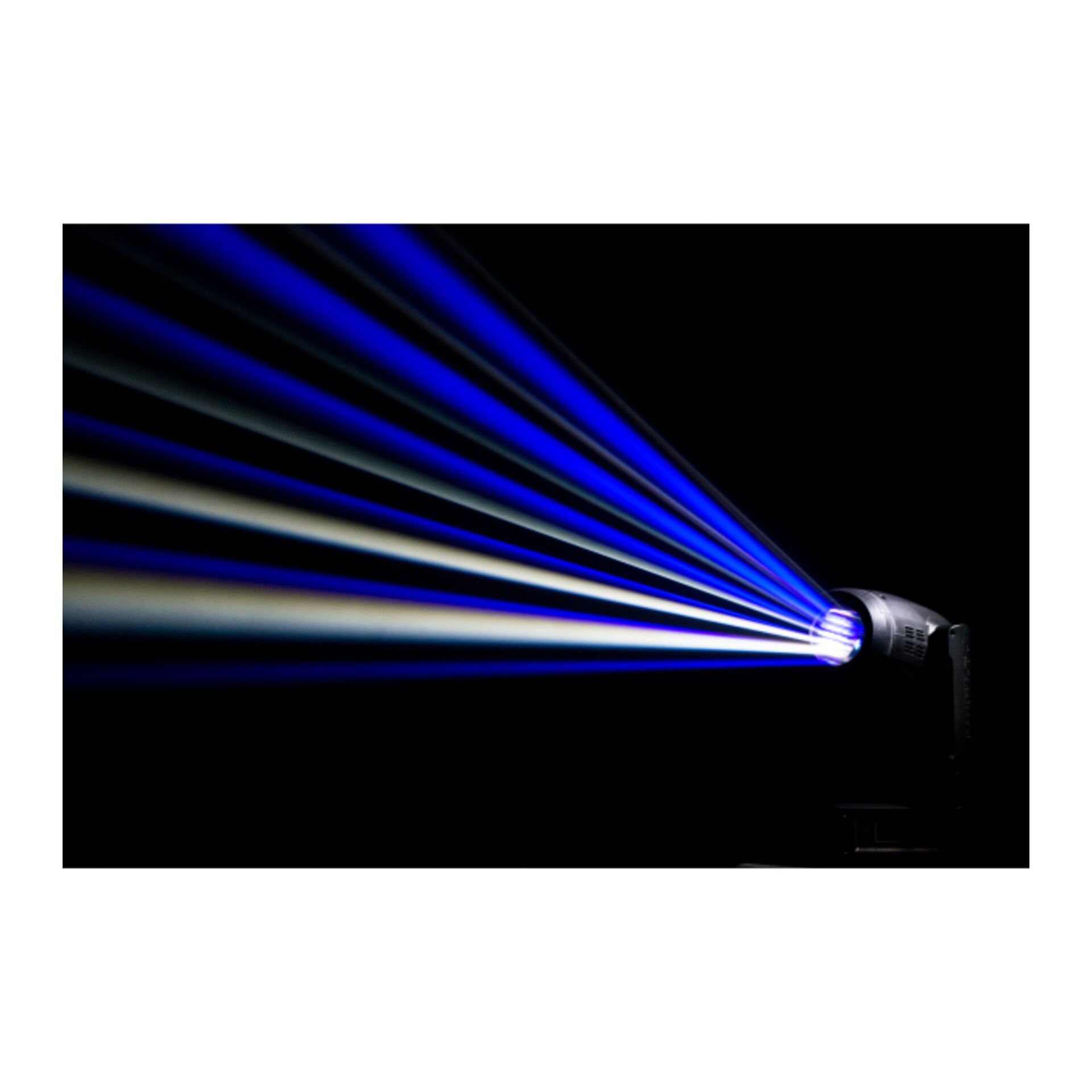

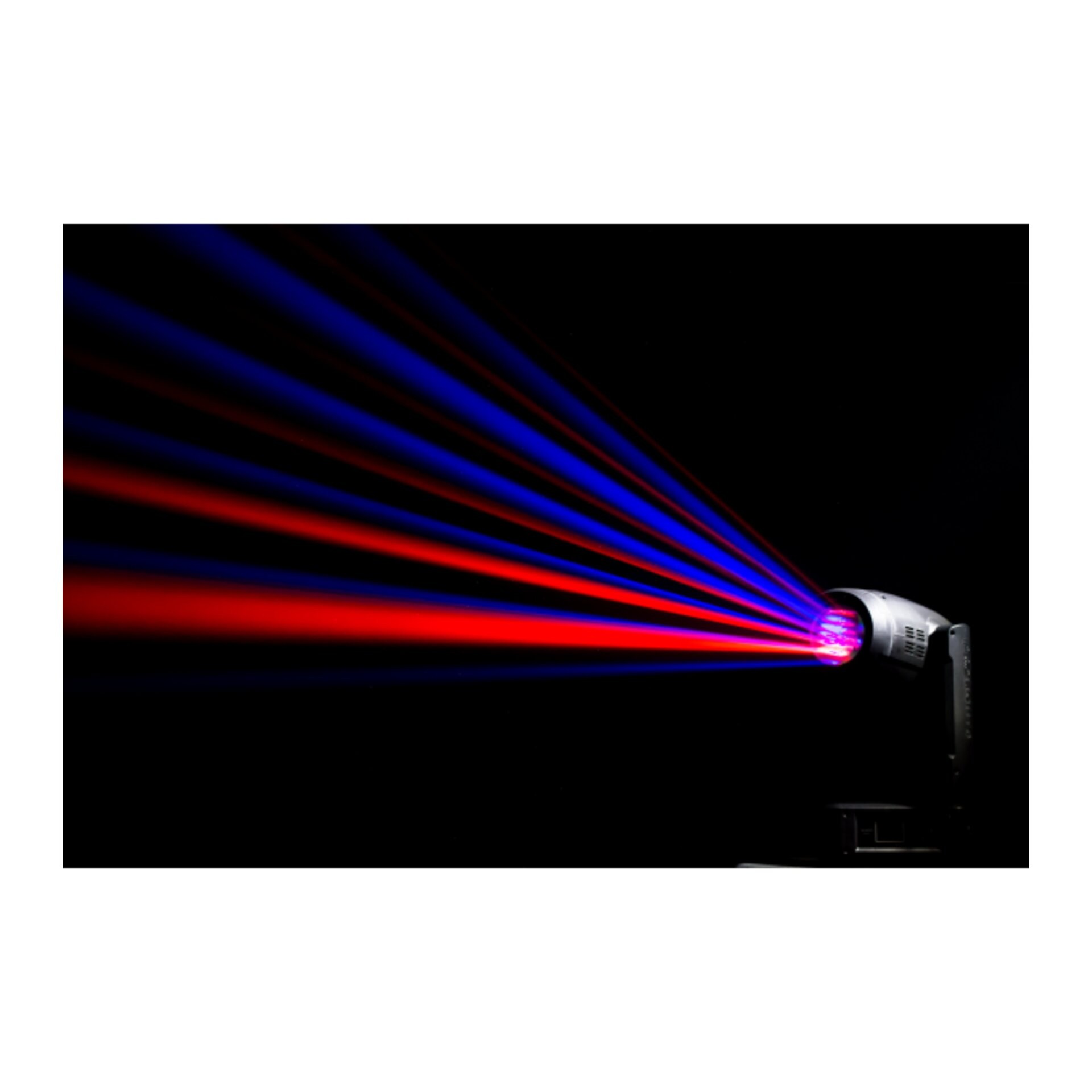

Prisma8f with bi-directional rotation, indexing
Linear prisma6f with bi-directional rotation, indexing

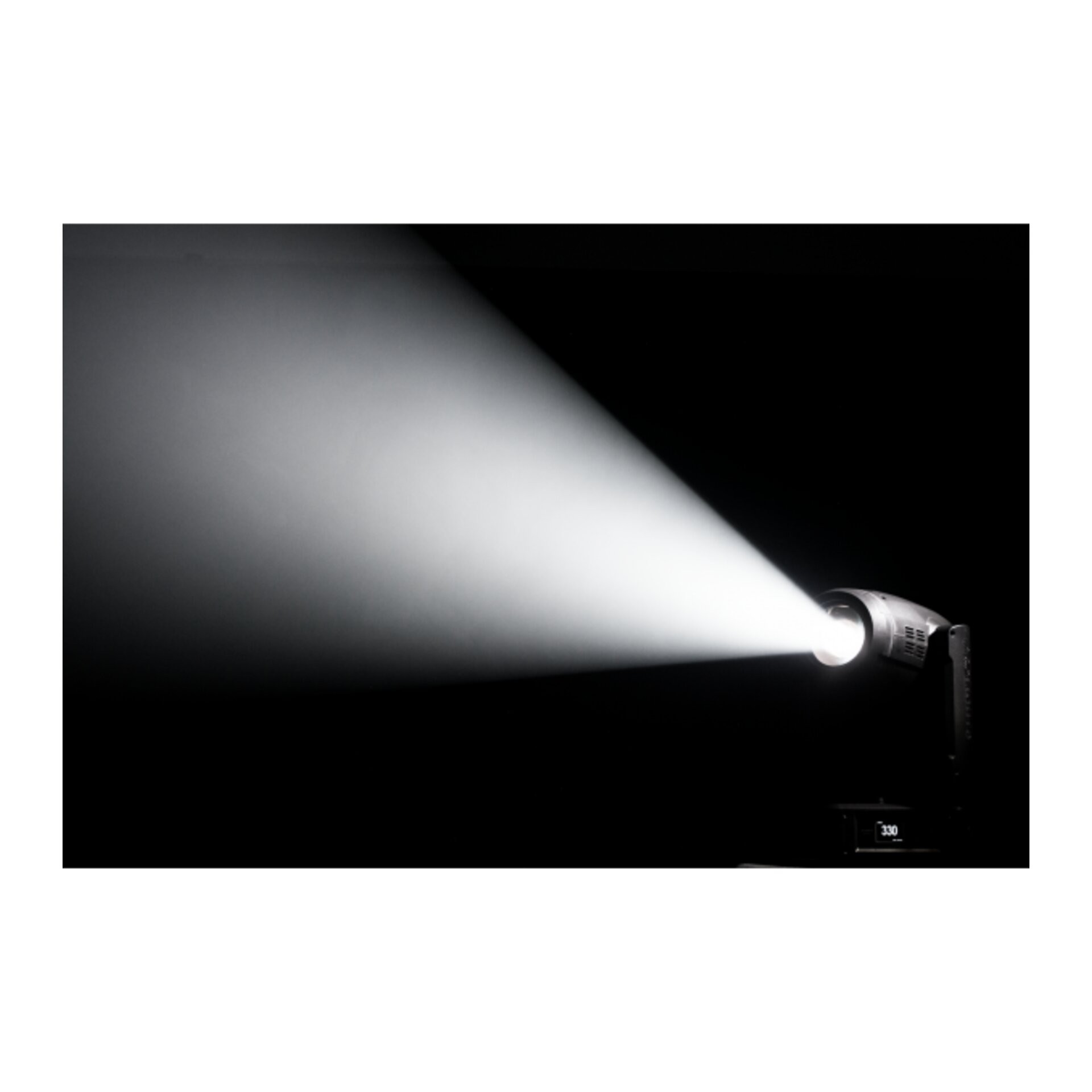

Frostfrost unit to soften the beam edge
Gobo maatouter: 15,7 mm - image: 12 mm - thickness: 1,1 mm
EffectenFocus, Frost, Gobo, Prisma

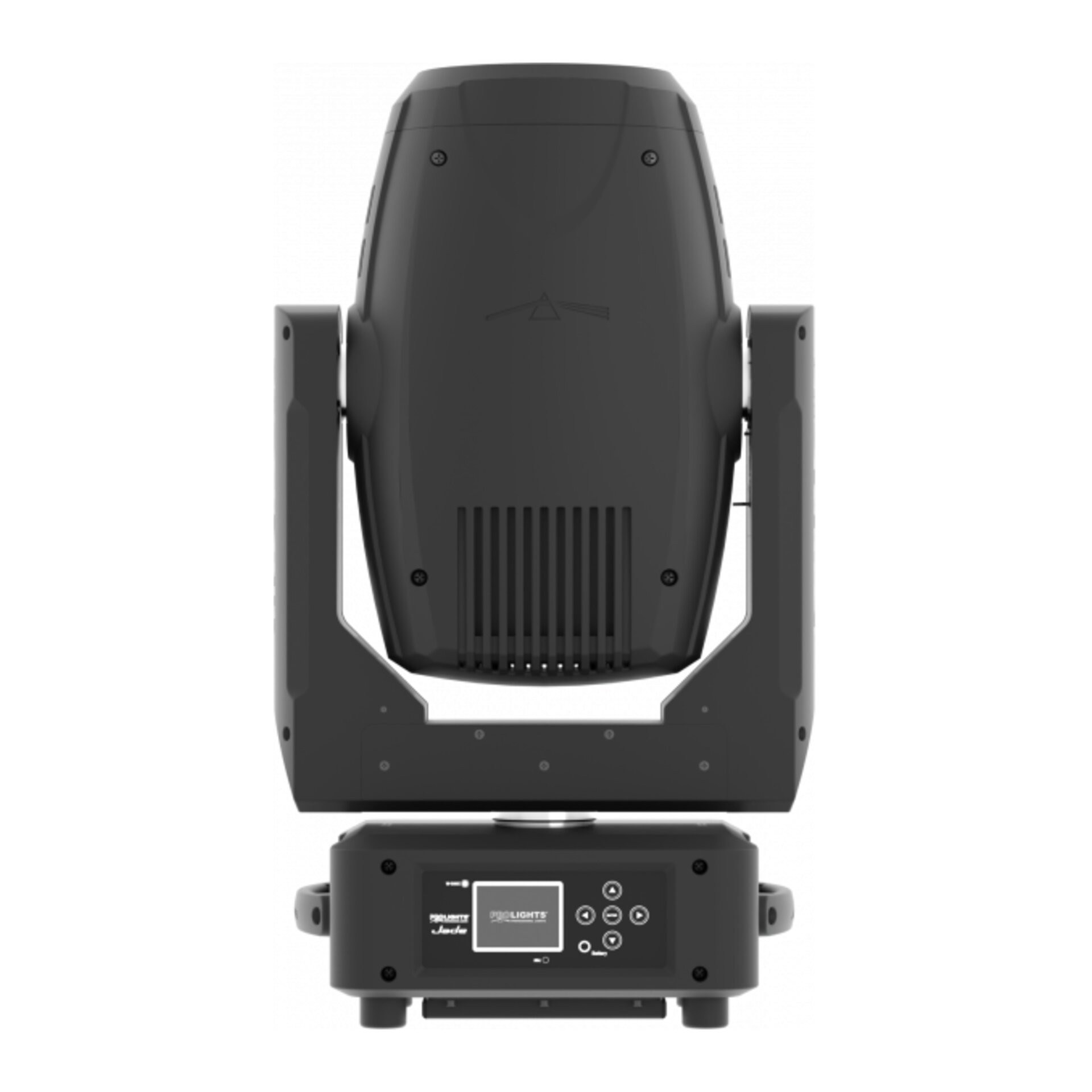

Behuizing
Pan angle630° - 540°
Tilt angle265°
Kleur behuizingZwart, black
Pan/Tilt resolutiebit 8 / 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM, W-DMX
DMX kanalen14 / 16 / 22 / 23channel
DisplayLCD high resolution colour display
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% mechanical dimmer
Strobe / shutter1 - 25 flash(s), mechanical
Bedrijfstemperatuur-10° ~ +45°
Slaapstandpower safe mode when lost DMX
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik423W
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingany position with quick-lock omega brackets

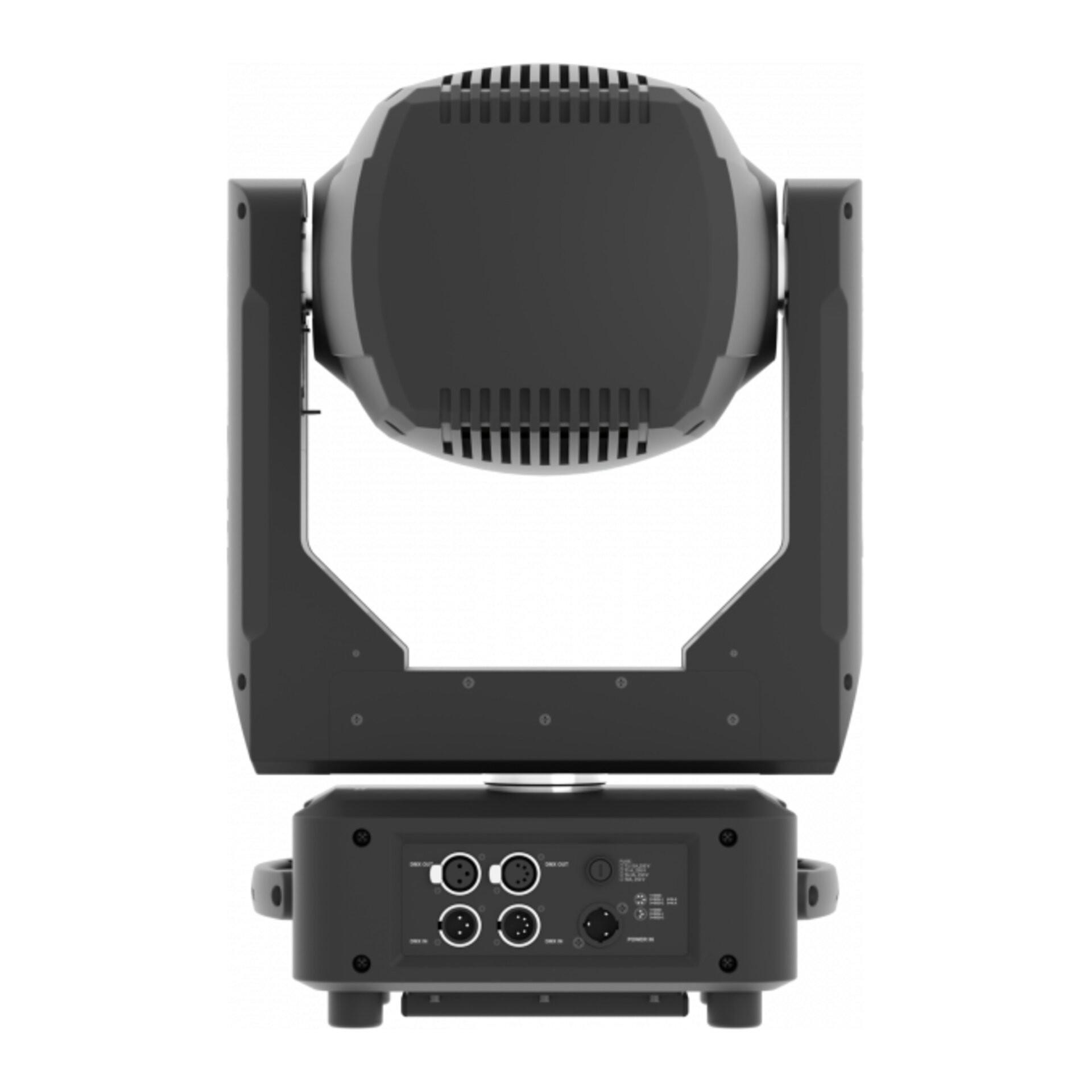

Signaal aansluitingAmphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN connector, PowerCon
IP waarde20, IP20
Gewicht17 kg
Logistieke eigenschappen
Hoogte verpakking
34 cm
Breedte verpakking
44 cm
Diepte verpakking
71 cm
Gewicht verpakking
19 kg
