Algemeen
Artikelnummer
21-00003
Artikelnummer fabrikant
RUBYBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemKleurenwiel
Vermogen132W
Lichtbron
Lichtbron132W S Osram Sirius HRI
CCT on wheel 2.500 K and 3.200 K + CTB
Luminous flux5'150lm
Lux393'000lx @5 m full
Levensverwachting lichtbron 6.000 h
CRI60
Optiek
Lens diameter98mm
Lens type high-quality glass lens optics
Focus motorised
Min. Zoombereik2
Kleuren
Kleurenwiel14 colour filters
Effecten
Macros linear, half colours, colour bounce
Vaste gobo's17 fixed gobos + open
Prisma8f with bi-directional rotation, indexing
Linear prisma6f with bi-directional rotation, indexing
Frost frost unit to soften the beam edge
EffectenFocus, Frost, Gobo, Prisma
Behuizing
Pan angle630° - 540°
Tilt angle265°
Kleur behuizingZwart
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM
DMX kanalen11 / 13 / 14 / 17channel

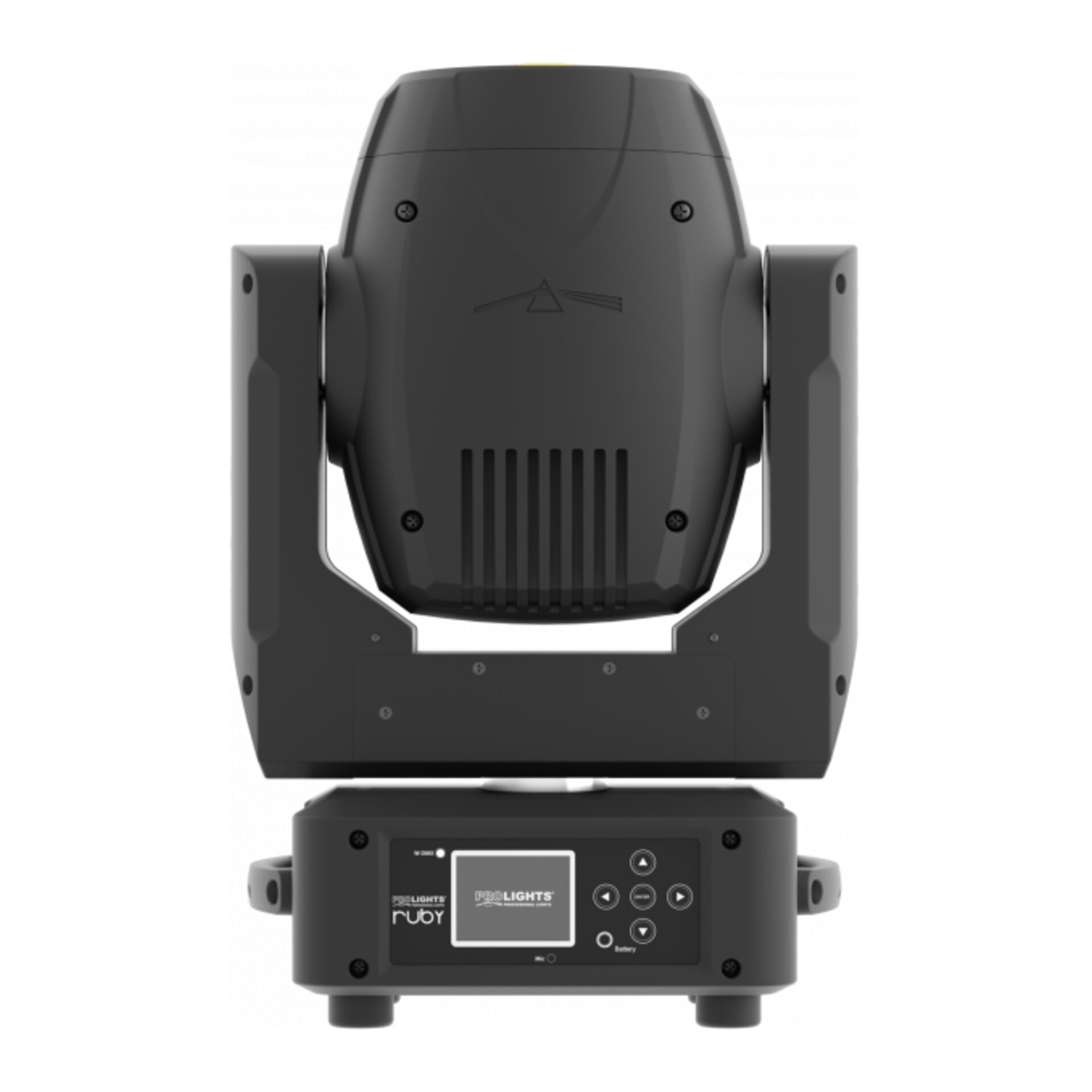

Display LCD high resolution colour display
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX optional, wireless solution receiver
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% mechanical dimmer
Strobe / shutter1 - 25 flash(s), mechanical
Bedrijfstemperatuur -10° ~ +45°
Slaapstand power safe mode when lost DMX
Display accu self-charging battery backup
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik212W
Output (at 230V)8 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets

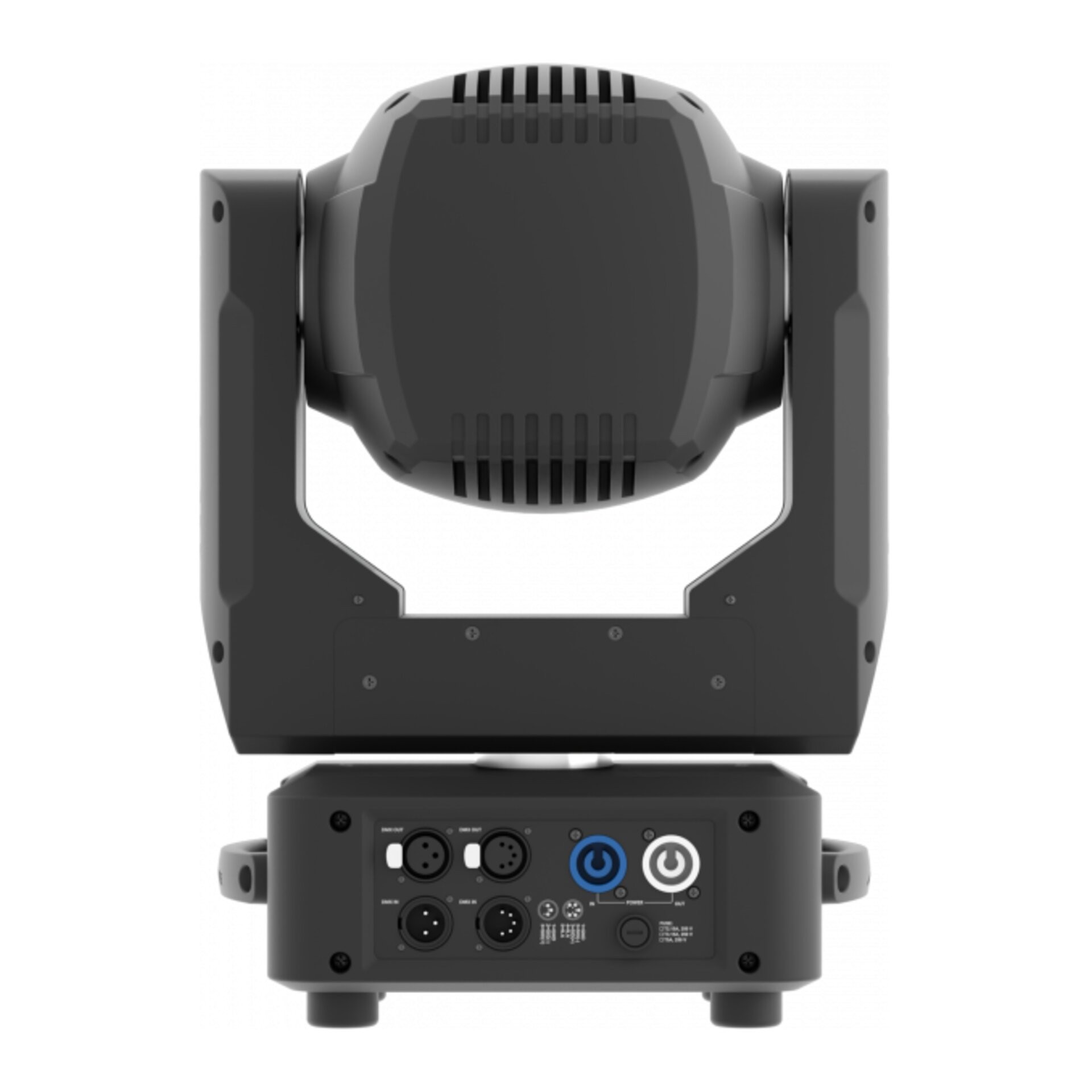

Signaal aansluiting Amphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingPowerCon
IP waarde20, IP20
Gewicht11 kg
Logistieke eigenschappen
Hoogte verpakking
44 cm
Breedte verpakking
29 cm
Diepte verpakking
20 cm
Gewicht verpakking
10.5 kg
