Lamp eigenschappen
KleursysteemRGB+WW - Full Color
Vermogen20W
Aansturing
Stand Alonepush encoder
Lichtbron
CCTCCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
Luminous flux627 @Full
Lux1352lx @5 m full
Levensverwachting lichtbron> 90.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI94,2 @3.200K; 91,1 @5.600K
R997,2 @3.200K; 96,6 @5.600K
TM30 Rf91,7 @3.200K; 90,3 @5.600K
TM30 Rg105,9 @3.200K; 108,2 @5.600K
Optiek
Lens diameter60mm
Min. Zoombereik6
Kleuren
KleurmengingRGB + Warm White
Wit macro's2.800 K ~ 10.000K
Kleurenwielgel filters included
Behuizing
Kleur behuizingZwart
Aansturing
DMX kanalen1 / 2 / 5 / 6 / 9 / 12 / 13ch
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLED display user interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMfor remote addressing and parameter configuration
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
BedrijfstemperatuurTa -10 to +45 °C (+14 to +113 °F)
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 to 25000 Hz (selectable steps)
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik25W
Power factor> 0,9
Fysieke eigenschappen
Koelingfan-free with natural convection

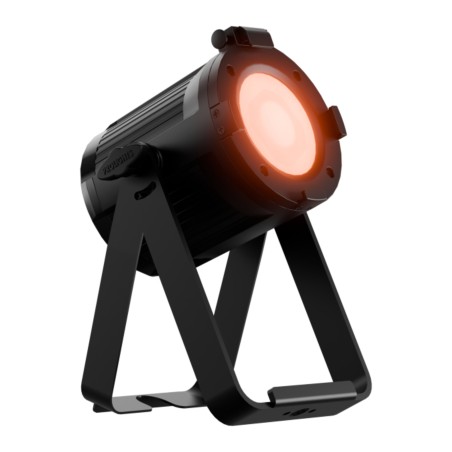

Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

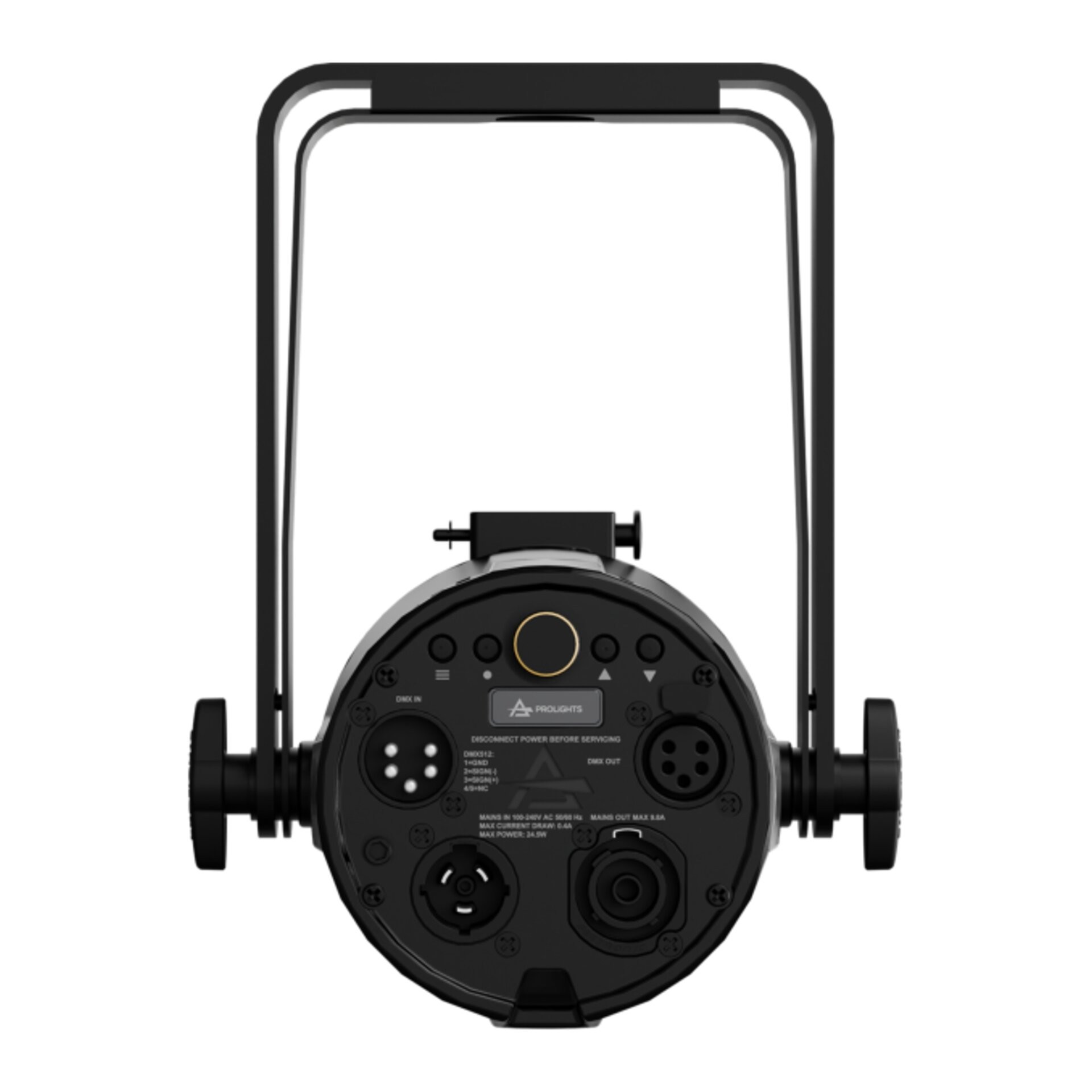

StroomaansluitingPowerCon TRUE1
IP waardeIP20
Gewicht1kg kg
Overige eigenschappen
Lichtbron1 x 20W RGB + Warm White LED
Singlecolor LED
