Algemeen
Artikelnummer
23-00055
Merk
ProLights
Artikelnummer fabrikant
LUMIPIX12UQPRO
Garantie
2 jaar
Lichtbron

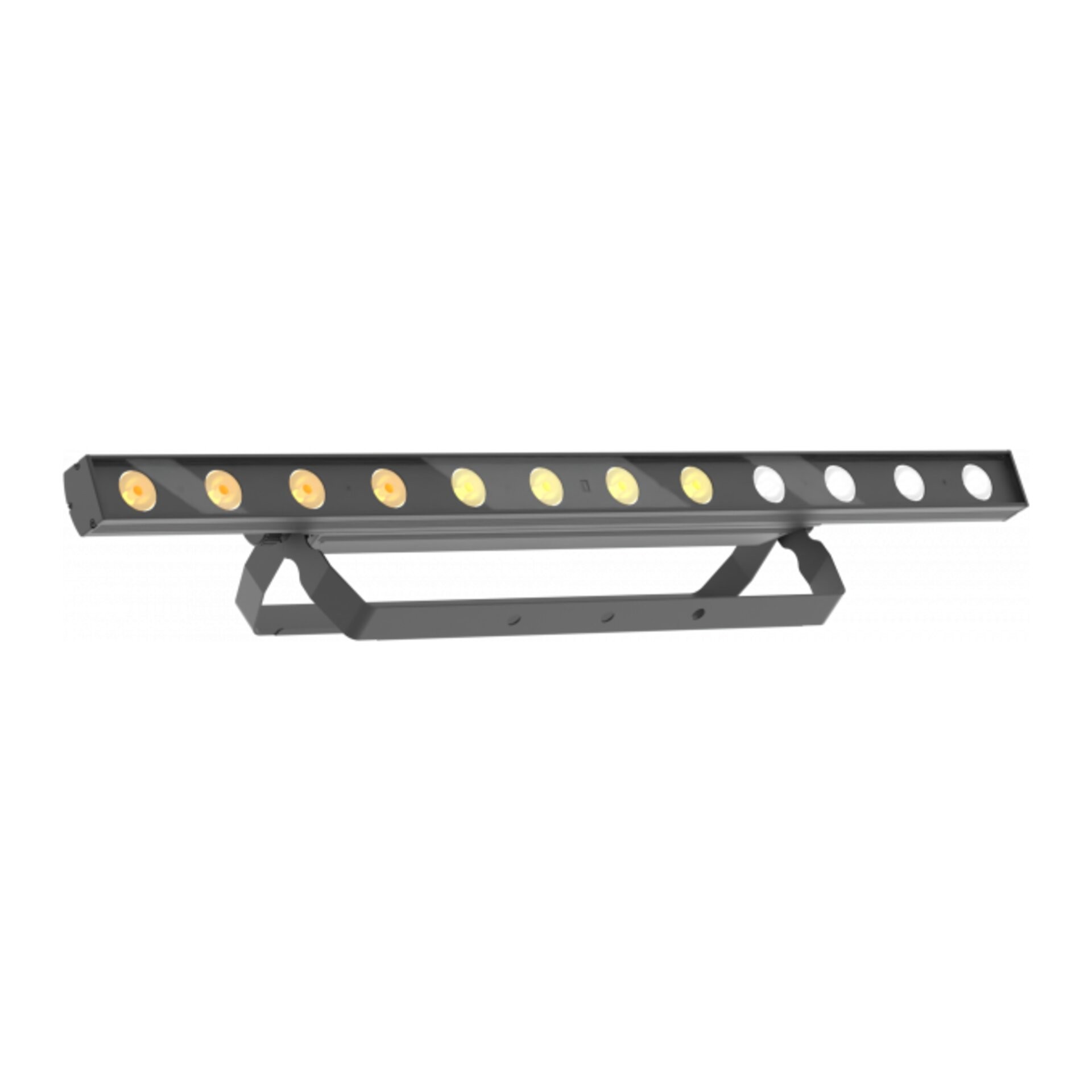

Lichtbron12x8W RGBW LEDs
CCT CCT control through dedicated DMX channel
Luminous flux2'241lm
Lux1'813lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter38mm
Extra optieken45° (optional)
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGBW / FC
Kleurenwiel virtual colour wheel with macros
Effecten
Macros several pre-build pixel macros with adjustable speed
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512
DMX kanalen4 / 7 / 9 / 12 / 17channel
Master/Slave for synchronised operation of more units linked in a chain
Display LED display user interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX optional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur 0° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik73,6W
Output (at 230V)18 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free

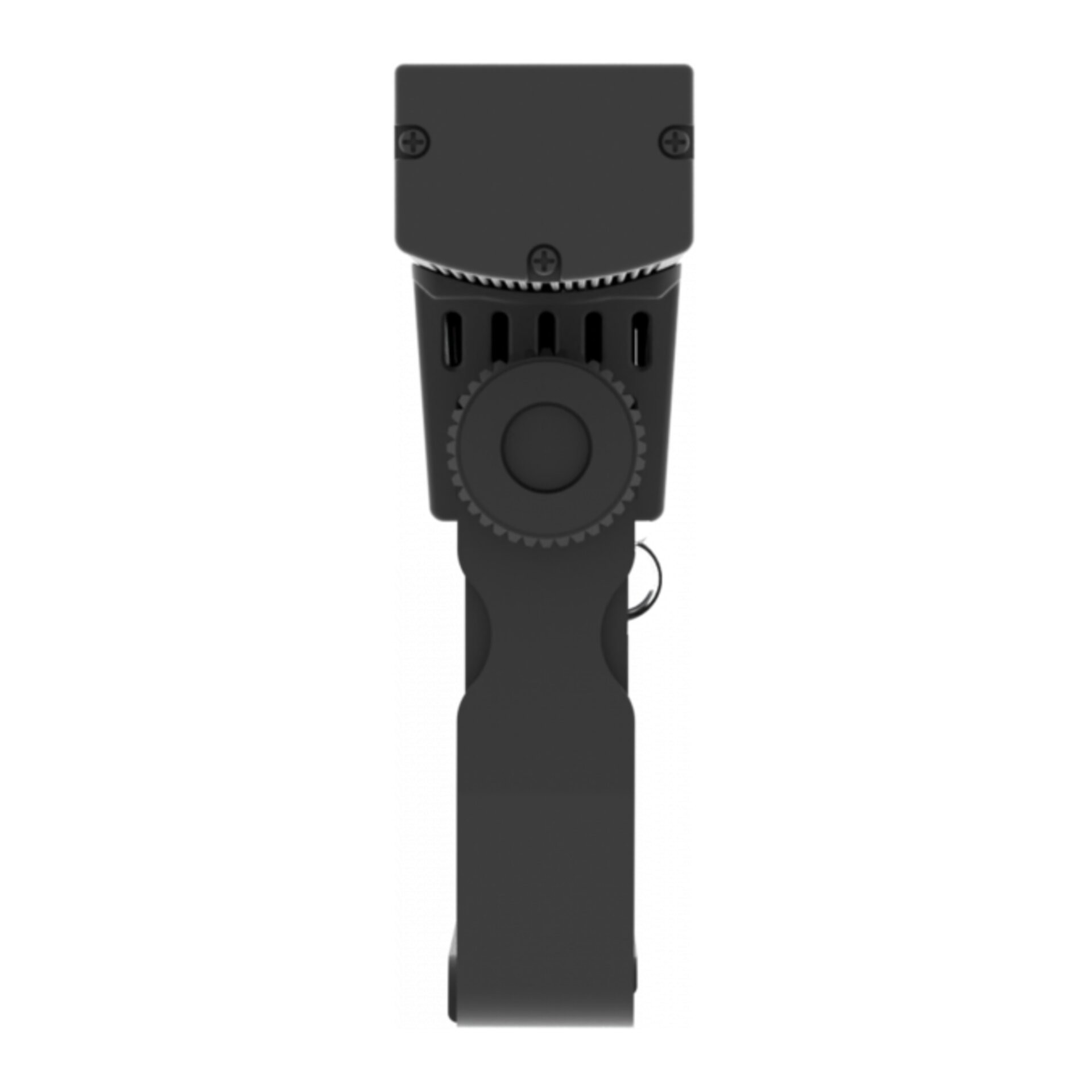

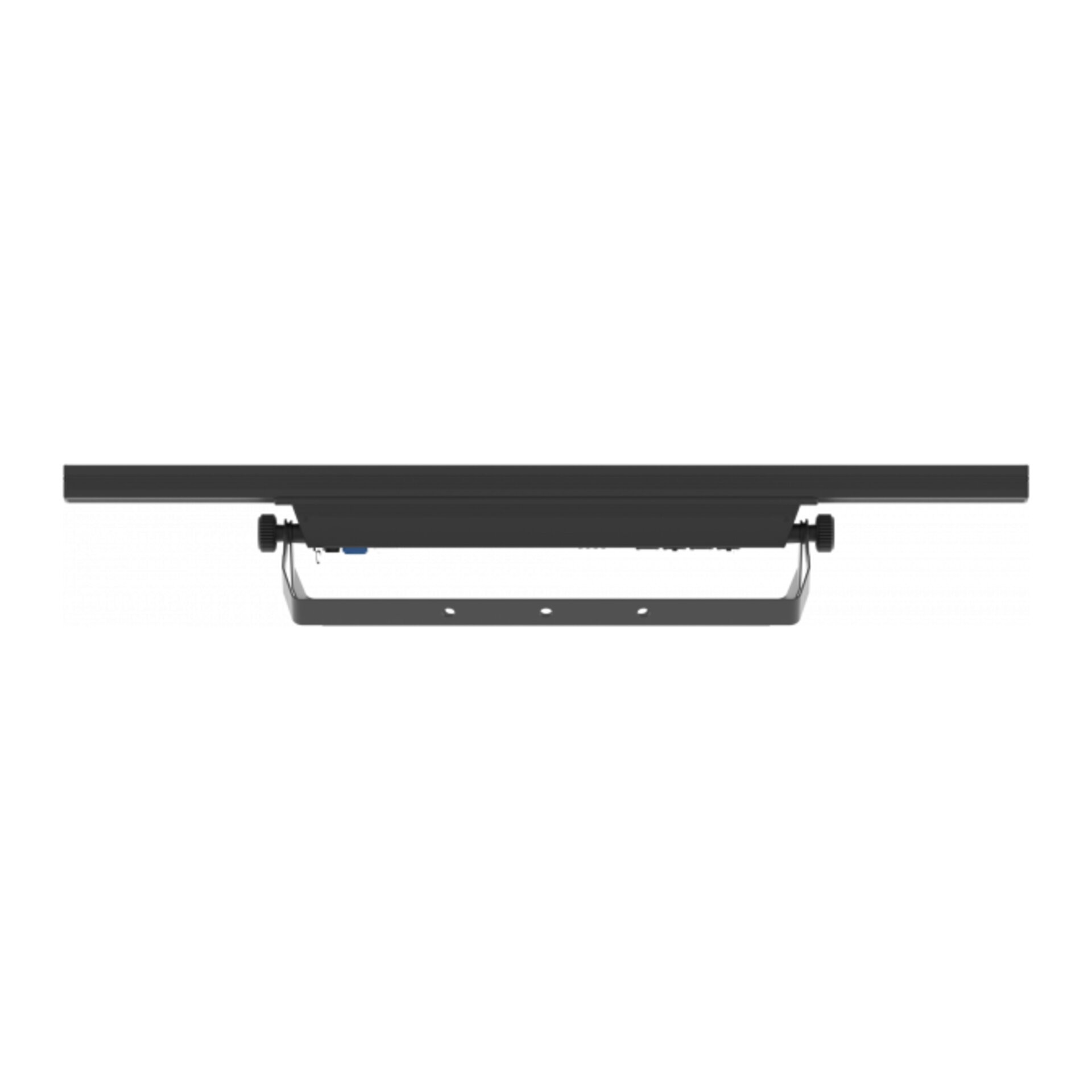

Bevestiging double hanging bracket suitable for safe hanging and for floor positioning

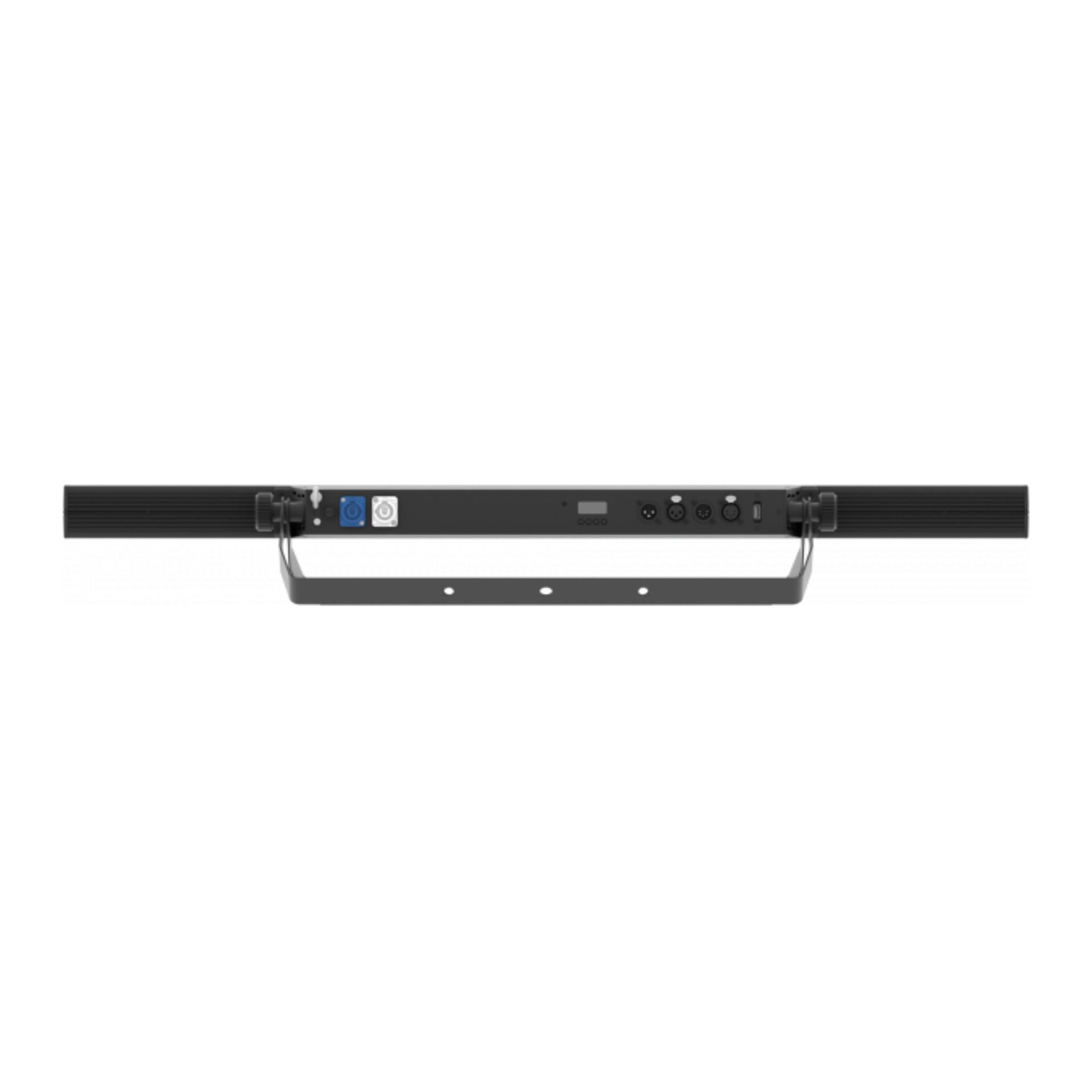

Signaal aansluiting XLR 3p + 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON IN/OUT connectors
IP waarde20
