Lichtbron

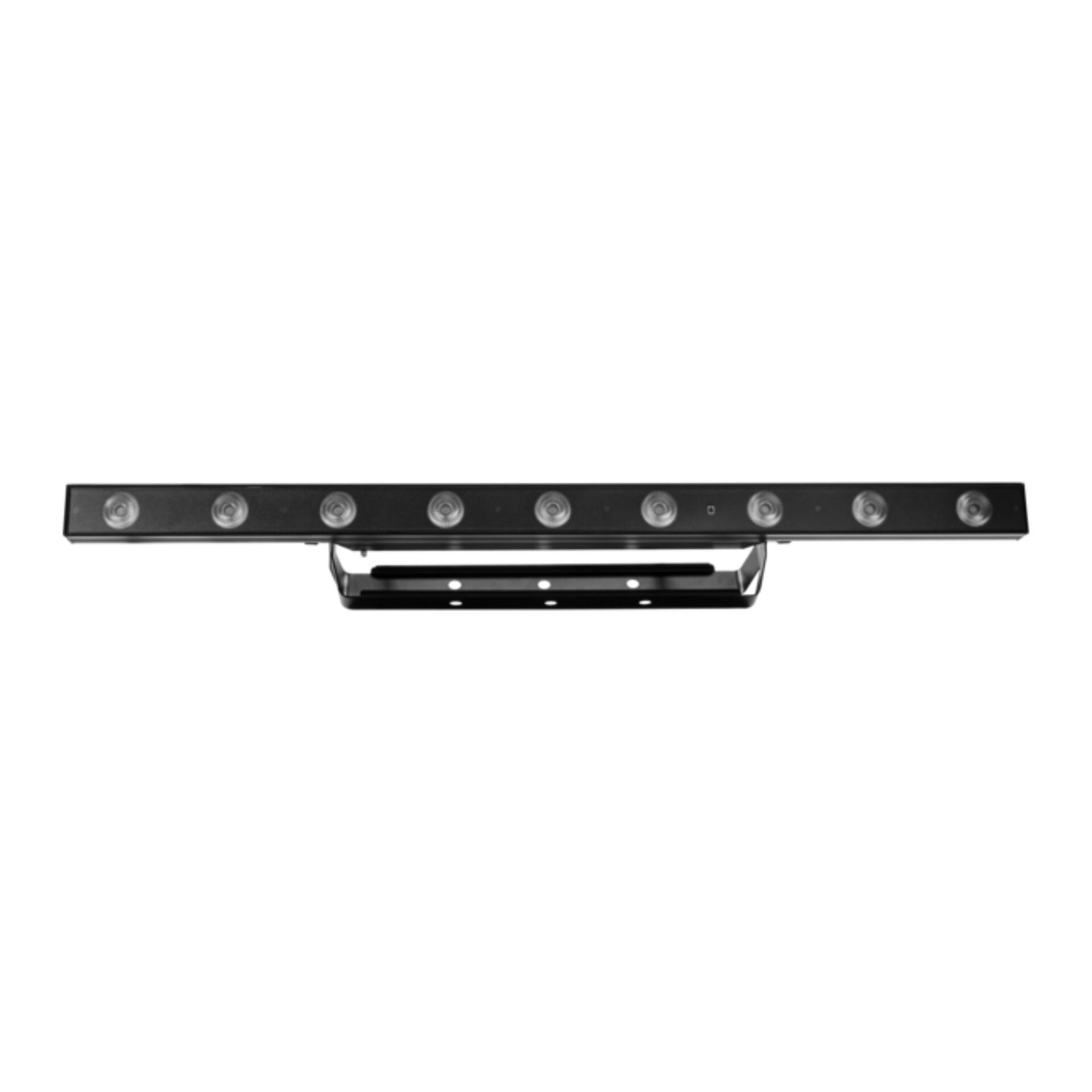

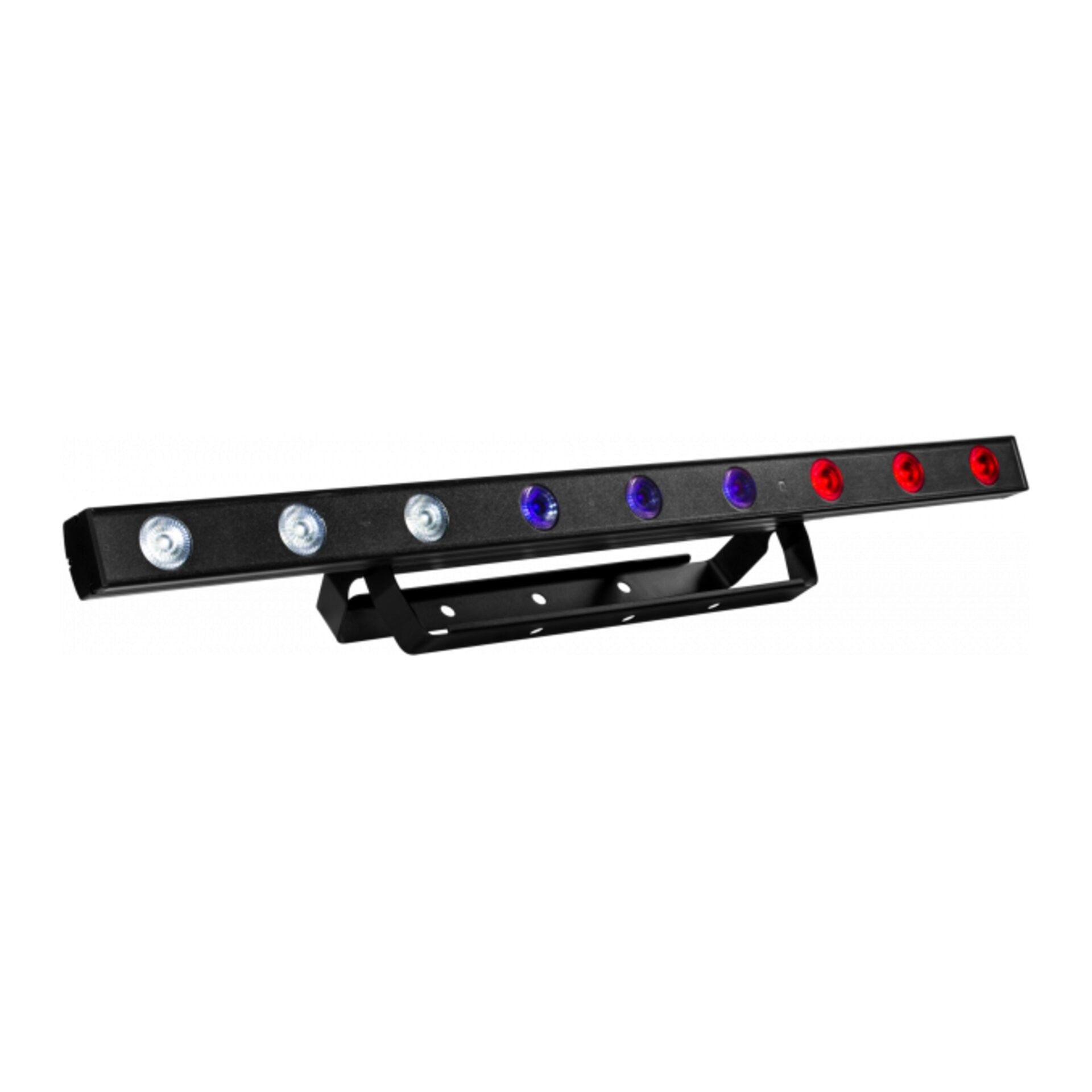

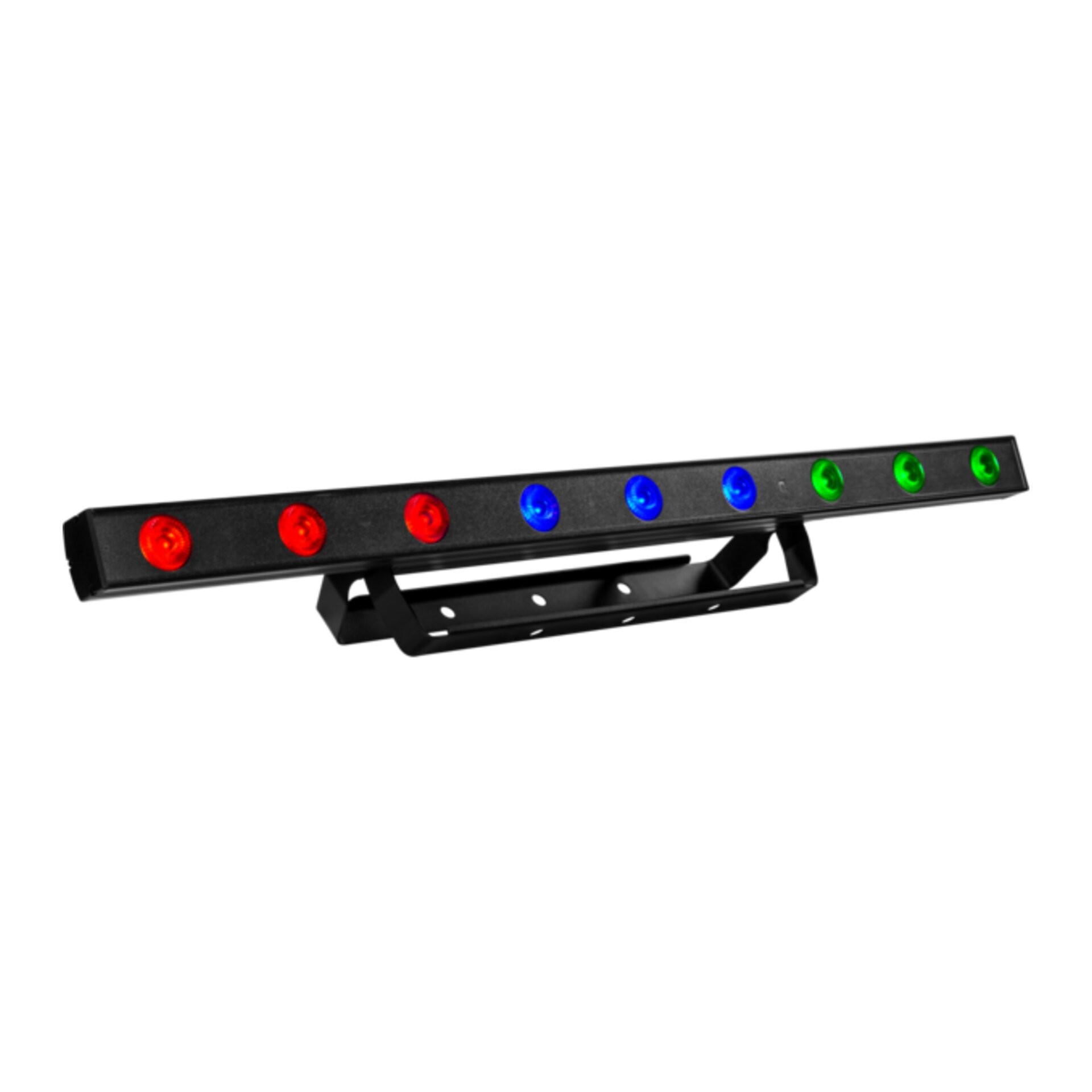

Lichtbron9x8W RGBWAP LEDs
Luminous flux(15°) 2'068lm

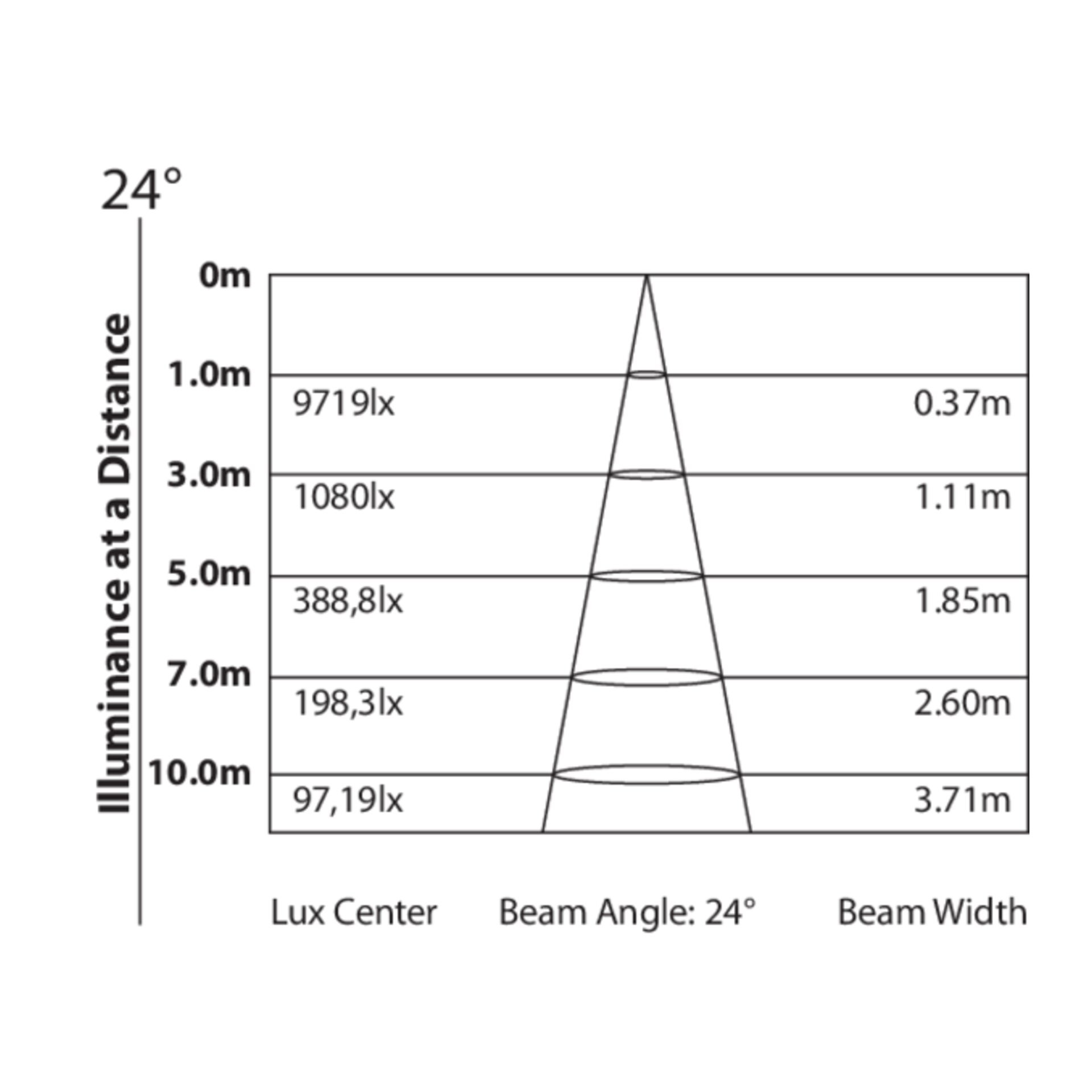

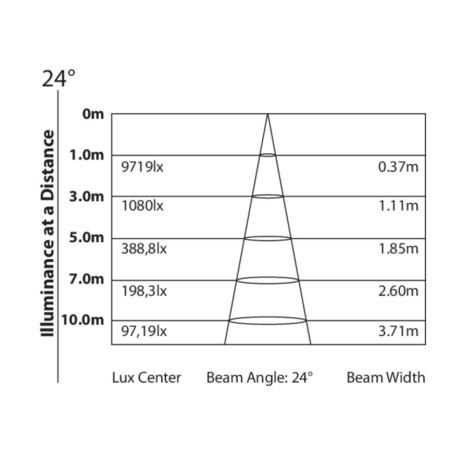

Lux1'080lx @3 m
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter42mm
Extra optieken25° and 45° (optional)
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBWAP / FC
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosseveral pre-build pixel macros with adjustable speed
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen6 / 9 / 11 / 18 / 23channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik78,5W
Output (at 230V)15 units on a single power line
Fysieke eigenschappen
Koelingpassive cooling and fan-free

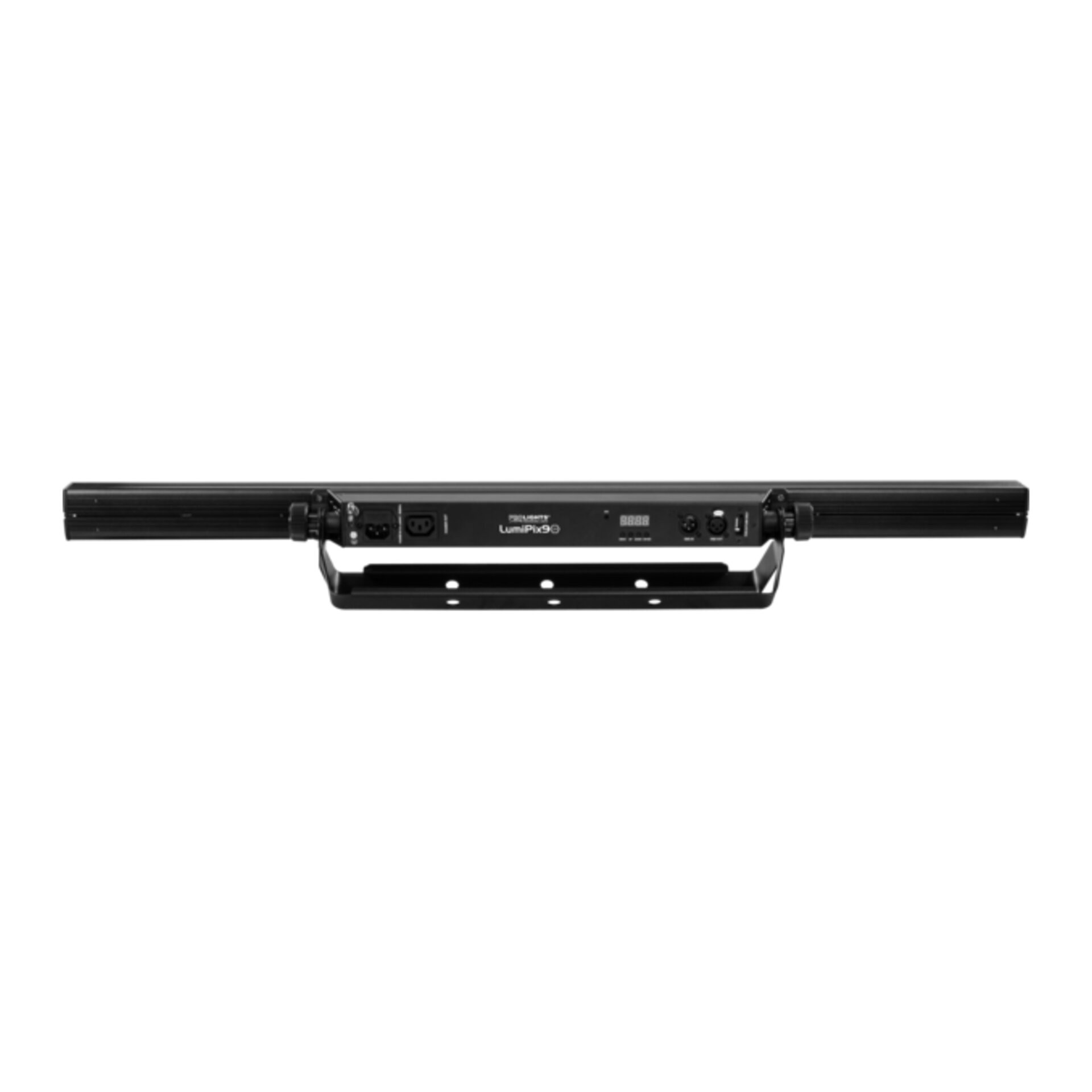

Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluitingXLR 3p IN/OUT connectors
StroomaansluitingIEC IN/OUT connectors
IP waarde30
Logistieke eigenschappen
Hoogte verpakking
5.5 cm
Breedte verpakking
100 cm
Diepte verpakking
16.8 cm
Gewicht verpakking
3.2 kg
