Lamp eigenschappen
KleursysteemRGBW - Full Color
Vermogen96W
Lichtbron

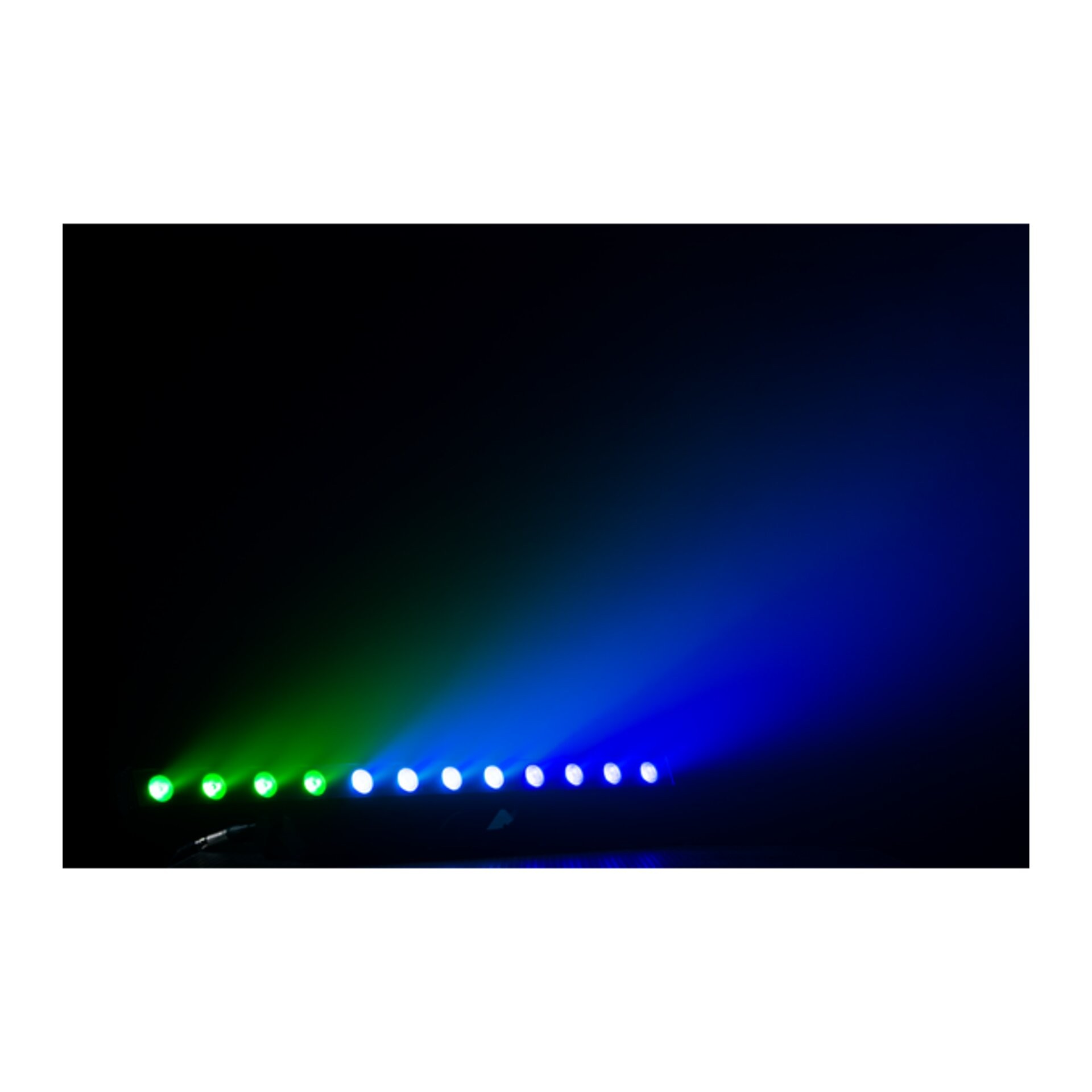

Lichtbron12x8W RGBW LEDs
CCTCCT control through dedicated DMX channel
Luminous flux2'224lm
Lux1'813lx @3 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter38mm
Extra optieken45° (optional)
Min. Zoombereik19
Max. Zoombereik45
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBW / FC
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosseveral pre-build pixel macros with adjustable speed
EffectenLed ring
Behuizing
Kleur behuizingZwart, black
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen4 / 7 / 9 / 12 / 17channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur0° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik71W
Output (at 230V)18 units on a single power line
Fysieke eigenschappen
Koelingpassive cooling and fan-free

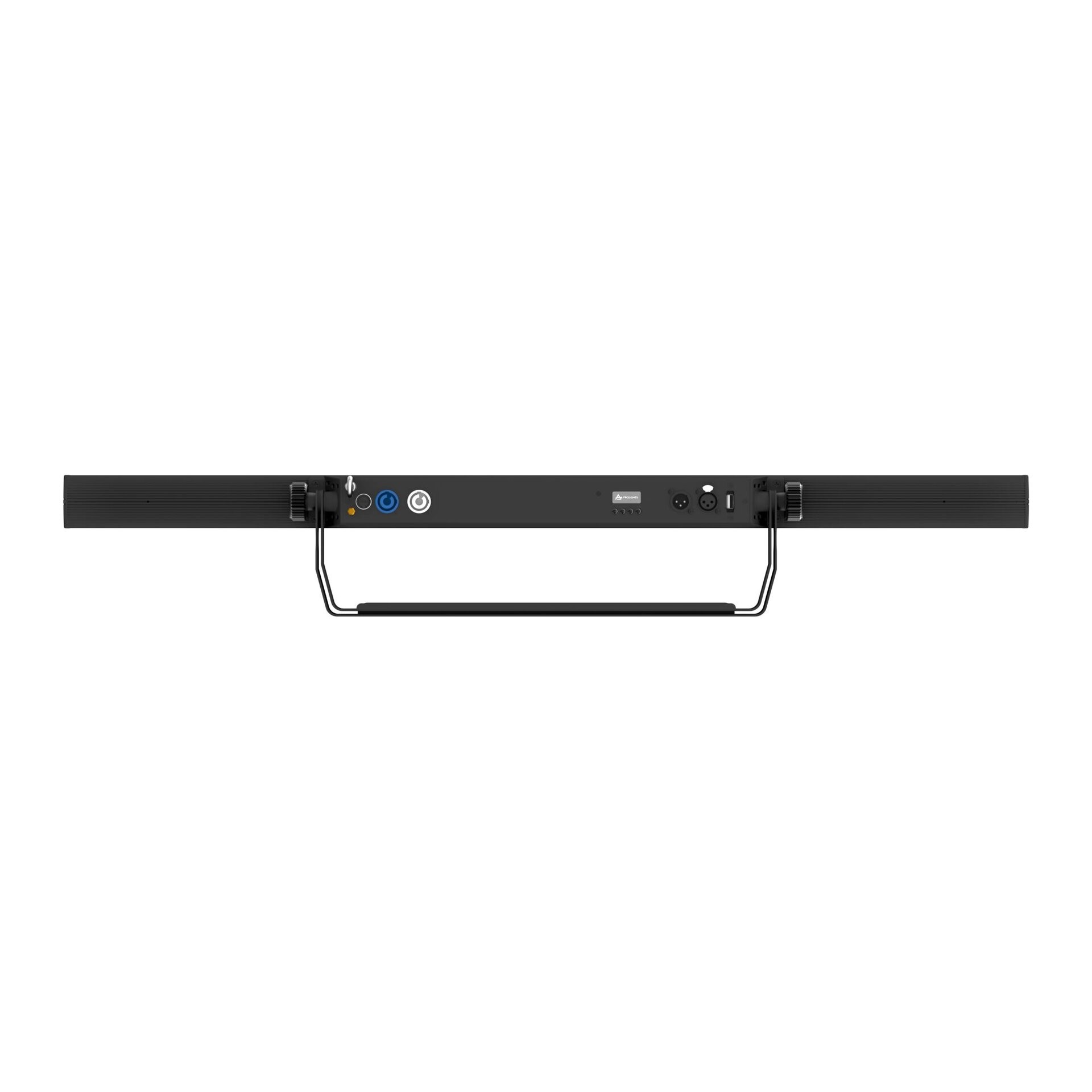

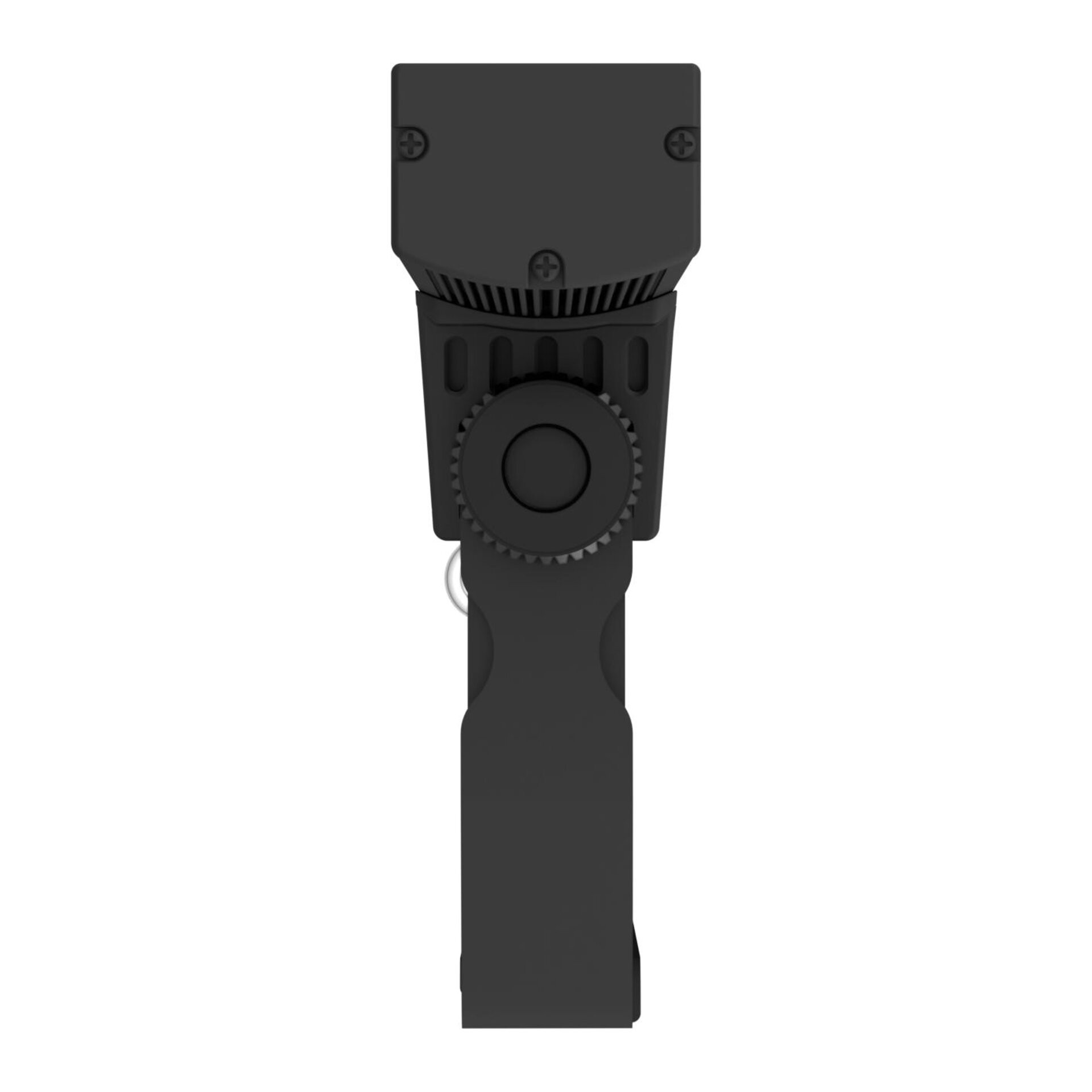

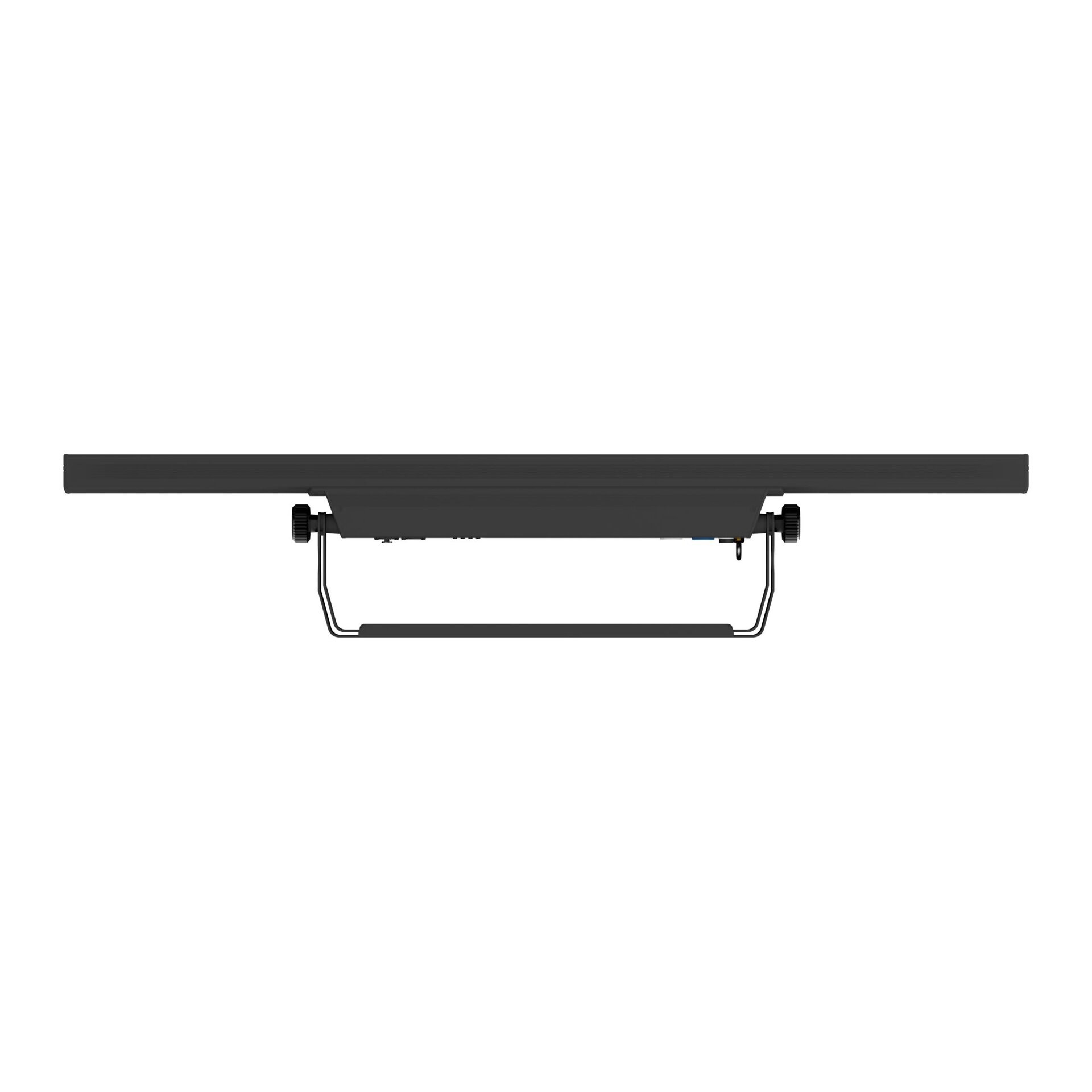

Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluitingXLR 3p IN/OUT connectors
StroomaansluitingPowerCon, Seetronic powerCON IN/OUT connectors
IP waarde20, IP20
Gewicht3 kg
Logistieke eigenschappen
Gewicht verpakking
4.25 kg
