Algemeen
Artikelnummer
23-00040
Merk
ProLights
Artikelnummer fabrikant

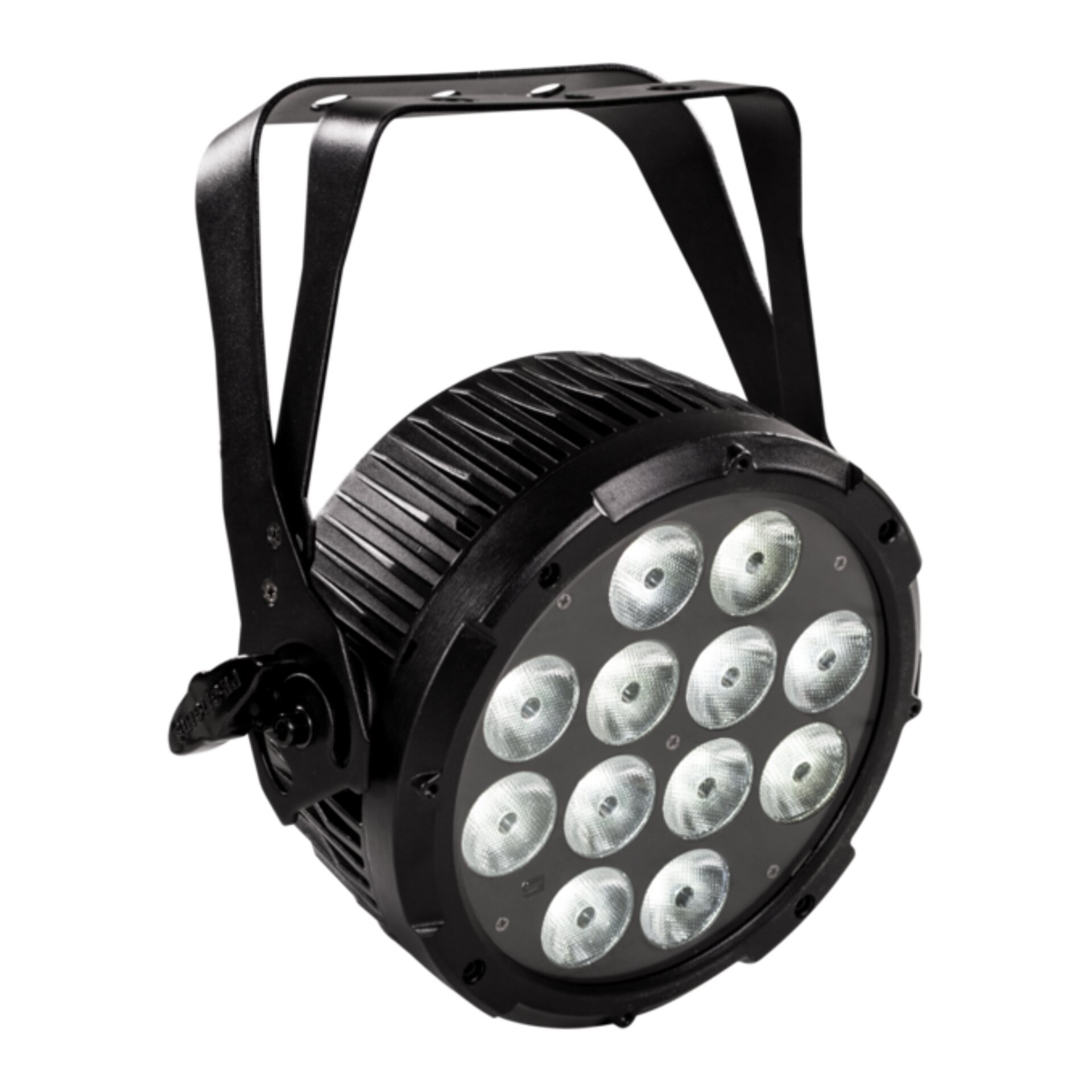

LUMIPAR12UAW3
Garantie
2 jaar
Lichtbron
Lichtbron12x6W Tunable White LEDs
CCT CCT control through dedicated DMX channel
Luminous flux1'844lm
Lux1'336lx @3 m
Levensverwachting lichtbron > 50.000 h
CRI(WW) 82 - (CW) 80
Optiek
Lens diameter38mm
Extra optieken45° (optional)
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Kleurmenging tunable white
Wit macro's2.600 K ~ 6.000K
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512
DMX kanalen3 / 7channel
Master/Slave for synchronised operation of more units linked in a chain
Display LED display user interface
W-DMX optional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik61W
Output (at 230V)40 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluiting variants available

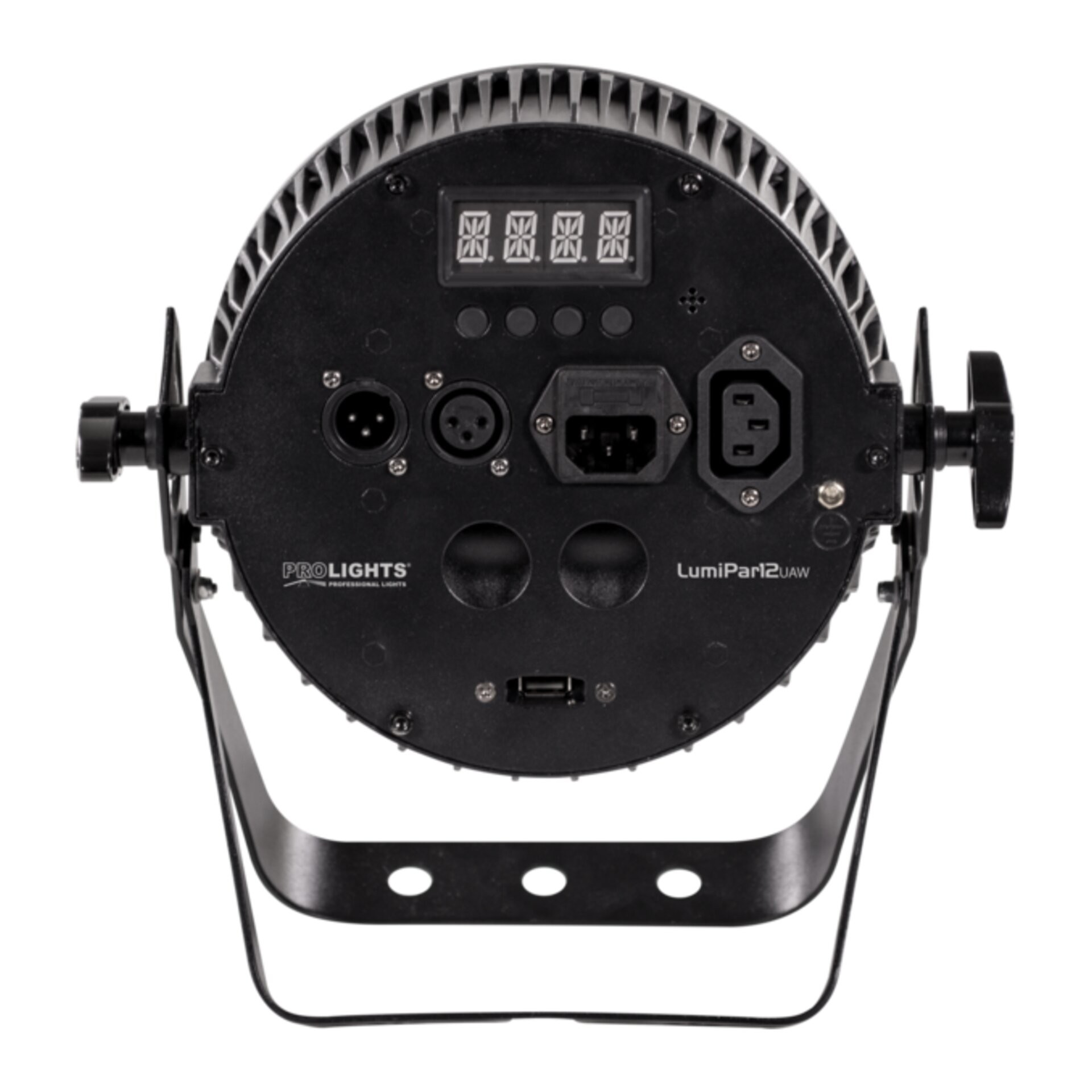

Stroomaansluiting Seetronic powerCON IN/OUT connectors
IP waarde44
Logistieke eigenschappen
Gewicht
3.2 kg
