Algemeen
Artikelnummer
23-00037
Merk
ProLights
Artikelnummer fabrikant
LUMIPAR12UQPRO5
Garantie
2 jaar
Lichtbron
Lichtbron12x8W RGBW LEDs
CCTW: 6.600K
Luminous flux3'035,7lm
Lux3'113lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter38mm
Extra optieken25° (inc) - 45° (op)
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Kleurmenging RGBW / FC
Kleurenwiel virtual colour wheel with macros
Behuizing
Kleur behuizing black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen4 / 9channel
Master/Slave for synchronised operation of more units linked in a chain
Display LED display user interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX optional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik77W
Output (at 230V)17 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluiting variants available
Stroomaansluiting variants available
IP waarde44

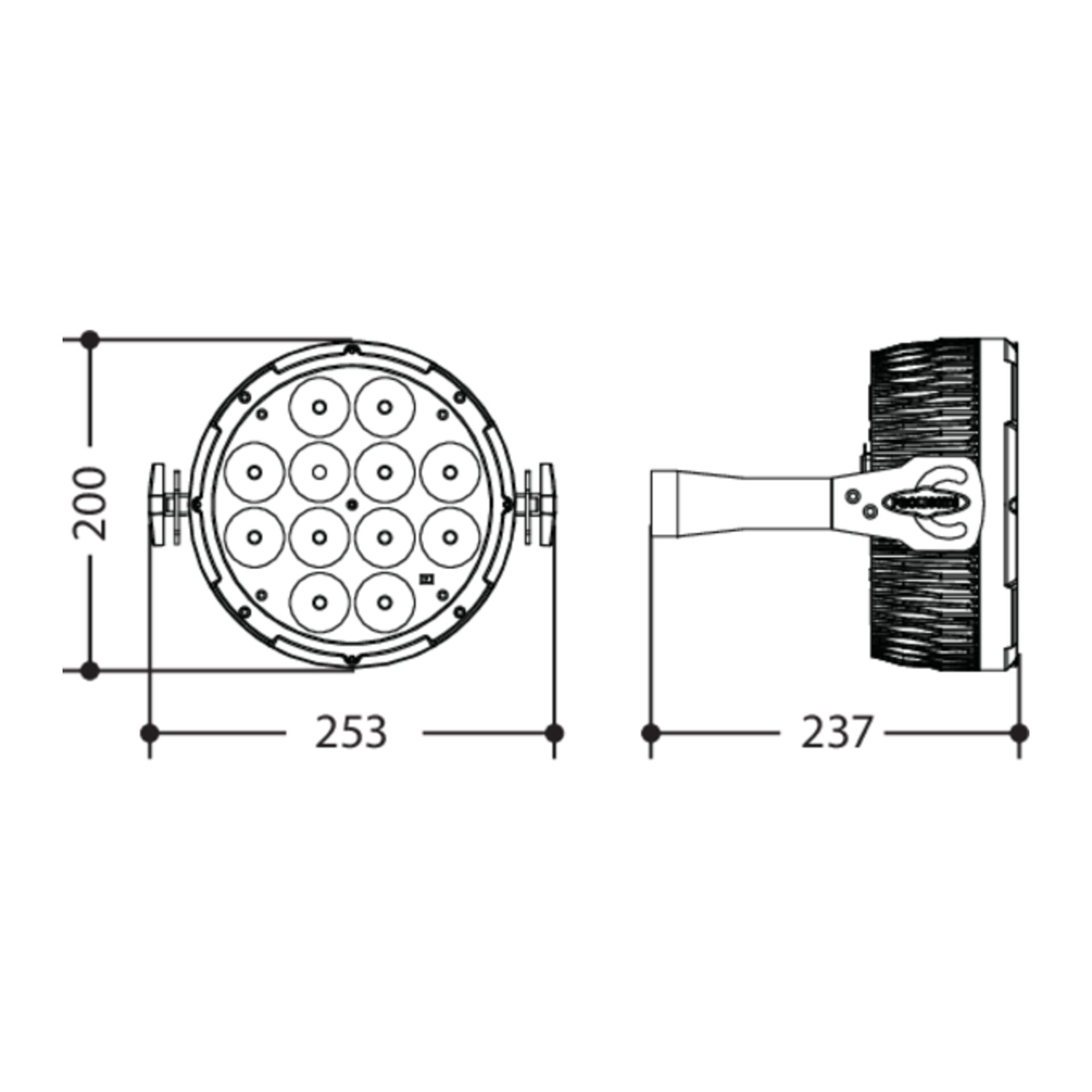

Logistieke eigenschappen
Hoogte
20 cm
Breedte
25.3 cm
Diepte
23.7 cm
Gewicht
3.3 kg
